Lewitt Audio CONNECT-2 USB-C Audio Interface

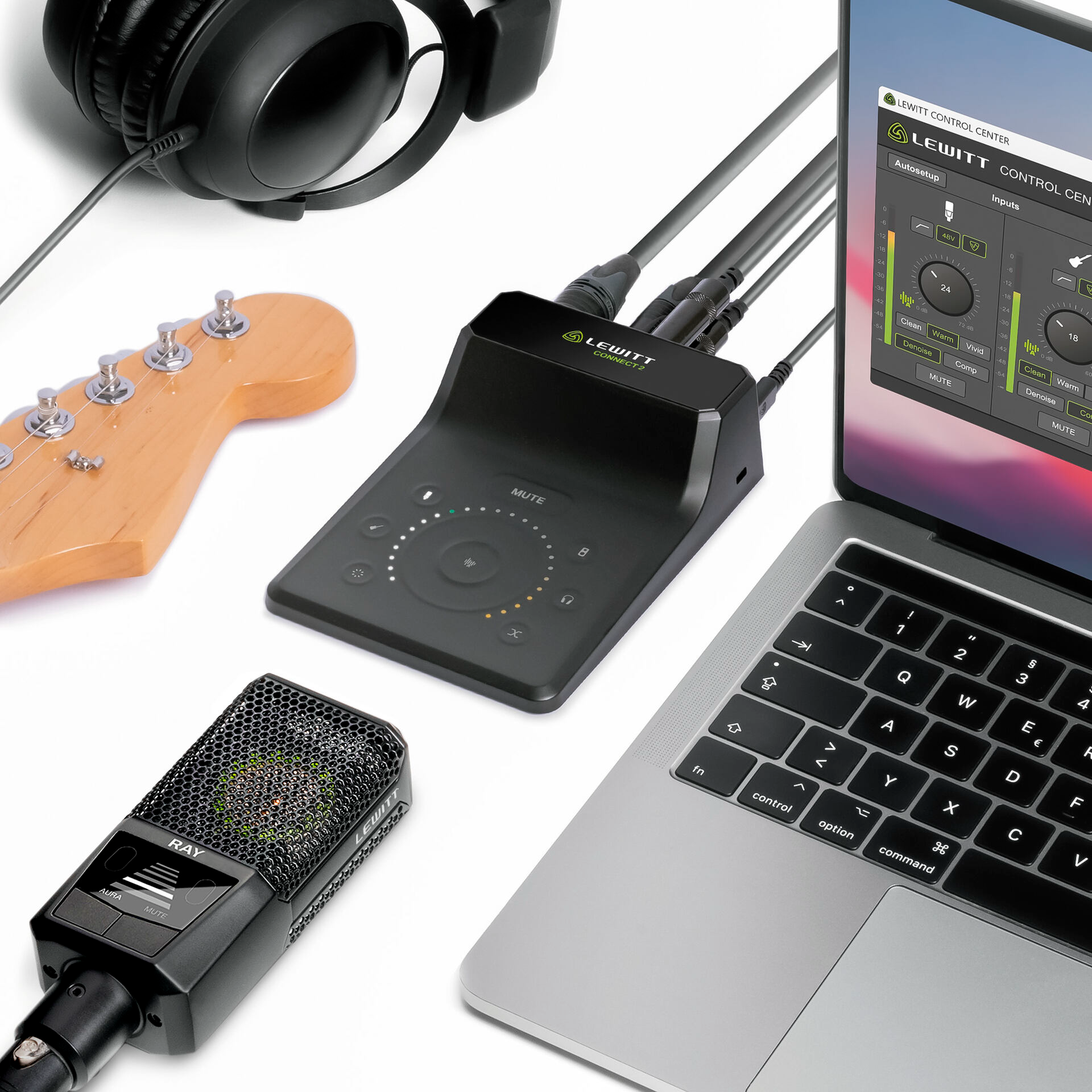

CONNECT 2 is the most user-friendly audio interface for musicians and content creators. It combines great usability, powerful features, and incredible specs.

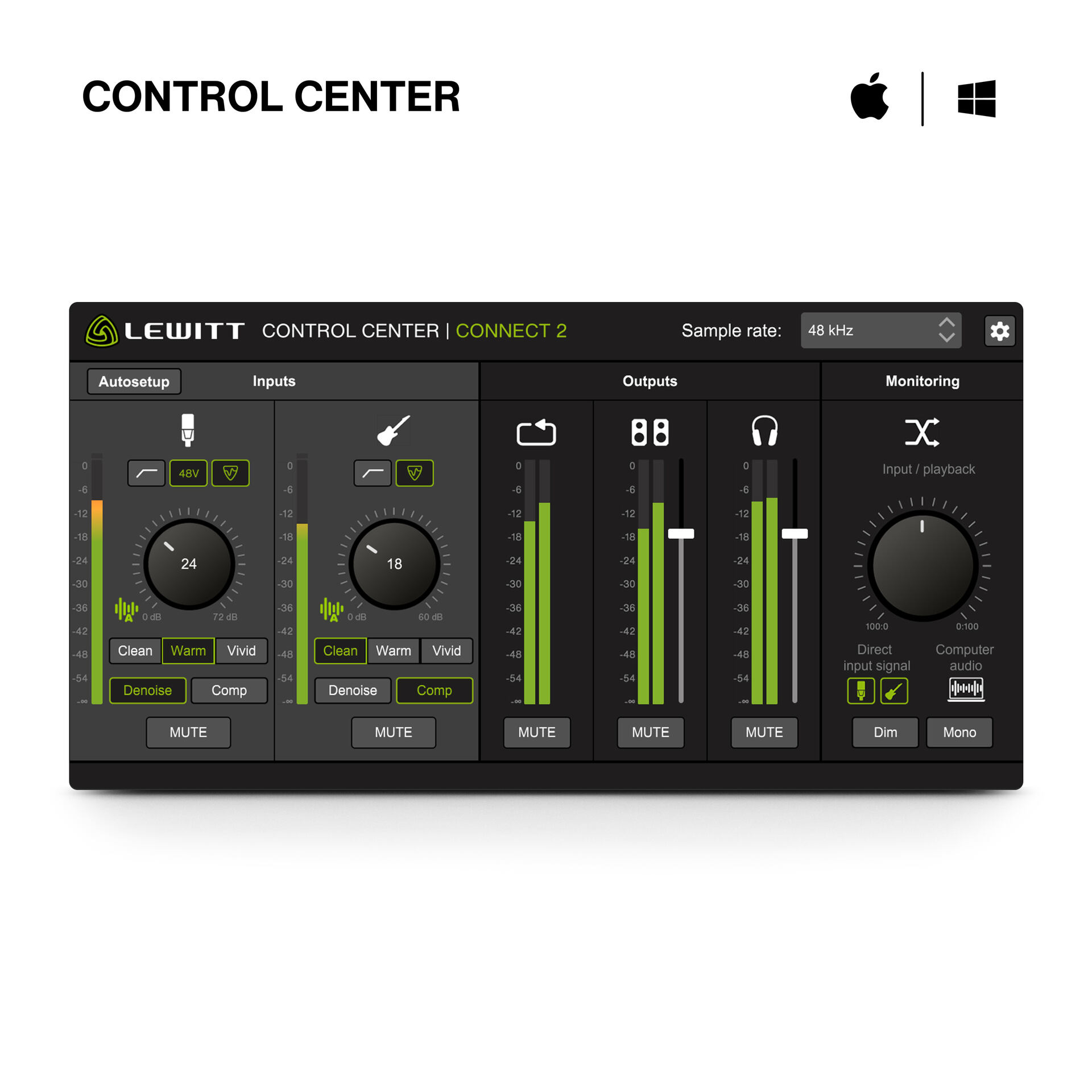

Comes with CONTROL CENTER software and all the tools to make you sound sensational with just a few clicks.

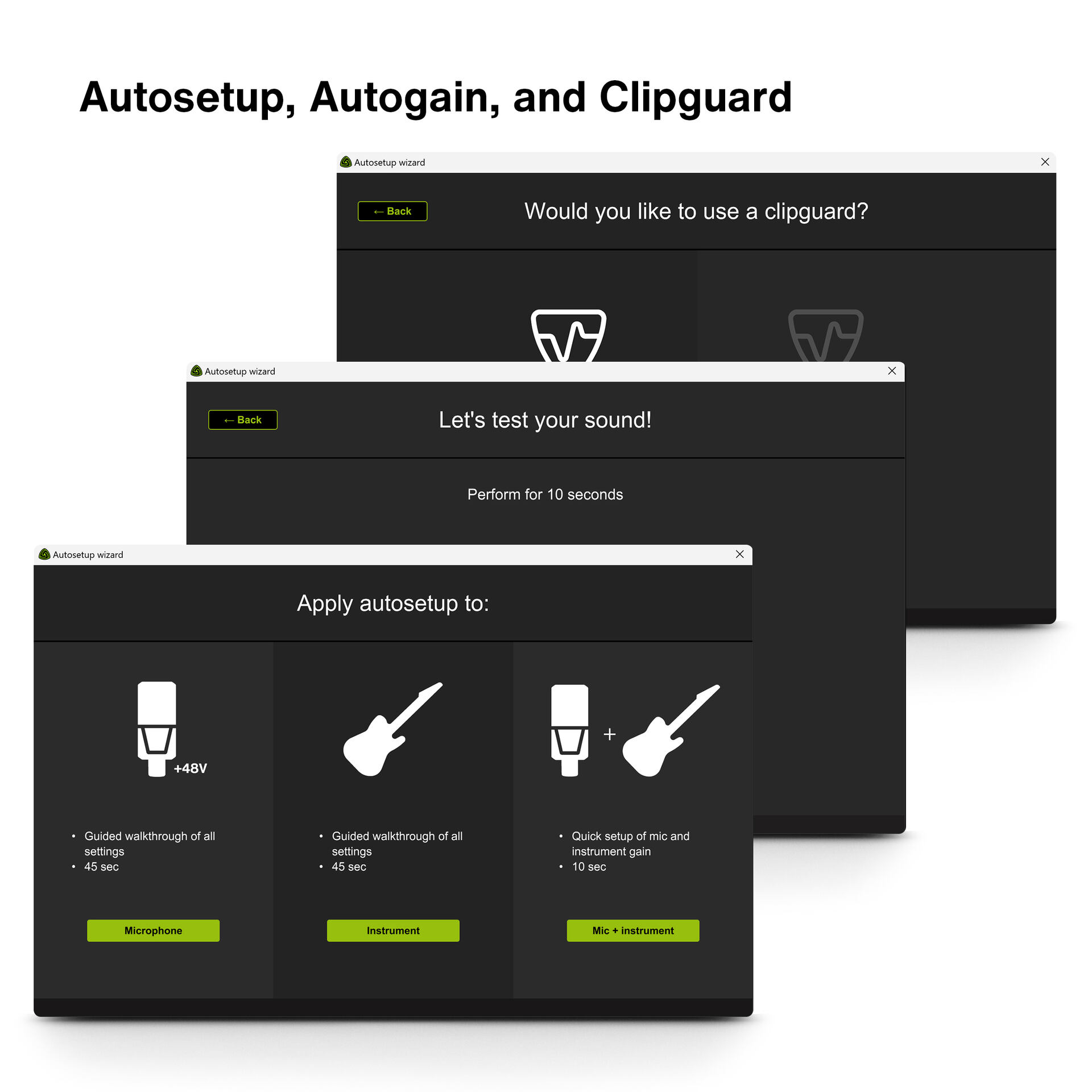

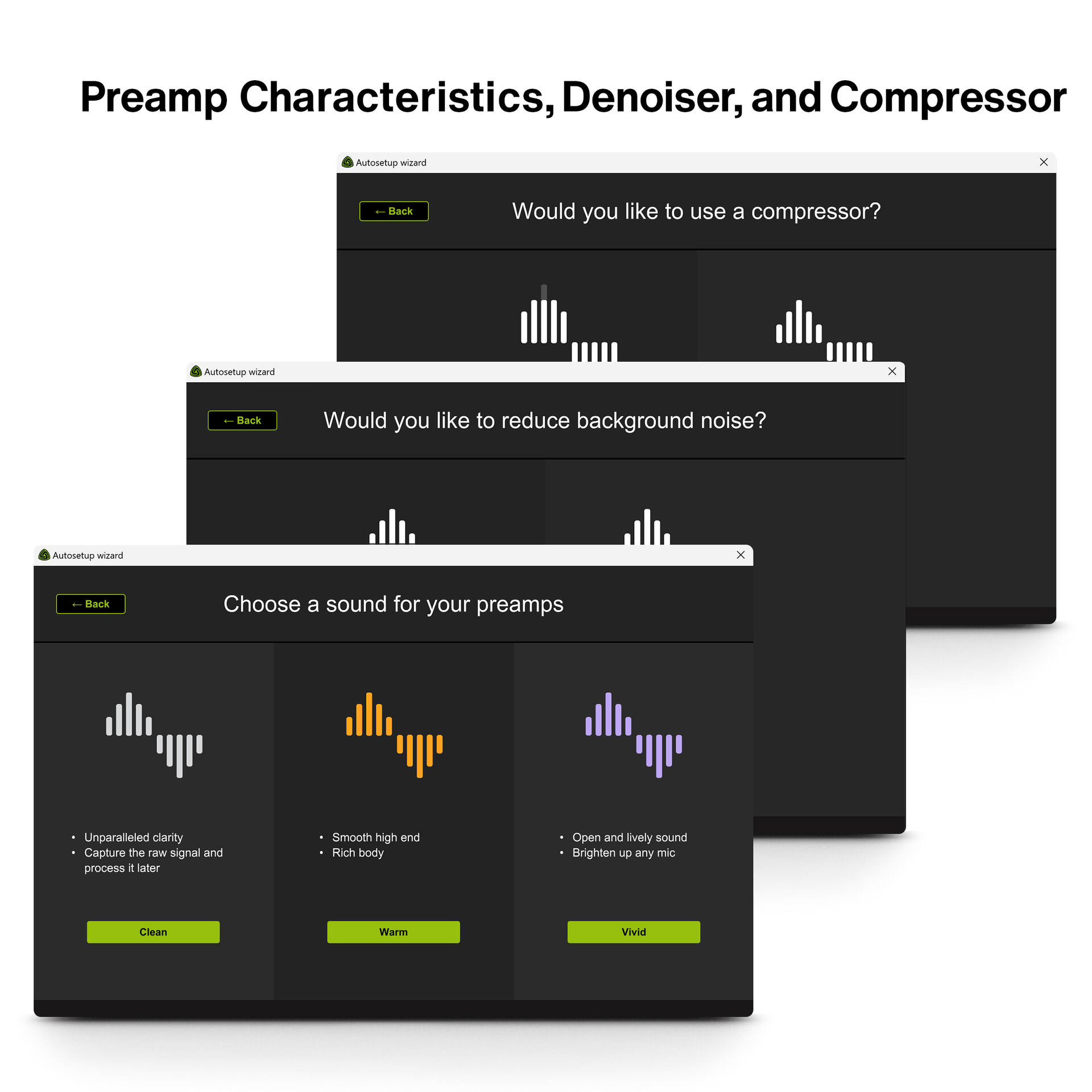

Autosetup dials in your optimal settings
With CONNECT 2, you don't need an audio engineering degree to sound great. Run Autosetup and quickly find your perfect settings with the help of the integrated Clipguard, Denoiser, Compressor, and three iconic preamp sounds.
Easy-to-use tools for perfect sound
Clipguard
Clipguard lets you perform without clipping. A single click is enough, and your signal is safe from clipping even when things get loud. Fantastic for streaming, podcasting, and recording alike.
Autogain
Autogain is the smart way of gain staging. It sets your input levels for your microphone and instrument automatically, saves time, and ensures optimal recording quality every time your inspiration strikes.
Denoiser
Denoiser uses audio expansion for a clearer signal. It gets background noise and humming out of the way while retaining your natural sound. Ideal for easy communication or recording.
Compressor
Compressor for professional sound quality and a uniform sound image. With CONNECT 2, a single click is enough to get a polished sound, just like your favourite record.
Three iconic preamp sounds for the right vibe
- Clean: Unparalleled clarity and fidelity. Perfect if you want to process your signal further.
- Warm: Provides a vintage vibe and smoothens the high-end of overly bright microphones.
- Vivid: Adds articulation and liveliness by boosting the right frequencies.

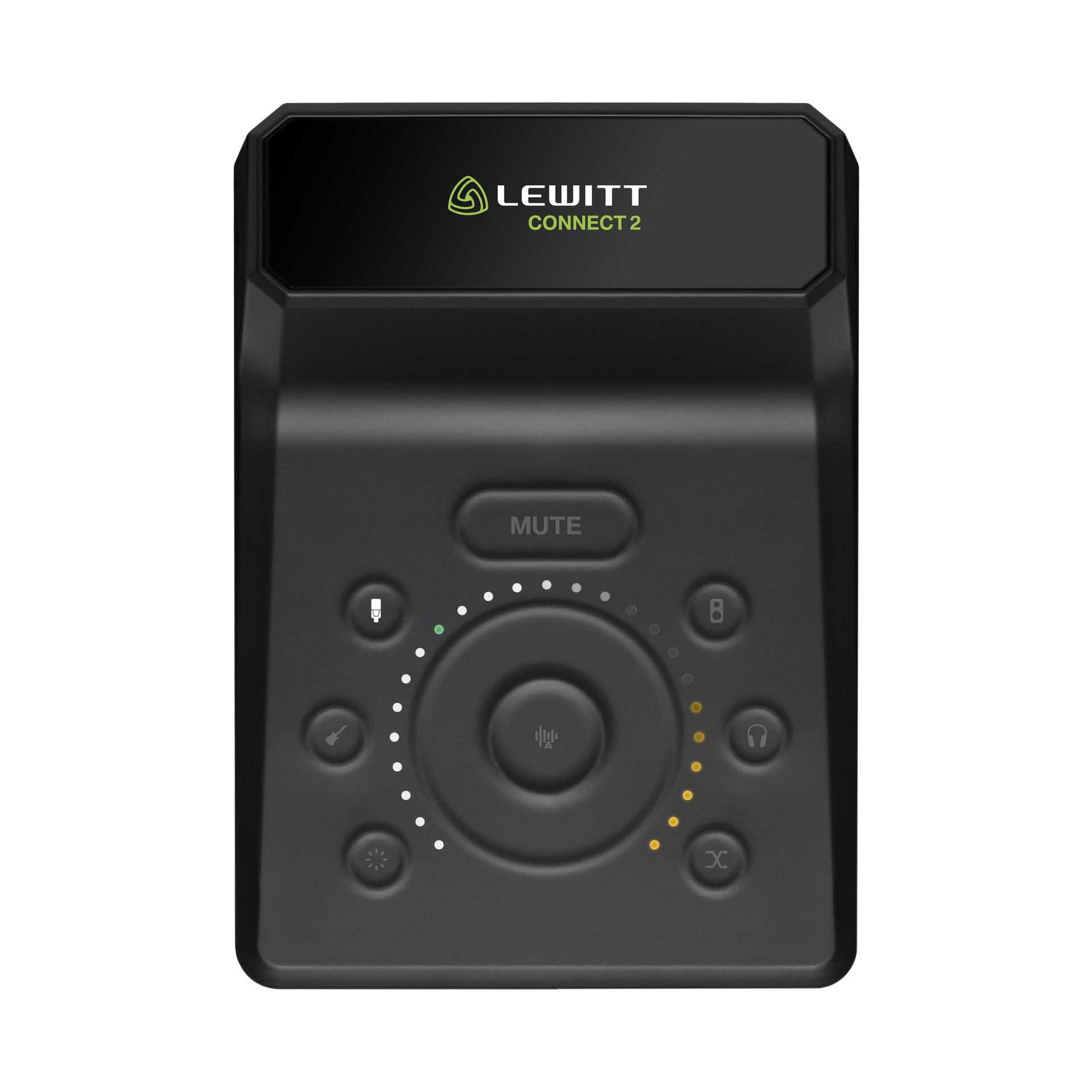

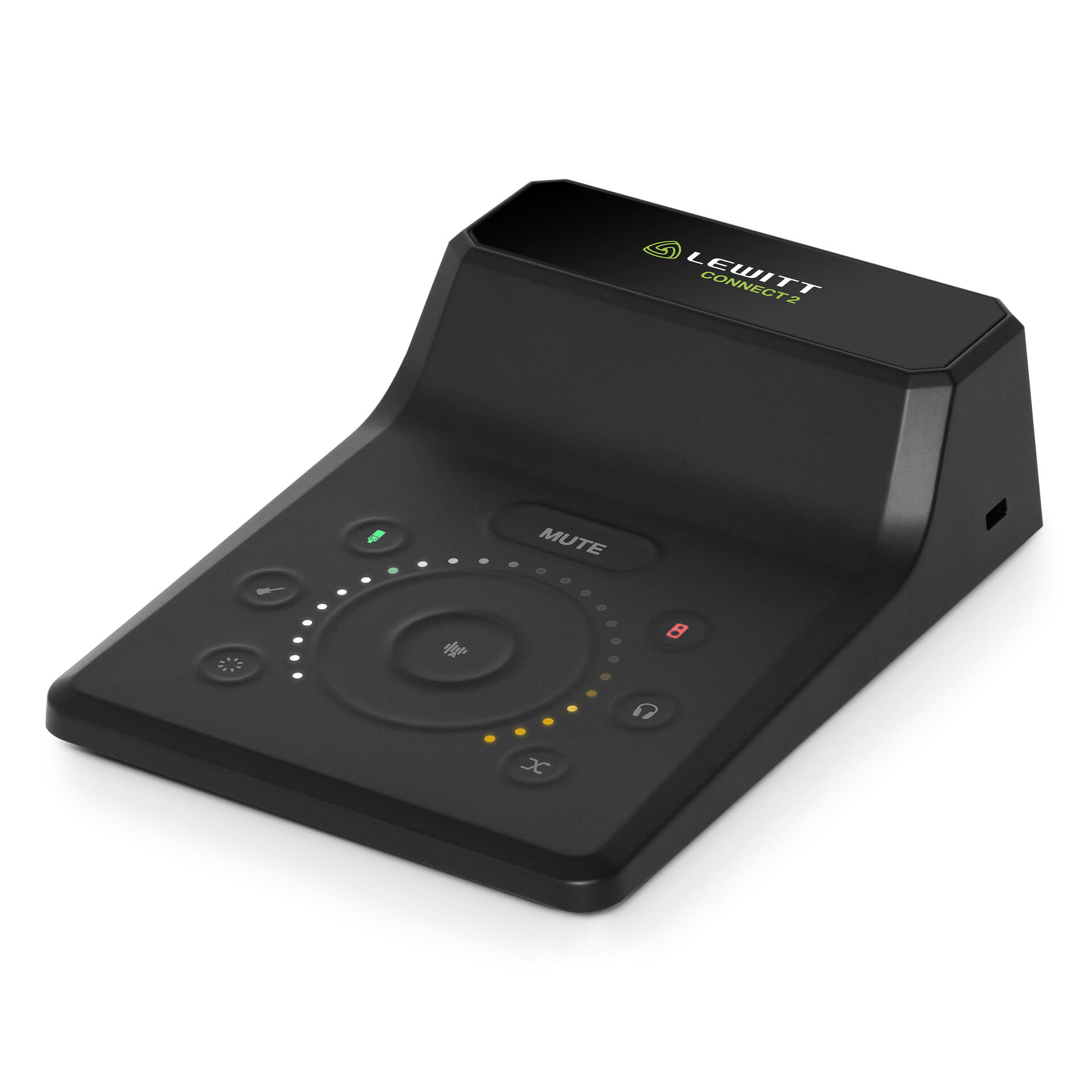

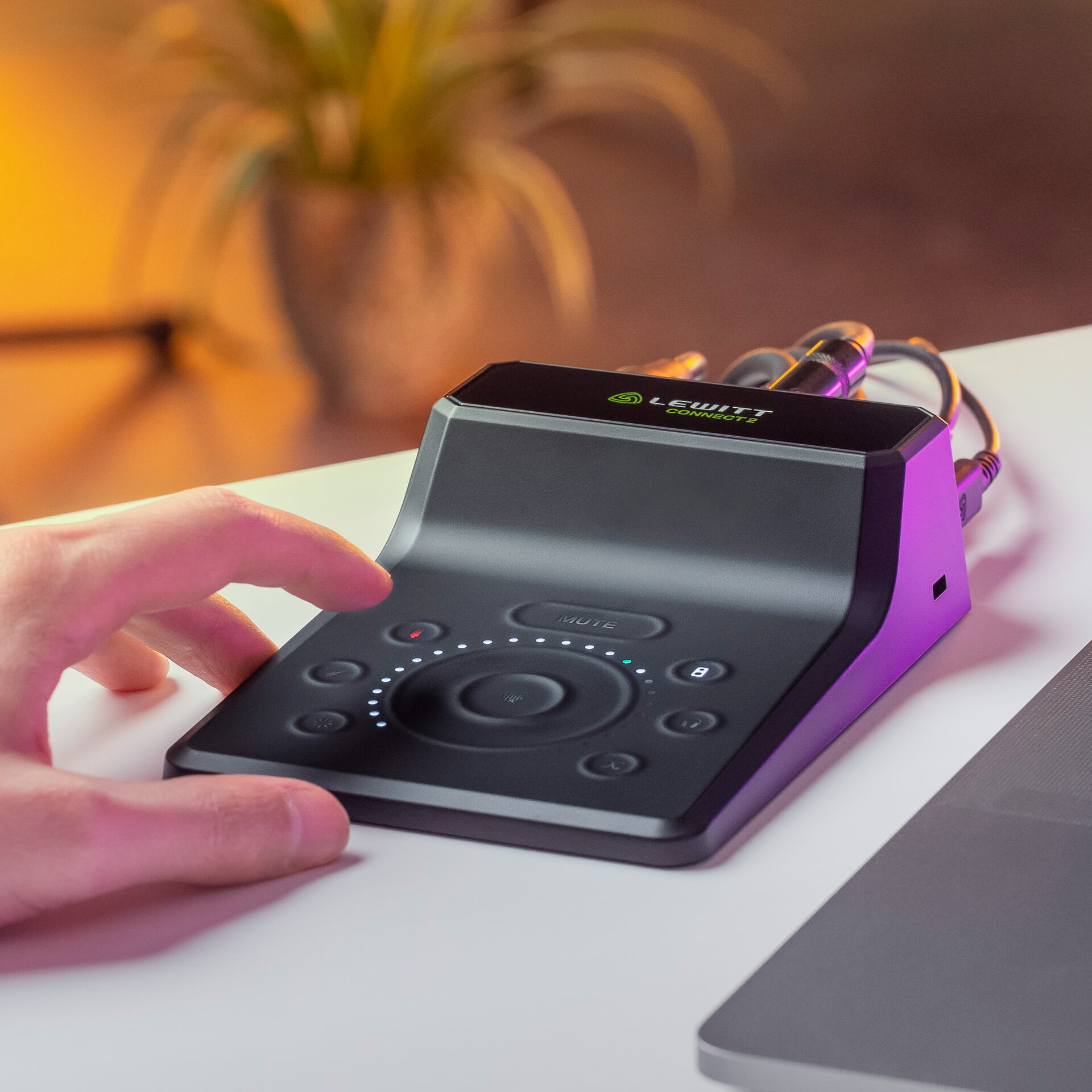

Touch-based user interface with intuitive controls and visual feedback
Direct mute control for all channels
Mute all channels separately on hardware and software. Hold MUTE to globally mute everything until you reset your channels.

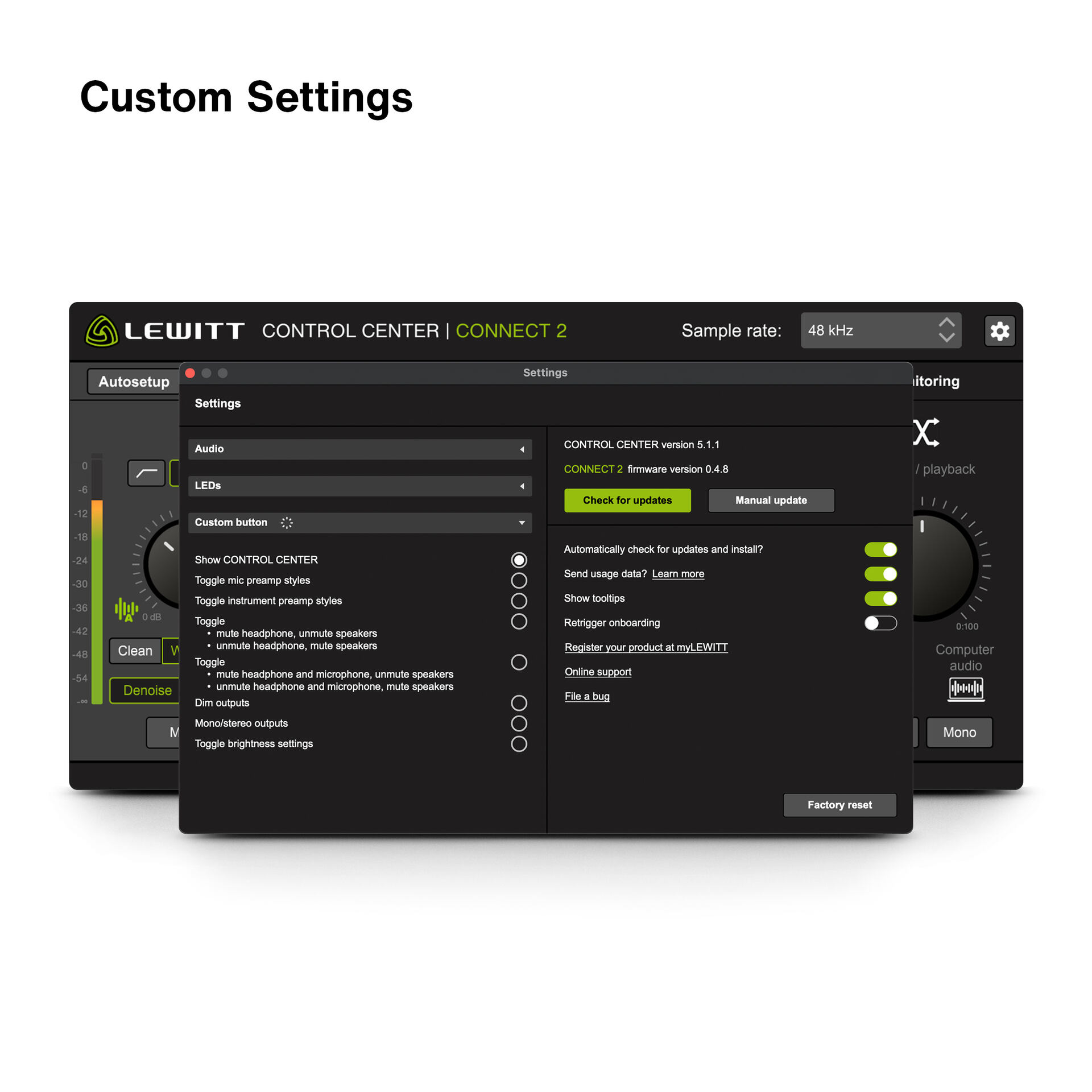

Custom button for workflow shortcuts
The custom button lets you assign workflow shortcuts. Switch from recording to monitoring, open the CONTROL CENTER, and more with a single push.

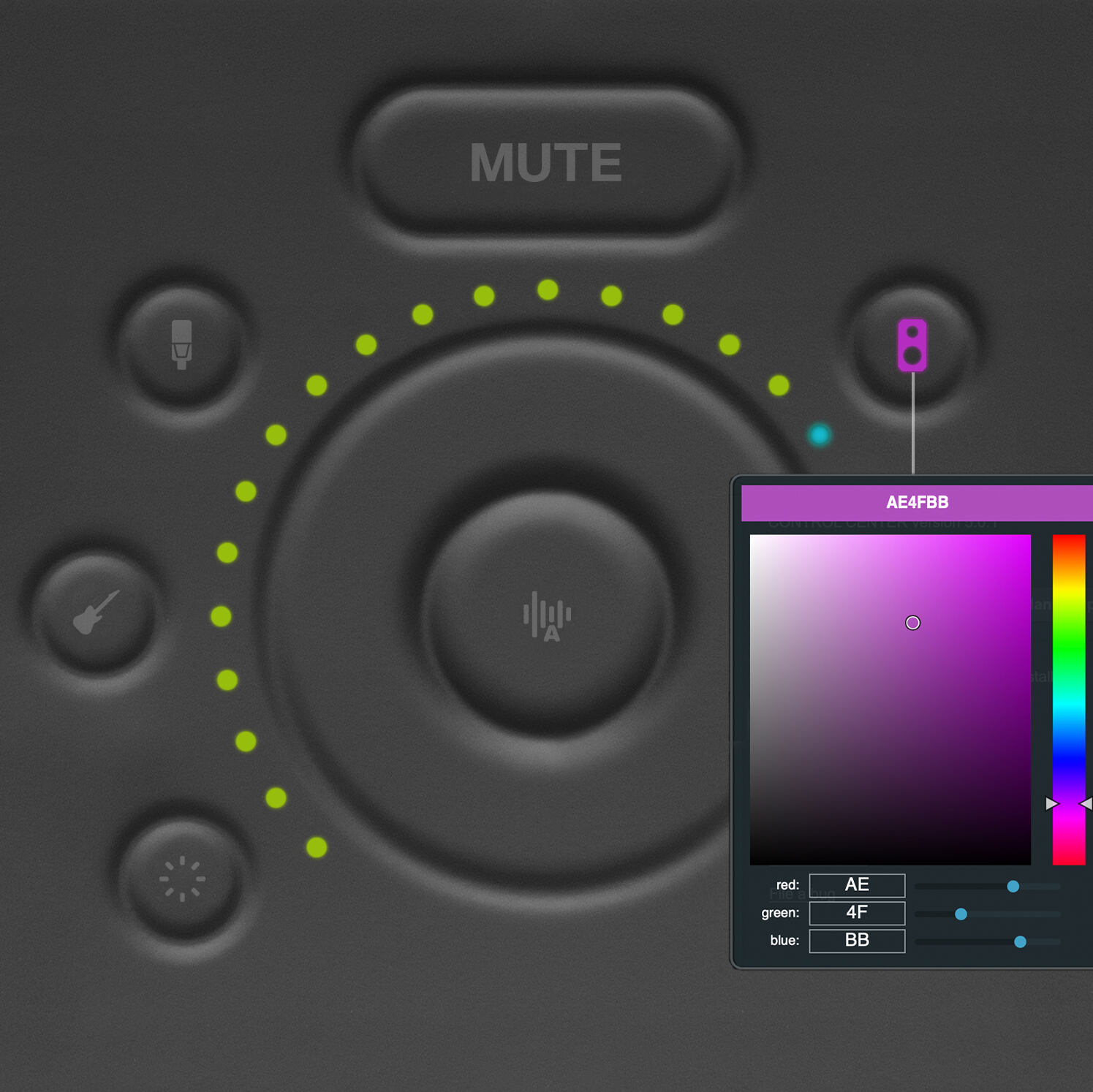

Choose your favorite colors
Customize LED colors and brightness directly in the CONTROL CENTER to match your setup or personal taste.
The best performance for any microphone
Whether dynamic or condenser, CONNECT 2 delivers top performance with a high-end microphone preamp offering up to 72 dB gain and a 118 dB(A) dynamic range. No need for additional signal boosters.
Authentic listening for your headphones
- Zero Ohm headphone outputs retain accurate frequency response.
- High-impedance mode for studio headphones.
- Headphone outputs in both 6.3 mm and 3.5 mm sizes.
Tailored input for instruments
The Hi-Z input with a differential ground loop break circuit suits all types of guitars. It delivers clarity and reduces hum for fresh, defined recordings.
Includes all the software you need to start
Plug and play on macOS. For Windows, install the LEWITT ASIO driver for optimal performance.
Each CONNECT 2 includes a license for Cubase LE and Cubasis LE. Register your product on myLEWITT to receive your license and start recording right away.

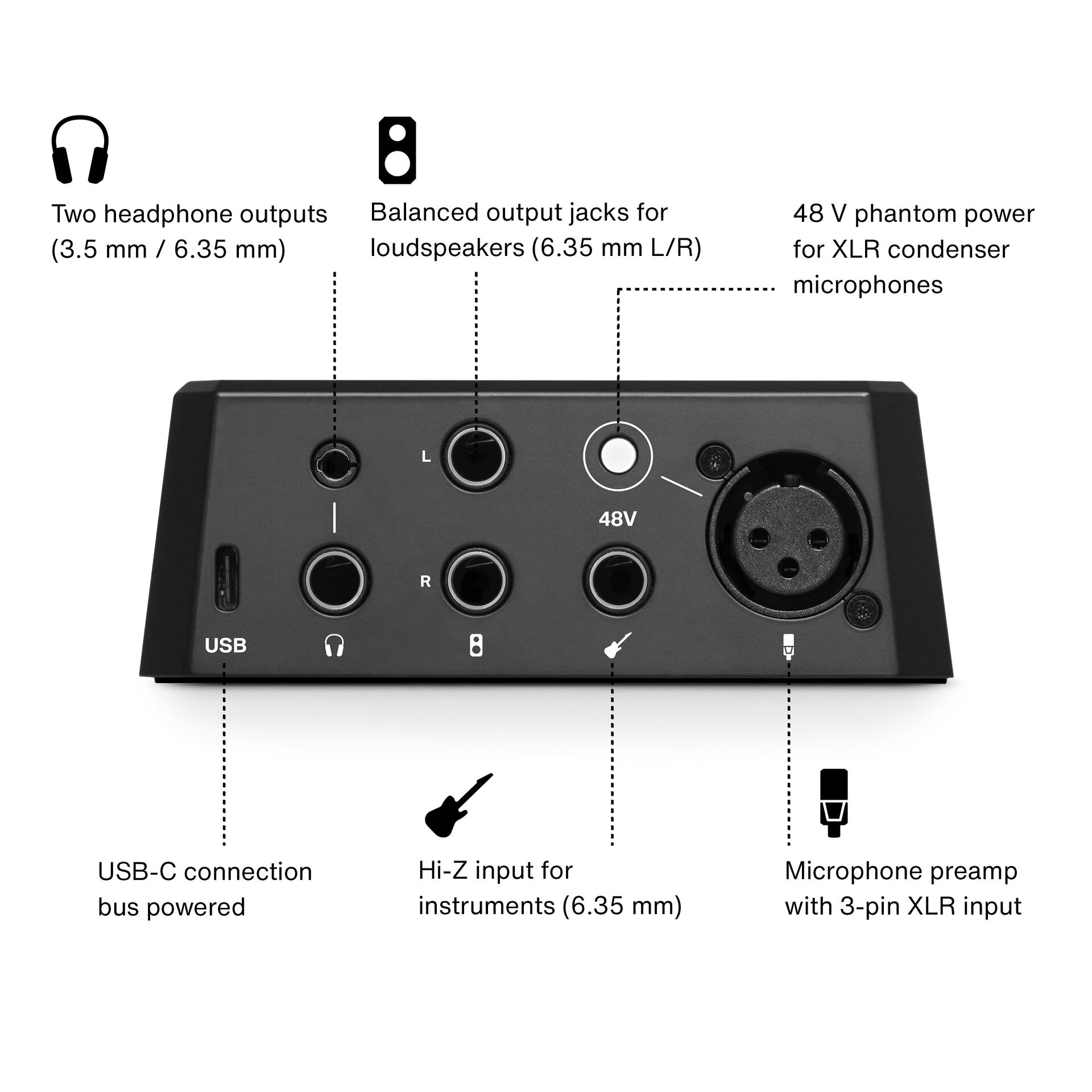

Device
- Features: RGBW LEDs, MUTE, custom button, autogain, input / playback mix, gain reduction display, Kensington lock
- Control: Capacitive touch
Inputs
- 1x Microphone: balanced 3-pin XLR
- 1x Instrument: Hi-Z 6.3 mm jack
Outputs
- 2x Speaker: 6.3 mm balanced jack
- 1x Headphone: 6.3 mm jack
- 1x Headphone: 3.5 mm jack
Metering
25 step high-resolution
Dimensions and Weight
151 x 110 x 41 mm, 394 g
Power Requirements
USB bus-powered
Digital
- Type: USB-C audio interface
- Software: LEWITT CONTROL CENTER
- DAW included: Steinberg Cubase LE, Cubasis LE
- Compatibility: MacOS, Windows, iOS (plug and play with USB-C devices, devices with lightning connector require Camera Connection Kit and external bus power)
- ASIO driver: Yes
- Sample rate: 44.1 kHz, 48 kHz, 96 kHz
- Bit rate: 24
- USB Audio Class: 2.0
- Signal flow: Input / playback mix
- DSP powered: Yes
- Loopback: Yes
- Inputs / Outputs: 4 (includes 2 software channels) / 2
- Streaming modes: macOS mode, mobile mode
- Min. system requirements:
- Windows 10 (64-bit): 4 GB RAM minimum, USB 2.0 connector
- macOS 10.15 and higher: 4 GB RAM minimum, USB 2.0 connector
Microphone Input
- Features: DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)
- Type: balanced
- Connector: 3-pin XLR
- Phantom power: 48 V
- Gain range: 0 - 72 dB
- Equivalent input noise: –129 dBV (A)
- Dynamic range: 118 dB (A) - Without clipguard 118 dB (A)
- Max input level: 15.8 dBV
- Total harmonic distortion: 0.001%
- Frequency response: 20 Hz - 20 kHz (± 0.1 dB)
Instrument Input
- Features: DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)
- Type: Hi-Z, differential ground loop break circuit
- Connector: 6.3 mm jack
- Gain range: 0 - 60 dB
- Input impedance: 2.5 MΩ
- Equivalent input noise: –108 dBV (A)
- Dynamic range: 121 dB (A) - Without clipguard 105 dB (A)
- Max input level: 12.5 dBV
- Total harmonic distortion: 0.0008%
- Frequency response: 20 Hz - 20 kHz (± 0.1 dB)
Speaker Output
- Features: High volume speaker mode, Mute, Volume, Map system volume controls
- Connector: 2x 6.3 mm jack, balanced
- Frequency response: 20 Hz - 20 kHz (± 0.1 dB)
- Max output level: 12.2 dBV (high volume mode)
- Total harmonic distortion: 0.0023%
- Impedance: 200Ω
Headphone Output
- Features: High impedance headphone mode, Mute, Volume, Map system volume controls
- Connector: 1x 6.3 mm jack, stereo, 1x 3.5 mm jack, stereo
- Frequency response: 20 Hz - 20 kHz (± 0.2 dB)
- Max output level: 6.8 dBV (high impedance mode)
- Total harmonic distortion: 0.003%
- Impedance: 1.9 Ω
- USB-C audio interface
- Autosetup for sensational sound with just a few clicks
- Clipguard protects from distortion Single-click
- Compressor and Denoiser
- Three iconic preamp sounds
- Touch-based and intuitive controls
- Custom button for workflow shortcuts
- Individual LED colors and brightness
