M-AUDIO
M-Audio AIR 192 4 Vocal Studio Pro
M-Audio AIR 192 4 Vocal Studio Pro is the ultimate all-in-one solution for home studio recording. The Vocal Studio Pro package combines the fantastic M-Audio AIR 192 4 audio interface with a set of headphones and a condenser mic with premium software to get you making music in no time.
Combining the critically acclaimed AIR 192|4 interface, HDH40 headphones, a Nova Black condenser microphone, XLR cable and the premium AIR Series Software Suite, laying down vocal tracks, recording electric and acoustic instruments and adding voice-overs to multimedia projects has never been easier. With the AIR 192|4 Vocal Studio Pro, the combination of high-performance hardware and easy-to-use software results in pro-grade audio capture for every recording scenario.
Main features of the M-Audio AIR 192 4 Vocal Studio Pro include:
Included Software
The AIR 192|4 Vocal Studio Pro comes complete with a software package that has everything to get you started making professional recordings right out of the box. With 2 powerful DAWs to suit your production needs, AIR 192|4 Vocal Studio Pro includes Pro Tools | First M-Audio Edition, and Ableton Live Lite.
M-Audio have also added an entire Effects Plugin, Virtual Instruments and Loop package to cater to all your production needs. Whether you need a guitar tone, reverb, or delay your effects needs are covered with Eleven Lite, 20 effect plugins and AIR’s Creative FX Collection. With the included AIR Virtual Instrument plugins, you’ll have a virtual drum machine, synth, strings, percussion, organ and piano plugins to add world-class-sounding instruments to your songs with ease.

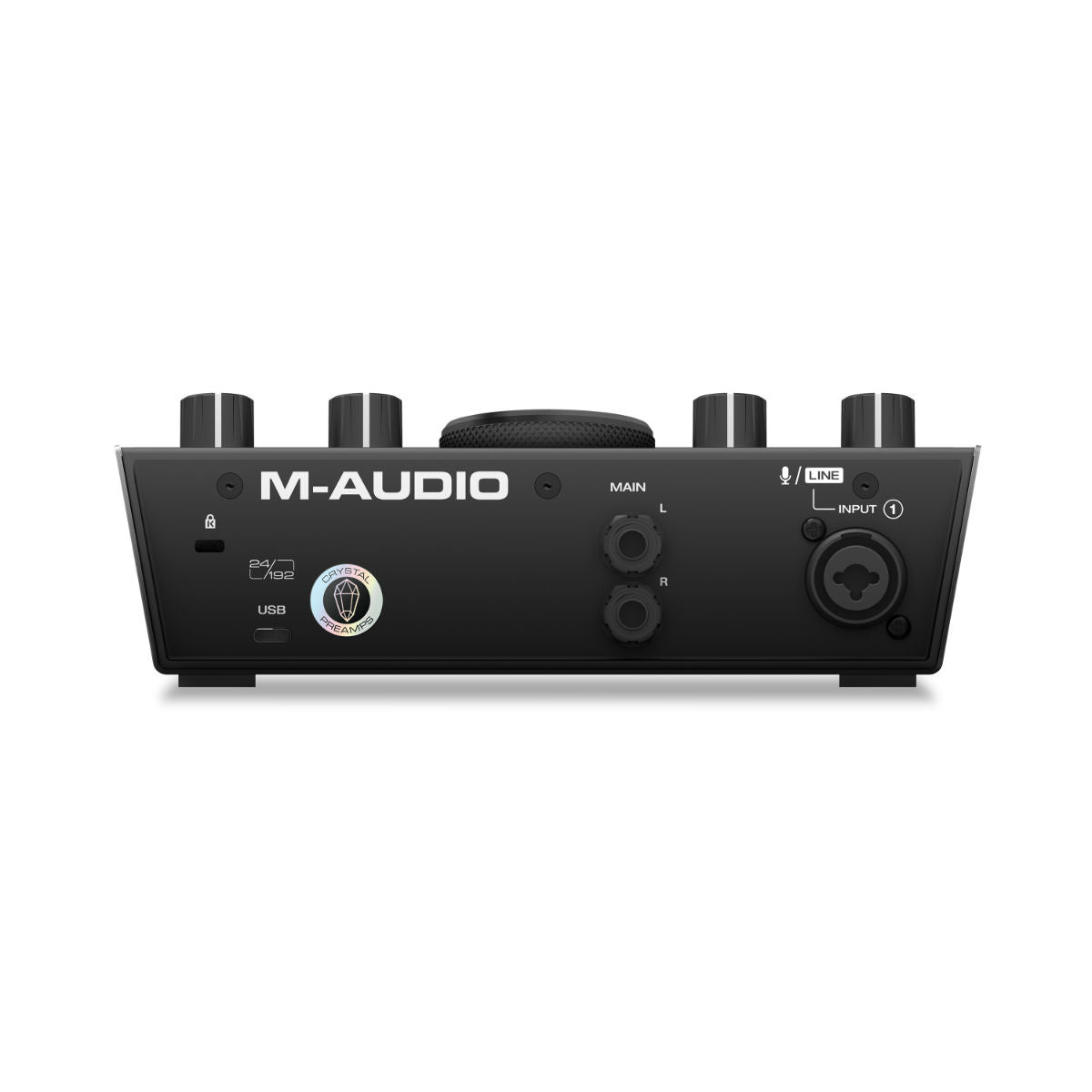

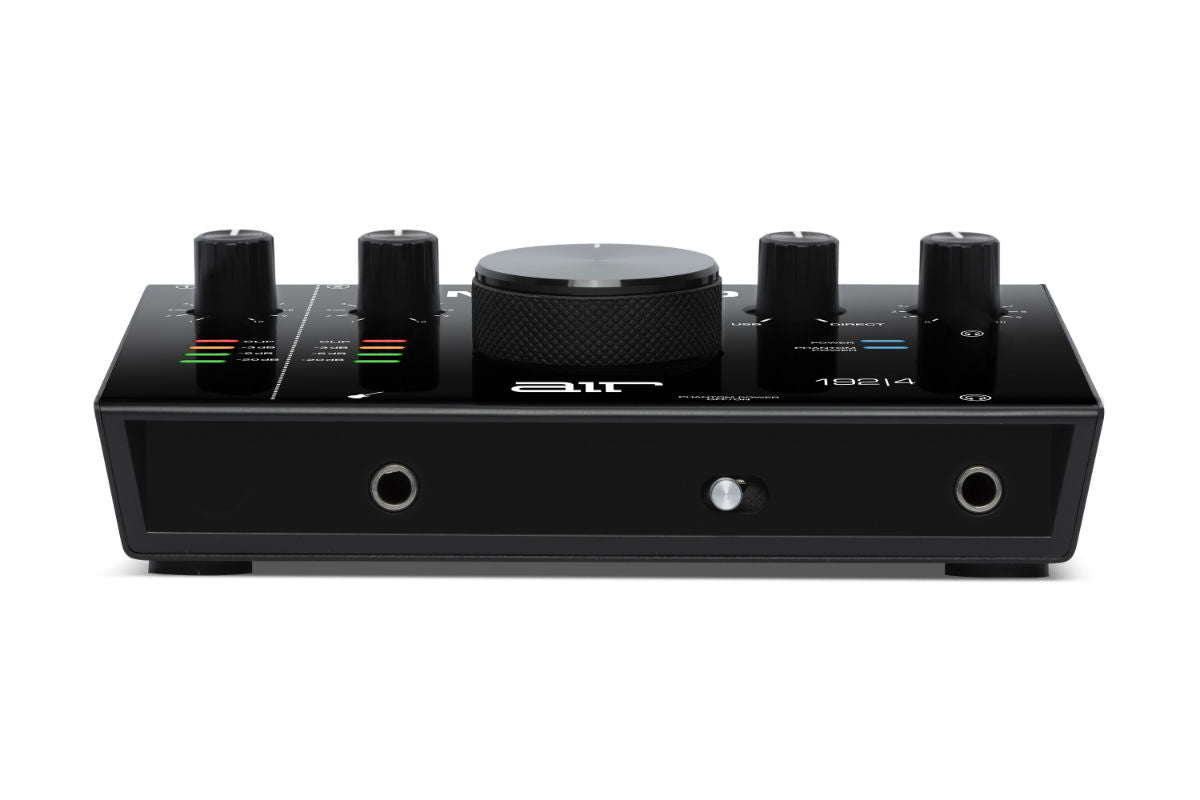

AIR 192 4 Audio Interface
This is the creative center of your recording setup: The simple-to-use, style-infused AIR 192|4 audio interface is the perfect tool to record and produce natural-sounding 24-bit/192kHz studio-quality recordings. Combining one XLR+¼” balanced combo input and an all-new dedicated ¼” instrument input, the AIR 192|4 enables you to record two channels simultaneously.
Crystal™ Preamps, Pristine A/D Converters and Premium Components
Fusing an elegant pro-grade metal chassis, USB & USC-C connection cables, our exclusive Crystal™ low-noise pre-amps and pristine A/D converters that deliver the highest audio performance in their class, the AIR 192|4 provides all the tools you need to capture that initial idea and transform it into a finished masterpiece with ease. Take your music to the next level and start recording now!

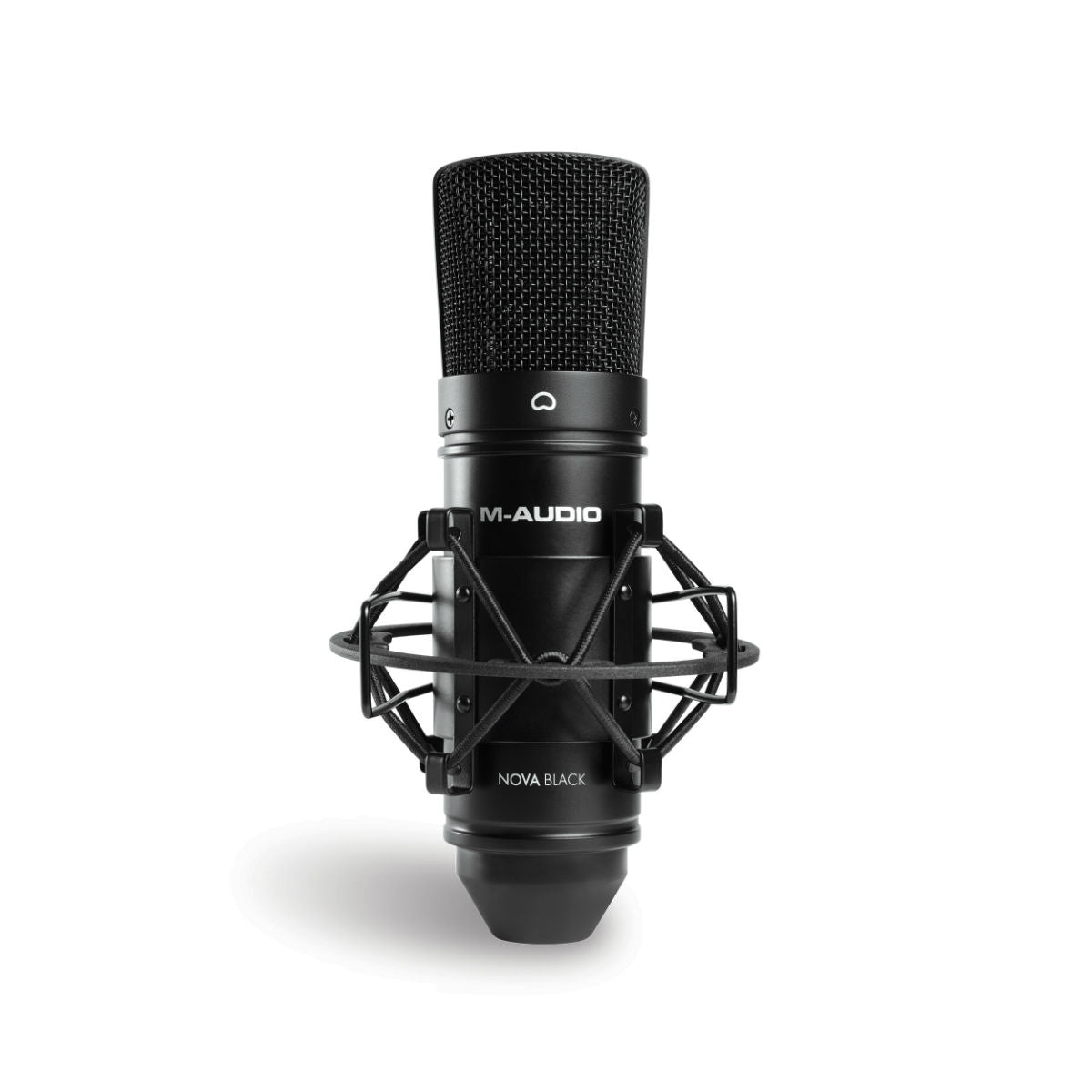

Nova Microphone
Studio-grade recording demands the right tools for the job. M-Audio’s Nova Black large-diaphragm condenser microphone is perfect for podcasting applications or capturing high-quality audio from vocalists, instruments, percussion and more.
At the heart of the Nova Black microphone is an 18mm pure aluminum condenser capsule with a directional cardioid polar pattern. This delivers wide range frequency response (20–20kHz, resulting in a microphone that captures even the most subtle nuances.

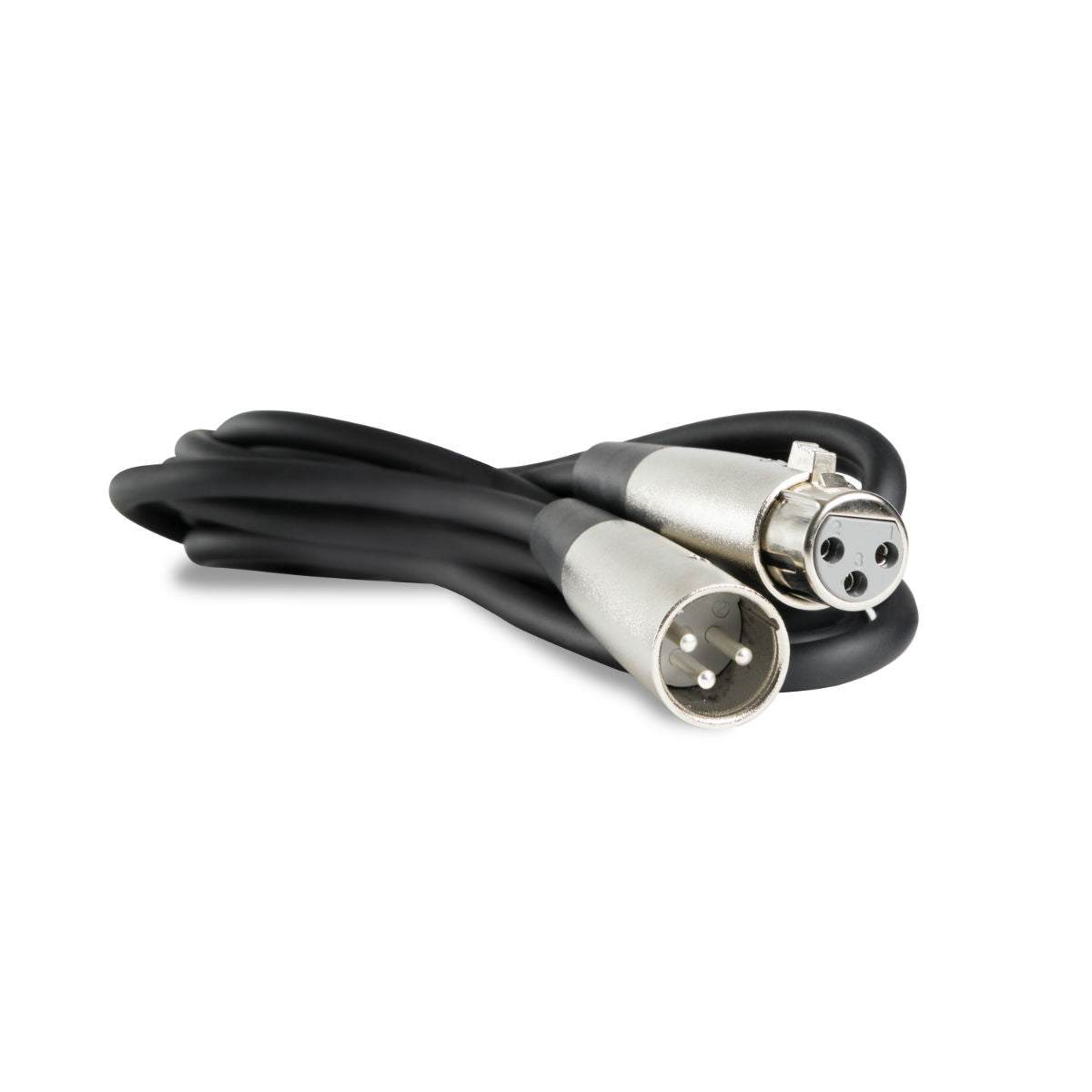

Thanks to an included windscreen, a purpose-designed shock-mount for mounting to a traditional mic stand and an XLR cable, everything you need to get connected and start recording is included.

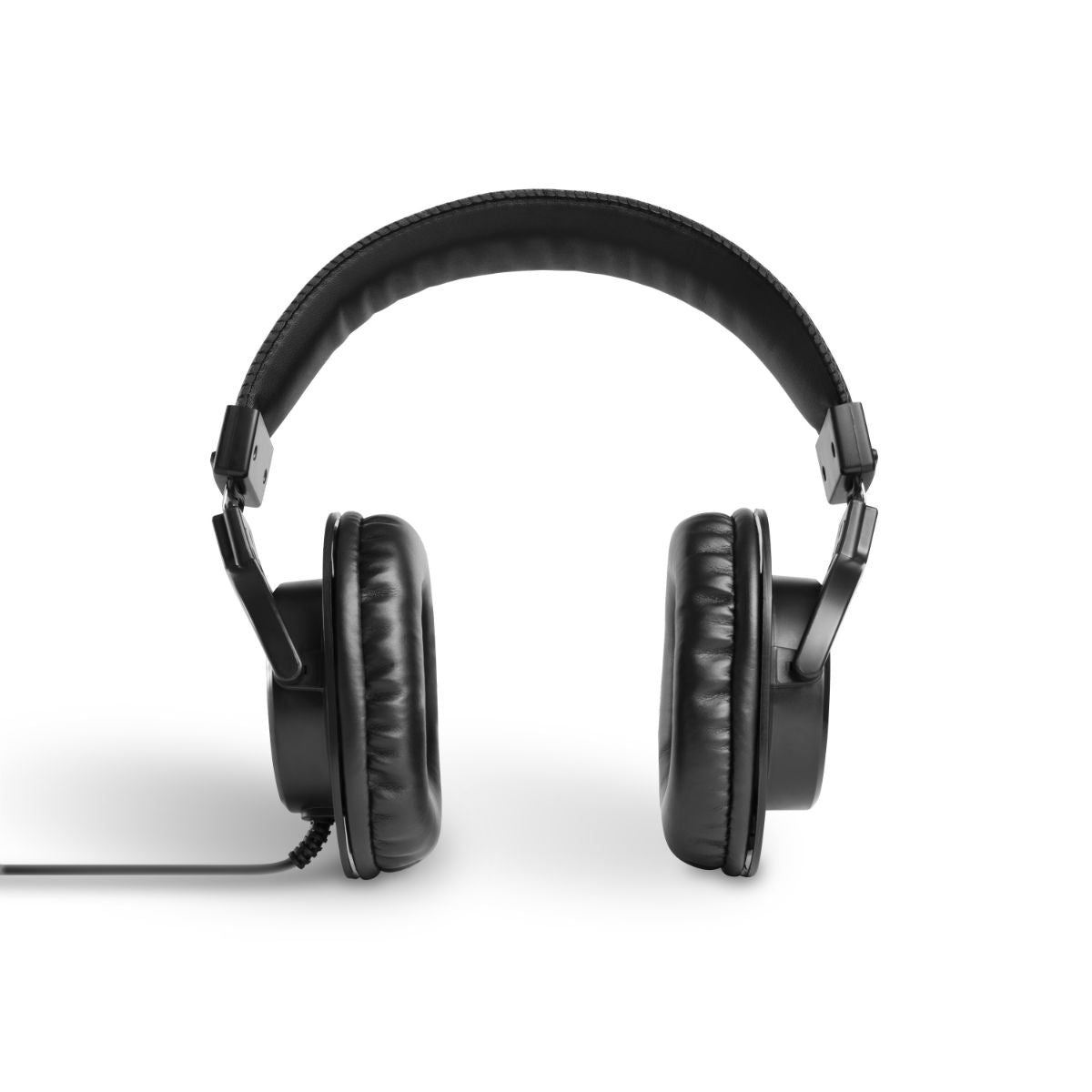

HDH40 Headphones
Professional recording demands uncompromised accuracy when it comes to monitoring. M-Audio’s HDH40 headphones combine premium transducer elements with a durable, rugged design to deliver superb sound reproduction and the outstanding acoustic isolation required in professional recording and monitoring environments. With the HDH40, you can concentrate on what’s important—your production!
- macOS: 10.8 Class Compliant
- PC: Windows 7, Windows Driver
- Standard USB 2.0 or USB-C Port
| NOVA Black Microphone | |
| TYPE | Back Electret condenser microphone |
| ELEMENT | 18 mm pure aluminum diaphragm capsule |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz |
| SENSITIVITY | -38 dB (0 dB = 1 V/Pa @ 1 kHz) |
| RATED IMPEDANCE | 200Ω |
| MAXIMUM SPL | 136 dB |
| PHANTOM POWER REQUIRED | +48 V |
| S/N RATIO | 77 dB |
| CURRENT CONSUMPTION | 3 mA |
| HDH40 Headphones | |
| ACOUSTIC DESIGN | Dynamic, Closed |
| DRIVER | 40 mm, neodymium |
| FREQUENCY RESPONSE | 15 Hz – 22 kHz |
| SENSITIVITY | 95 dB ±3 dB |
| RATED IMPEDANCE | 32Ω |
| EARPAD | Leatherette |
| CABLE LENGTH | 9.8 ft. / 3 m |
| Mic Input 1 (balanced XLR) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.1 dB) |
| DYNAMIC RANGE | 104 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 104 dB (+1.0 dBu, A-weighted) |
| THD+N | 0.003% |
| PREAMP EIN | -128 dBu (max gain, 150 Ω source, A-weighted) |
| MAX INPUT LEVEL | +1.5 dBu |
| GAIN RANGE | 55 dB |
| Line Input 1 (balanced 1/4" [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| SIGNAL-TO-NOISE RATIO | 101 dB (1 kHz, +4 dBu, A-weighted) |
| THD+N | 0.003% |
| MAX INPUT LEVEL | 16 dBu |
| GAIN RANGE | 55 dB |
| Inst Input 2 (unbalanced 1/4" [6.35 mm] TS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.05 dB) |
| DYNAMIC RANGE | 100 dB (A-weighted) |
| SIGNAL-TO-NOISE RATIO | 102 dB (+ 4 dBu, A-weighted) |
| THD+N | 0.004% |
| MAX INPUT LEVEL | 6 dBu |
| INPUT IMPEDANCE | 1 MΩ |
| GAIN RANGE | 24 dB |
| Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS) | |
| FREQUENCY RESPONSE | 20 Hz – 20 kHz (+0.06 dB) |
| DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO | 102 dB (A-weighted) |
| THD+N | 0.005% |
| MAX OUTPUT LEVEL | +7 dBu (1 kHz, -1 dBFS) |
| Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS) | |
| THD+N | 0.005% |
| OUTPUT IMPEDANCE | 10 Ω |
| General | |
| POWER | USB-bus-powered |
| DIMENSIONS (WIDTH X DEPTH X HEIGHT) | 6.0” x 2.8” x 7.8” (15.2 cm x 7.1cm x 19.8 cm) |
| WEIGHT | 2.0 lbs. 0.9 kg |
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
- Stereo ¼” outs; ¼” headphone out with independent level control
- Rugged metal chassis; large central control for easy volume adjustment
- USB/Direct knob for balancing between the input signal and the computer signal
- NOVA Black condenser microphone
- HDH40 monitoring headphones
- *Round trip latency is dependent on buffer settings, and computer hardware
