M-Audio

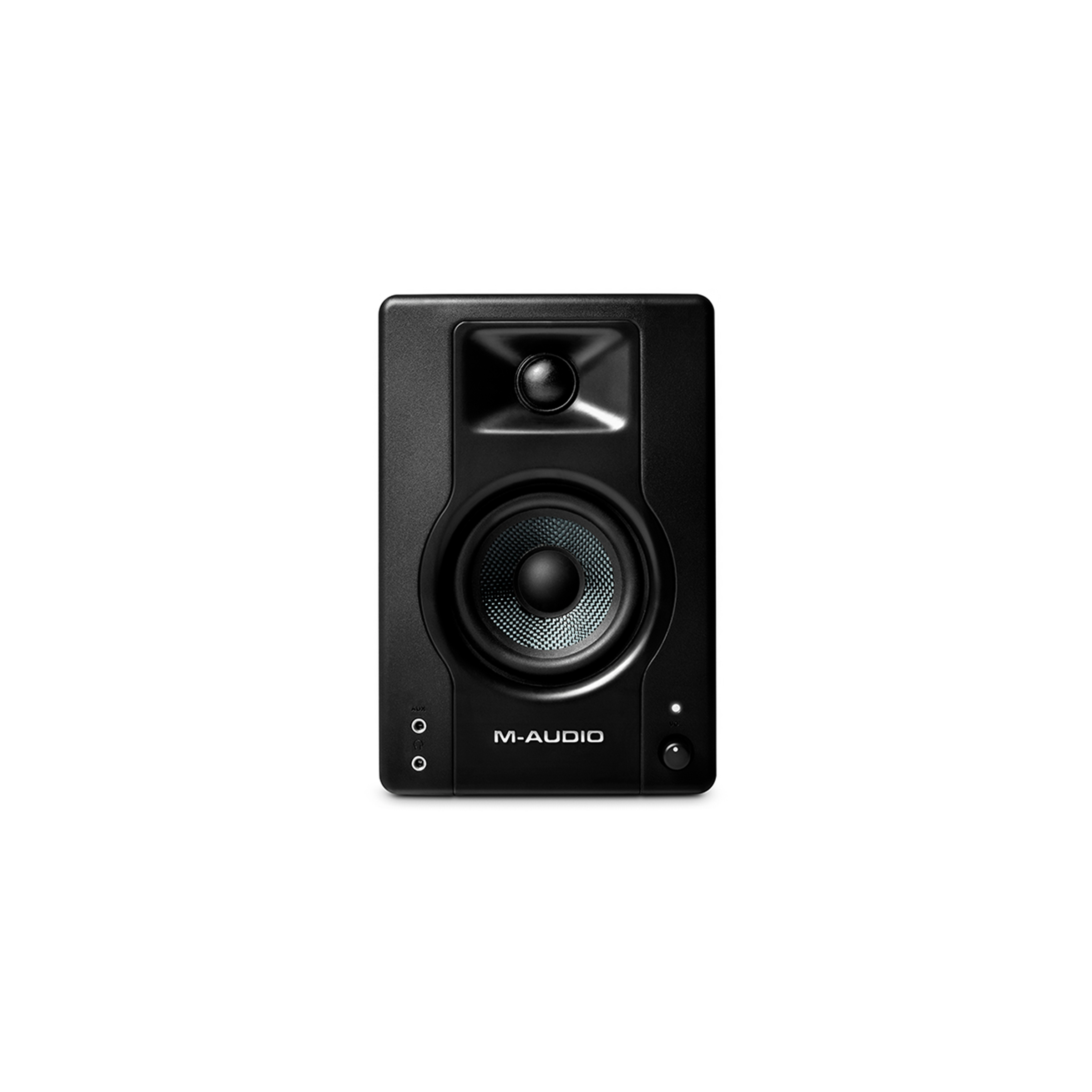

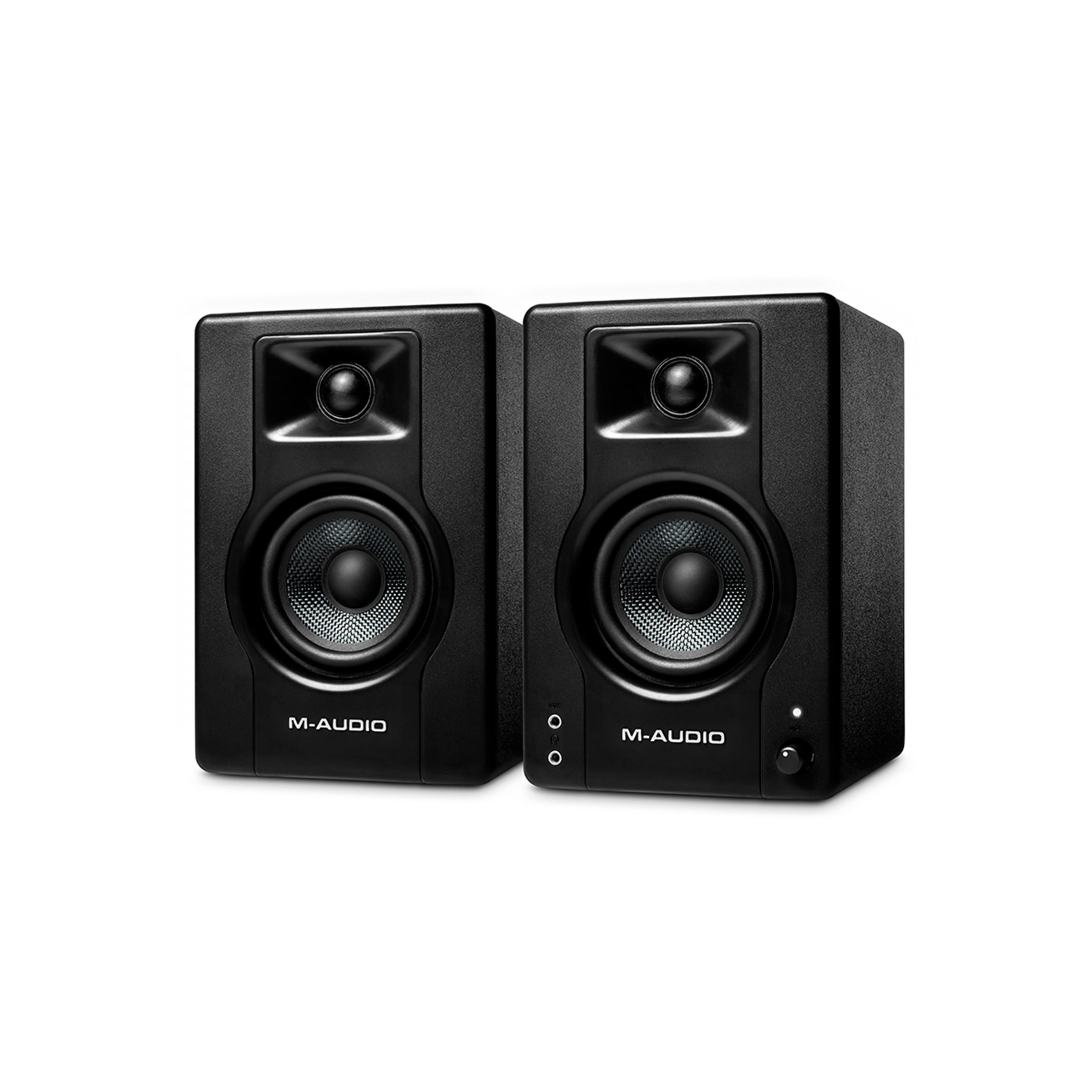

M-Audio BX3 3.5" Desktop Monitors
The M-Audio BX3 Desktop Monitors deliver clear, powerful sound with 3.5” Kevlar low-frequency drivers and 1” silk dome tweeters. Their new tweeter waveguide enhances precise imaging, while High-EQ and Low-EQ controls let you customize your audio perfectly. Enhanced rear ports boost bass response, and an Active Speaker Position Switch helps you set volume control on either side. Multiple input options - including 1/4”, 1/8”, and RCA, plus a front AUX input - make connecting any device effortless. The MDF cabinet with bass reflex design provides rich, deep sound, ideal for any desktop setup. Accessories include cables and foam feet for stability.
- Frequency Response: 80 Hz – 22 kHz
- Output Power: 120 W (total peak), 2 x 25 W (RMS)
- LF Driver: 3.5” / 88.9 mm
- HF Driver: 1” / 25.4 mm; silk dome

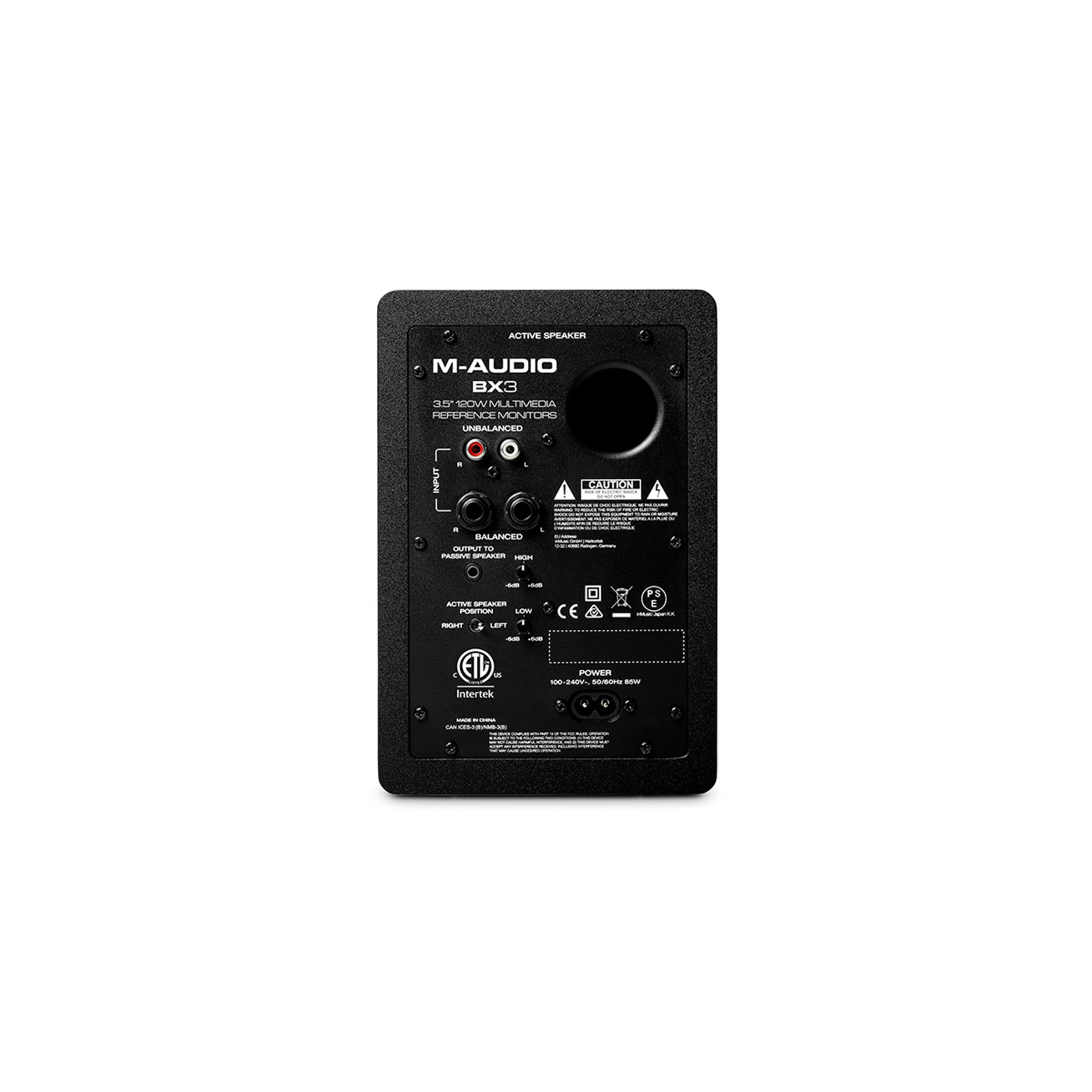

- Audio Inputs:
- (1) RCA stereo input pair
- (2) 1/4" (6.35 mm) TRS inputs
- (1) 1/8" (3.5 mm) stereo auxiliary input
- Headphone Output: 1/8” (3.5 mm) stereo output
- Interconnection Cable: 1/8” (3.5 mm) TS
- Power: 100–240 VAC, 50/60 Hz, 85 W
- Dimensions: 5.5” x 5.7” x 8.2” (width x depth x height, per speaker), 140 x 145 x 208 mm
- Weight: 7.39 lbs. (per speaker), 3.35 kg
- BX3 Speakers (Stereo Pair)
- Foam Feet
- 2-Prong IEC Power Cable
- 1/8” TS Speaker Interconnect Cable
- 1/8” to 1/8” TRS Aux Cable
- 1/8” TRS to RCA Cable
- User Guide
- Safety & Warranty Manual
- 3.5” Black Kevlar® low frequency drivers; 1” natural silk dome tweeters
- New computer-optimized tweeter waveguide for precise imaging
- High-EQ and Low-EQ controls for dialing in the perfect sound
- Enhanced rear ports for extended low-frequency response
- Left/Right Active Speaker Position Switch for configuring which side has volume control
- 1/4”, 1/8”, and RCA inputs for connecting to virtually any audio source
- Front 1/8” AUX input for quick connection of smartphones or other audio sources
- Acoustically-inert MDF cabinet with bass reflex design for deep, rich sound
- Includes 1/8” speaker interconnect cable, 1/8” to 1/8” cable, 1/8” to RCA cable and Foam Feet
