Mackie

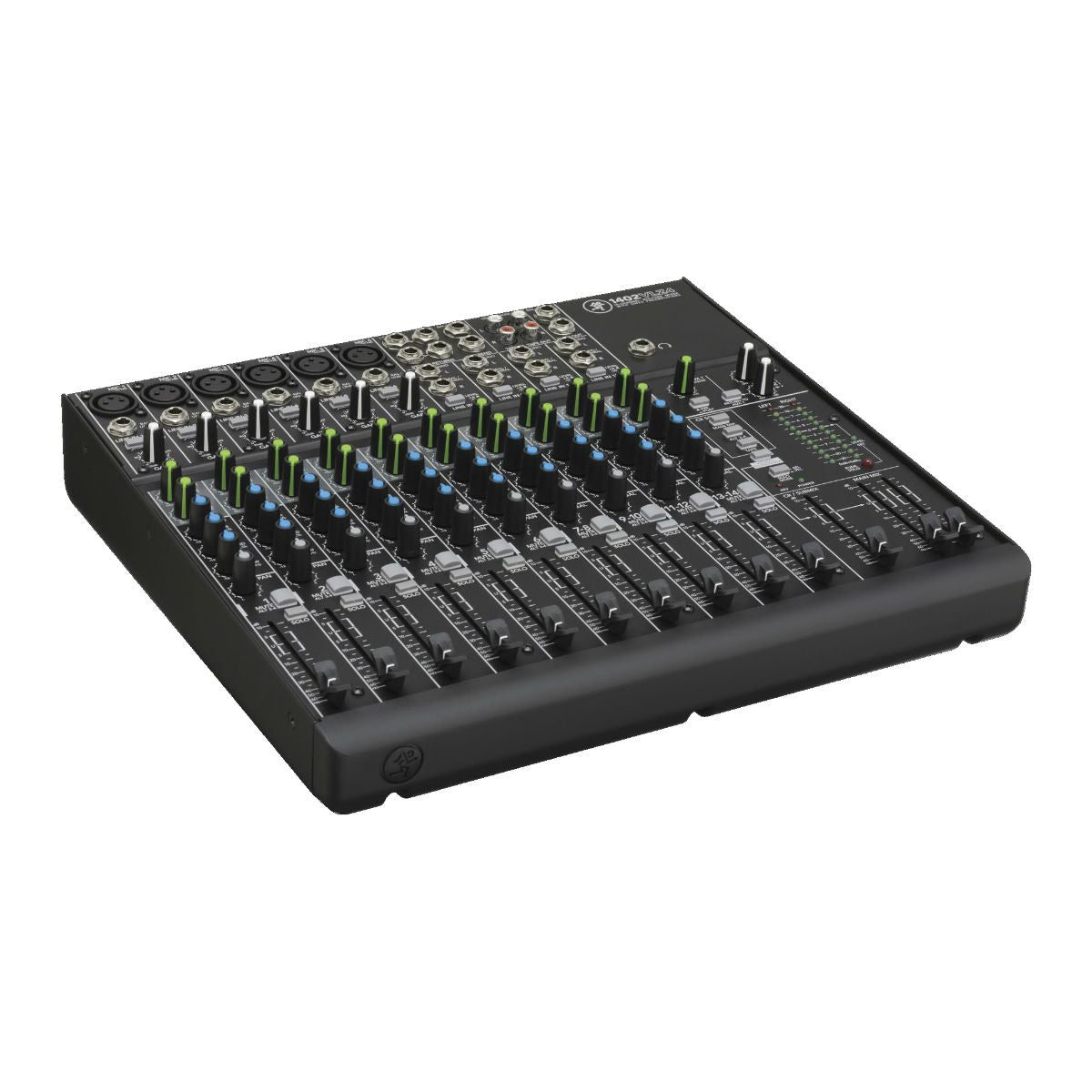

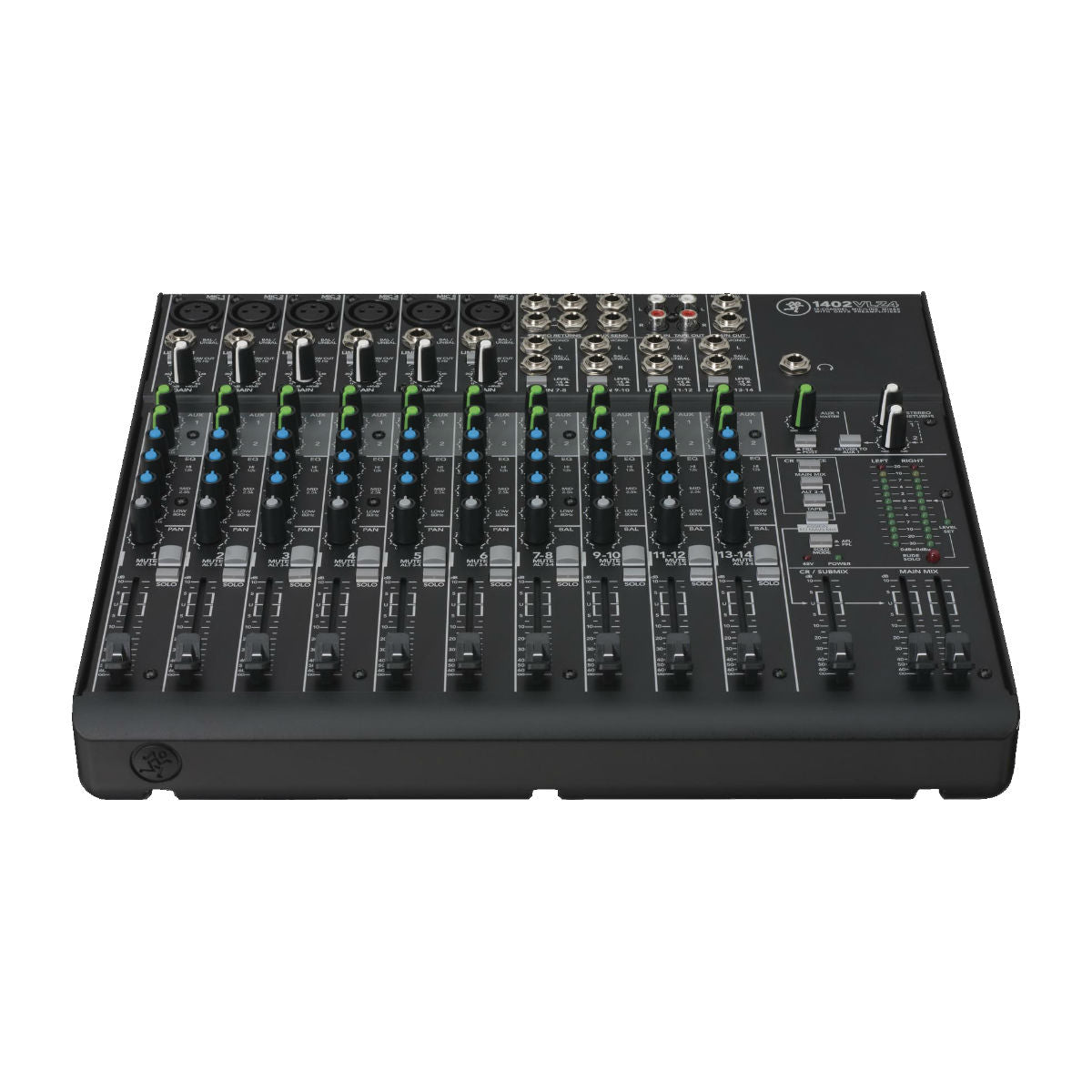

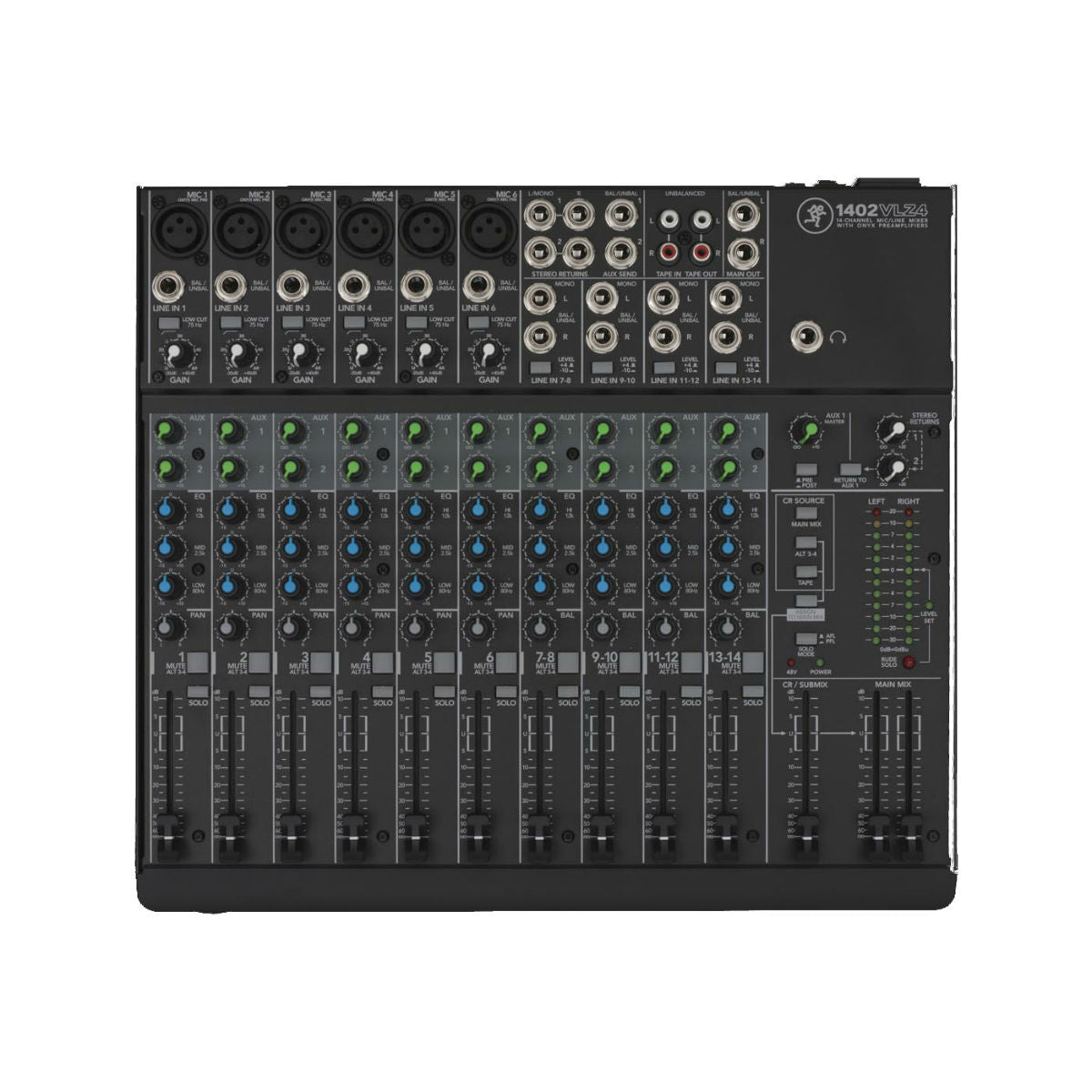

Mackie 1402VLZ4 14-Channel Mixer
The Mackie 1402VLZ4 is an ideal choice of compact mixer for live situations. Wiith 6 boutique quality Onyx preamps, high-headroom/low-noise design, and all-round sturdiness, this mixer is built to be a workhorse for the road.
The 1402VLZ4 features 14 high-headroom line inputs with +4/-10 operation control, a 3-band EQ and phatom power for condenser mics. The mixer boasts high dynamic range, an ultra-wide 60dB gain range and extended frequency response.
Main features of the Mackie 1402VLZ4 include:
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 14 high-headroom line inputs with +4/-10 operation control
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 2 aux sends, level, pan and PFL solo on each channel
- 60mm long-wearing log-taper faders
- 2 stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary control resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design using optional rack ear kit
- Multi-voltage power supply for worldwide use
- 14-channel mixer featuring Mackie signature high-headroom/low-noise design
- 6 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
