Mackie
Mackie MDB-2P Stereo Passive DI Box
The Mackie MDB-2P Passive Stereo DI Box is ideal for stereo sources like keyboards and media players for its ultra-low noise and distortion, and world-class sound quality. With a balanced male XLR output and multiple high-impedance ¼” inputs, it carries the channels you require for more detailed live applications.
It has -15dB pad ensuring distortion-free performance when using high level sources, which when combined with its Built-Like-A-Tank™ construction, it proves to be the most durable and versatile DI box one can need. This edition also carries Parallel Thru outputs.
Main features of the Mackie MDB-2P Passive Stereo DI Box include:
Frequency Response | 20 Hz - 20 kHz, ±0.2 dB20 Hz - 20 kHz, ±0.2 dB20 Hz - 20 kHz, ±0.2 dB20 Hz - 20 kHz, ±0.2 dB20 Hz - 20 kHz, ±0.2 dB20 Hz - 20 kHz, ±0.2 dB |
Dynamic Range | 128 dB |
Total Harmonic Distortion | 0.002% from 1000 Hz |
Pad | -15 dB |
Input Type | Female 1/4" unbalanced |
Input Impedance | 140 k Ohms unbalanced |
Impedance Ratio (Input to Output) | 350:1 |
Output type | Male XLR balanced, 1/4" unbalanced (Thru) |
Output Impedance | 400 Ohms unbalanced |
Dimensions | 38mm x 86mm x 147mm |
Weight | 0.4 kg |
- Passive Stereo Direct Box
- Perfect for stereo sources like keyboards and media players

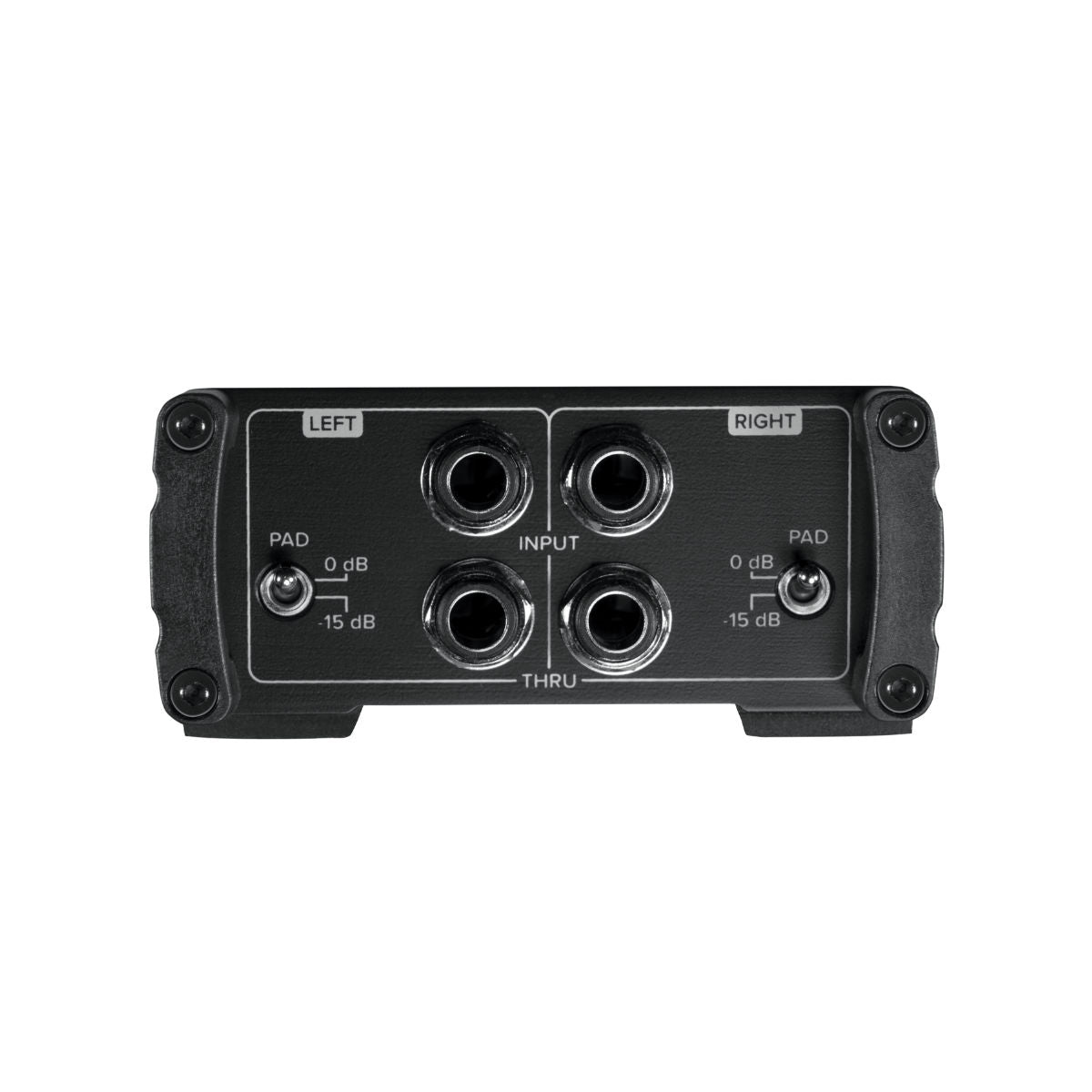

- High-impedance 1/4" inputs with Thru outputs

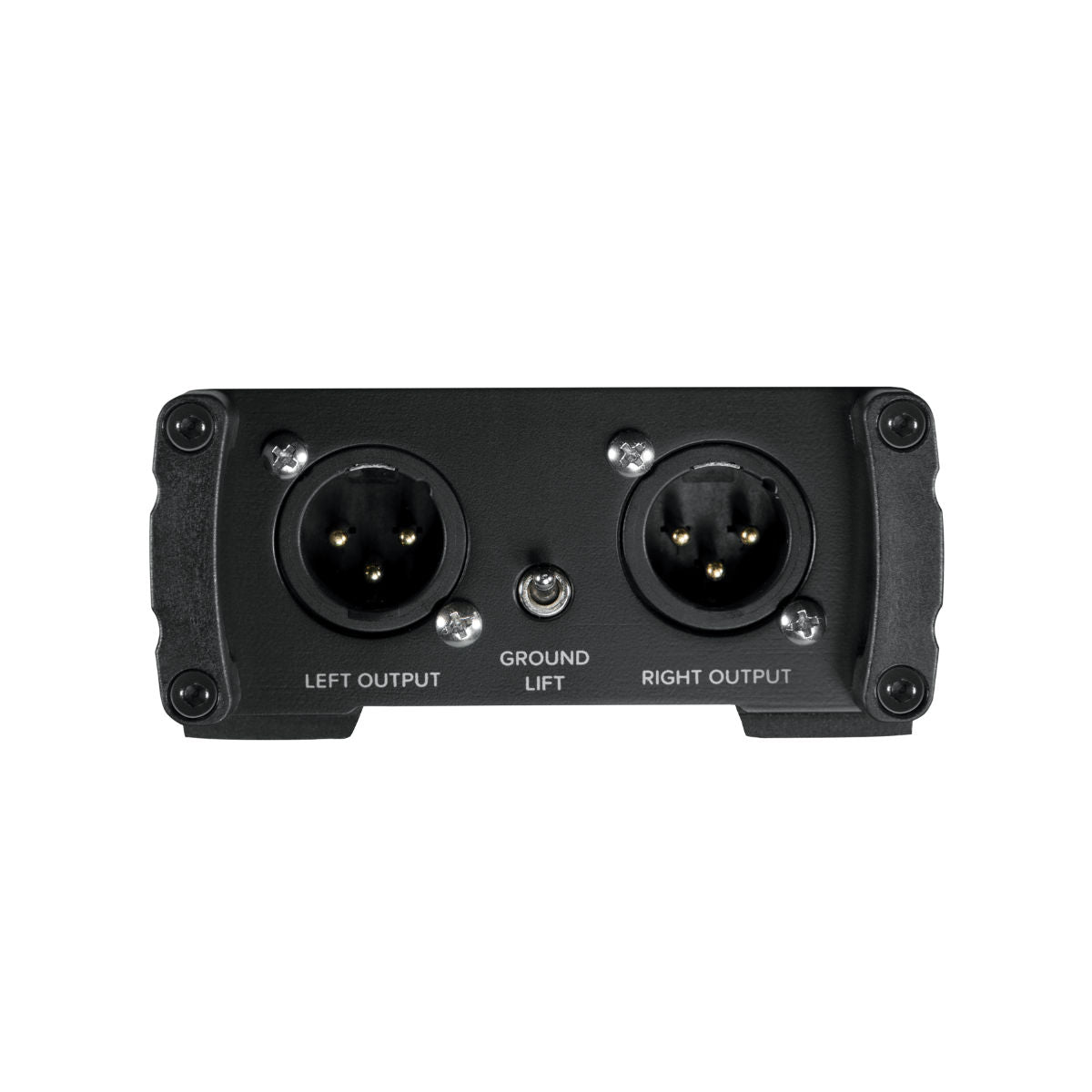

- Balanced XLR output connector with Ground Lift
- Ultra-low noise and distortion
- -15dB pads
- Parallel Thru outputs
