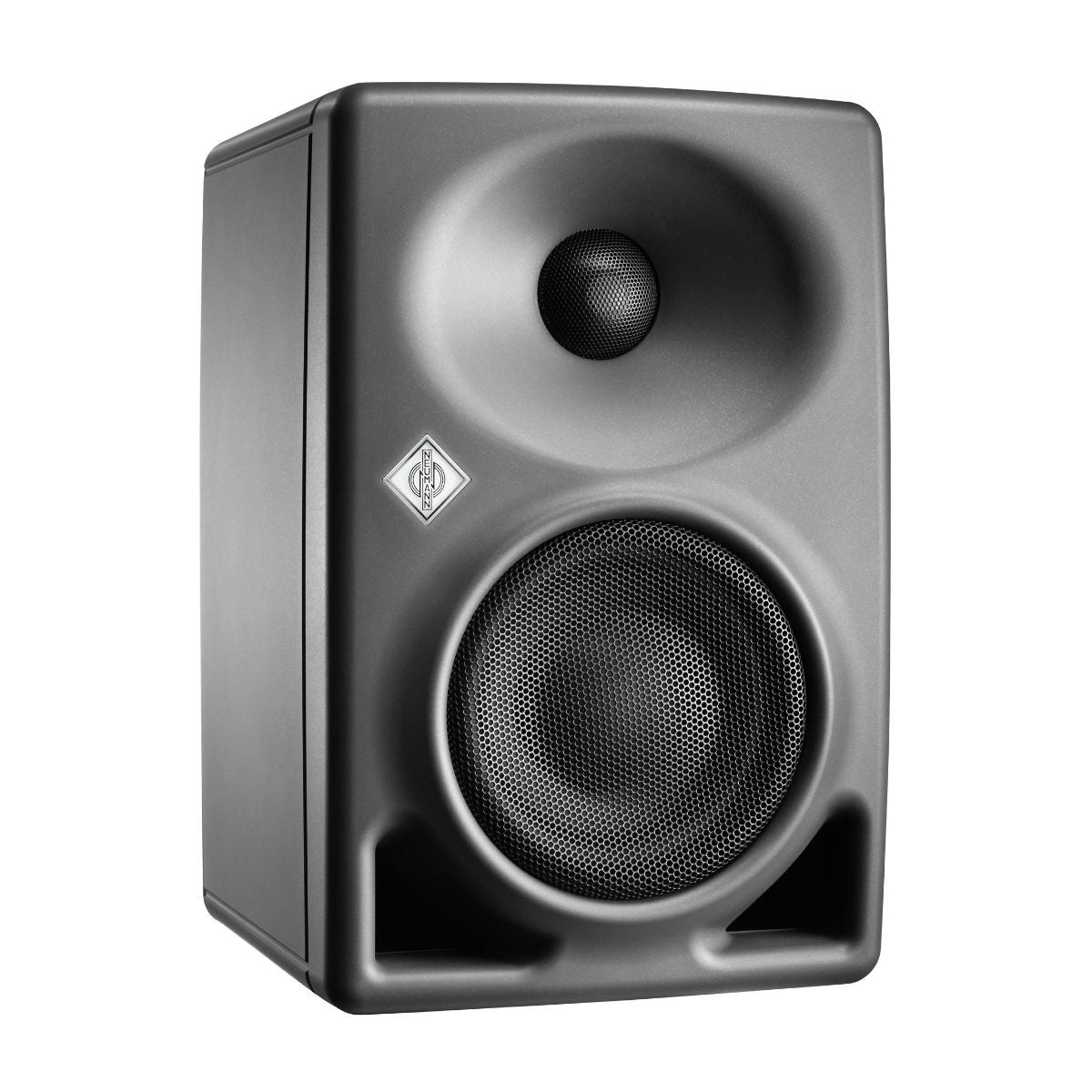

Neumann KH 80 DSP Active Studio Monitor (single)
The KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.
Acoustics | |
-6 dB free field frequency response | 53 Hz … 22 kHz, ± 6 dB |
-3 dB free field frequency response | 57 Hz … 21 kHz, ± 3 dB |
Pass band free field frequency response | 59 Hz … 20 kHz, ± 2 dB |
Self-generated noise (with input gain set to 100 dB for 0 dBu) |
< 20 dB(A) at 10 cm |
Sine wave output with a THD < 0.5 % at 1 m |
90 dB SPL (>200 Hz) |
Max. SPL in full space / calc. in half space at 3% THD at 1m |
102.8 / 108.8 dB SPL (averaged between 100 Hz and 6 kHz) |
Bass capability: Max. SPL in half space at 3% THD at 1m |
92.1 dB SPL (averaged between 50 Hz and 100 Hz) |
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions | 104 dB(C) SPL |
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair) | 93 dB(C) SPL (full range) 100 dB(C) SPL (with subwoofer) |
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) | 88 / 93 dB(C) SPL (full range) 91 / 96 dB(C) SPL (with subwoofer) |
Electronics | |
Bass amplifier output power (THD+N, 0.1%, 10%) |
90 W, 120 W |
Treble amplifier output power (THD+N, 0.1%, 10%) |
50 W, 70 W |
Controller design | Digital, active |
Crossover Frequency | 1.8 kHz |
Crossover Slope | 48 dB/oct, 8th order with phase correction |

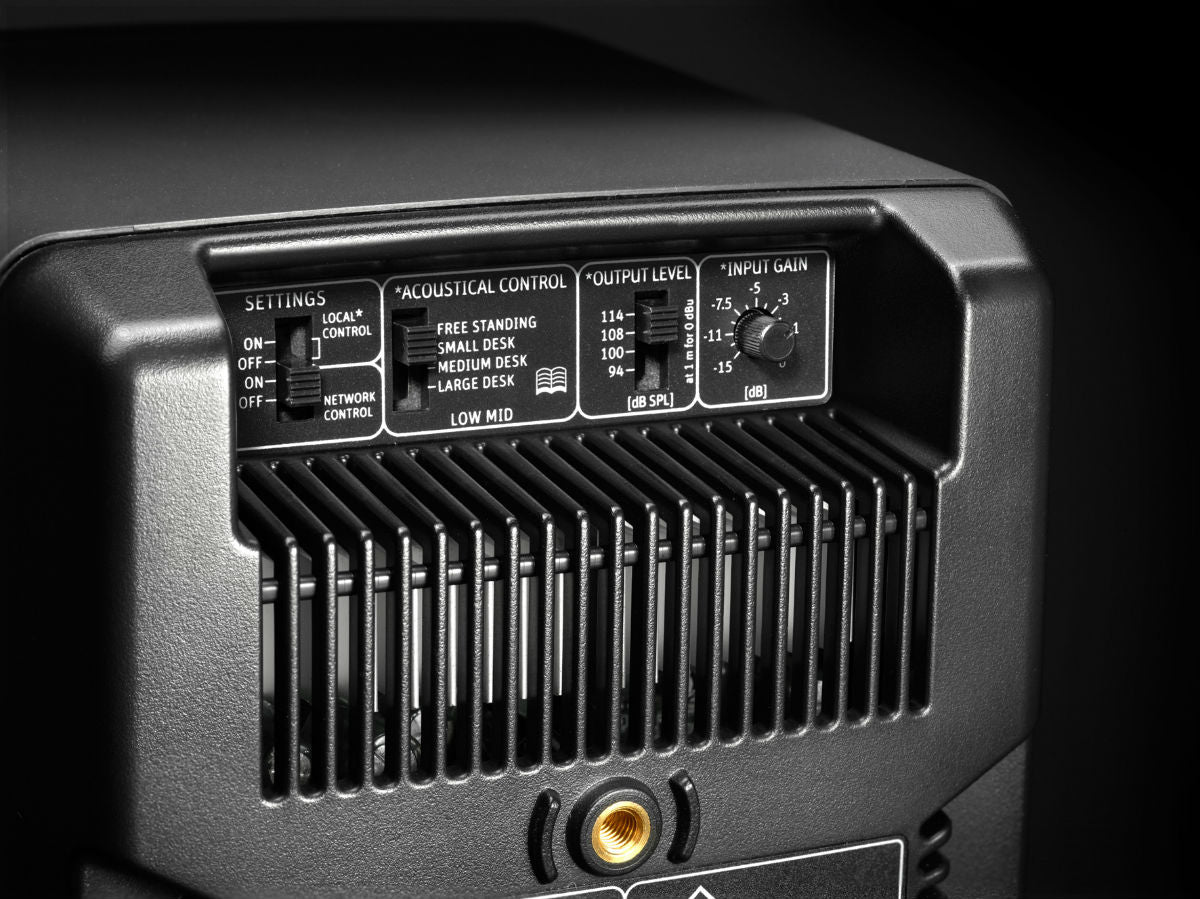

Equalization - Low Mid | 0, -1.5, -3, -4.5 dB |
Equalization – via Neumann.Control software |
8 x full parametric IIR + low / high shelf global balance |
FIR phase correction | Linear phase (170 Hz ... 16kHz, +/- 45°), Analog emulation |
Latency A-D-A – linear phase, analog emulation mode | 2 ms, 0.65 ms |
Protection circuitry | Independent soft clip, peak and thermo limiters for woofer and tweeter. Woofer excursion limiter. |
Infrasonic filter - frequency; slope | 61 Hz; 12 dB/oct. |

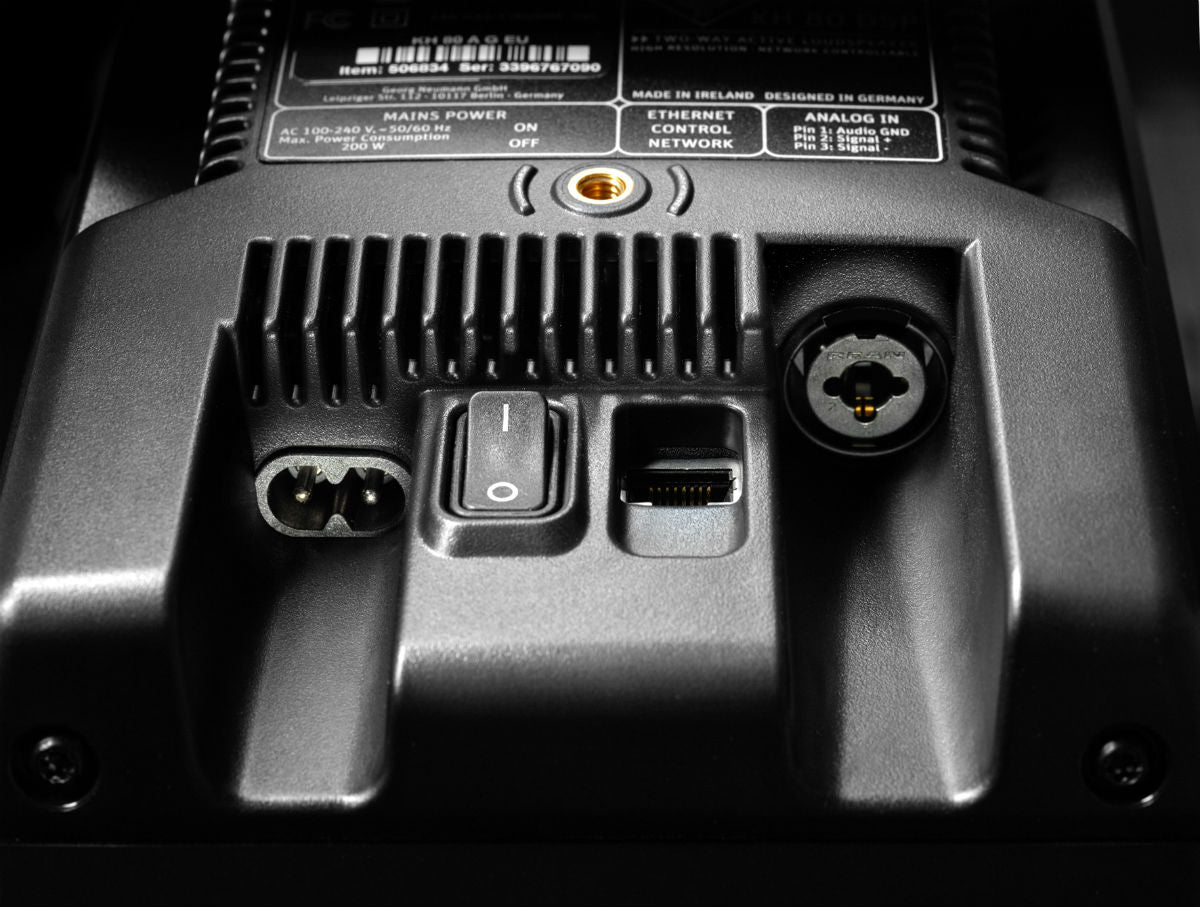

Input |
XLR / 6.3 mm (¼”) Jack, analog electronically balanced |
Impedance | 14k Ohms |
Input gain control (sensitivity) | 0 dB to -15 dB |
Output level control | 94, 100, 108, 114 dB SPL |
CMRR | >56 dB @ 15kHz |
Max. input level | +24 dBu for 94 dB SPL setting |
Digital converter: resolution, design | 24-bit DAC, Δ∑ |
Digital internal sampling rate | 48 kHz |
Dynamic range D-A; woofer, tweeter | 114 dB, 117 dB |
User adjustable delay range | 0 … 70 ms |
Audio-video/lip sync max. frames | 1.75 (40 ms frames) or 2.1 (33 ms frames) |
Time-of-flight max. distance | 24 m (79 ft) |
Resolution – time/distance | 0.1 ms / 3.44 cm (1 3/8”) |
Displays and indicators: Normal operation Identification Limit / clip / errors |
Neumann logo “White” Neumann logo “Rosé” Neumann logo “Red” |
Mains Power Supply, voltage; frequency | 100-240V; 50/60 Hz |
Power consumption (230 V / 100 V): Standby Idle Full output |
<330 / <50 mW 9 / 8 W 180 W |
Standby | Disabled, 90 mins (default), or user defined in software |
Mechanics | |
Cabinet surface finish, color (front / back) | Painted composite polycarbonate material, Anthracite (RAL 7021) / Black (RAL 9005) |
Operating conditions | +10° C to +40° C (+50° F to +104° F), <75% RH, non-condensing |
Transport/storage conditions | −25° C to +70° C (−13° F to 158° F), <90% RH, non-condensing |
Woofer | 100 mm (4") with integrated black metal grille |
Tweeter | 25 mm (1") with integrated black metal grille |

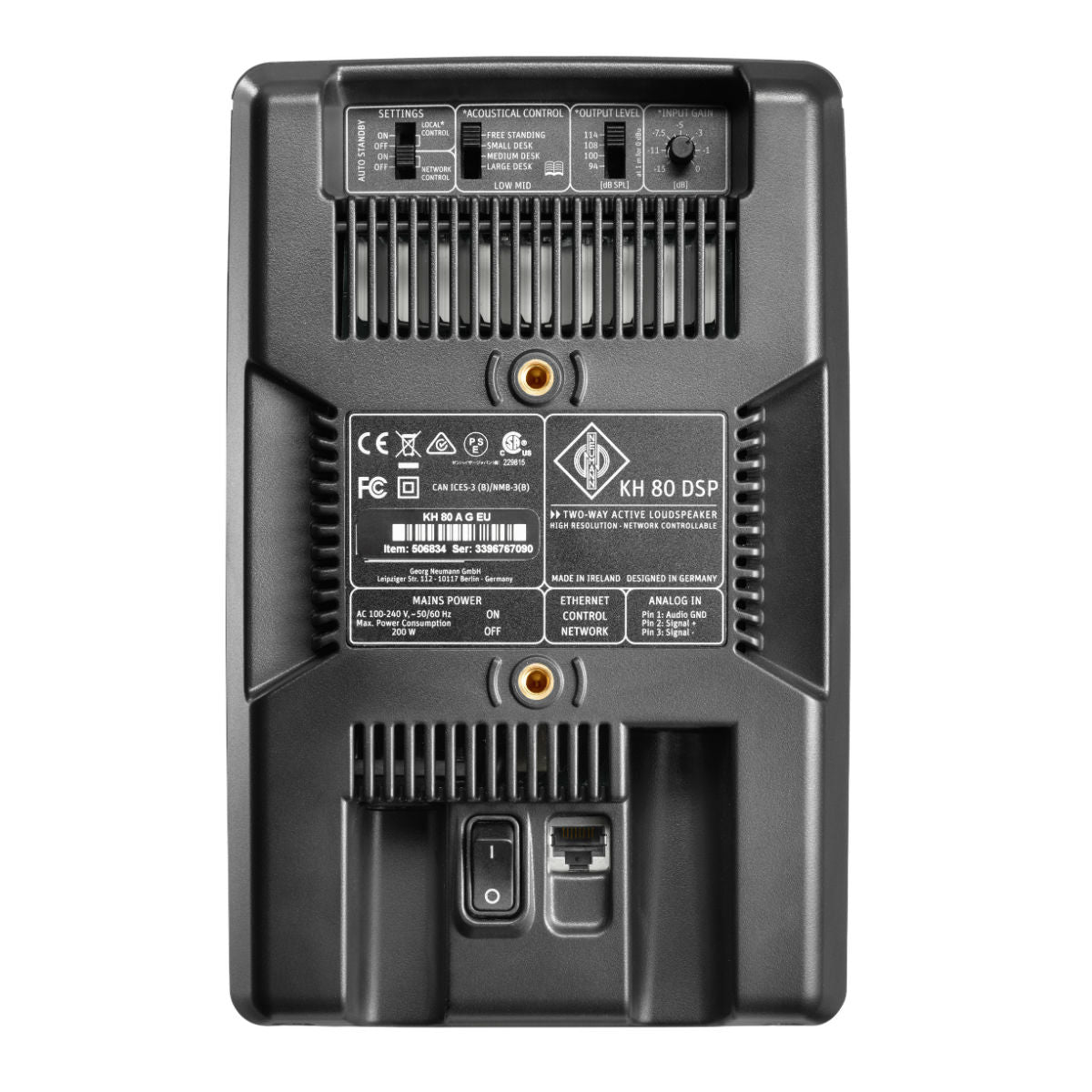

Mounting points | 2 x M6 threaded inserts with 70 mm spacing on back panel, depth from outside of cabinet 16 mm (5/8”). |
Product dimensions (height x width x depth), mm (inches) |
233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8") |
Net volume, internal / external | 3.7 liters / 7.0 liters |
Product weight | 3.4 kg (7 lbs 8 oz) |
Packed dimensions (height x width x depth), mm (inches) |
345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8") |
Packed weight and cube | 4.1 kg (9 lbs 1 oz), 0.023 m3 |
Delivery includes |
1x KH 80 DSP A |
Accessories |
Mounting on a floor stand |
||
KH 80 DSP + LH 61 + LH 28 + stand | |||
Mounting on a design monitor stand (e.g. K&M 26795) |
|||
KH 80 DSP + LH 61 + LH 48 + stand | |||
Mounting on a lighting stand | |||
KH 80 DSP + LH 61 + LH 29 + stand | |||
Mounting on a microphone stand | |||
KH 80 DSP + LH 61 + microphone stand | |||
Mounting on a subwoofer | |||
KH 80 DSP + LH 61 + LH 28 + pole + KH 870 | |||
KH 80 DSP + LH 61 + LH 37 + KH 870 | |||
Mounting on a surface (desktop or floor) | |||
KH 80 DSP + LH 61 1 + surface | |||
KH 80 DSP + LH 61 + LH 43 + surface | |||
KH 80 DSP + LH 61 + LH 47 + LH 43 + surface | |||
KH 80 DSP + LH 61 + LH 47 + LH 46 + surface | |||
|
KH 80 DSP + LH 65 + surface | ||
Mounting on a OmniMount or VESA mount | |||
KH 80 DSP + LH 64 + OmniMount | |||
KH 80 DSP + LH 64 + VESA mount | |||
Mounting on a wall | |||
|
KH 80 DSP + LH 32 + wall | ||
KH 80 DSP + LH 61 + LH 47 + LH 45 + wall | |||
Mounting off a ceiling | |||
KH 80 DSP + LH 61 + ceiling | |||
KH 80 DSP + LH 61 + LH 43 + ceiling | |||
KH 80 DSP + LH 61 + LH 47 + LH 43 + ceiling | |||
|
KH 80 DSP + LH 61 + LH 47 + LH 46 + ceiling | ||
Mounting off a lighting or truss bar | |||
KH 80 DSP + LH 61 + LH 29 + G-clamp + bar | |||
Other accessories PAK 1 |
- 4” composite-sandwich membrane woofer
- 1” alloy fabric dome tweeter
- 120 + 70 W class D-amplifiers with thermal protection
- Compact, vented enclosure
- Frequency response: 57 Hz - 21 kHz, (-3 dB)
- Maximum SPL: 108.8 dB at 1 m
- Input gain and output level control
- Eighth-order phase linear DSP crossover
