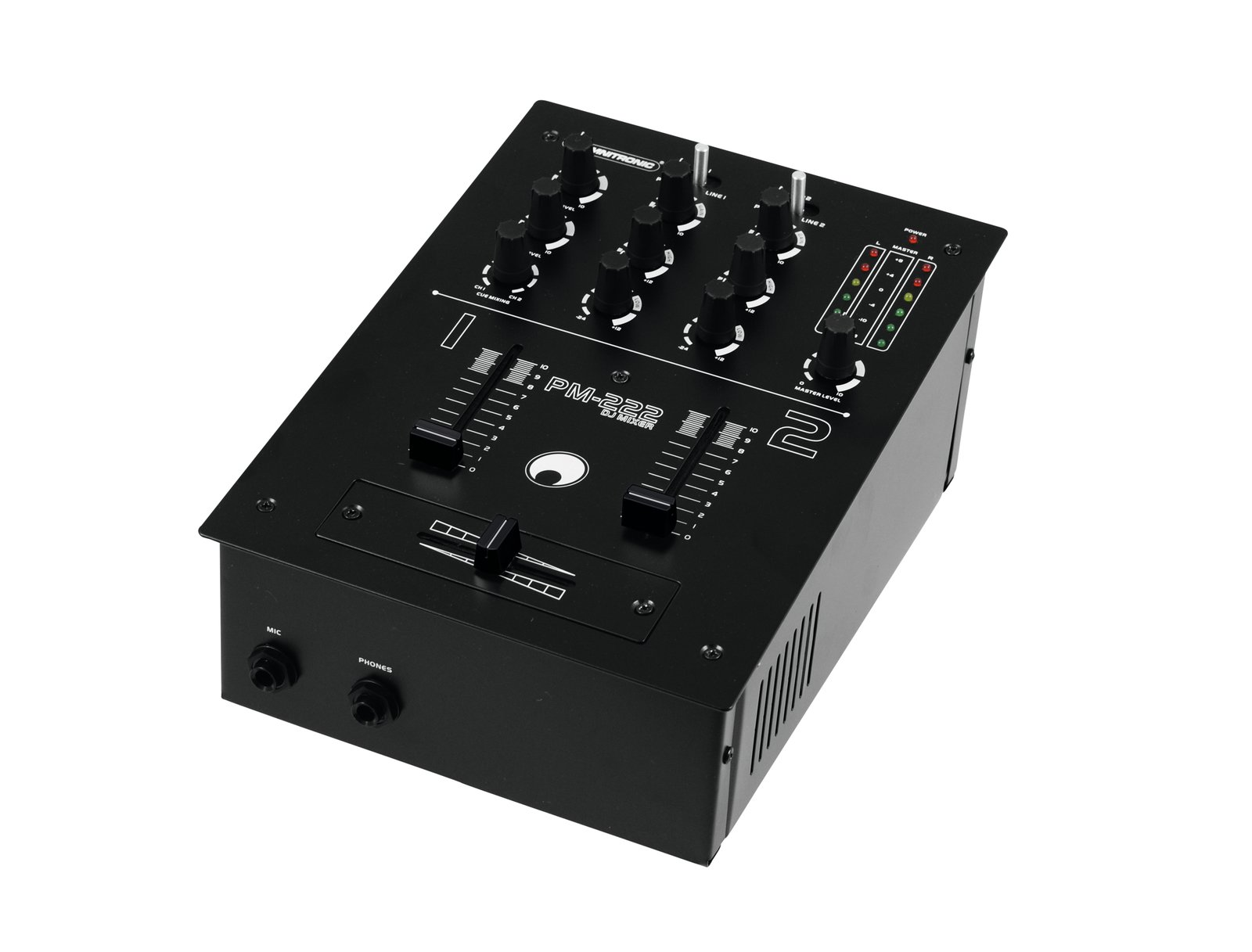

Omnitronic PM-222 2-channel DJ Mixer
Omnitronic PM-222 2-channel DJ Mixer
The Omnitronic PM-222 is the perfect mixer for beginners looking to learn the basics of DJing. It has 2 channels, EQ, and crossfader, as well as a microphone input for added flexibility. Perfect for clubs, schools, or on-the-go performances. The mixer comes with user manual and power cord.
Main features of the Omnitronic PM-222 include:
- 2 input channels with gain control, 2-way equalizer and phono/line switching
- DJ microphone input with separate level control
- Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
- Replaceable crossfader for crossfading between both channels
- 6-digit stereo LED level meter and master level control
- Outputs: master and record (stereo RCA)
- Desktop console housing
- For Application Areas such as: Clubs/Dancing schools, Mobile DJs / Entertainers, Installation
Package Contents
- 1 x User manual
- 1 x Power cord
- 1 x Mixer
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 30.00 W
- Protection class: Protection class II
- Power connection: Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
- Frequency range: 20 - 20000 Hz
- S/N ratio: >70 dB
- THD: <0.025 % at 1 kHz
- Impedance:
- Input: microphone 47 kOhm
- Input: line 47 kOhm
- Input: phono 47 kOhm
- Gain: Input: variable
- Control elements: Power switch, source selector, crossfader
- Status LED: Master level meter, power

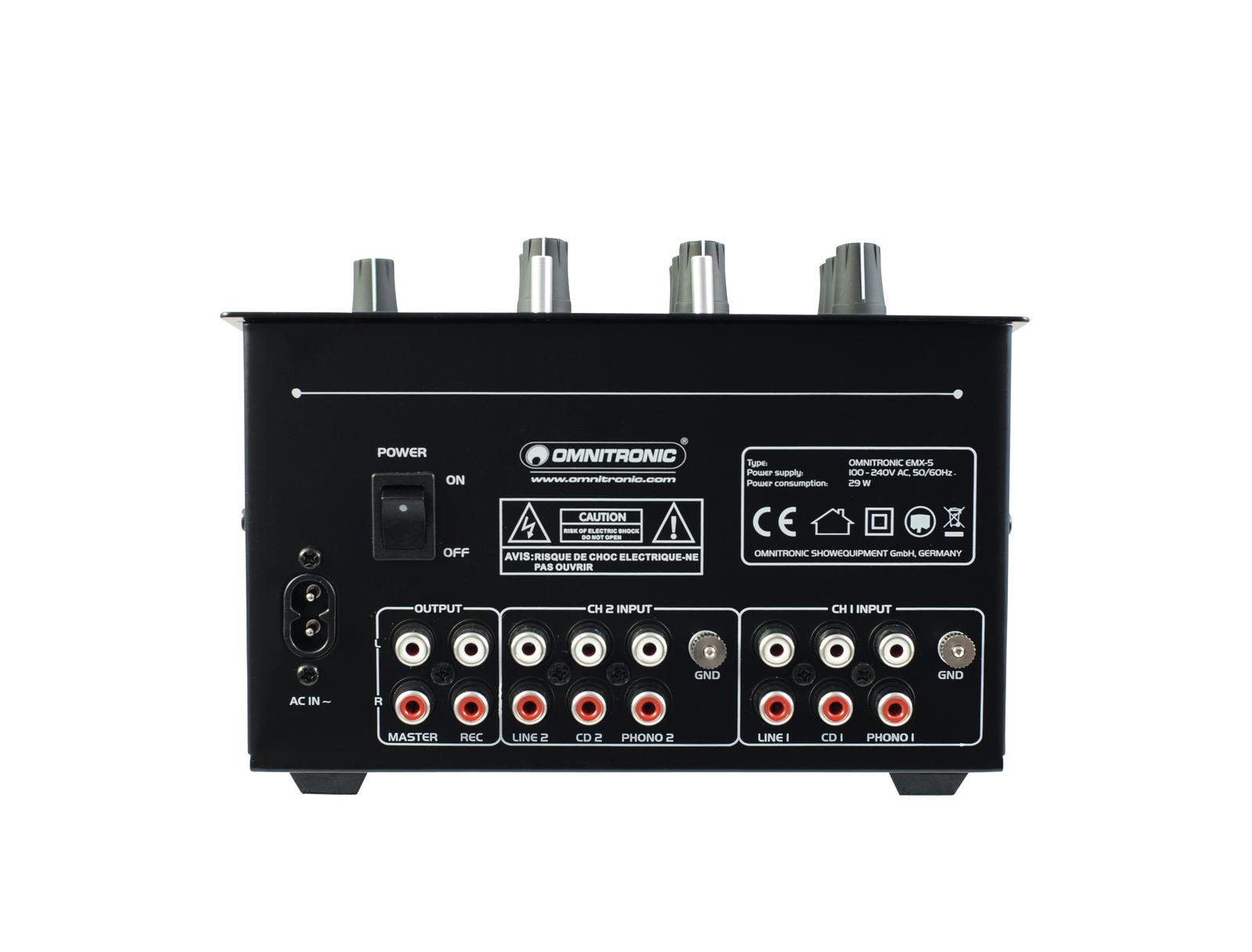

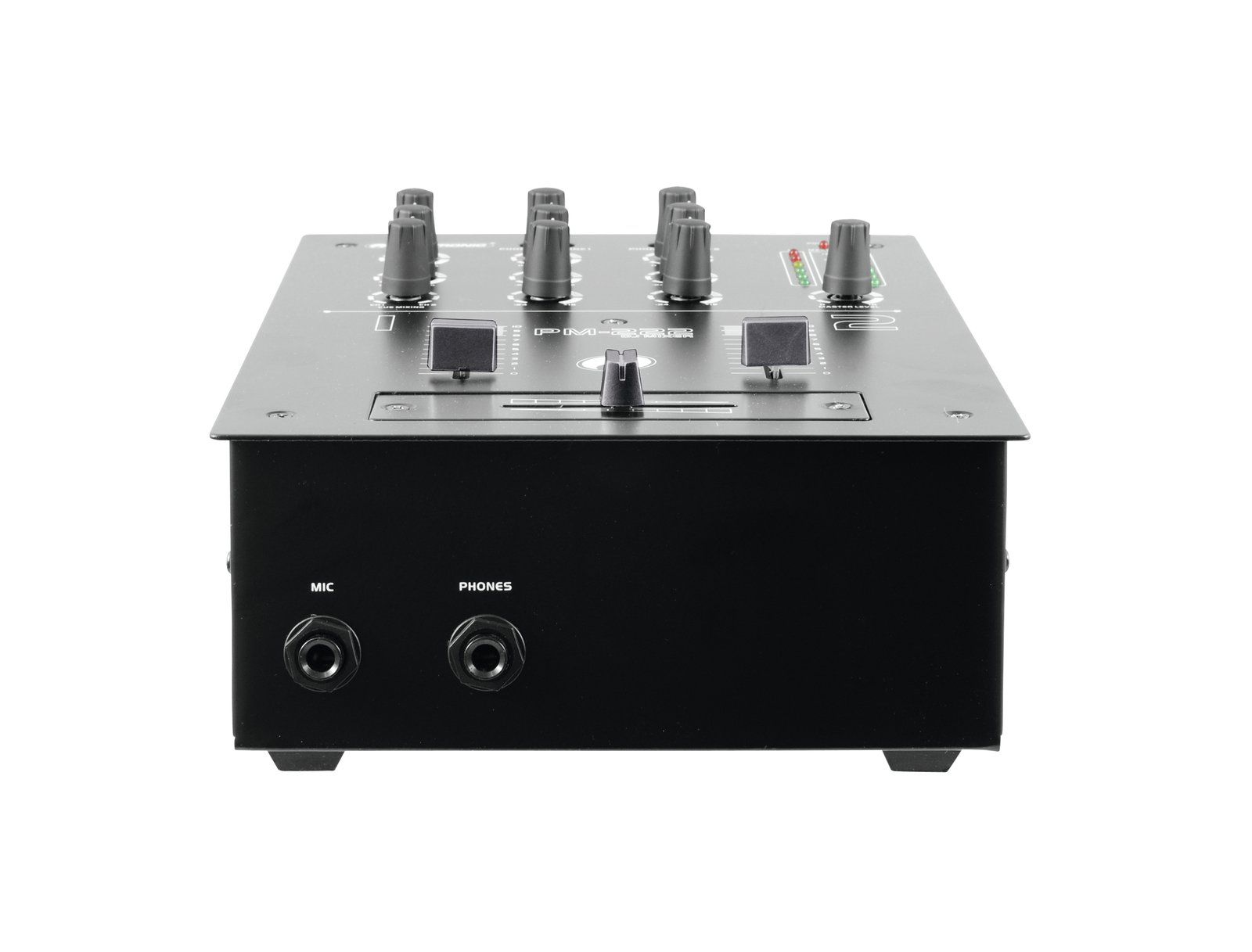

- Connections:
- Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version
- Input: line via 4 x stereo RCA
- Input: phono via 2 x stereo RCA
- Output: master via 1 x stereo RCA
- Output: rec. via 1 x stereo RCA
- Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
- Channels:
- Input channel: 2 x stereo with line-line-phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control
- Microphone channel: 1 x mono via jack, channel control via rotary dial, cue mix function
- Master output: 1 x stereo via RCA, channel control via rotary dial
- Headphones output: 1 x stereo via jack, channel control via rotary dial
- Max. level: Output: master +19 dBu
- Housing design: Desktop console housing
- Dimensions:
- Width: 19 cm
- Depth: 26 cm
- Height: 13.7 cm
- Weight: 2.00 kg
