Omnitronic
Omnitronic TRM-202MK3 2-channel Rotary Mixer

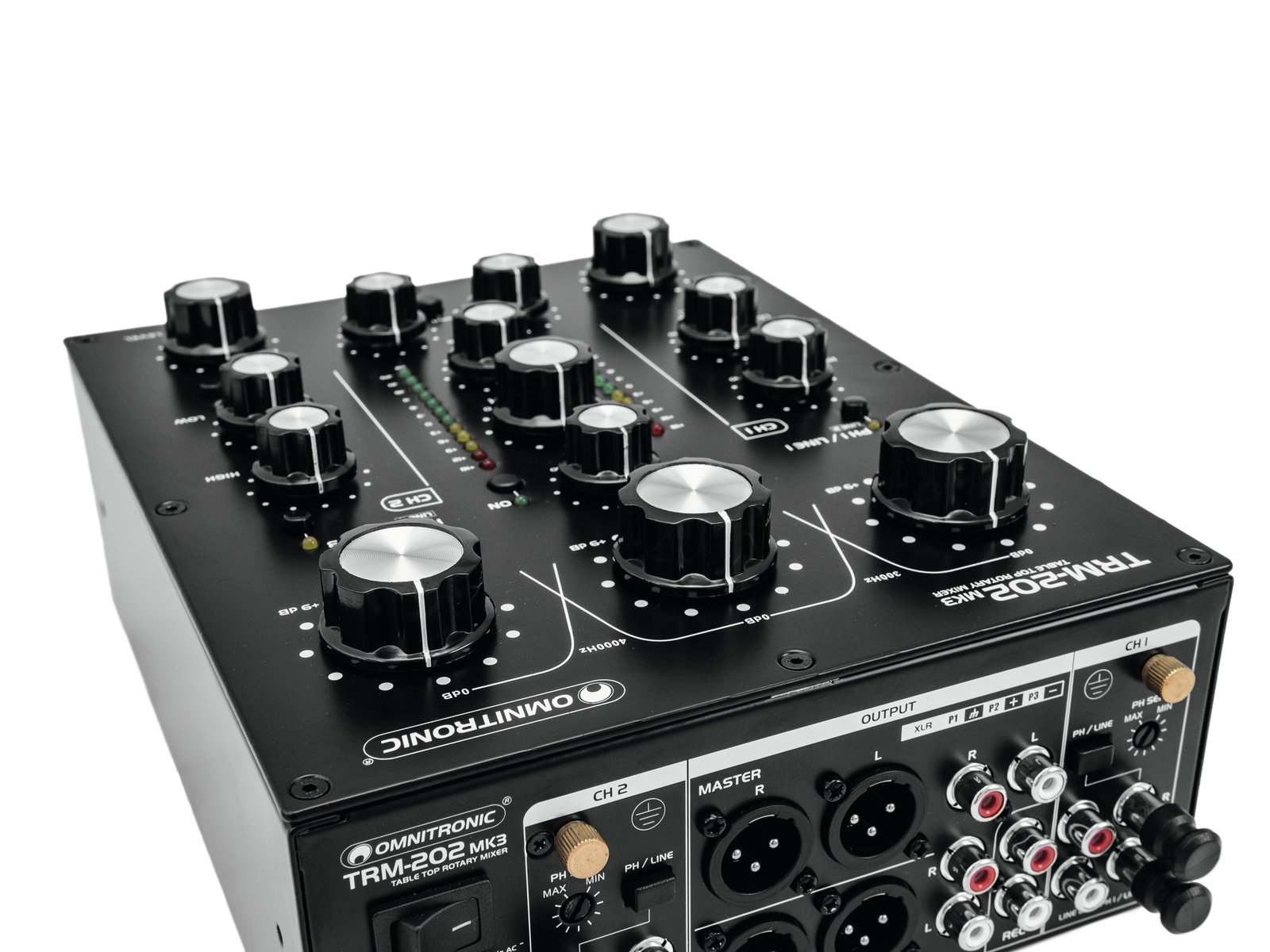

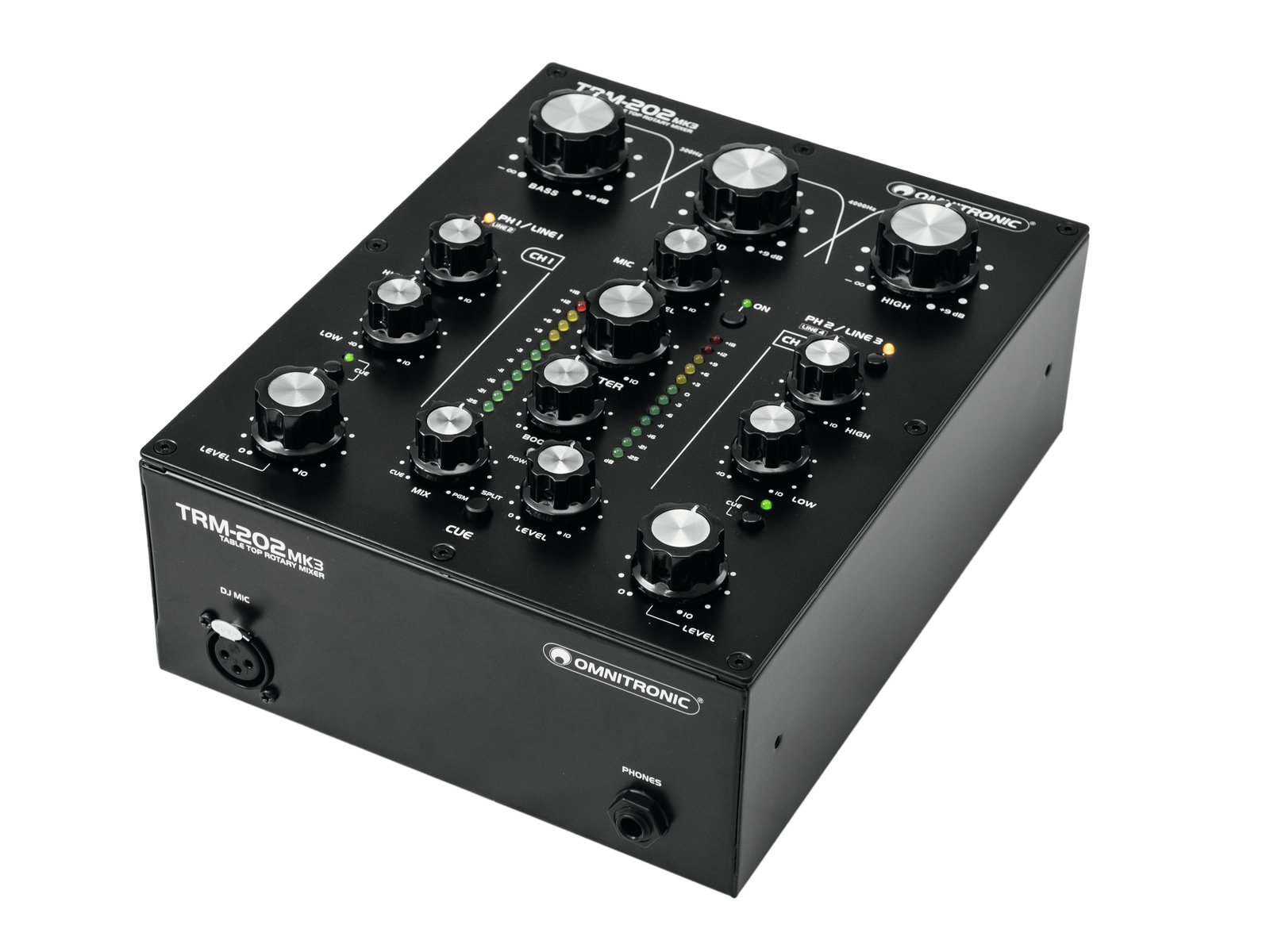

Omnitronic TRM-202MK3 Rotary Mixer
For some time now, rotary mixers have been making a big comeback in the world of electronic dance music. The TRM-202 MK3 from Omnitronic offers the DJ all the classic features of a rotary mixer with its ALPS knobs (Blue Velvet RK27) and the built-in 3-band frequency isolator.
SMOOTH TRANSITIONS
The high-quality components provide a good and appealing sound. The large knobs of both channels allow very smooth transitions, which are difficult to set with a conventional mixer (with faders). For both channels, you can switch between 2 x line & phono inputs or sources. A microphone input is also available. The isolator's kill characteristics completely eliminate bass, midrange, and treble for creative mixing.
RECORDING YOUR OWN SET
Due to the booth output and a separate volume control, the use of the TRM-202 MK3 in the club is no problem. Thanks to the record output, it is also possible to record your own DJ set.
Additional Features
- Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Classic ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
- Desktop console housing
- Areas of application: Clubs/Dancing schools, Mobile use, Mobile DJs / Entertainers, Home recording and studios
Package Contents
- 1 x Device
- 1 x Power cord
- 1 x User manual
- Power supply: 100-240 V AC, 50/60 Hz
- Power consumption: 6.5 W
- Protection class: Protection class I
- Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
- Frequency range:
- Microphone: 20 - 20000 Hz
- Line: 20 - 20000 Hz
- Phono: 40 - 18000 Hz
- S/N ratio:
- Phono: >77 dB
- Microphone: >80 dB
- Line: >85 dB
- THD:
- Line: <0.03 % at 1 kHz
- Phono: <0.1 % at 1 kHz
- Gain:
- Microphone: 44 dB
- Line: 20 dB
- Phono: 60 dB to +75 dB
- Isolators:
- Master Gain: -∞ to +9
- Low/mid: 300 Hz, 18db/oct, Butterworth
- Mid/high: 4000 Hz, 18db/oct, Butterworth
- Control elements: Power switch, source selector, crossfader, cue mix split function, tone control
- Status LED: Power, master level meter, channel source, CUE, microphone
- Connections:
- Input: line via 2 x stereo RCA
- Input: line/phono via 2 x stereo RCA
- Input: microphone via 1 x 3-pin XLR
- Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
- Output: rec. via 1 x stereo RCA
- Output: booth via 2 x 3-pin XLR
- Output: booth via 1 x stereo RCA
- Output: master via 2 x 3-pin XLR
- Output: master via 1 x stereo RCA
- Channels:
- Input channel: 2 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, CUE switch, phono gain rotary, source selector
- Microphone channel: 1 x mono via XLR, channel control via rotary dial, ON AIR switch
- Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial
- Master output: 1 x stereo via XLR or RCA, channel control via rotary dial
- Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function
- Max. level: Output: +22 dBu
- Material: Metal
- Color: Black
- Housing design: Desktop console housing
- Dimensions:
- Width: 19 cm
- Depth: 25 cm
- Height: 10.7 cm
- Weight: 2.68 kg
