Omnitronic TRM-222 2-channel Rotary Mixer
Omnitronic TRM-222
Analog rotary mixer with 3-band master frequency isolator
Proven Features Have Remained
Like its predecessors, the TRM-222 is equipped with a 3-band master frequency isolator, which uses classic ALPS rotary potentiometers (Blue Velvet RK27) for precise sound control. The kill characteristic allows bass, midrange and treble to be completely cancelled out, giving DJs creative freedom in shaping their sound.
The switchable filter section with HPF, BPF, LPF, resonance and sweep controls allows creative processing of the frequency bands. Two stereo input channels with gain control, clip LED, 3-band EQ and phono/line switching as well as a microphone input channel with gain control, 2-band EQ and on-air switch extend the mixer's range of applications. The LED level display for the master signal (L+R) and cue signal provide a good overview.
New Functions at the Request of Users

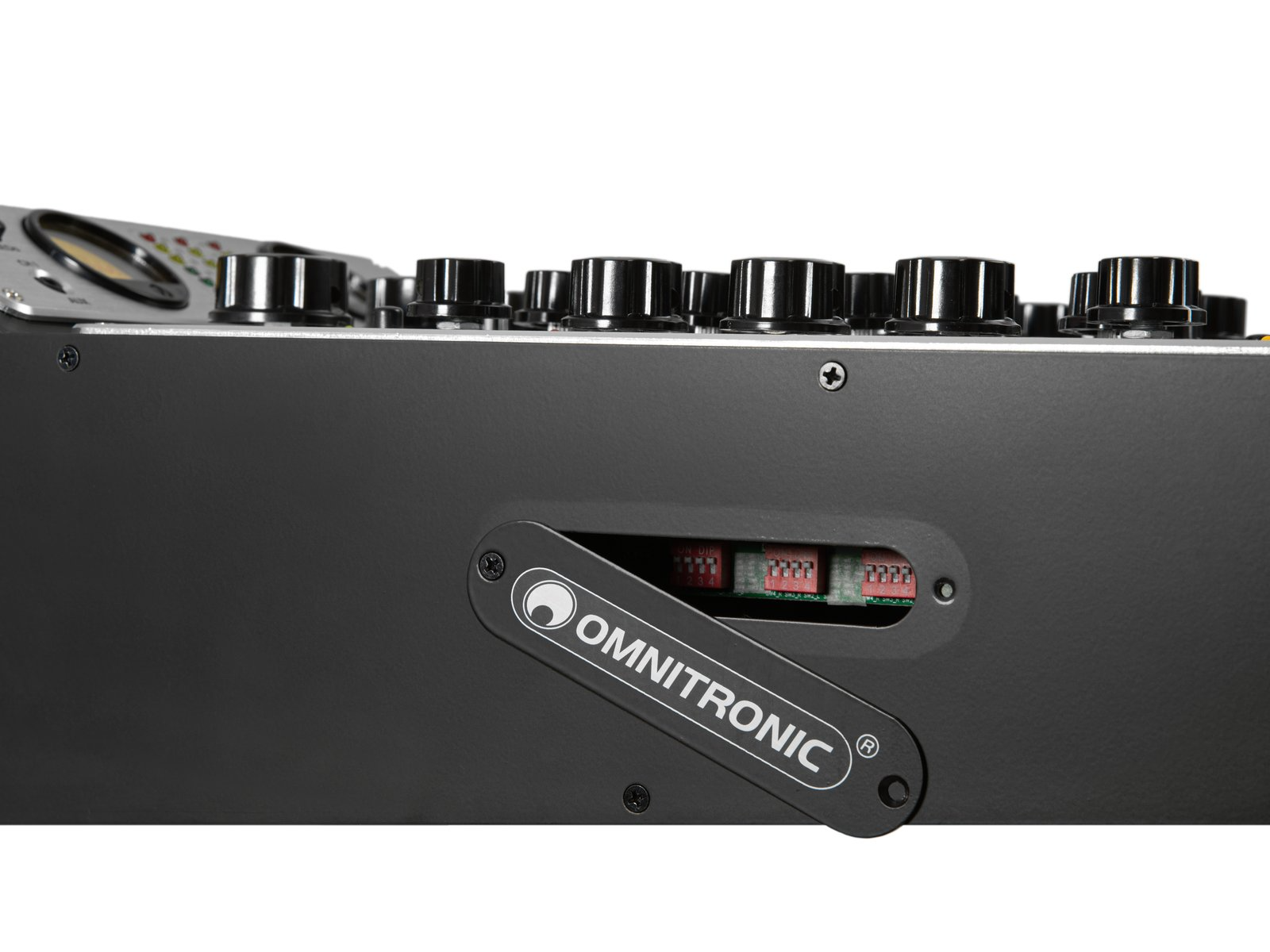

During the further development of the mixer, great importance was attached to feedback from the community. New functions such as the VU meter display per channel, dipswitches for individual adjustment of the EQ curve and a booth output (XLR or RCA) with 2-band EQ and volume control testify to the sophisticated functionality of the TRM-222. At the request of the fans, the mixer now has a crossfader in VCA technology with adjustable crossfade characteristics, an adjustable send-return effect path and an adjustable record-out.
In addition, the TRM-222 offers two direct outputs for timecode applications and a variety of outputs: Master and Booth (XLR/ RCA L/R), Record (RCA L/R), Master Insert Send/Return (RCA L/R) and FX In/Out (stereo jack).
Key features of the Omnitronic TRM-222:
- Filter section with resonance and sweep control for creative sound shaping
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- 2 effects send/return paths

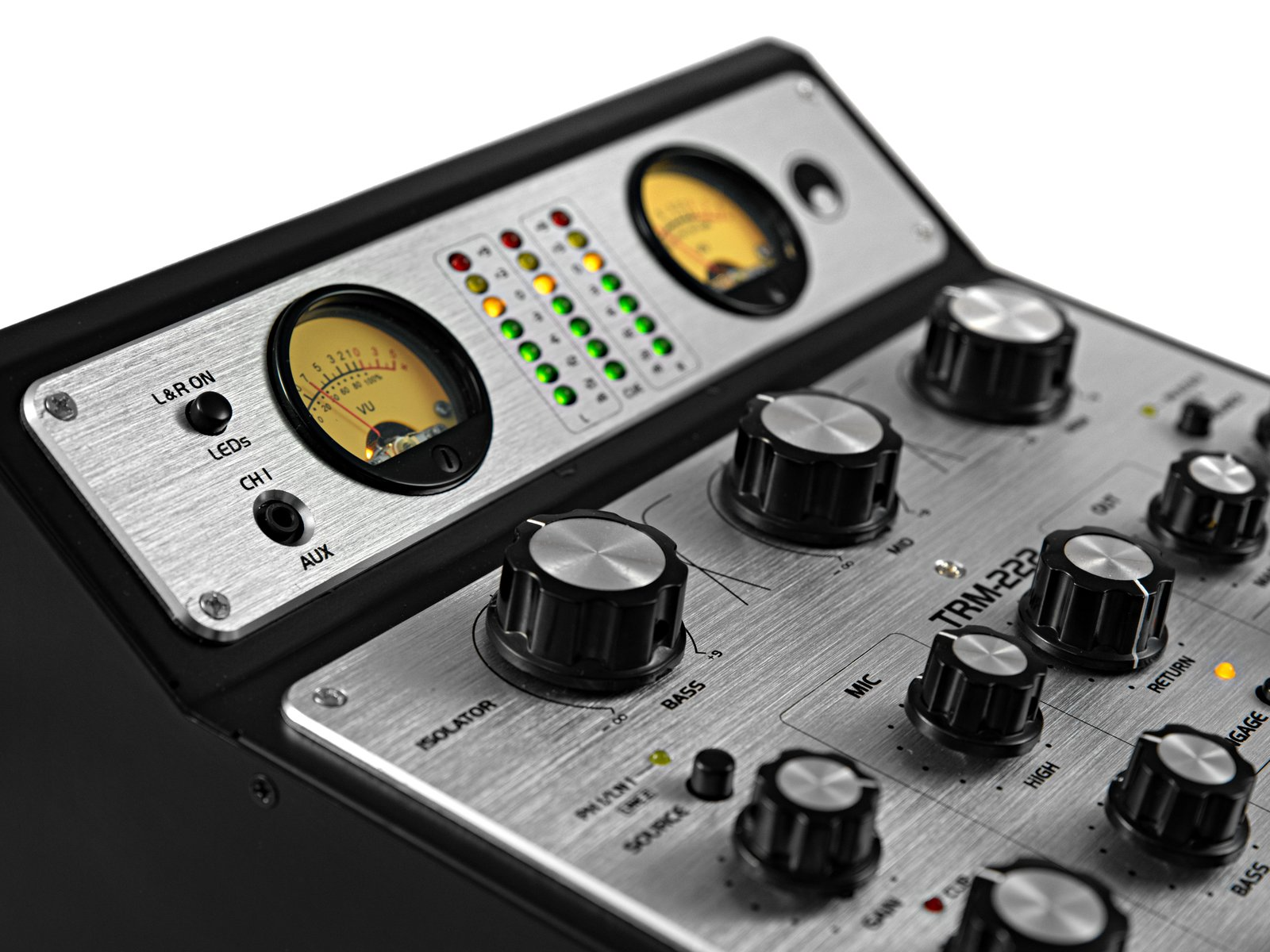

- Dual analog VU meter
- Direct outputs for Timecode applications
- High-grade components ensure long life and excellent sound quality
- Booth output with separate 2-way equalizer and level control
- Record output, independent of the master
- Fully assignable VCA crossfader with adjustable curve

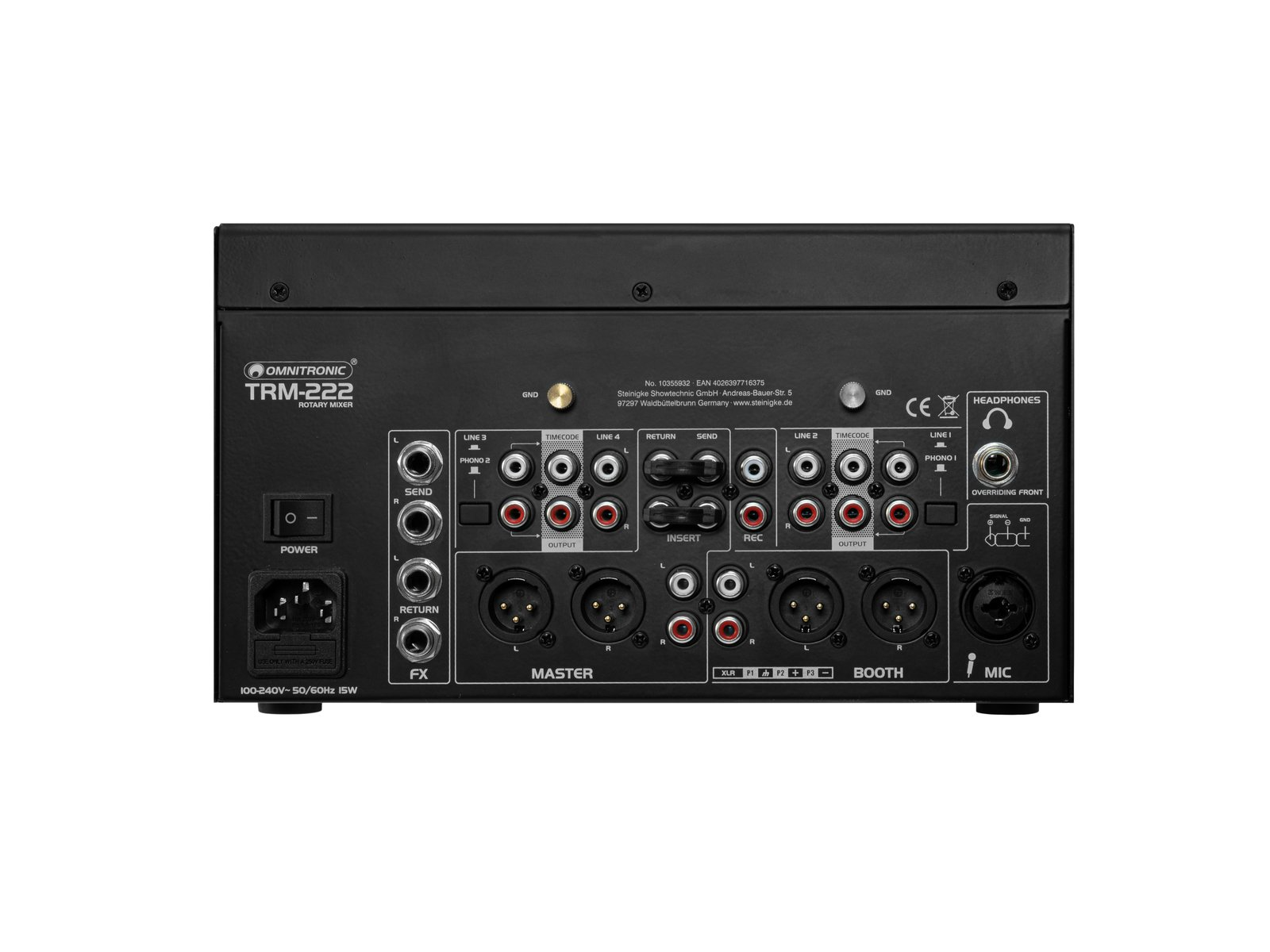

- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- Desktop console housing
- DJ filter LPF, HPF routable
- For application areas such as: Clubs/dancing school; mobile use; mobile DJs / entertainers; home recording and studios
Package Contents
- 1 x Mixer
- 1 x Power cord
- 1 x Cover
- 1 x User manual
- Power consumption: 15 W
- Protection class: Protection class I
- Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
- Cable length: 1.5 m detachable
- Gain:
- Line -12 dB to +12 dB
- Phono -40 dB to +5 dB
- FX 20 dB
- Microphone 55 dB
- Housing color: Black; silver
- Material: Metal; aluminum
- Max. level: Output: +21 dBu
- Dimensions:
- Width: 45 cm
- Depth: 26 cm
- Height: 16 cm
- Weight: 5.80 kg
