ORTOFON

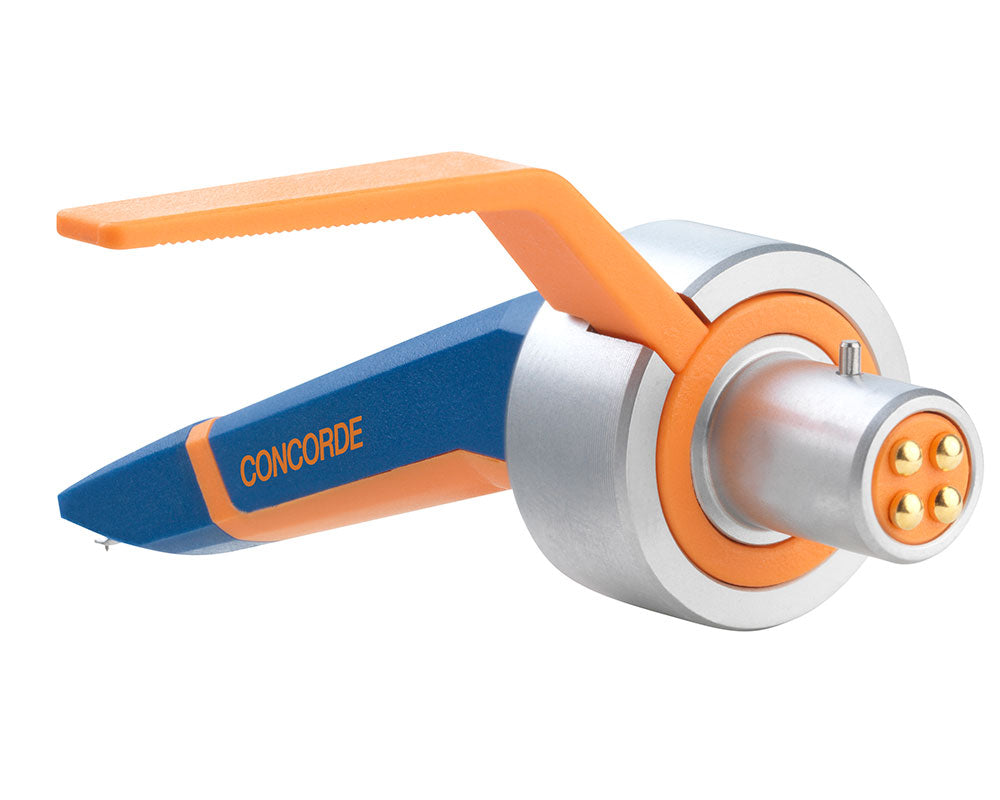

Ortofon Concorde DJ Mk2 Cartridge
The Ortofon Concorde DJ Mk2 is great for any style of music, it has a spherical stylus and an extremely balanced cantilever that provides outstanding rigidity. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.
Overall the Concorde DJ offers improved tracking, alongside of accurate sound reproduction and an excellent groove handling.
Whats new with the Mk2?
The new Ortofon Concorde Mk2 range features some great new improvements :
- Totally redesigned from the ground up
- New locking mechanism for stylus
- Replaceable,Colour coded finger lift
- New stylus tip : Larger and more robust, easier to grip:
The new shape of the stylus allows you to accurately drop the needle on any part of a record. The point of contact between the needle and record is very clear from any angel. The body is wider and provides easier grip and handling.
Key facts on the Ortofon Concorde DJ Mk2:
- OUTPUT : 6 mV
- FREQUENCY RANGE : 20 – 20,000 Hz
- TRACKING FORCE : 3g
- STYLUS TYPE : Spherical
Output voltage at 1,000 Hz, 5 cm/sec. | 6 mV |
Channel balance at 1 kHz | 1 dB |
Channel separation 1 kHz | 22 dB |
Channel separation 15 kHz | 15 dB |
Frequency range at -3 dB | 20 – 20,000 Hz |
Tracking ability at 315 Hz at recommended tracking force | 100 μm |
Compliance, dynamic lateral | 14 μm/mN |
Stylus type | Spherical R 18 μm |
Tracking force range | 3 – 5 g |
Tracking force recommended | 4 g |
Cartridge weight | 18.5 g |
Replacement stylus unit | Stylus DJ Mk2 |
- New design
- Replaceable finger lift
- Double cantilever
- Excellent handling
