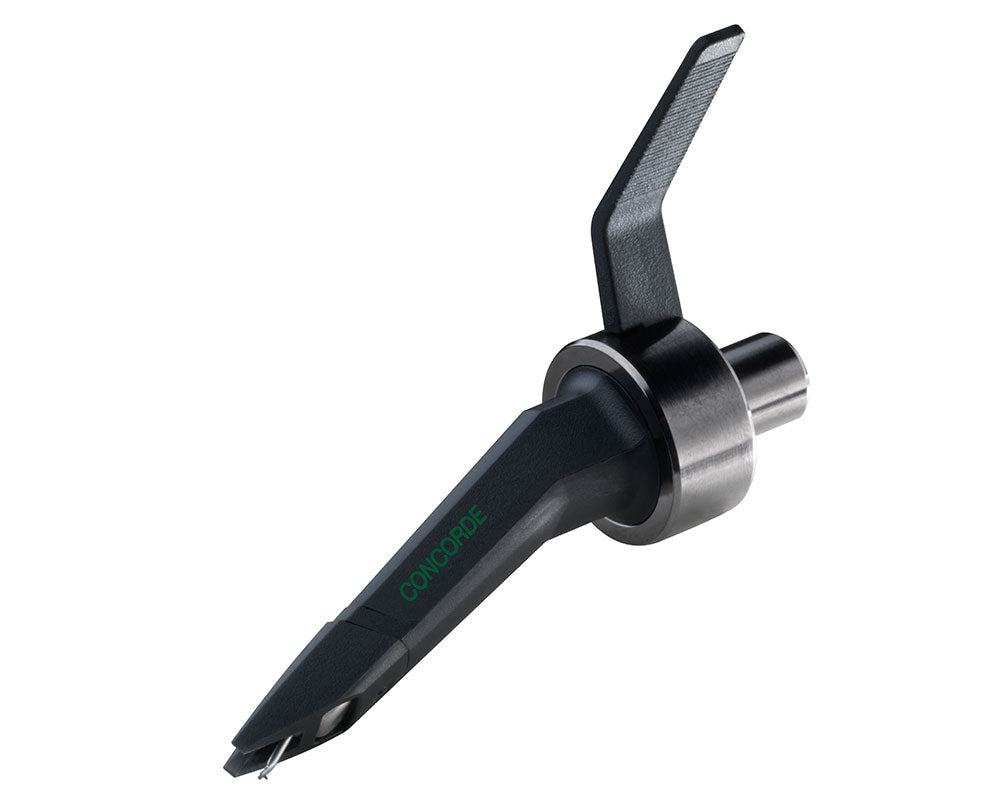

Ortofon Concorde Mix Mk2 Cartridge
The Ortofon Concorde Mix is a general, all purpose cartridge for DJ’ing including scratching and back-cueing.
The Mix provides great performance and durability from a quality spherical stylus with a solid cantilever. It offers good output, high sound quality and a good tracking ability for virtually any style of music.
With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the best value DJ cartridges offering excellent price-to-performance ratio.
Whats new with the Mk2?
The new Ortofon Concorde Mk2 range features some great new improvements :
- Totally redesigned from the ground up
- New locking mechanism for stylus
- Replaceable,Colour coded finger lift
- New stylus tip : Larger and more robust, easier to grip:
The new shape of the stylus allows you to accurately drop the needle on any part of a record. The point of contact between the needle and record is very clear from any angel. The body is wider and provides easier grip and handling.
Key facts on the Ortofon Concorde Mix Mk2:
- OUTPUT : 6 mV
- FREQUENCY RANGE : 20 – 20,000 Hz
- TRACKING FORCE : 3g
- STYLUS TYPE : Spherical
Output voltage at 1,000 Hz, 5 cm/sec. | 6 mV |
Channel balance at 1 kHz | 1.5 dB |
Channel separation 1 kHz | 20 dB |
Channel separation 15 kHz | 15 dB |
Frequency range at -3 dB | 20 – 20,000 Hz |
Tracking ability at 315 Hz at recommended tracking force | 100 μm |
Compliance, dynamic lateral | 14 μm/mN |
Stylus type | Spherical R 18 μm |
Tracking force range | 2 – 4 g |
Tracking force recommended | 3 g |
Cartridge weight | 18.5 g |
Replacement stylus unit | Stylus Mix Mk2 |
- New design
- Replaceable finger lift
- Balanced sound
- Excellent handling
