ORTOFON

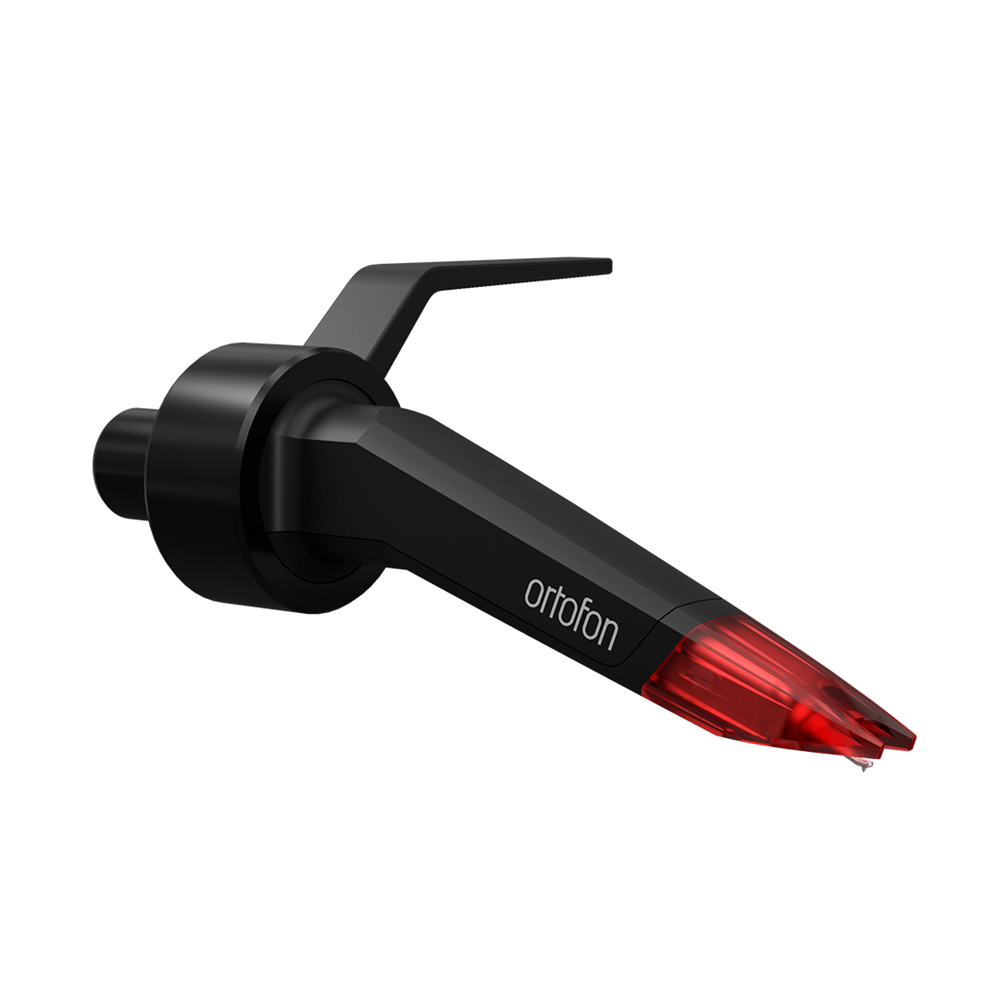

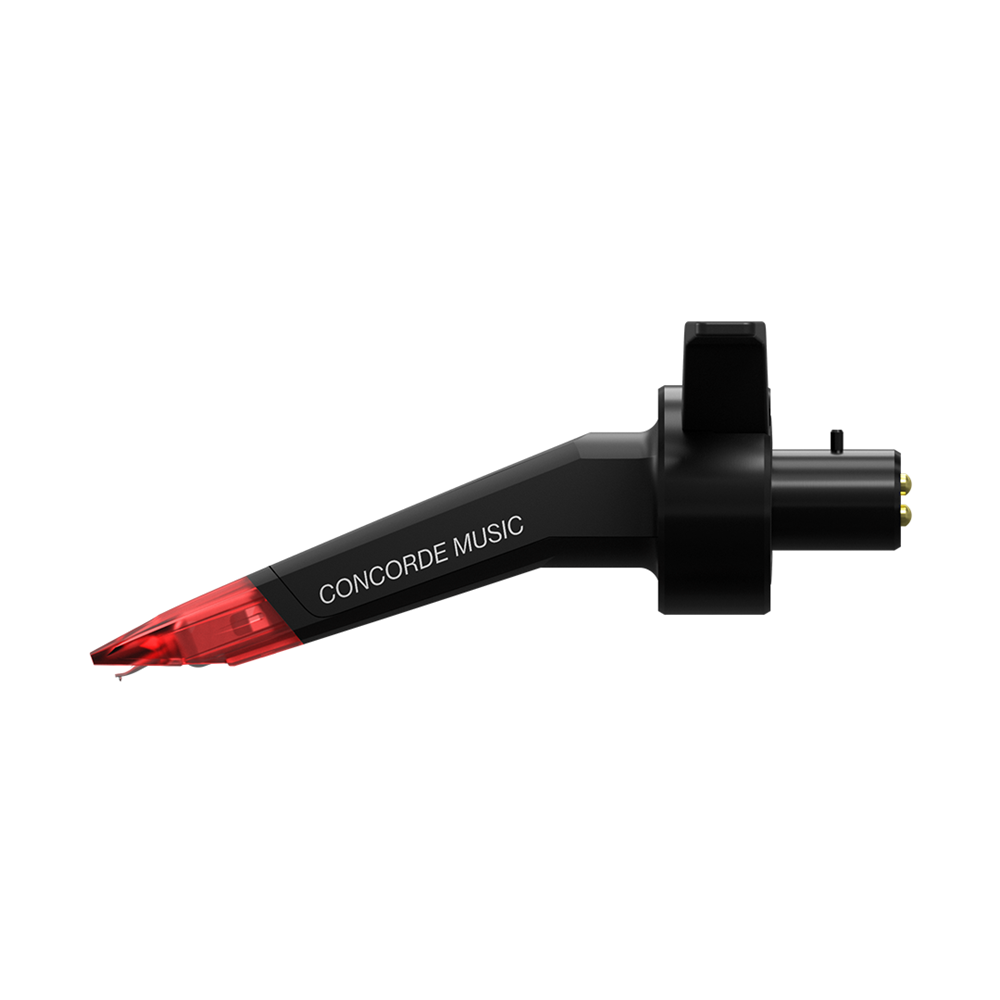

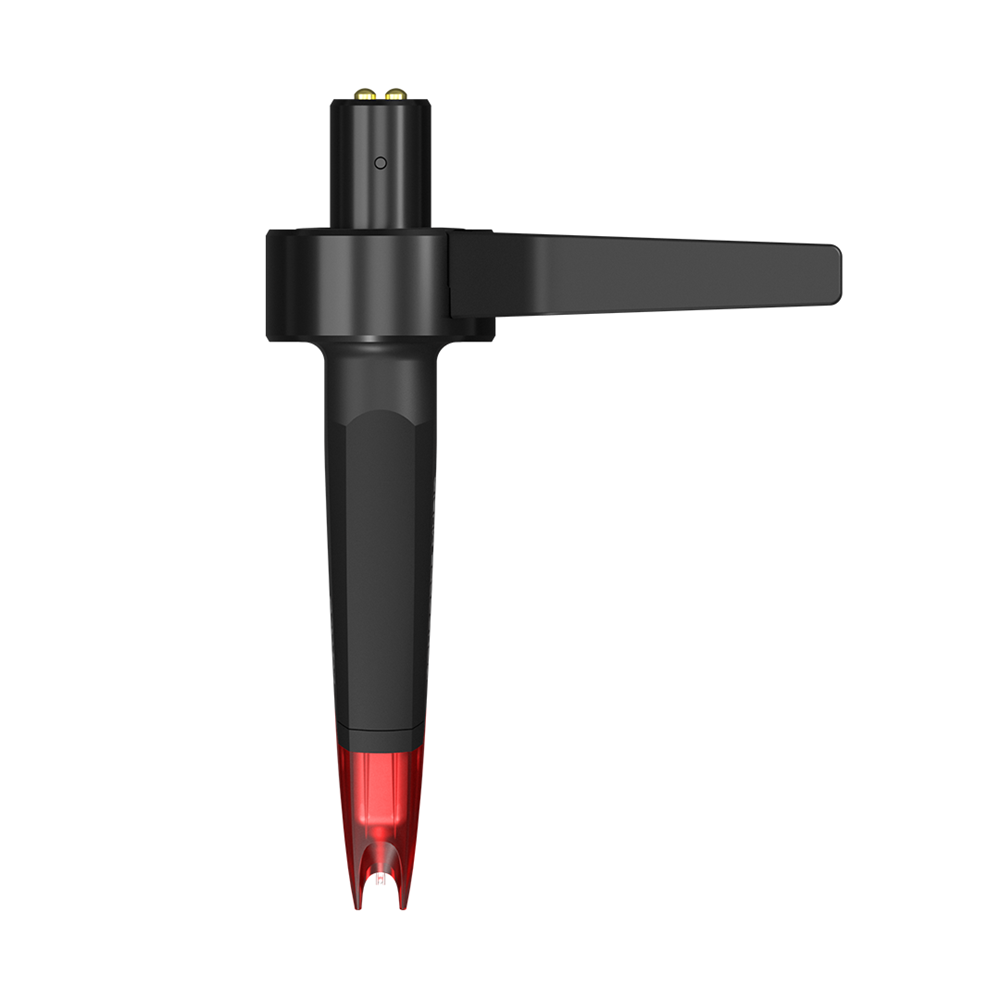

Ortofon Concorde Music Red Moving Magnet Cartridge
Experience the ultimate introductory model with the Ortofon Concorde Music Red! Affordable, superior sound for music lovers on a budget. Perfect for switching to Hi-Fi playback and offers easy upgrade options for the future. Enjoy precise and accurate retrieval of recorded sound with Ortofon's philosophy of no coloration.
Ortofon Concorde Music Red features a high-quality elliptical diamond stylus profile for an impressive entry-level performance.
The Concorde Red will deliver an open, dynamic sound with a slight touch of warmth.
- OUTPUT VOLTAGE: 6 mV
- CHANNEL BALANCE (@ 1000HZ): 1.5 dB
- CHANNEL SEPARATION (@ 1000HZ): 22 dB
- FREQUENCY RESPONSE +3 / -1DB: 20-20k Hz
- TRACKING ABILITY (@ 315HZ AT RECOMMENDED
- TRACKING FORCE): 80 μm
- COMPLIANCE, DYNAMIC, LATERAL: 15 μm
- STYLUS TYPE: Tipped Elliptical
- STYLUS TIP RADIUS (R/R): 8/18 μm
- RECOMMENDED TRACKING FORCE: 1.8 g
- INTERNAL IMPEDANCE: 1.27 Ω
- INTERNAL INDUCTANCE: 815 mH
- CANTILEVER MATERIAL: Aluminium Tube
- COIL WIRE MATERIAL: Silver Plater OFC Copper
- RECOMMENDED LOAD IMPEDANCE: 47 Ω
- RECOMMENDED LOAD CAPACITANCE: 150-300 pF
- CARTRIDGE WEIGHT: 18 g
- All-purpose cartridge that delivers an open, dynamic sound
- Concorde cartridge for direct-mounting into SME-style tonearms
- Tipped Elliptical diamond stylus profile
