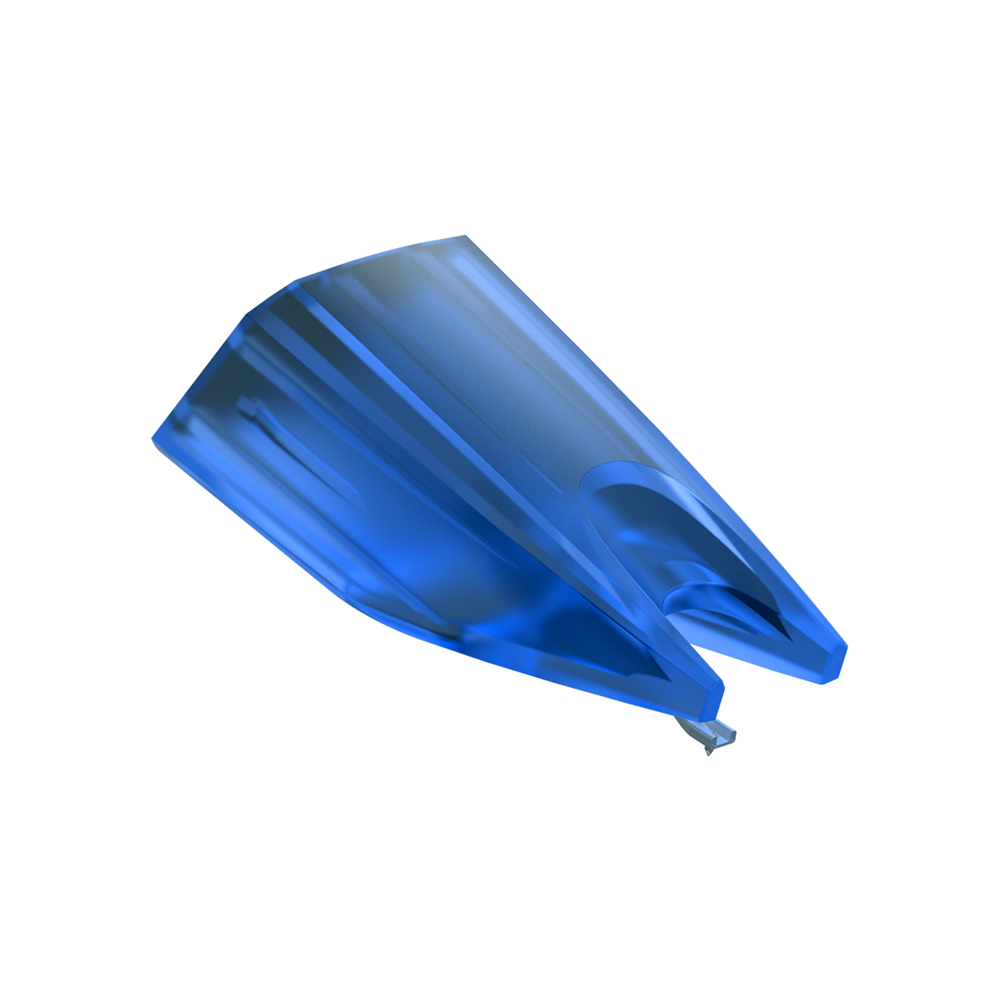

Ortofon Stylus Concorde Music Blue
Quantity:
With the Ortofon Concorde Music Blue you can expect a more refined performance thanks to its nude elliptical diamond, taking you one step closer to the musical performance.
The Concorde Blue, as a step up from the Red, adds more dynamics and resolution, sounds more open, and reproduces more details.
- OUTPUT VOLTAGE: 6 mV
- CHANNEL BALANCE (@ 1000HZ): 1.5 dB
- CHANNEL SEPARATION (@ 1000HZ): 25 dB
- FREQUENCY RESPONSE +2 / -1DB: 20-20k Hz
- TRACKING ABILITY (@ 315HZ AT RECOMMENDED
- TRACKING FORCE): 80 μm
- COMPLIANCE, DYNAMIC, LATERAL: 15 μm
- STYLUS TYPE: Nude Elliptical
- STYLUS TIP RADIUS (R/R): 8/18 μm
- RECOMMENDED TRACKING FORCE: 1.8 g
- INTERNAL IMPEDANCE: 1.27 Ω
- INTERNAL INDUCTANCE: 815 mH
- CANTILEVER MATERIAL: Aluminium Tube
- COIL WIRE MATERIAL: Silver Plater OFC Copper
- RECOMMENDED LOAD IMPEDANCE: 47 Ω
- RECOMMENDED LOAD CAPACITANCE: 150-300 pF
- CARTRIDGE WEIGHT: 18 g
- Dynamic cartridge with increased resolution and a more open sound
- Concorde cartridge for direct-mounting into SME-style tonearms
- Nude Elliptical diamond stylus profile
