ORTOFON

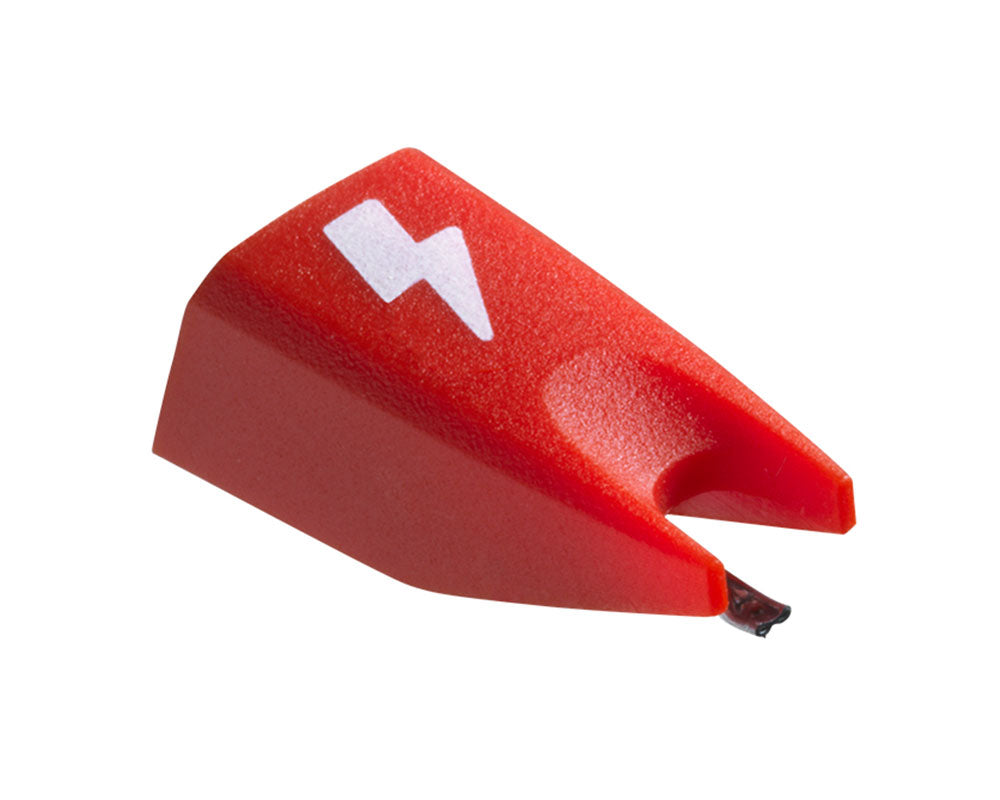

Ortofon Stylus Digital Mk2
Quantity:
The Ortofon Stylus Digital is made for the new Mk2 concorde series cartridges.
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.
Output voltage at 1,000 Hz, 5 cm/sec. | 10 mV |
Channel balance at 1 kHz | 1 dB |
Channel separation 1 kHz | 22 dB |
Channel separation 15 kHz | 15 dB |
Frequency range at -3 dB | 20 – 18,000 Hz |
Tracking ability at 315 Hz at recommended tracking force | 100 μm |
Compliance, dynamic lateral | 14 μm/mN |
Stylus type | Spherical R 18 μm |
Tracking force range | 3 – 5 g |
Tracking force recommended | 4 g |
- Larger, wider and more robust stylus body
- Easier to grip and handle
- Better fix by metal spring
- Tactile feedback of correct mount
- Large stylus viewing cut‐out
