ORTOFON

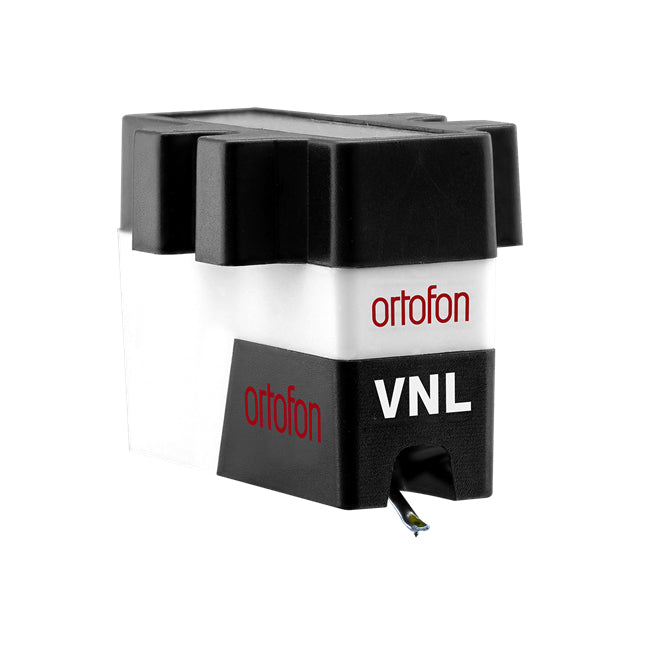

Ortofon VNL Moving Magnet Cartridge
The Ortofon VNL Cartridge is tailored to the highest demands of modern turntablists and portablists.
To help skilled DJs push their creativity to the edge, Ortofon have made a number of design and tech improvements to deliver extra resistance, high tracking performance and optimal balance of output and sound quality.
The new VNL features and improvements:
- Extra resistance to hardcore scratching and back spinning
- High tracking performance for both DVS usage and real vinyl
- Optimal balance of output and of sound quality
Technological improvements have been applied for the benefits of all users:
- Ultrasonic welding of the components ensures high rigidity and freedom from resonances.
- Robotic assembly of stylus assembly offers high precision and uniformity of industrial production.
Output voltage at 1000Hz, 5cm/sec. | 6 mV | ||||||
Channel separation at 1kHz | 20 dB | ||||||
Frequency response 20 Hz - 20 kHz | -2/+4 dB | ||||||
Tracking ability at 315 Hz at recommmended tracking force: | VNL II90 μm |
||||||
Compliance, dynamic lateral: |
|
||||||
Tracking force range | 3 - 5 g | ||||||
Tracking force recommended | 4 g | ||||||
Antiskating | for best backcueing performance use “0” | ||||||
Internal impedance, DC resistance | 750 Ohm | ||||||
Internal inductance | 450 mH | ||||||
Recommended load resistance | 47 kOhm | ||||||
Recommended load capacitance | 200-600 pF | ||||||
Cartridge weight | 6,5 g | ||||||
Replacement stylus units:
|
VNL I, VNL II, VNL III |
- Specifically designed for modern turntablists and portablists
- Extra resistance to hardcore scratching and back spinning
- High tracking performance for both DVS usage and real vinyl
- Optimal balance of output and of sound quality
