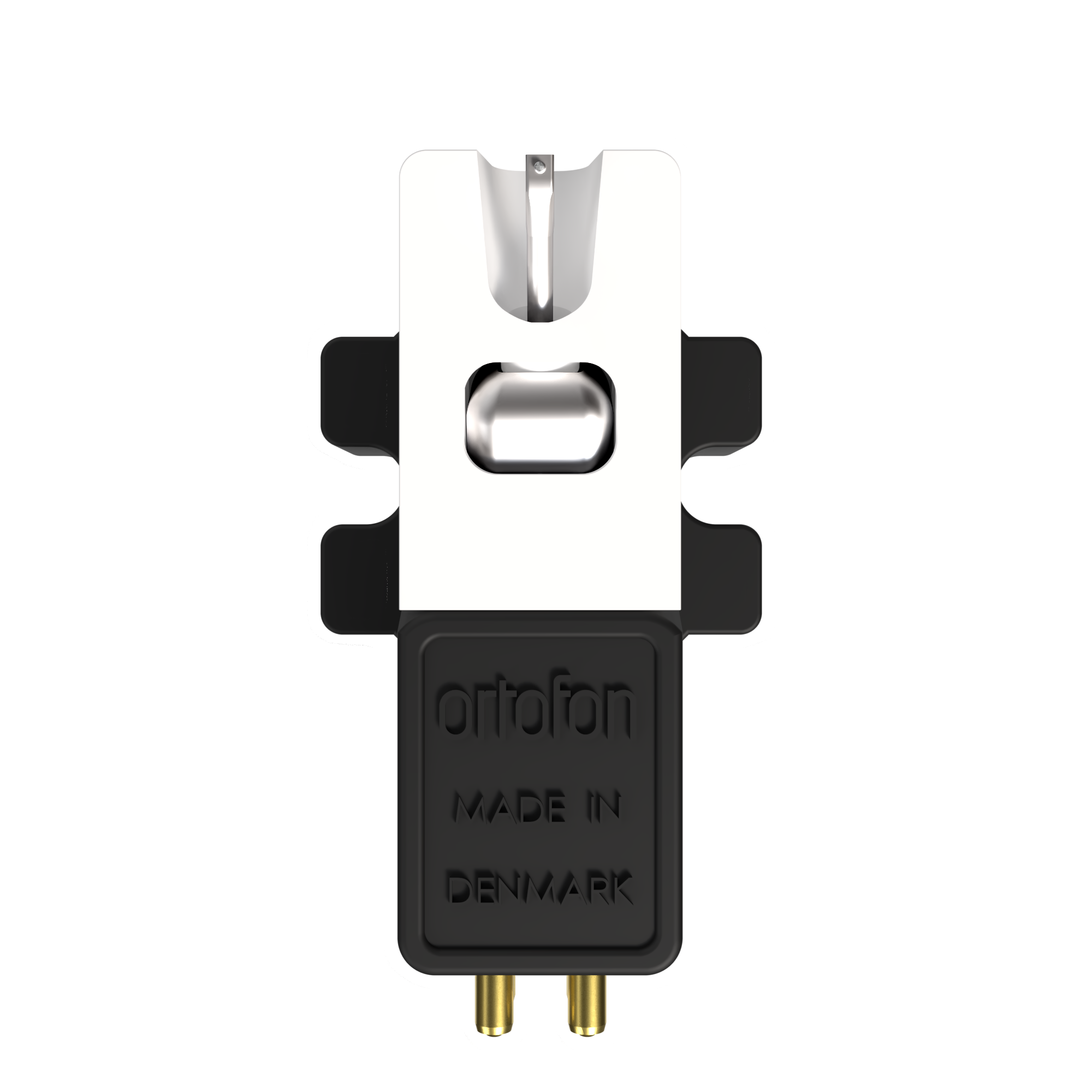

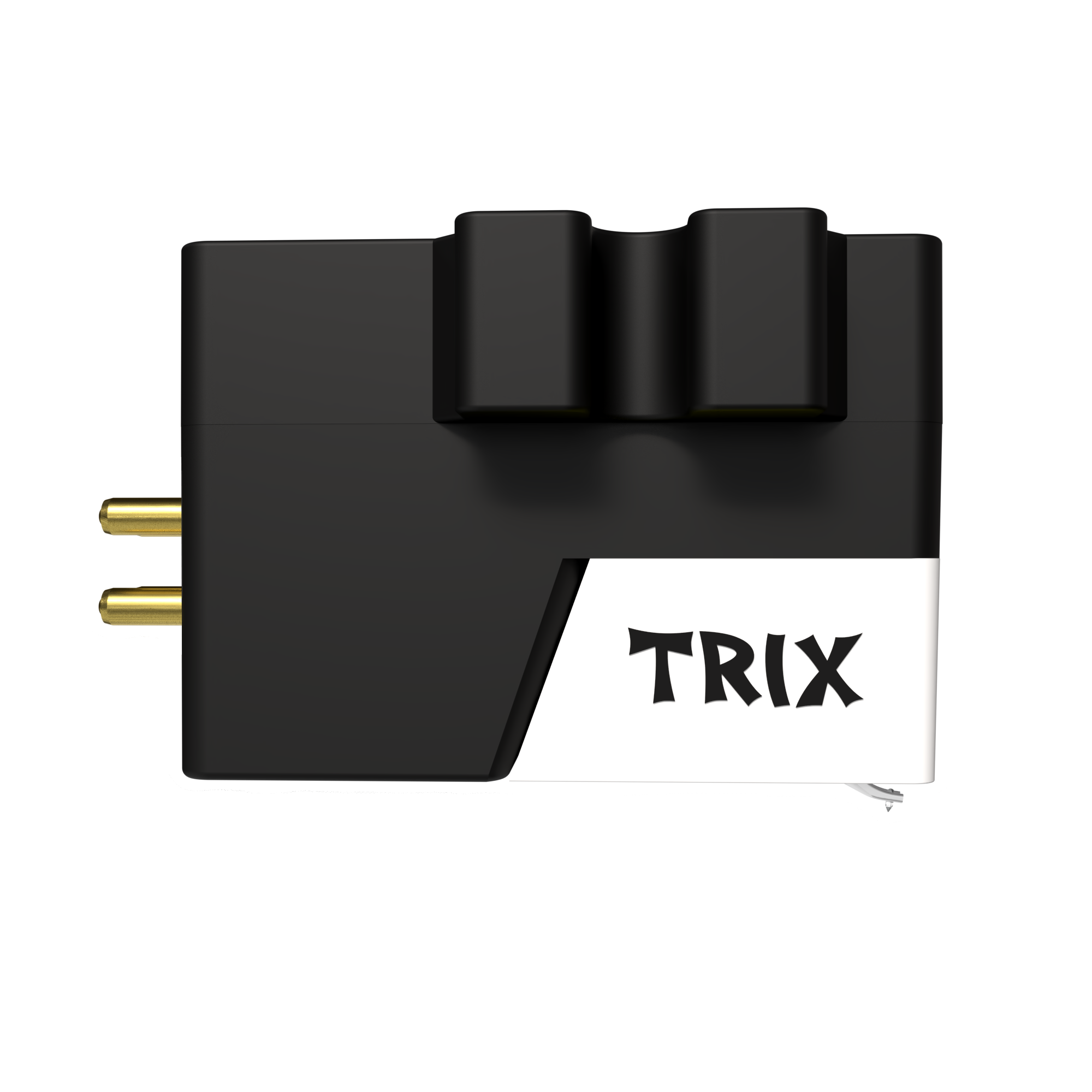

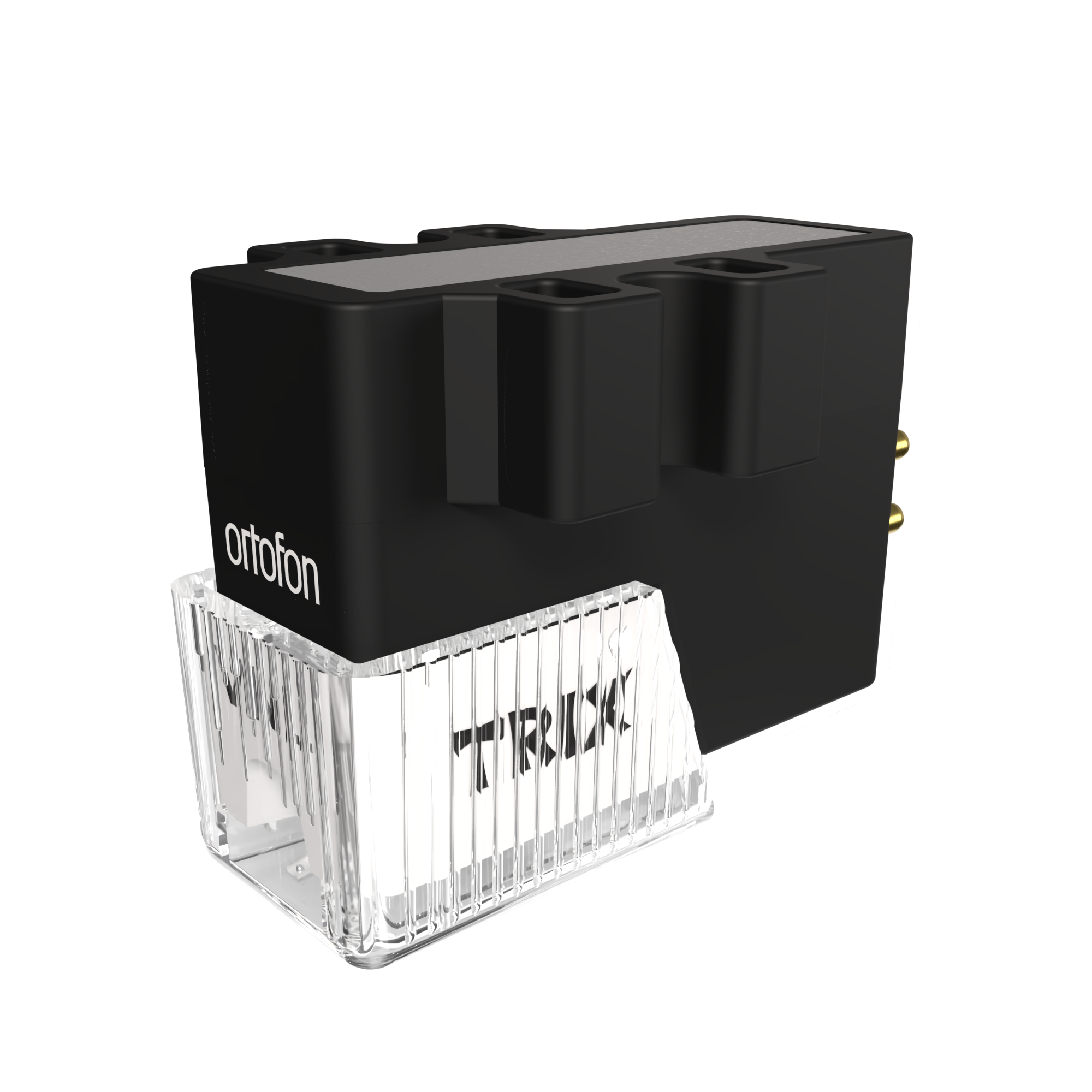

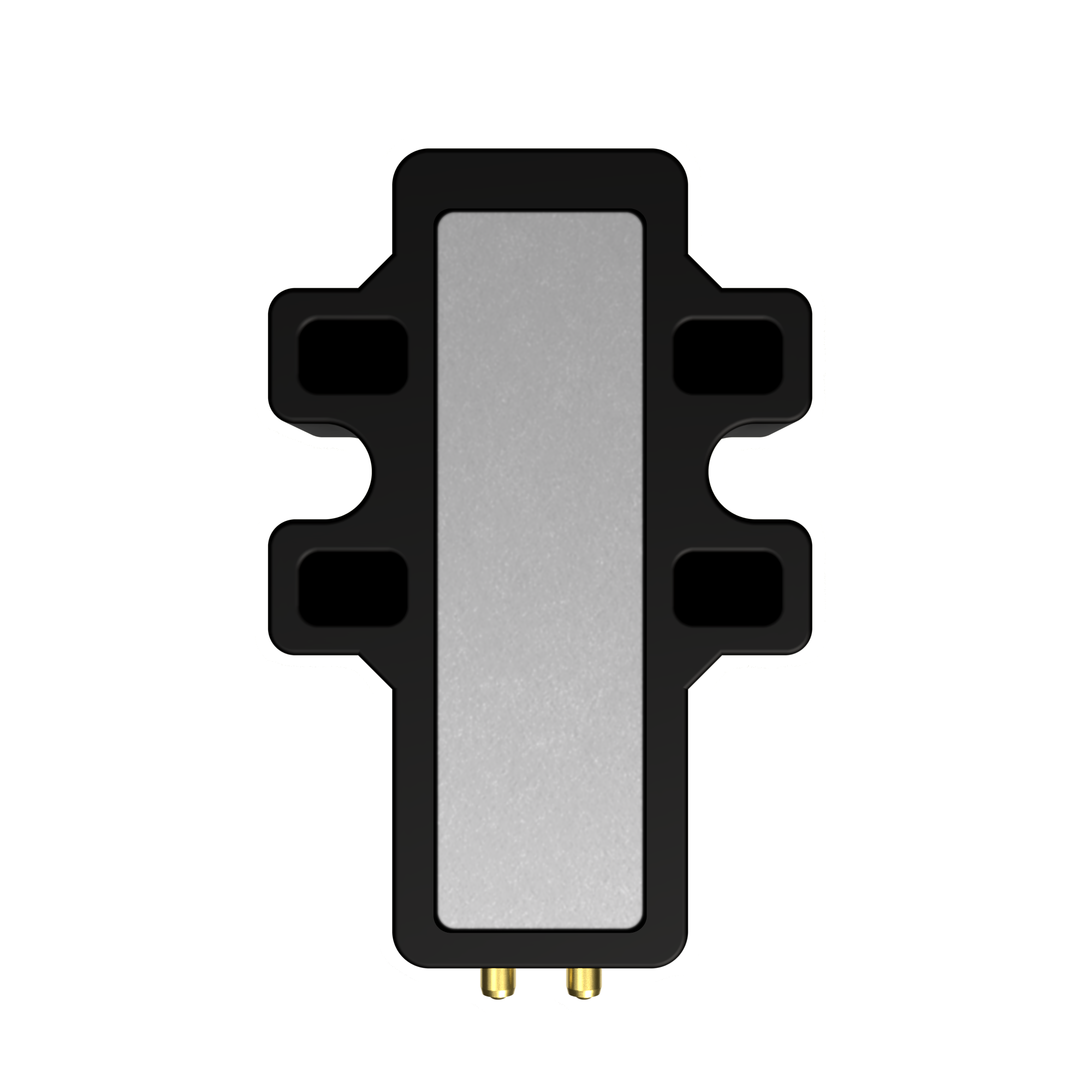

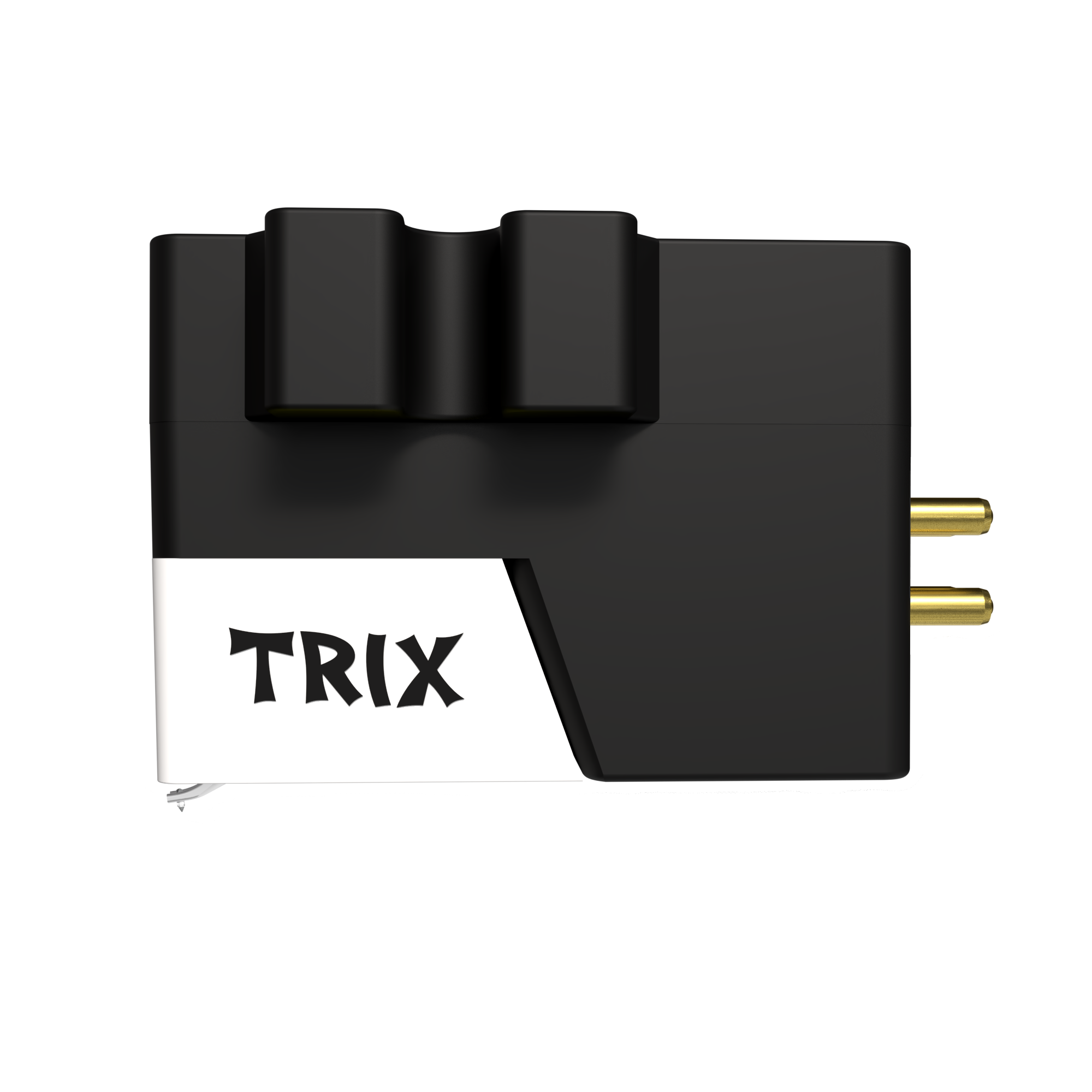

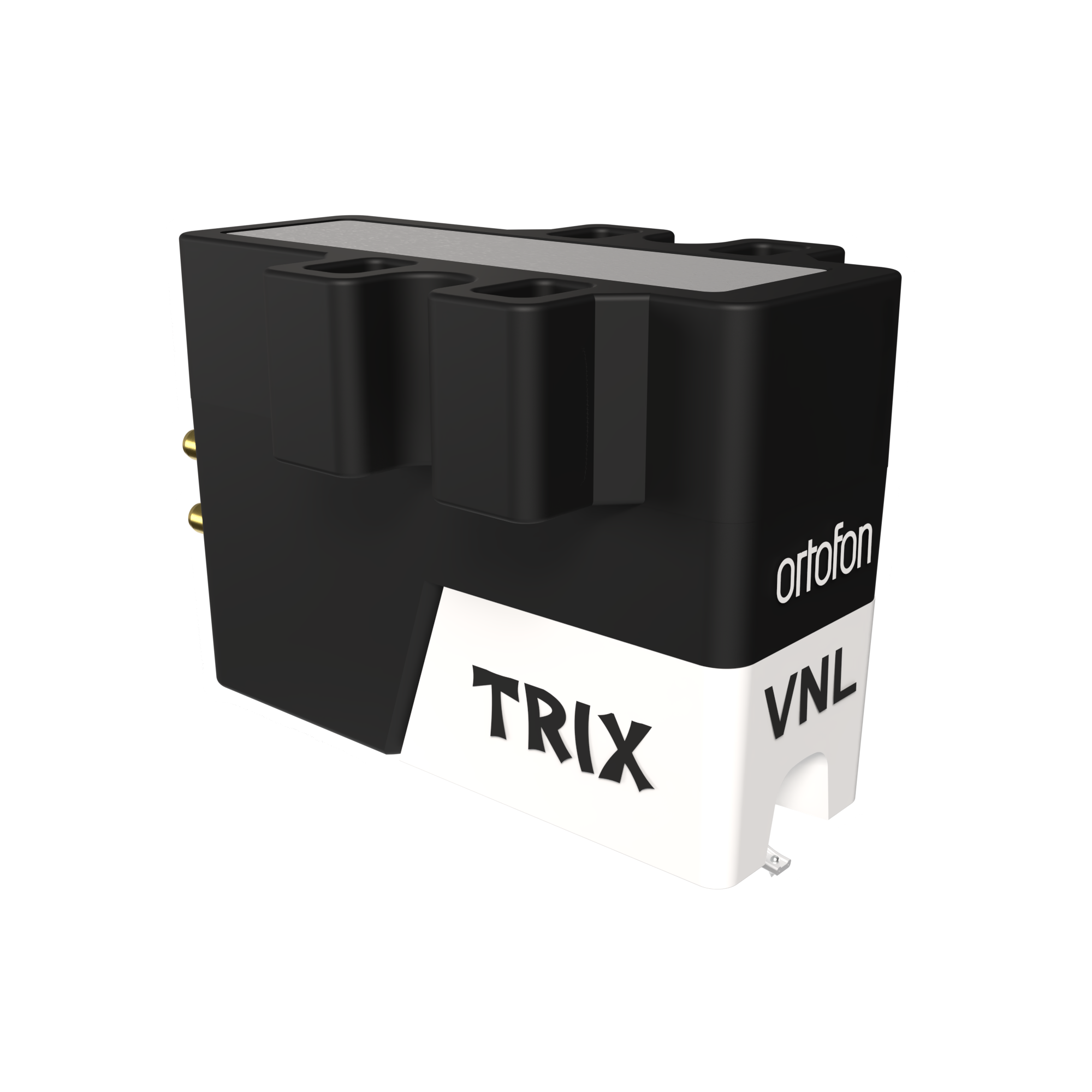

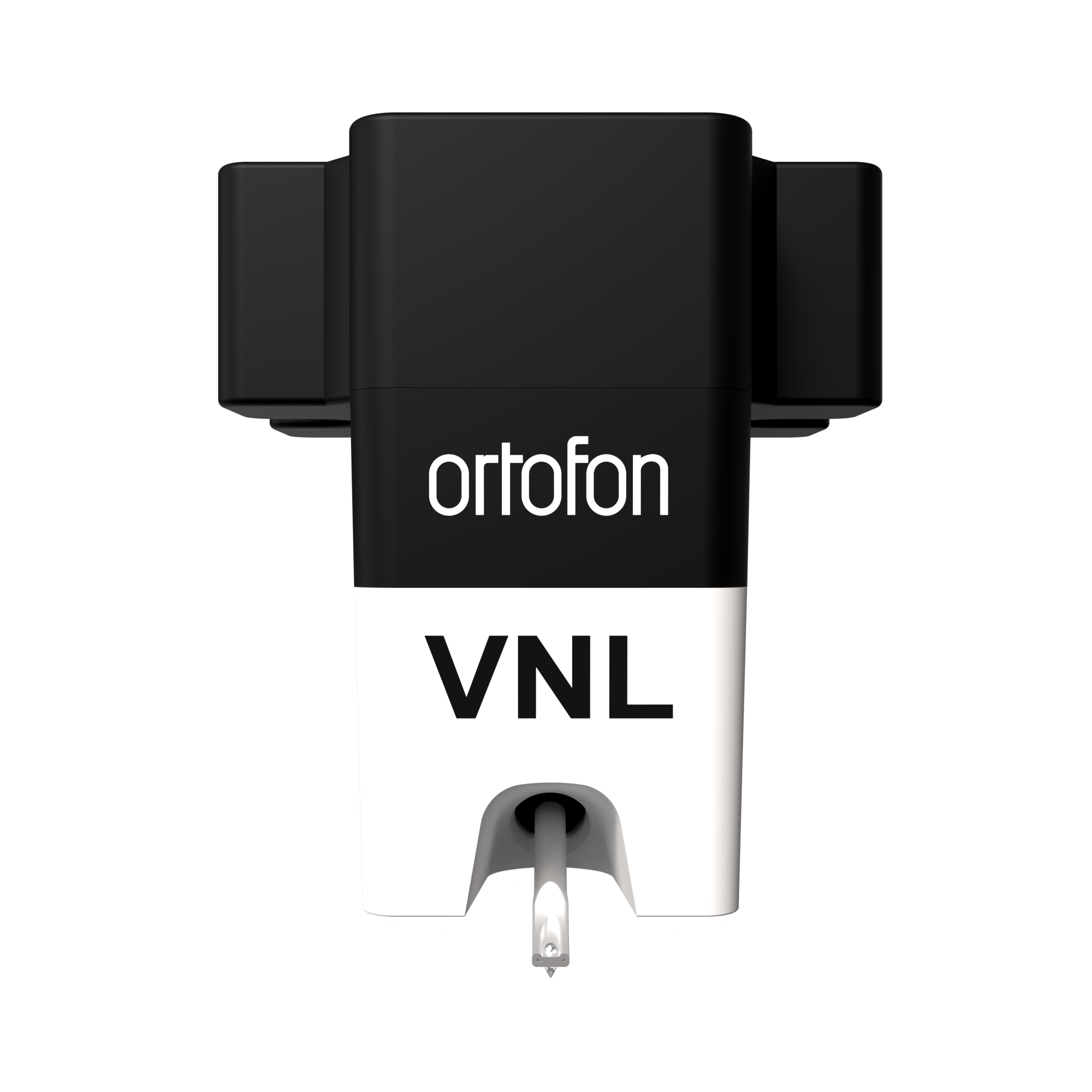

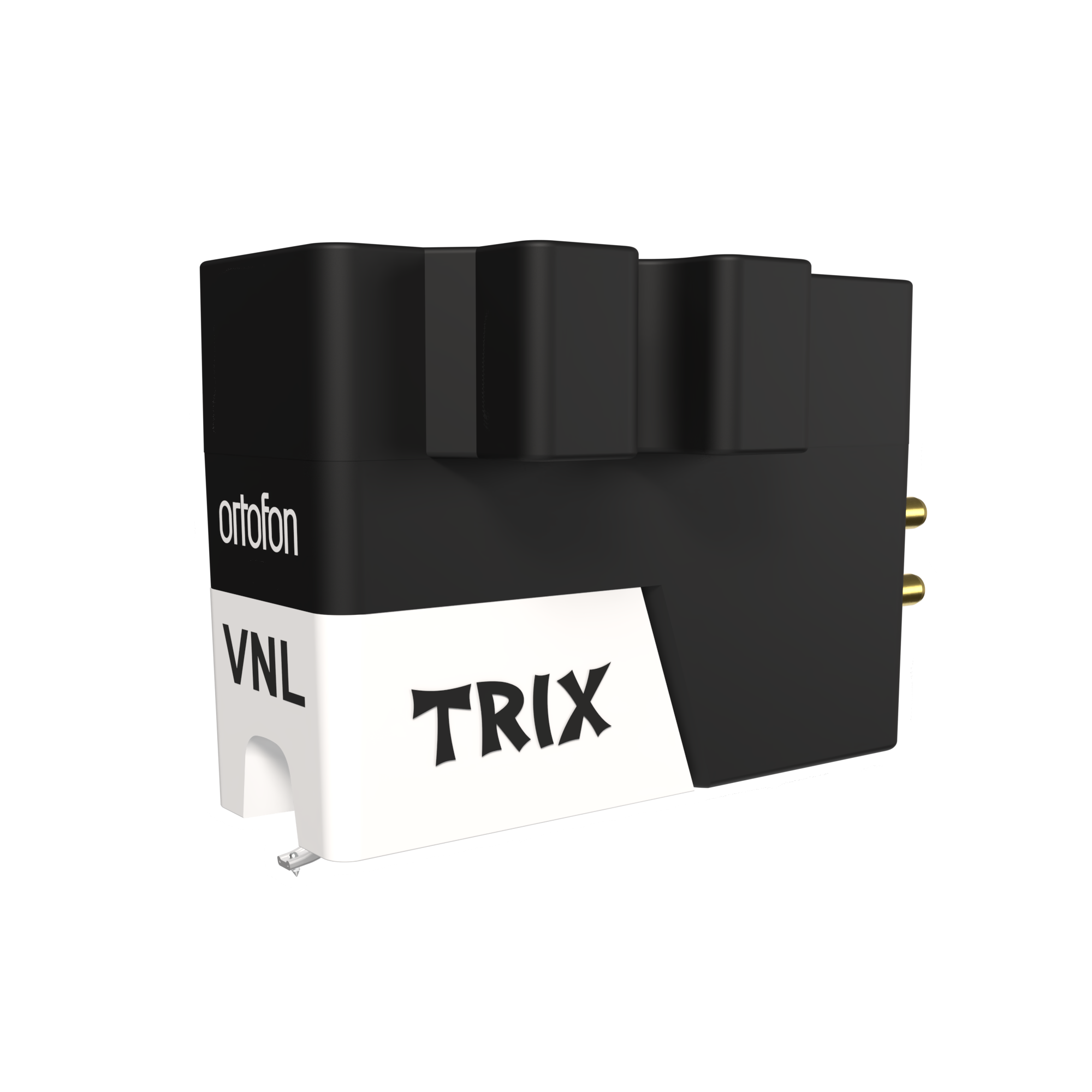

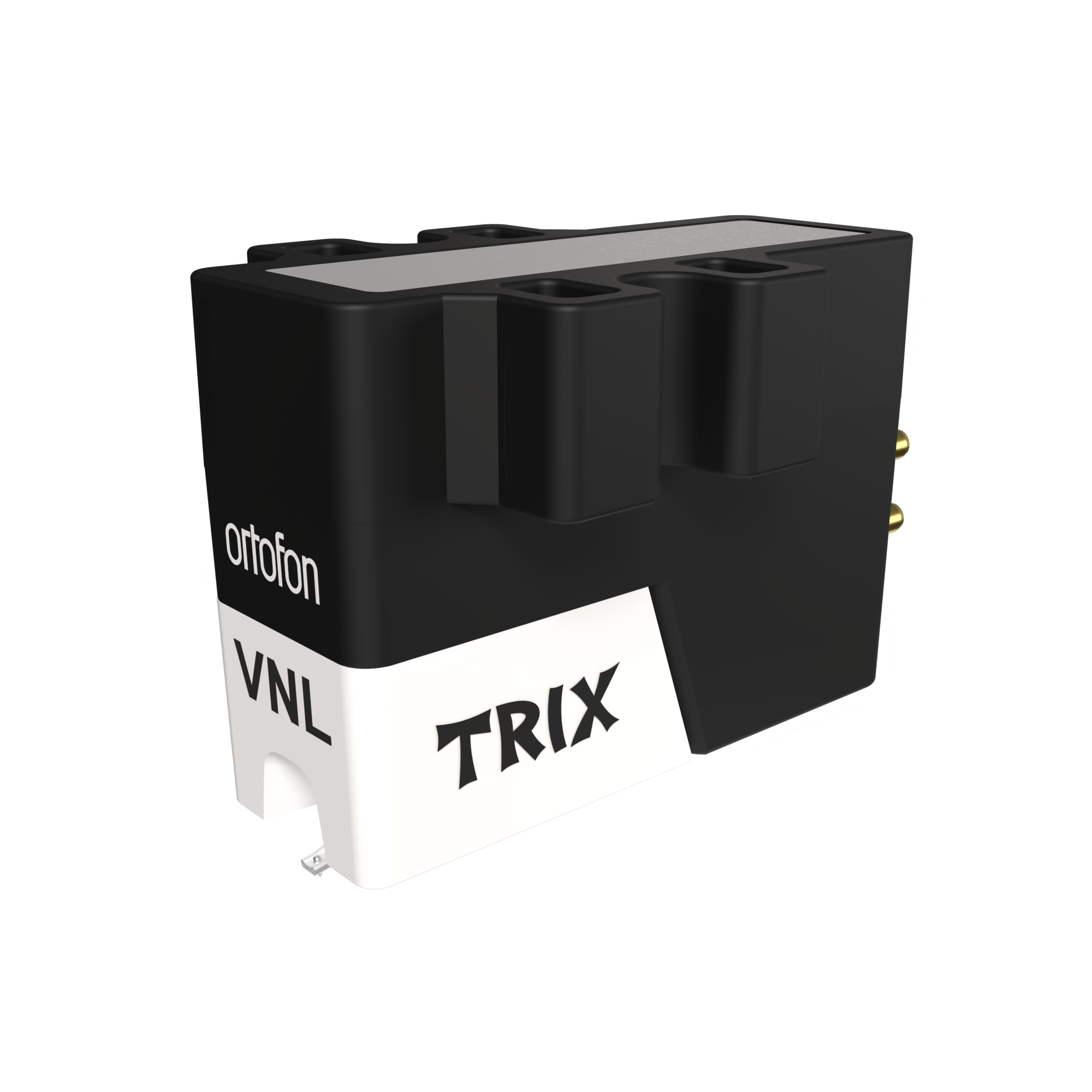

Ortofon VNL TRIX Cartridge
Quantity:
The Ortofon VNL TRIX cartridge is designed for DJs who demand both power and precision.
With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use including heavy scratching and back-cueing.
- Output voltage at 1 kHz, 5cm/sec: 10 mV
- Tracking ability at 315Hz: 100 μm
- Cantilever material: Aluminium
- Stylus type: Spherical
- Stylus tip radius: R 18 μm
- Stylus suspension: Ortofon exclusive

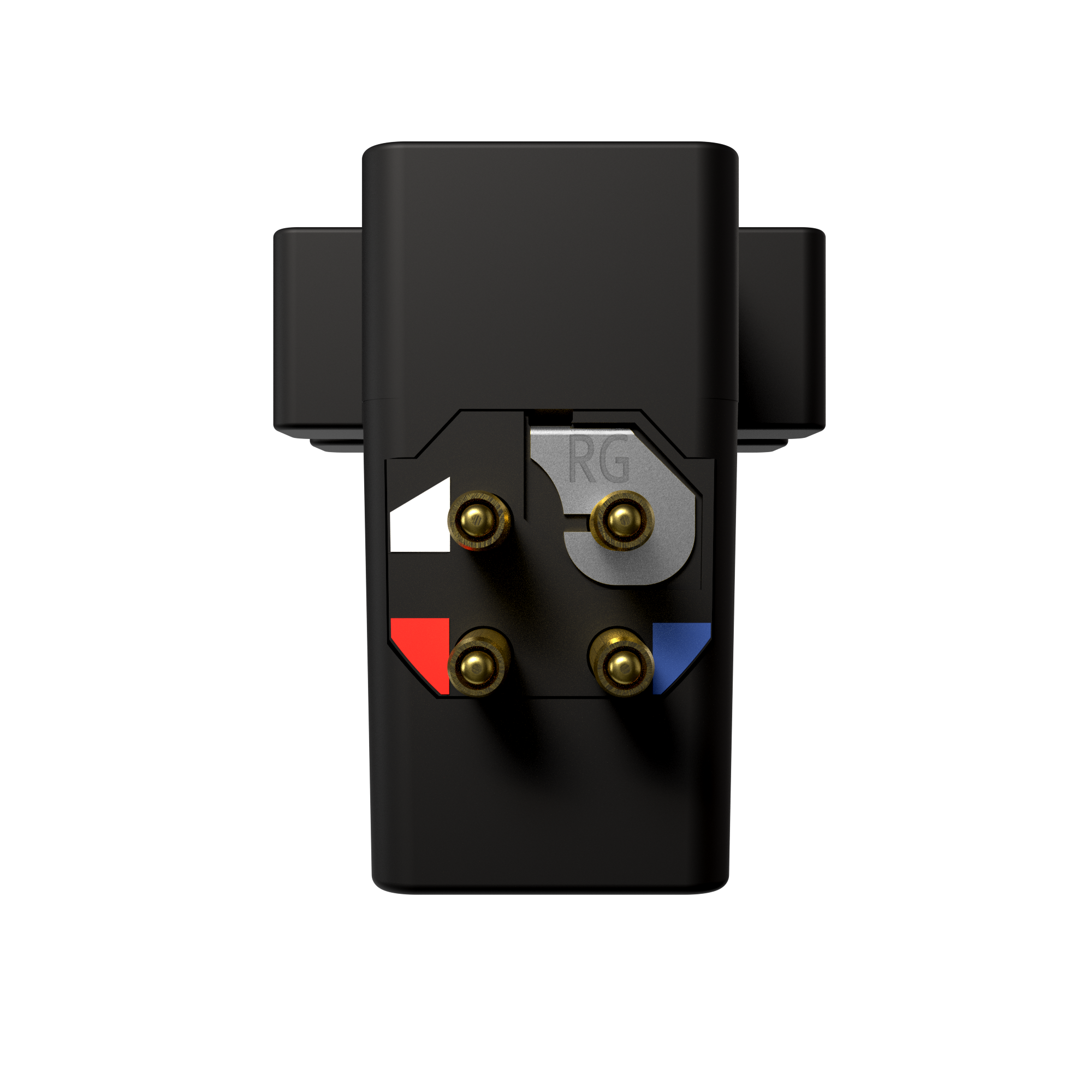

- Coil system: Quad coils
- Coil wire material: OFC
- Channel separation at 1 kHz: 22 dB
- Frequency response 20 Hz - 20 kHz: +/-3 dB
- Dynamic lateral compliance: 12 μm/mN
- Recommended tracking force: 4.0 grams
- Cartridge weight: 7 grams
- Cartridge colour: Black
- Stylus colour: White
- Replacement stylus: Stylus VNL TRIX
