Ortofon

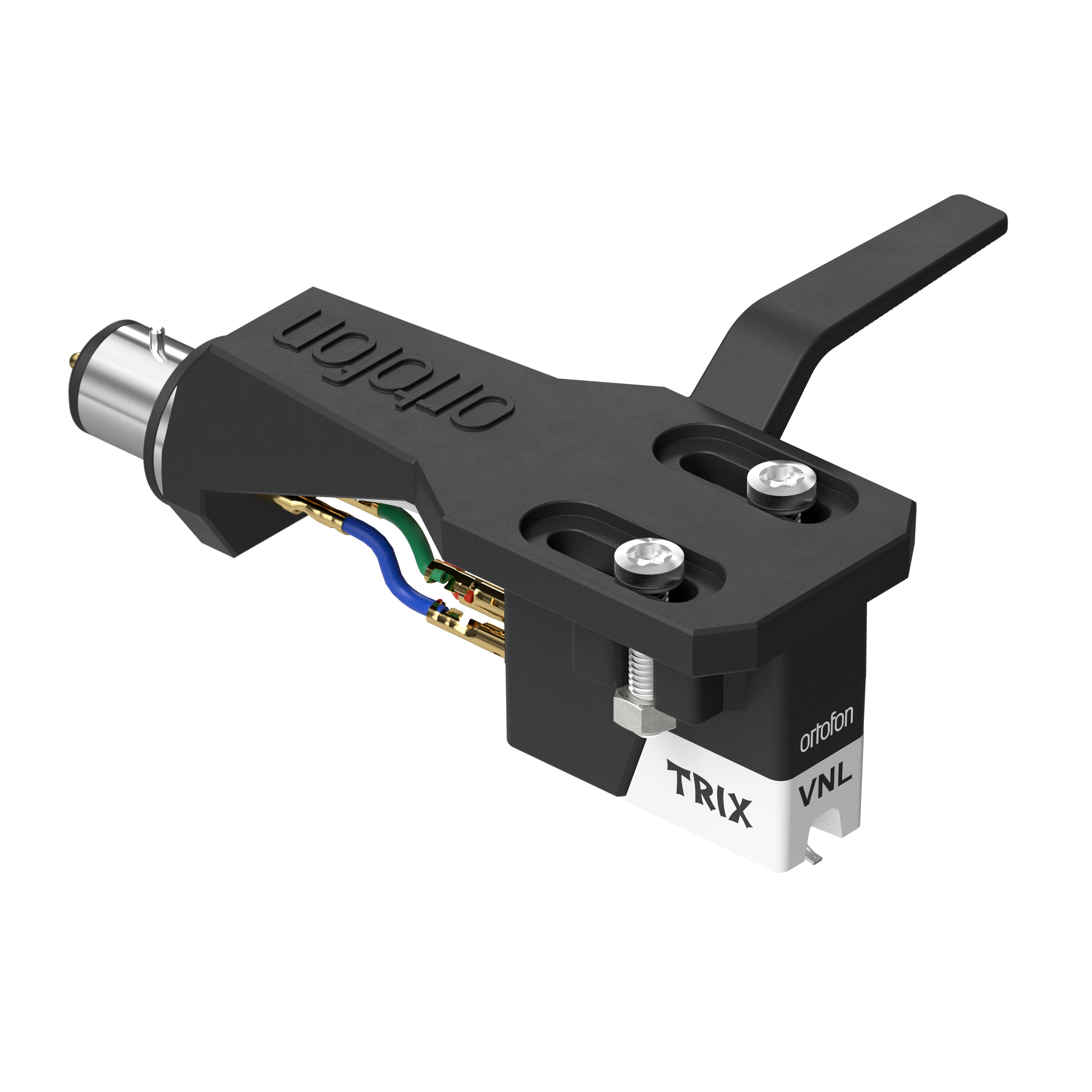

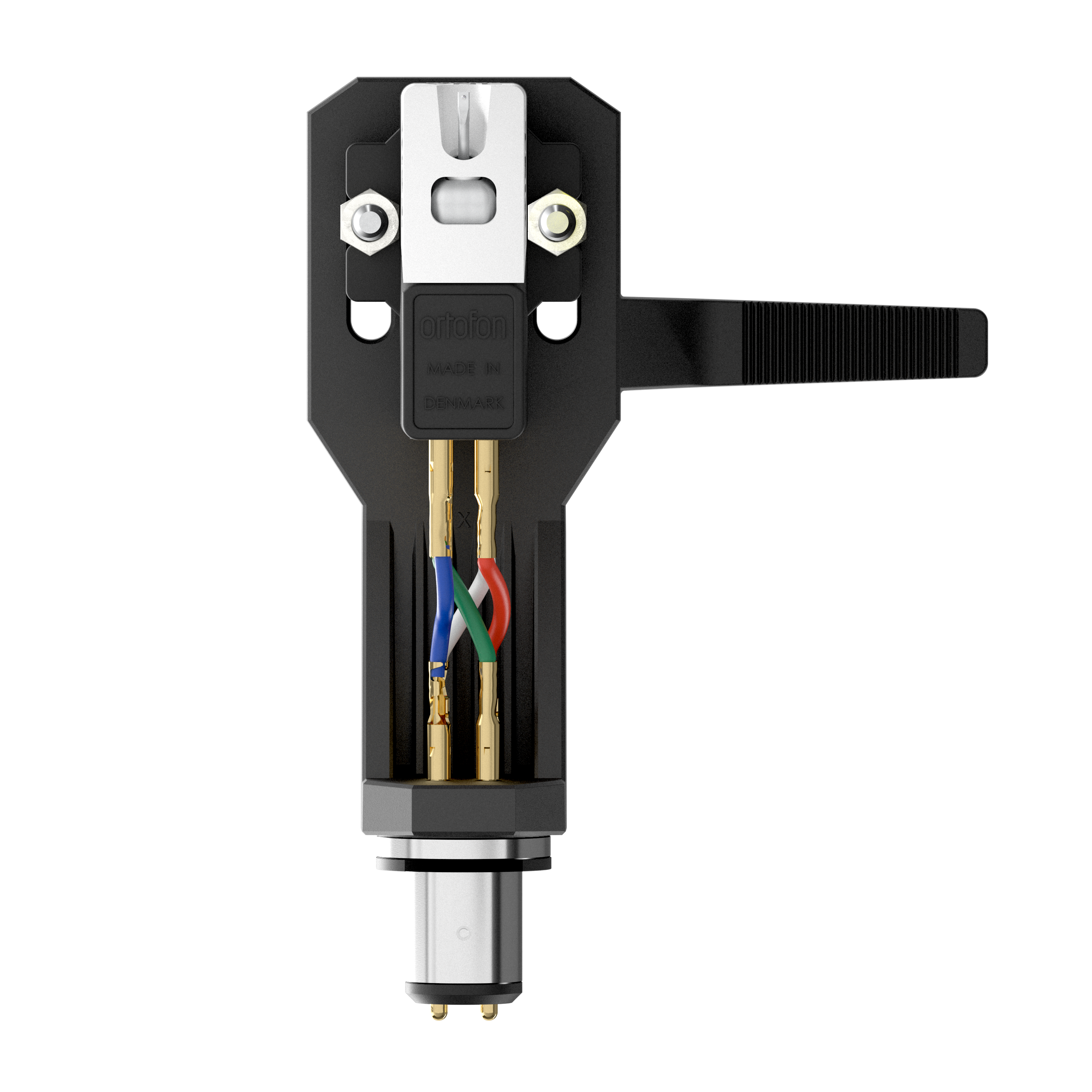

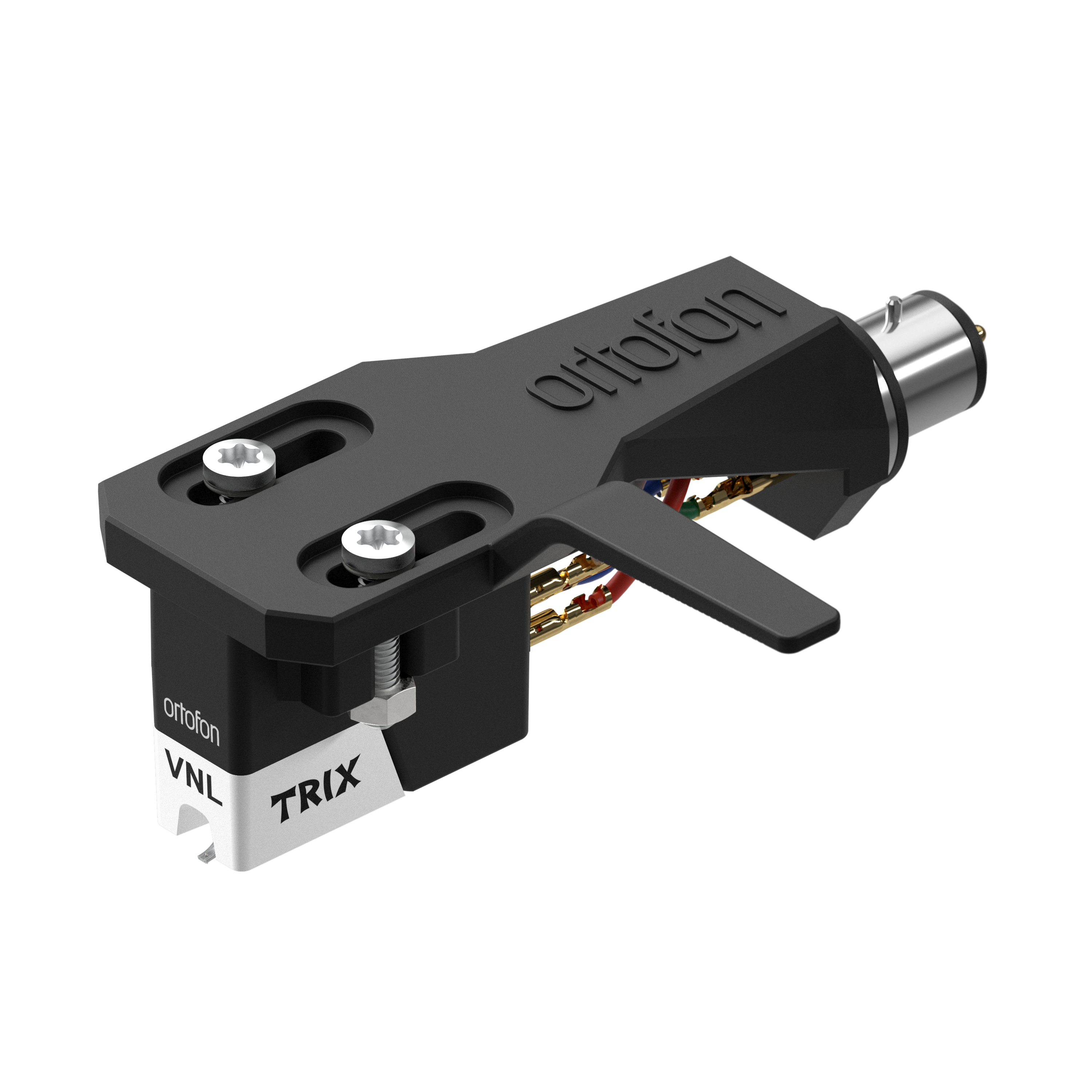

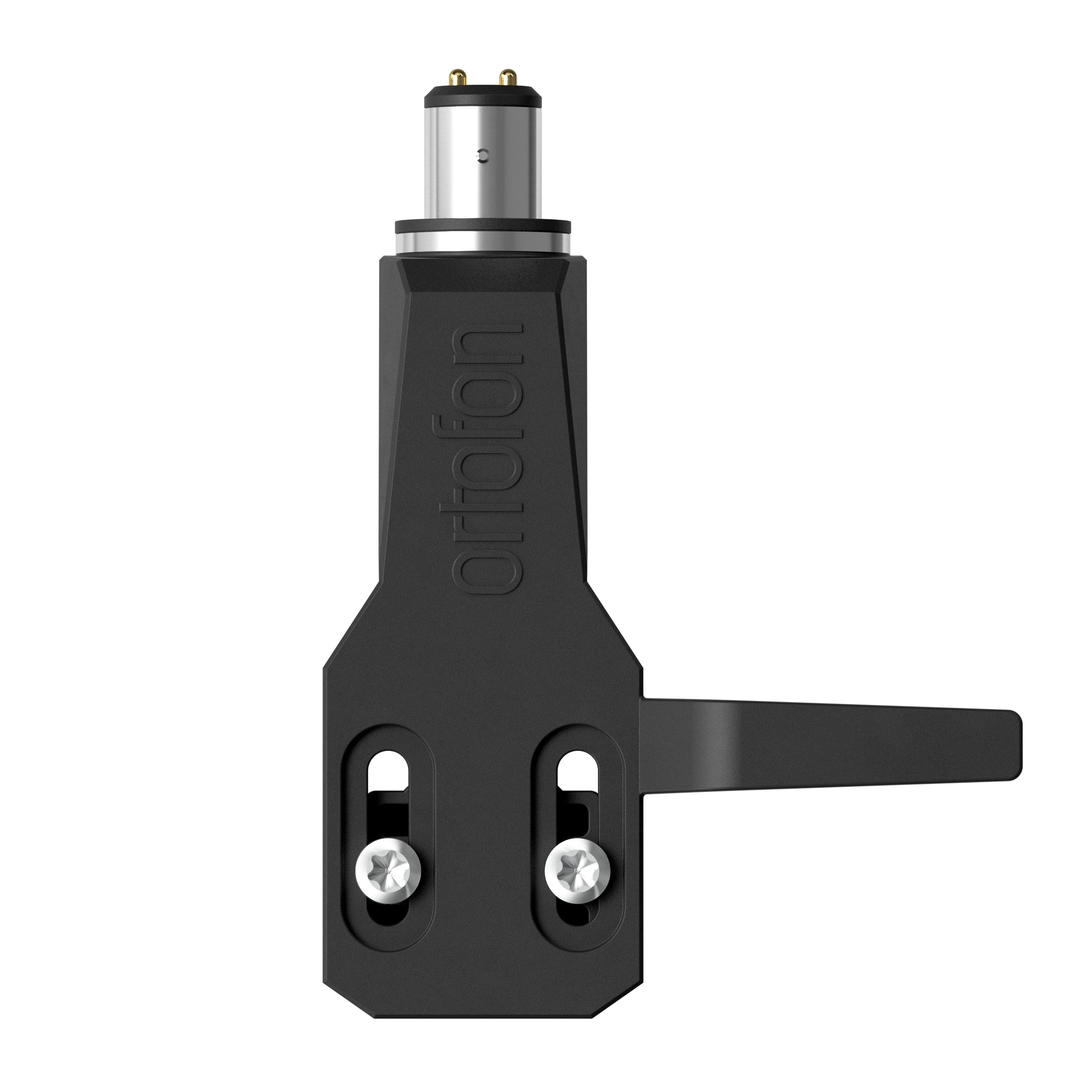

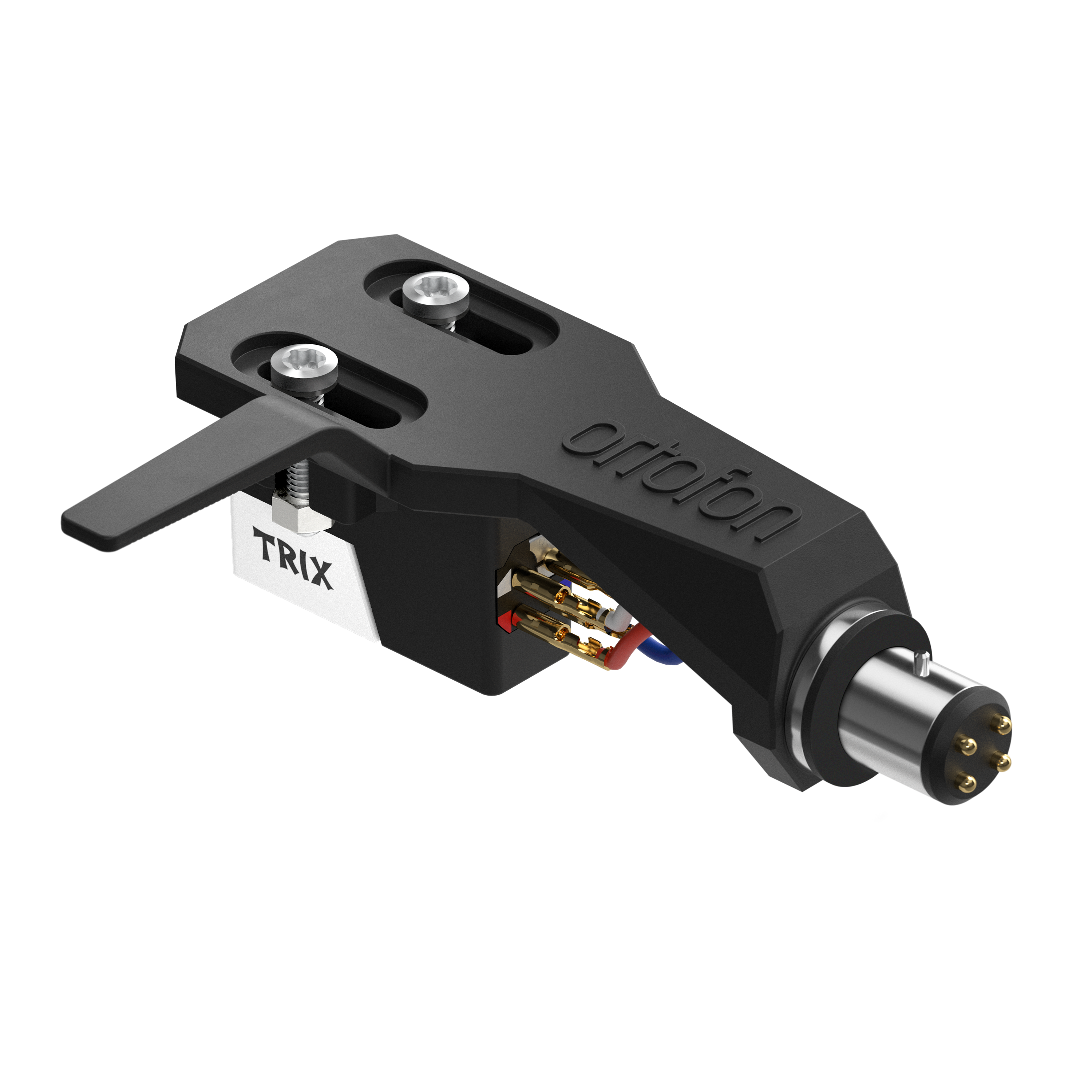

Ortofon VNL TRIX Premounted
The Ortofon VNL TRIX Premounted is built for DJs who demand power, precision, and durability. Its spherical stylus, mounted on a rigid aluminum cantilever with Ortofon’s exclusive rubber suspension, delivers reliable performance even under heavy scratching and back-cueing. The fluorescent white stylus makes cueing fast and easy, while premium tracking keeps the needle locked in place for professional use. The VNL TRIX Premounted comes ready to play - factory-mounted on Ortofon's SH-2 Black universal headshell, engineered for stability, durability, and seamless integration with a wide range of turntables, making it versatile and reliable for both everyday vinyl playback and high-energy DJ performances.
- Output voltage at 1 kHz, 5cm/sec: 10 mV
- Tracking ability at 315Hz: 100 μm
- Cantilever material: Aluminium
- Stylus type: Spherical
- Stylus tip radius: R 18 μm
- Stylus suspension: Ortofon exclusive
- Coil system: Quad coils
- Coil wire material: OFC
- Channel separation at 1 kHz: 22 dB
- Frequency response 20 Hz - 20 kHz: +/-3 dB
- Dynamic lateral compliance: 12 μm/mN
- Recommended tracking force: 4.0 grams
- Recommended load resistance: 47 KΩ
- Premounted cartridge weight: 17 grams
- Cartridge colour: Black
- Stylus colour: White
- Replacement stylus: Stylus VNL TRIX
