The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes.
The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.
All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.
Some DJs never use a crossfader, preferring instead to mix with the channel faders because it gives them more control – whether they want to perform smooth blends with tiny adjustments to the volume of each track, or quickly drop sounds into the mix as if playing a musical instrument. Removing the crossfader from the DJM-V10 has enabled the new 60 mm shaft slide faders on the DJM-V10-LF to extend further down the top plate than the 45 mm faders on the original mixer, offering a longer range of movement so you can control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.
The main features of the Pioneer DJ DJM-V10-LF include:
Specifications
Sampling Rate | 96 kHz |
---|---|
Width | 437.6 mm |
Height | 107.9 mm |
Depth | 467 mm |
Weight | 11.9 kg |
Frequency Range | 20 - 40000 Hz |
A/D Converter | 32 bit |
D/A Converter | 32 bit |
S/N Ratio Line | 105 dB |
S/N Ratio Phono | 88 dB |
S/N Ratio Mic | 79 dB |
Distortion | < 0.005 % (LINE) |
Channels
EQ | 4 band |
---|---|
EQ Range | [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB |
COMP | Yes |
Performance Control
Channels | 6 |
---|---|
Filter |
|
SEND |
|
MULTI I/O |
|
Beat FX |
|
FX Frequency | Yes |
X-PAD | Yes |
rekordbox Quantize | Yes |
Master Isolator | Yes |
Mic
Mic Connection |
|
---|---|
Talkover | 3 Position Switch |
Talkover Attenuator | Yes |

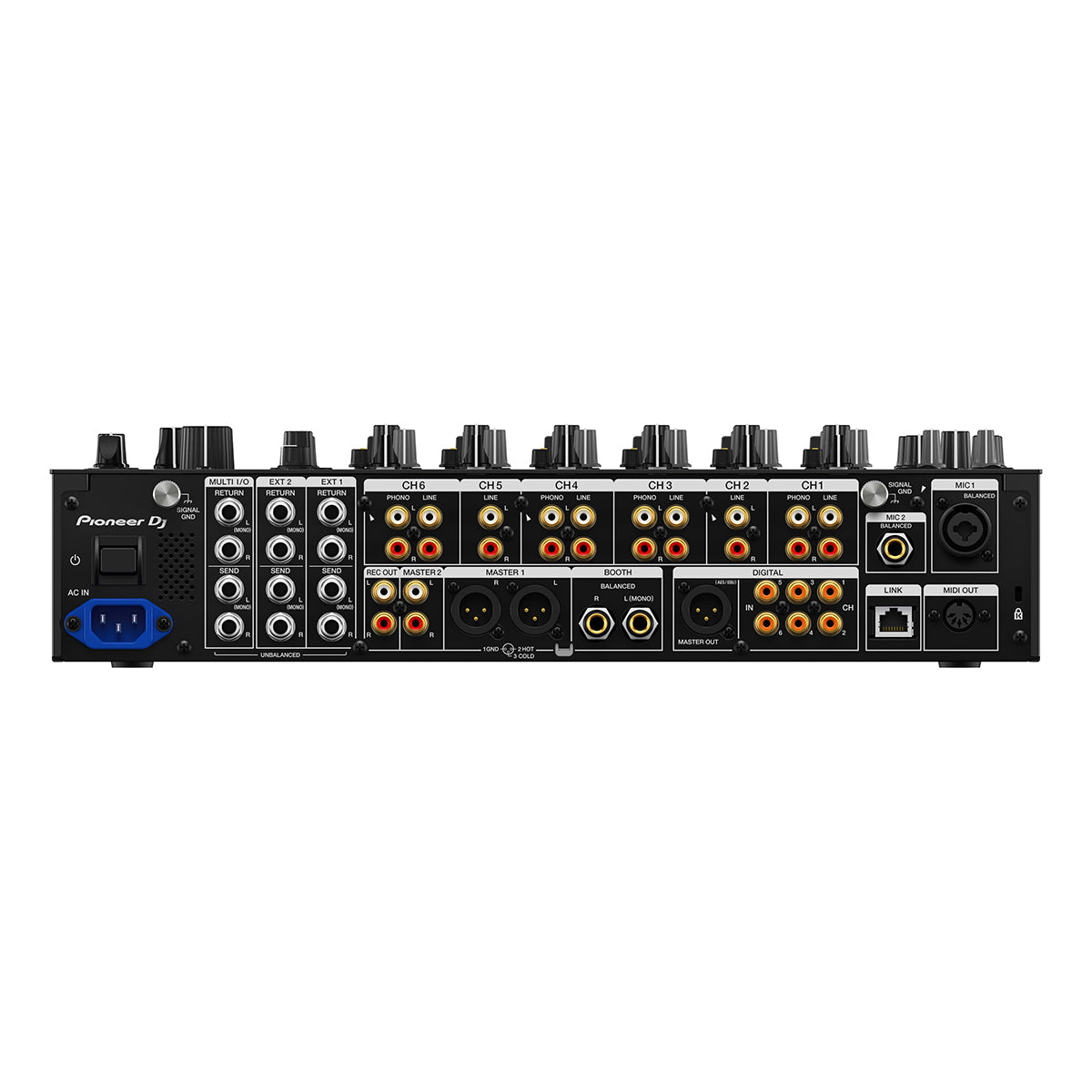

Terminals
Inputs |
|
---|---|
Send/Return |
|
LAN | 1 |
USB |
|
Outputs |
|
- 60mm shaft slide faders for smooth detailed mixes
- All-new fader curve preset to make fine adjustments to the volume of each channel
- Elite sound quality powered by ESS Tech DAC
- Six channel professional mixer with advanced signal routing
- 4-band EQ with low and high isolator
- Selectable LP/HP filter with dedicated knob on each channel and resonance control
- Advanced send and return section with built-in effects
- Compressor knob on each channel to improve quality of unmastered music
- Dual headphone output and booth EQ
- Support for external devices, apps, and services
- Lockable IEC socket
