The Pioneer DJ DM-40D-BT-W 4-inch monitors produce high quality sound for DJing and production whilst featuring added Bluetooth functionality for pairing your smart phone, mobile device, mac or PC.
The DM Series speakers produce powerful, high-quality sound, whilst the 2-way sound mode makes them ideal for a variety of purposes. Whether you want to play DJ sets or make your own music at home, or regularly switch between the two, these speakers offer the perfect sound. Want to make some tracks to drop into your next DJ set? Simply flick the switch on the speaker to change from DJ mode to Production mode and the DSP settings will automatically adjust to create the best sound for each application.
Advanced design for higher quality sound
Each DM Series speaker includes a Class D amplifier with 96 kHz sampling DSP to produce pure, balanced bass sound. You can also enjoy a wide sweet spot and 3D stereo sound wherever you are in the room thanks to the DECO convex diffusers, which have an advanced design compared to the original DM-40 speakers and help deliver crystal-clear high frequencies in every direction. When you need to turn up the volume, the woofer creates extra power and it’s perfectly aligned with the tweeter so you’ll hear all sound frequencies clearly. The grooves on the ducts same as DM-40 reduce air friction so that bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.
2-way sound mode optimized for DJing and music production
There’s no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM Series speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.
Bluetooth® connectivity
The Bluetooth® technology included in the DM-40D-BT enables you to easily pair your smartphone, mobile device, or PC / Mac and play high-quality tracks wirelessly.
Easy to use with different DJ or production equipment

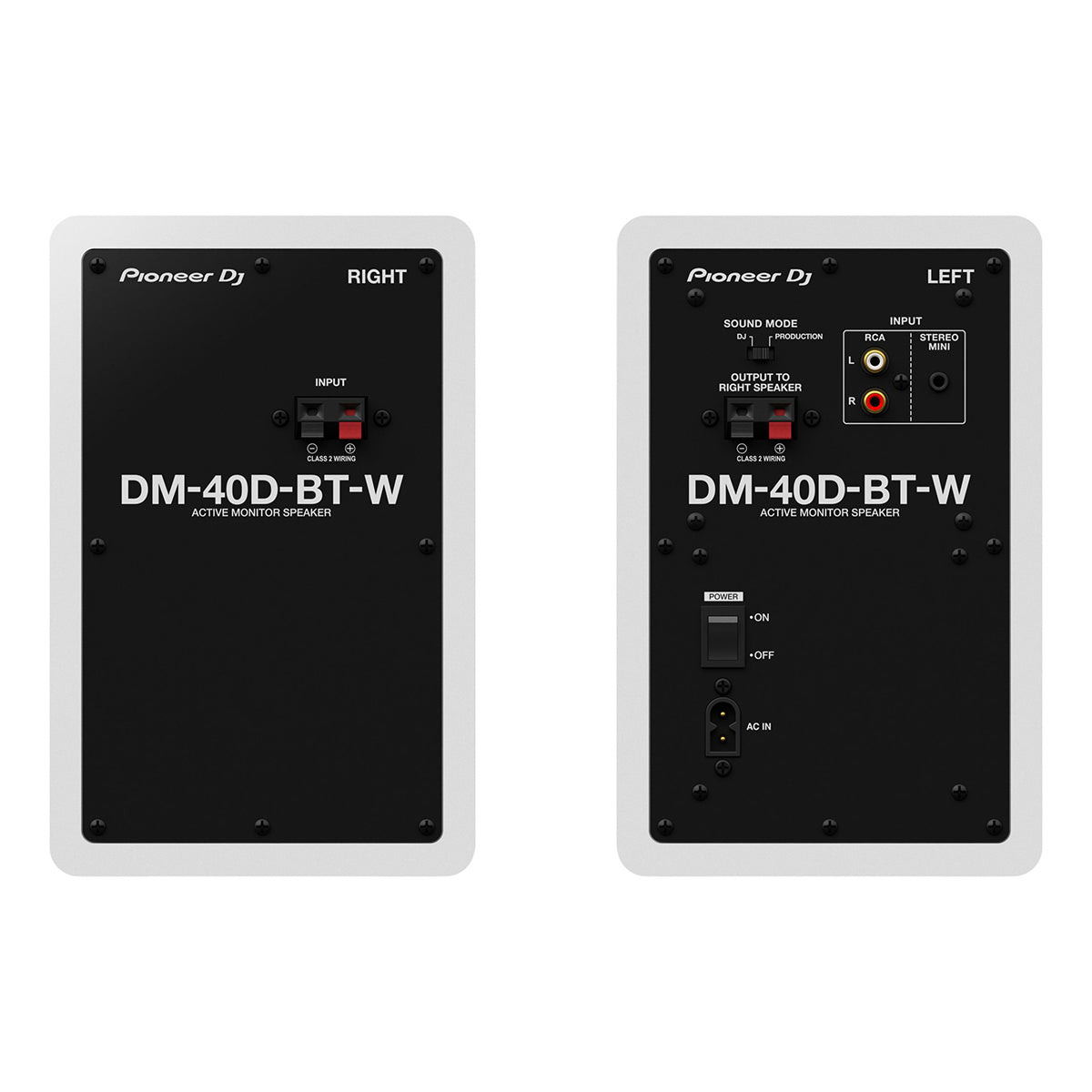

With RCA and mini jack terminals you can connect different kinds of gear such as DJ controllers and mixers, ,the laptop or built-in soundcard you use for producing your own music. Connecting and disconnecting your headphones is simple via the socket on the front panel, and there’s no need to reach around the back of the speakers to adjust the volume because the level knob is also right in front of you.
Smart design, available in 2 colors
Bring a slick, professional look to your setup by choosing from 2 different colors. The finish of the black DM Series speakers matches perfectly with classic DJ gear while the white models might better complement the interior design of your home.
DM-40D-BT |
|
Type |
2-way bass reflex, active monitor speakers |
Amplifier |
|
Amplifier type |
Class D with DSP |
Amplifier output |
Lch: 19 W / 4 Ω, Rch: 19 W / 4 Ω |
Input terminals (balanced input) |
- |
Input terminals (unbalanced input) |
RCA pin jack x 1, 3.5-mm stereo mini jack x 1 |
Input impedance |
10 kΩ |
Output terminal |
3.5-mm stereo mini jack x 1 |
Speaker |
|
Enclosure |
Bass reflex |
Enclosure material |
MDF vinyl laminate |
Woofer (LF driver) |
4" (102 mm) fiberglass cones |
Tweeter (HF driver) |
3/4” (19 mm) soft dome |
Bluetooth® |
|
Version |
Bluetooth® Specification Ver. 5.0 |
Maximum transmission distance |
Approximately 10 m in unobstructed circumstances* |
Frequency used |
2.4 GHz |
Modulation |
FH-SS (Frequency Hopping Spread Spectrum) |
Supported Bluetooth profiles |
A2DP, AVRCP |
Supported Codec |
SBC, AAC |
Power unit/other |
|
Supported voltages |
AC 110 V — 240 V, 50 Hz / 60 Hz |
Power consumption |
20 W |
Power consumption during standby mode |
0.3 W or less |
Max dimensions (W x D x H) |
Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78” Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35” |
Weight |
Lch: 2.5 kg / 5.5 lbs. Rch: 2.2 kg / 4.9 lbs. |
Accessories |
Power cord Audio converter cable (3.5 mm stereo mini plug to RCA) Speaker cord Bottom cushions Quick Start Guide Precautions for Use Warranty (for selected regions) |
- Advanced design for higher quality sound
- 2-way sound mode optimized for DJing and music production
- Bluetooth® connectivity: Pair your smartphone, mobile device, or PC / Mac
- RCA & mini jack inputs
- Smart design, available in 2 colors
