PLAYdifferently MODEL-1 DJ Mixer
The PLAYdifferently MODEL 1 is a next-level performance instrument for DJs, Electronic Musicians and Club venues. This high-quality DJ/Club Mixer features unmatched build quality, intuitive controls and beautifully warm analog circuitry.

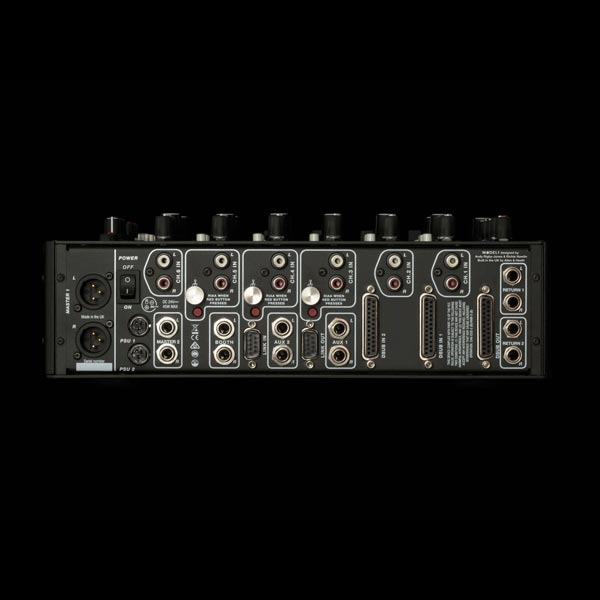

Model 1 offers six fully featured input channels plus two stereo returns in a small format frame. It boasts many features you won't find on any comparable mixer, such as input preamp drive control, hybrid filter/swept bell EQ, a dual cue system for B2B, dual mixer linkling system, and a fully balanced Tascam DB25 connector system.
Model 1 is a pure analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.
Main features of the PLAYdifferently MODEL 1 DJ Mixer include:
| Maximum output level | +28dBu Balanced +23dBu Unbalanced |
| Output Impedance | 50R Balanced, 68R Unbalanced |
| Residual Noise | -100dBu Un-weighted, 22Hz to 20kHz |
| Dynamic range | > 112dB |
| Frequency Response | 20Hz - 40kHz +0/-2dB |
| Distortion (THD+N) | 0.008% Line In to Mix 1 out, 0dBu Unity Gain |
| Inter-channel Crosstalk | < -100dB |
| Left/Right Crosstalk | -80dB 1kHz |
| Power consumption | 50W maximum |
| Weight | 5.40kG |
| Dimensions | L 37cm x W 32cm x H 11.5cm |
- High quality performance mixer for DJs and electronic musicians

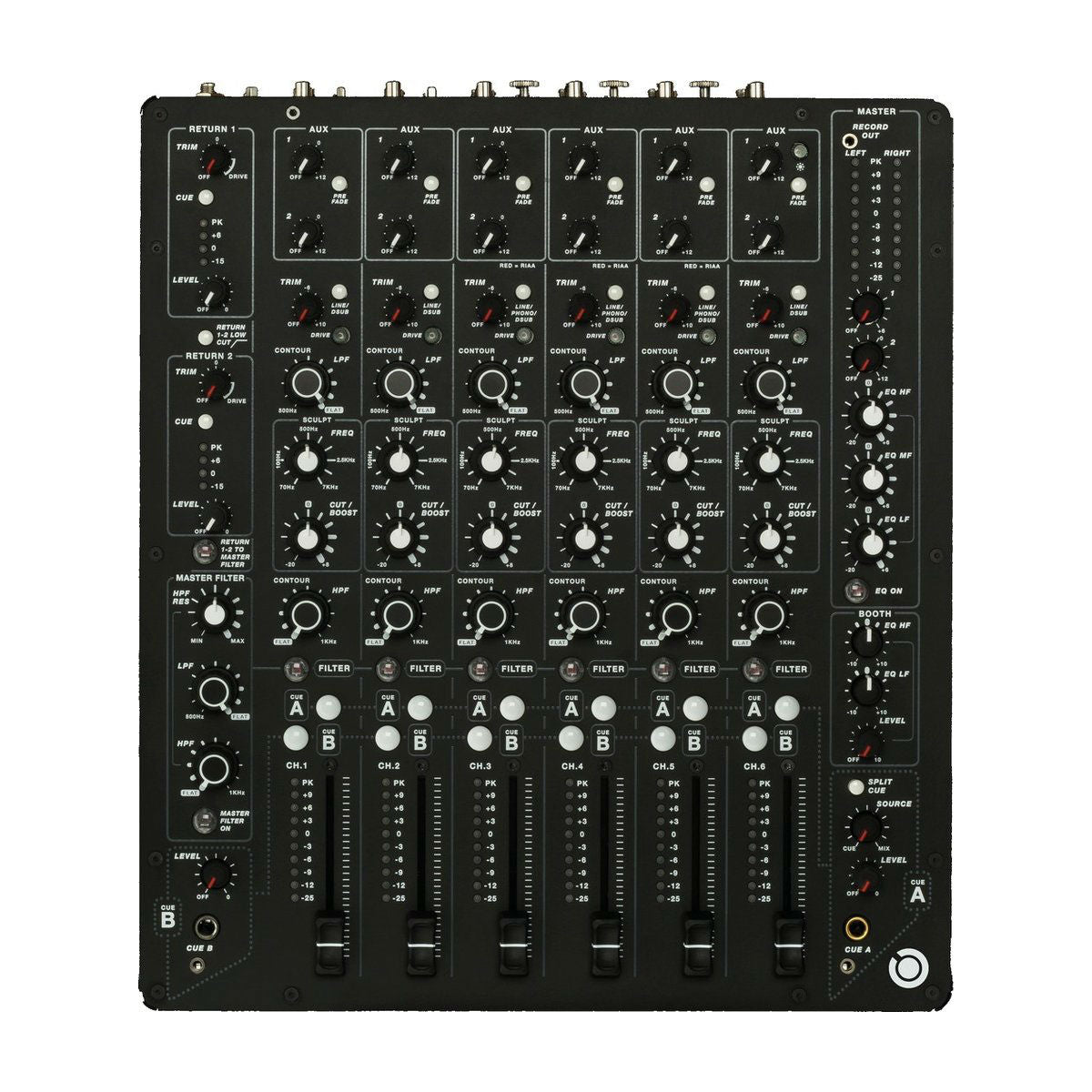

- 6 stereo input channels plus two stereo aux sends with dedicated returns
- 3 high performance turntable inputs better turntable audio
- Studio grade twin rail faders for long life and smooth operation
- Per-channel Sculpting EQ and Contouring Filters for fine-tuning individual channels
- Analog drive control on every input for adding harmonic richness or distortion
- DualCue systems allow for Back2Back DJ sets
- Link 2 Model 1 mixers together for use with two or more performers, or as a way to expand the number of channels
