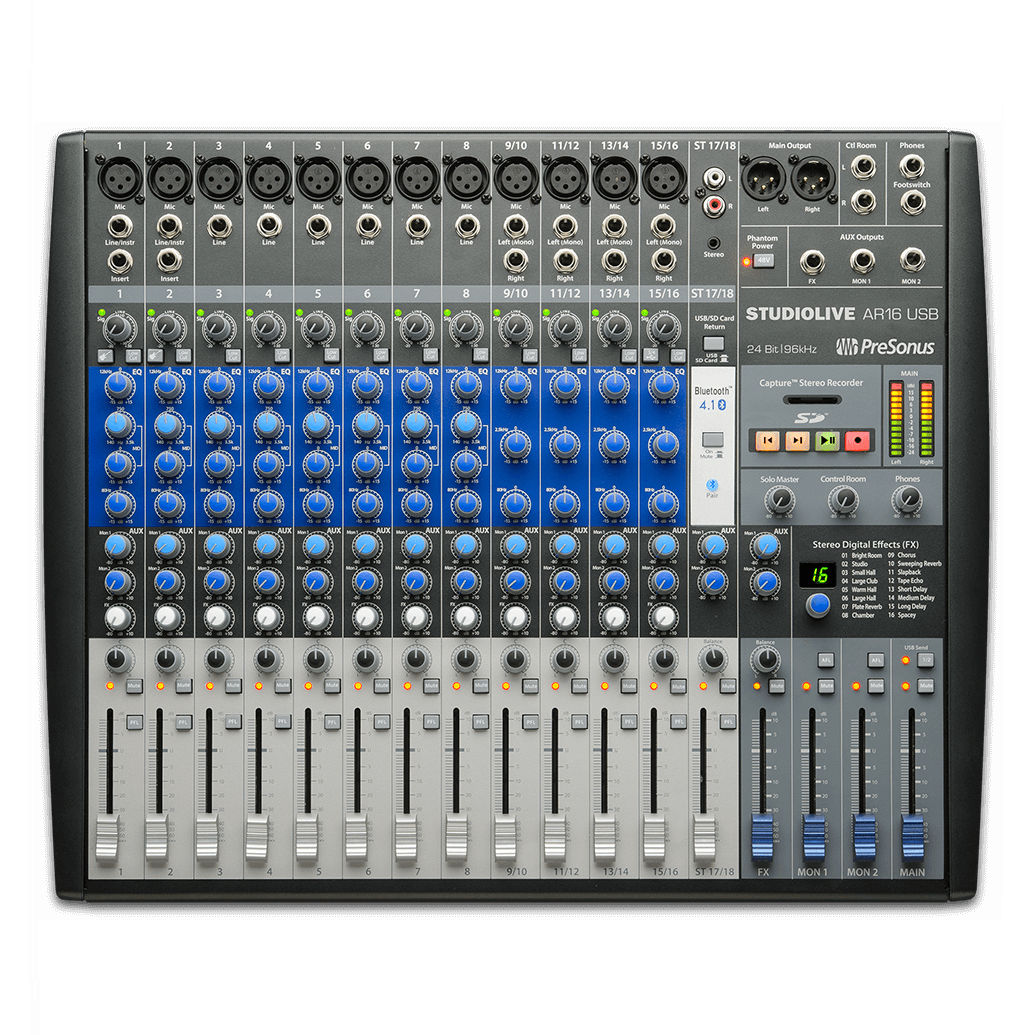

PRESONUS Studiolive AR16 USB 18-Channel Hybrid Mixer
Computer system requirements:
Below are the minimum computer-system requirements for use with Capture™ and Studio One®.
Mac
- Mac® OS X 10.8.5
- Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
Windows
- Windows® 7 x64/x86 SP1 +platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
- Intel Core 2 Duo or AMD® Athlon™ X2 processor (Intel Core i3 or AMD Athlon X4 or faster recommended)
Mac and Windows Systems
- 4 GB RAM (8 GB or more recommended)
- 30 GB hard-drive space (Studio One)
- Internal or external 7200 RPM storage drive highly recommended
- Monitor with 1366x768 resolution (high-dpi monitor recommended)
The minimum system requirements may differ for DAWs other than Studio One®. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
Technical Specifications
Microphone Preamp | |
---|---|
Type | XLR Female, Class A |
Maximum Input level (unity gain) | +22 dBu, ±1.0 dB |
Gain Control Range | Mono Channels: 50 dB, ±1 dB (Unity to +50 dB), Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB |
Frequency Response to Analog Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB |
Frequency Response to USB (Direct) | 20 Hz to 40 kHz, +0.5/- 1.5 dB |
S/N Ratio to Outputs (+4 dBu) | 94 dB |
THD+N (min. gain, A-wtd) | < 0.01% |
Input Impedance | 1 kΩ |
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd) | < 128 dBu |
Common Mode Rejection Ratio (1 kHz, +55 dB gain) | 65 dB |
Phantom Power | +48V, ±3V, Global |
Note: All Channel Inputs sum through Mic preamp |
Instrument Inputs | |
---|---|
Type | ¼” TS Female, Unbalanced, Hi-Z |
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) | +22 dBu ±1.0 dB |
Gain Control Range | 50 dB, ±1 dB (Unity to +50 dB) |
Frequency Response to Analog Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB |
Frequency Response to USB (Direct) | 20 Hz to 40 kHz, +0.5/-1.5 dB |
Dynamic Range (min. gain, A-wtd) | > 105 dB dB |
Dynamic Range (mid. Gain, unwtd) | > 100 dB |
THD+N (1 kHz, -1 dBFS, A-wtd) | < 0.01% |
THD+N (1 kHz, -1 dBFS, unwtd) | < 0.01% |
Input Impedance | > 1 MΩ |
Note: All Channel Inputs sum through Mic preamp |
Line Inputs | |
---|---|
Type | ¼” TRS Female, Balanced |
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) | +22 dBu, ±1.0 dB |
Gain Control Range | Mono Channels 50 dB, ±1 dB (-20 to +30 dB), Stereo Channel 50 dB, ±1 dB (-15 to +25 dB) |
Frequency Response to Analog Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB |
Frequency Response to USB (Direct) | 10 Hz to 40 kHz, +0.5/-1.5 dB |
S/N Ratio to Analog Outputs (+4 dBu) | 94 dB |
THD+N (1 kHz, -1 dBFS, A-wtd) | < 0.01% |
Input Impedance (Balanced) | 10 kΩ |
Note: All Channel Inputs sum through Mic preamp |
Main, Control Room, Monitor, and FX Outputs | |
---|---|
Type (Main Outputs) | XLR Male, Impedance Balanced |
Type (Control Room, Monitor, FX Outputs) | ¼” TRS Female, Balanced |
Rated Output Level (Main Outputs) | +24 dBu, ±1.0 dB |
Rated Outputs Level (Control Room, Monitor, FX Outputs) | +18 dBu |
Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
Dynamic Range (A-wtd) | > 108 dB |
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) | < 0.01% |
Output Impedance | 100 Ω |
Headphone Output | |
---|---|
Type | ¼” TRS Female, Stereo, Unbalanced |
Maximum Output Level | 150 mW/channel @ 60 Ω |
Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
Dynamic Range (A-wtd) | > 103 dB |
THD+N (Bandwidth 20 Hz - 20 kHz, -1 dBFS, unwtd) | < 0.01% |
System Crosstalk | |
---|---|
Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd) | -85 dBu |
Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd) | -80 dBu |
Signal Level LED | |
---|---|
Signal | -50 dBFS (pre-EQ) |
Clip | -3.0 dB before clip (pre- or post-EQ) |
Graphic EQ | |
---|---|
Low Cut | 100 Hz, -18 dB/Octave |
High Shelving | ±15 dB @ 12 kHz |
Mid Peaking (Mono Channels) | ±15 dB @ 140 Hz to 3.5 kHz (variable) |
Mid Peaking (Stereo Channels) | ±15 dB @ 2.5 kHz |
Mid-Band Q | Fixed, 0.55 |
Low Shelving | ±15 dB @ 80 Hz |
Digital Audio | |
---|---|
Host Interface | USB 2.0 |
ADC Dynamic Range (Component) | 114 dB |
ADC Dynamic Range (Measured: A-wtd, 48 kHz) | 105 dB |
DAC Dynamic Range (Component) | 114 dB |
DAC Dynamic Range (Measured: A-wtd, 48 kHz) | 105 dB |
Bit Depth | 24 bits |
Internally Supported Sample Rates | 44.1, 48, 88.2, 96 kHz |
Jitter | < 80 ps RMS (20 Hz – 20 kHz) |
Jitter Attenuation | > 60 dB (1 ns in => 1 ps out) |
SD™ Recorder | |
---|---|
Supported Media Format | FAT16 formatted SD™ card, FAT32 formatted SDHC™ card |
Media Storage Capacity | SD card: 2 GB; SDHC card: 32 GB |
Recording File Format | Stereo WAV |
Playback File Formats | Stereo WAV, MP3 |
Sampling Rate (WAV) | 44.1 kHz |
Bit Depth (Recorded WAV) | 24 bits |
Power/Environmental | |
---|---|
Connector | IEC |
Physical | |
---|---|
Height | 3.7” (95 mm) |
Width | 20” (507 mm) |
Depth | 15.4” (390 mm) |
As a commitment to constant improvement, PreSonus® Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
SD Logo is a trademark of SD-3C, LLC
- 8 mono and 4 stereo channels, each with 60 mm level fader, pan, mute, PFL solo, highpass filter, and 3-band semi-parametric EQ (mono channels: sweepable mid band)
- 2 instrument inputs, 16 balanced line inputs, 12 balanced mic inputs with Class A microphone preamps, and 2 insert points
- 1 stereo Super Channel with RCA inputs, 1/8-inch stereo input, switchable SD/USB stereo playback, and Bluetooth 4.1 input
- 18x4 24-bit/96 kHz, USB 2.0 audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and HCSD up to 32 GB
- 1 stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® 3 Artist DAW for Mac and Windows
