PROJECT

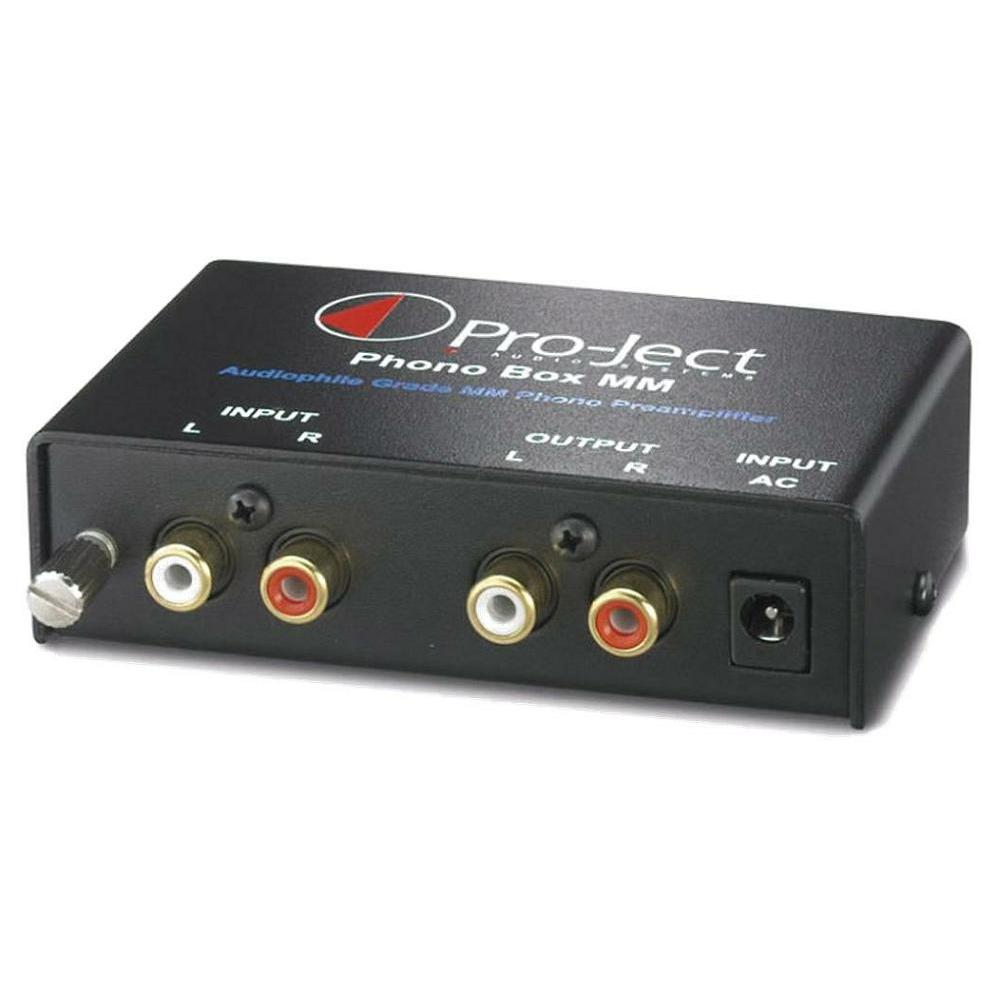

PROJECT Phono Box MM Turntable Preamp (moving magnet only)
Designed specifically to amplify your moving magnet cartridge output to line level. The form factor of the unit is small and subtle, so it can be placed near the turntable/amp without being intrusive.
Input Impedance: | 47kΩ / 100pF |
Gain: | 40dB |
Output Voltage Typically: | 500mV / 1kHz at 5mV / 1kHz |
Noise Floor: | 88dB - A Weighted |
THD: | <0.04% |
RIAA Equalisation Curve Accuracy: | 20Hz - 20kHz / max. 0.5dB |
Power Consumption: | 20mA DC |
Outboard Power Supply: | 18V / 500mA DC |
Dimensions (W x H x D)(w/Plugs): | 107 x 30 x 61(75)mm |
Weight: | 280g (Without Power Supply) |
Please note: You will need interconnect cables to connect this phono stage to your amplifier.
- Metal case shields the electronics from vibrational and electromagnetic interference
- Special low-noise ICs used
- Optimal channel separation through dual-mono circuitry
- Gold plated RCA connection sockets
- Outboard power supply included
- Small size allows installation close to record player
