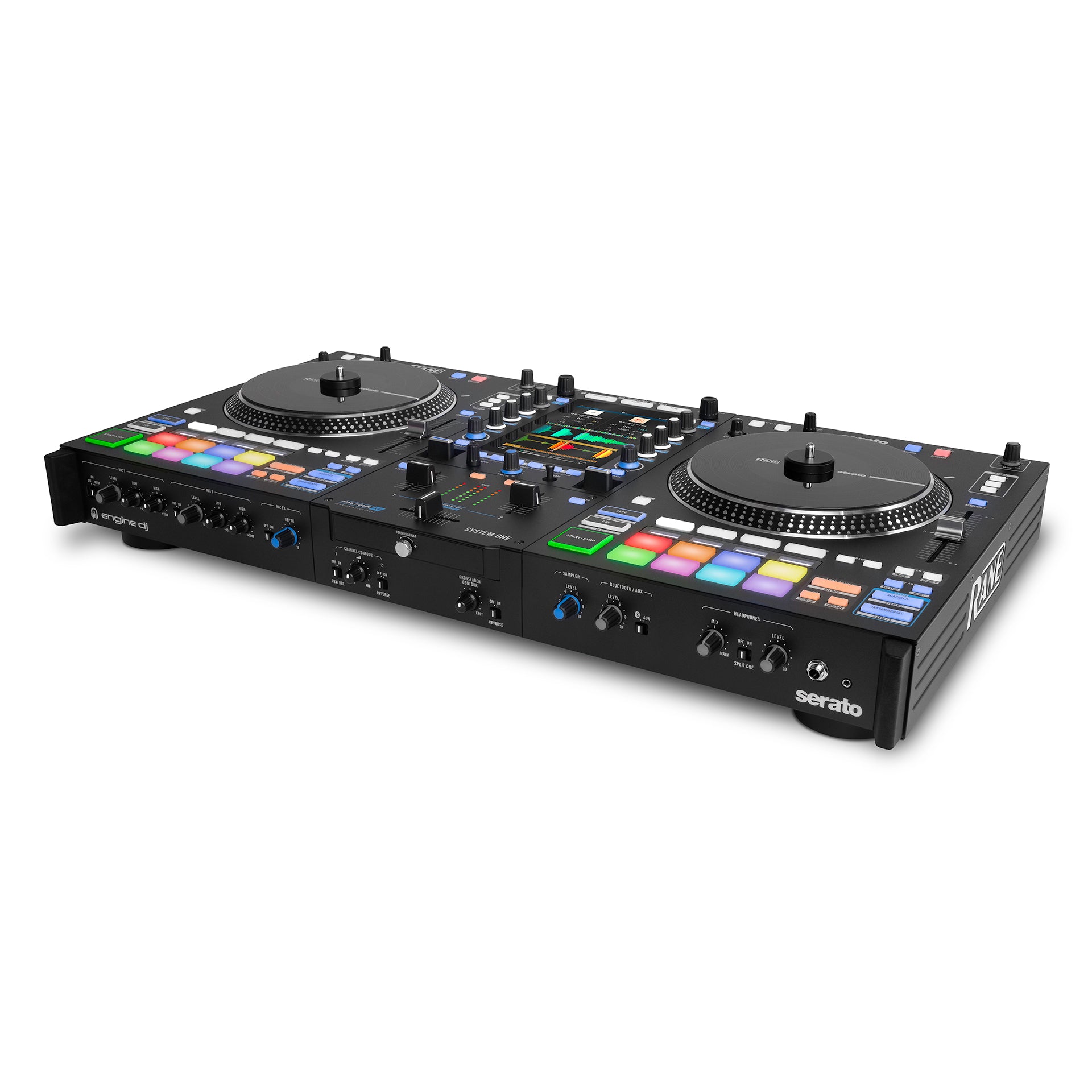

Rane SYSTEM ONE Standalone DJ System

£2,199.00
No reviews
No reviews
Quantity:
Delivery iconFor delivery on Tuesday - Order before Monday 4pm and select next day delivery.

ONE SYSTEM

FOR EVERY SOURCE, EVERY STAGE, EVERY SET

The Rane System One is a powerful standalone DJ system built on Engine DJ and engineered to meet Rane’s uncompromising performance standards. Featuring motorised direct-drive platters, a high-resolution touch display, advanced FX, and seamless Omni Source playback, System One delivers true turntable feel with next-generation standalone flexibility.

The Rane System One Standalone DJ System is the first Engine DJ device from inMusic’s flagship brand. Built on a powerful new ARM-based platform, it is the first Engine DJ product capable of meeting Rane’s demanding performance standards for open-format and multi-genre DJs.

From the moment you unbox the System One, it’s clear this is something special - a greatest-hits collection of Rane’s most recent controller designs. Its robust, all-metal chassis houses two high-torque, high-resolution 7.2-inch motorised direct-drive platters, delivering a turntable experience that is unrivalled in the standalone and DJ controller world.

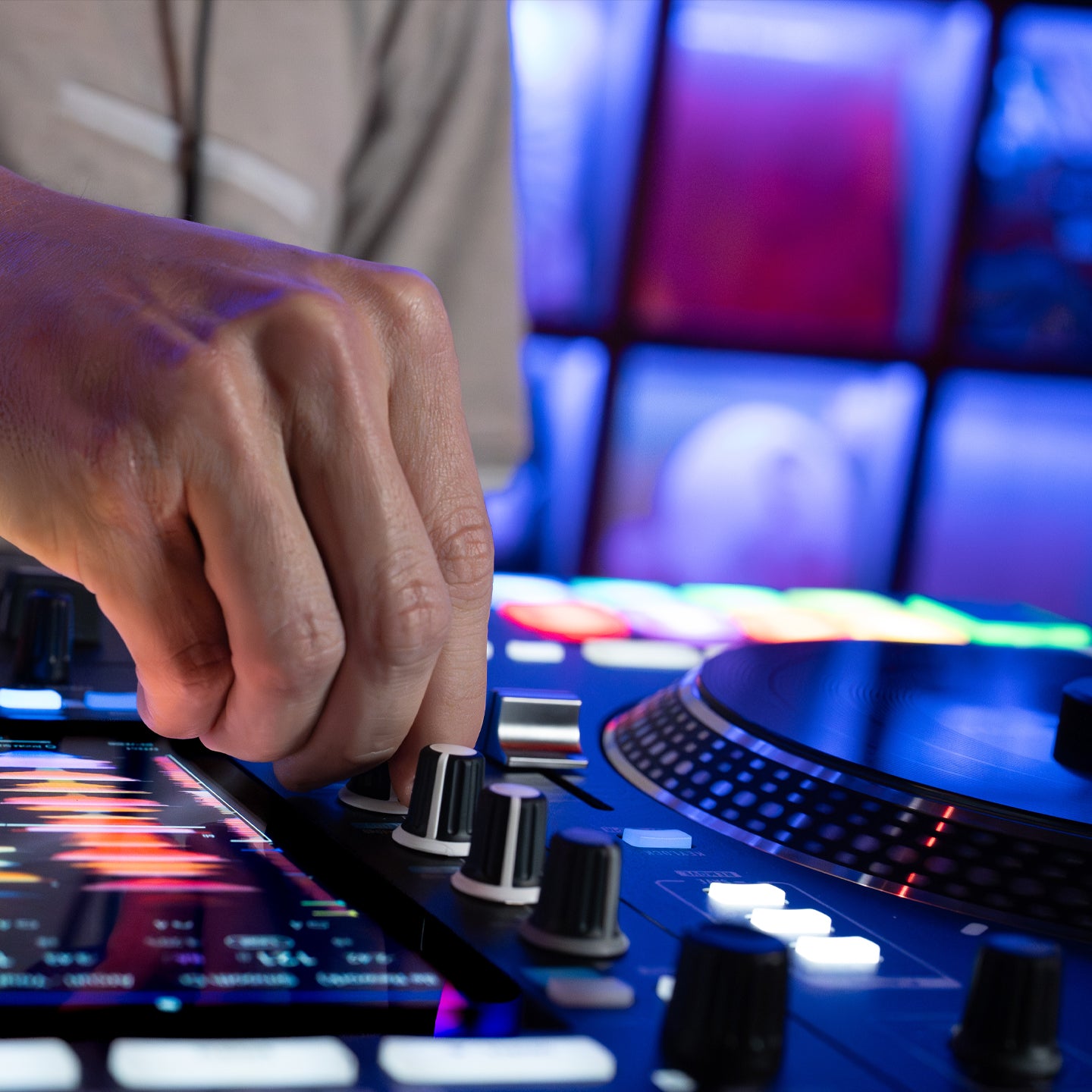

At the heart of the unit is an exceptionally capable two-channel mixer, packed with 25 FX designed to help DJs craft their signature sound. From building tension through transitions to holding peak energy on the dancefloor, the System One gives you the tools to command every moment of your set.

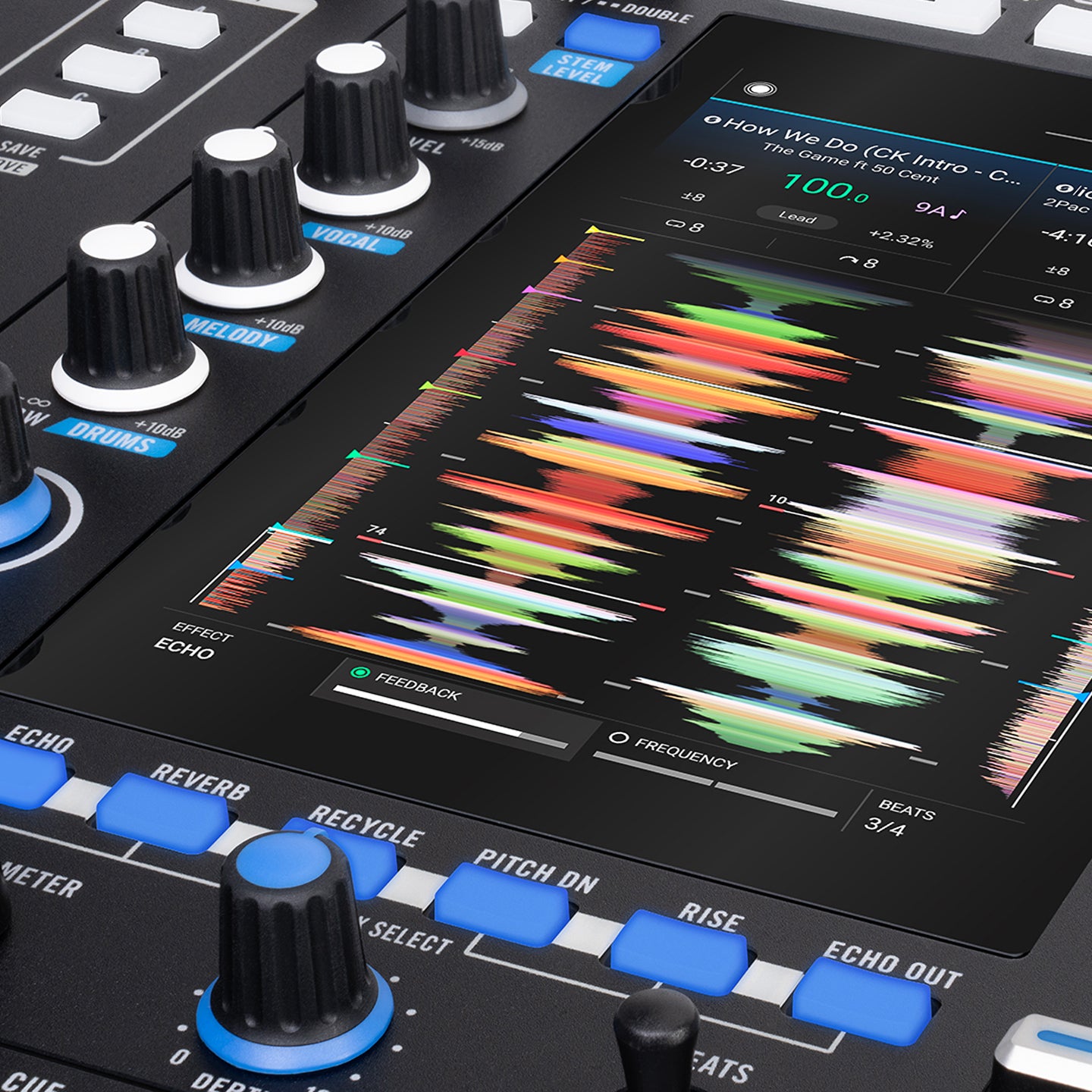

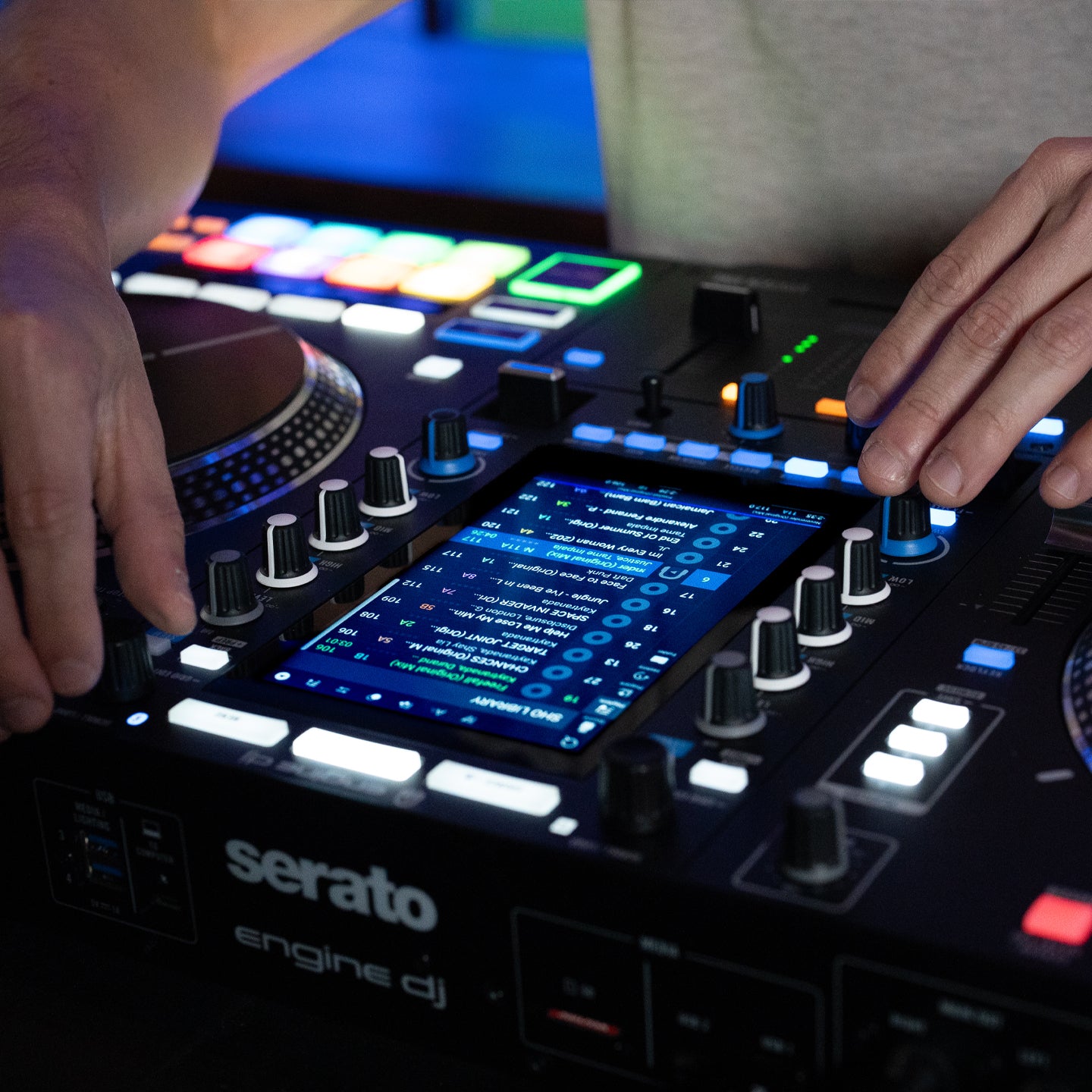

Positioned between the mixer’s gain controls is a 7-inch portrait-mounted touch screen, which acts as the main interface for all connected sources. Thanks to Rane’s new Omni Source technology, DJs can seamlessly switch between onboard HDDs, USB drives, Wi-Fi streaming services, or Mac/PC DJ software - all without rebooting the unit.

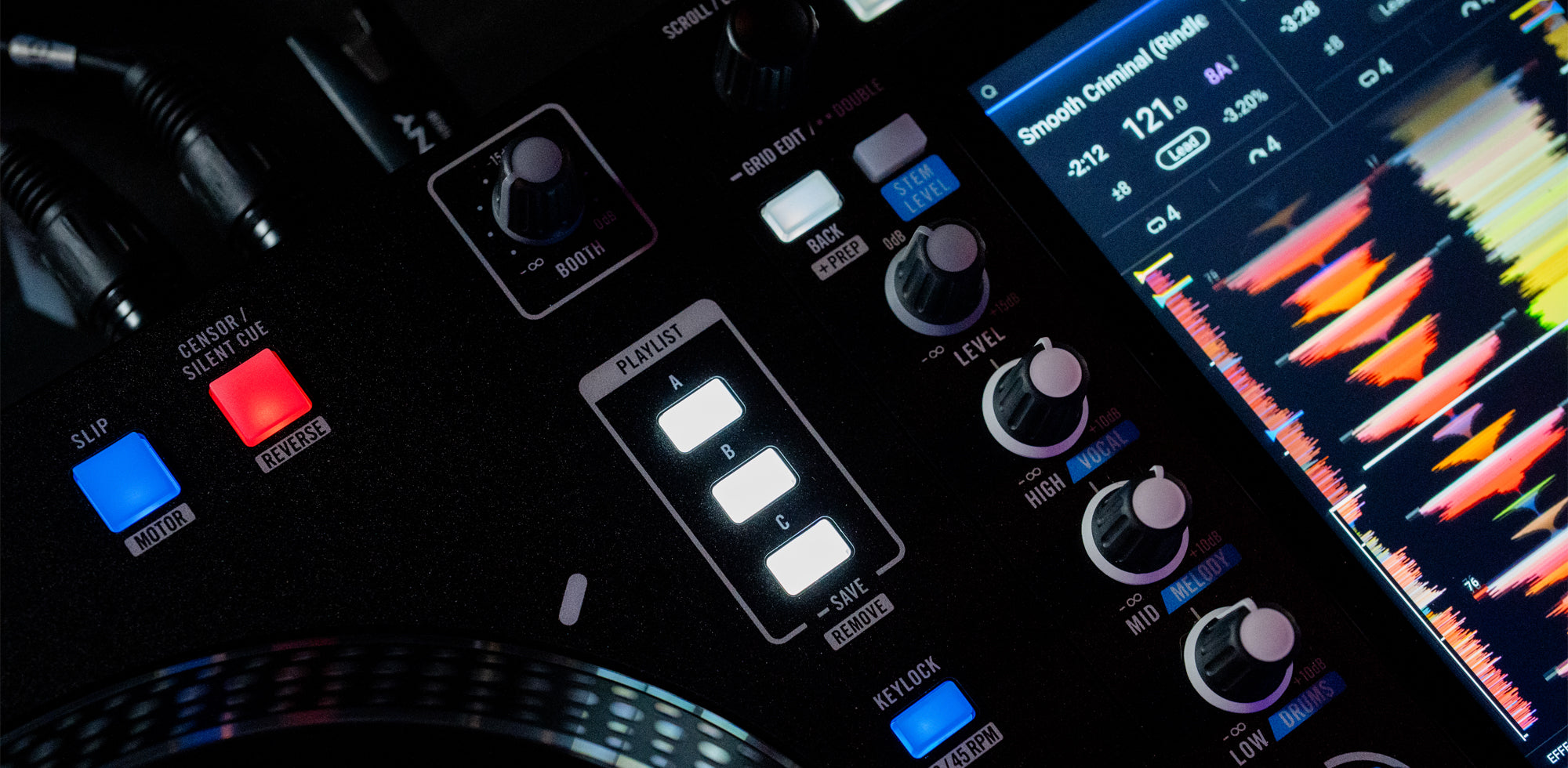

Three dedicated playlist bank buttons allow instant access to playlists built on the fly from any source, highlighting the flexibility and power of this new platform.

That processing power is also evident in the System One’s STEMS controls, including dedicated STEM level adjustments positioned across the control surface. From launch, DJs can control Engine DJ STEMS pre-rendered in Engine DJ Desktop, with onboard high-resolution STEM rendering coming to the System One in early 2026.

These controls will also support Serato DJ Pro STEMS once compatibility is added to Serato DJ Pro* in February 2026, with Algoriddim Djay** support arriving during the first quarter of 2026.

Beyond performance and processing, the System One delivers the exceptional audio quality Rane is known for. A 10-band EQ is available for both booth and main outputs, allowing precise sound shaping for any venue. A powerful anti-feedback system ensures clear, controlled microphone reproduction, while professional connectivity throughout - including a locking IEC power connection - guarantees reliability in demanding environments.

Visual feedback is provided by the crisp touch screen display, while Engine DJ waveforms have been reworked in RGB format to improve clarity when mixing between multiple sources. For those who prefer it, the classic Engine DJ colour scheme can be enabled in the settings. Each bank of eight performance pads is paired with its own OLED display, keeping DJs fully informed of the active pad mode without losing focus on the music.

As with all Engine DJ devices, SoundSwitch lighting control is built directly into the Rane System One, allowing DJs to create a fully immersive atmosphere. From colour selection to light-show intensity, the intuitive controls make it easy to take command of both sound and visuals - ensuring every performance leaves a lasting impression.

THE MAIN FEATURES OF THE RANE SYSTEM ONE INCLUDE:

  • Powerful standalone Engine DJ system built to Rane’s performance standards
  • Next-generation ARM-based processing architecture

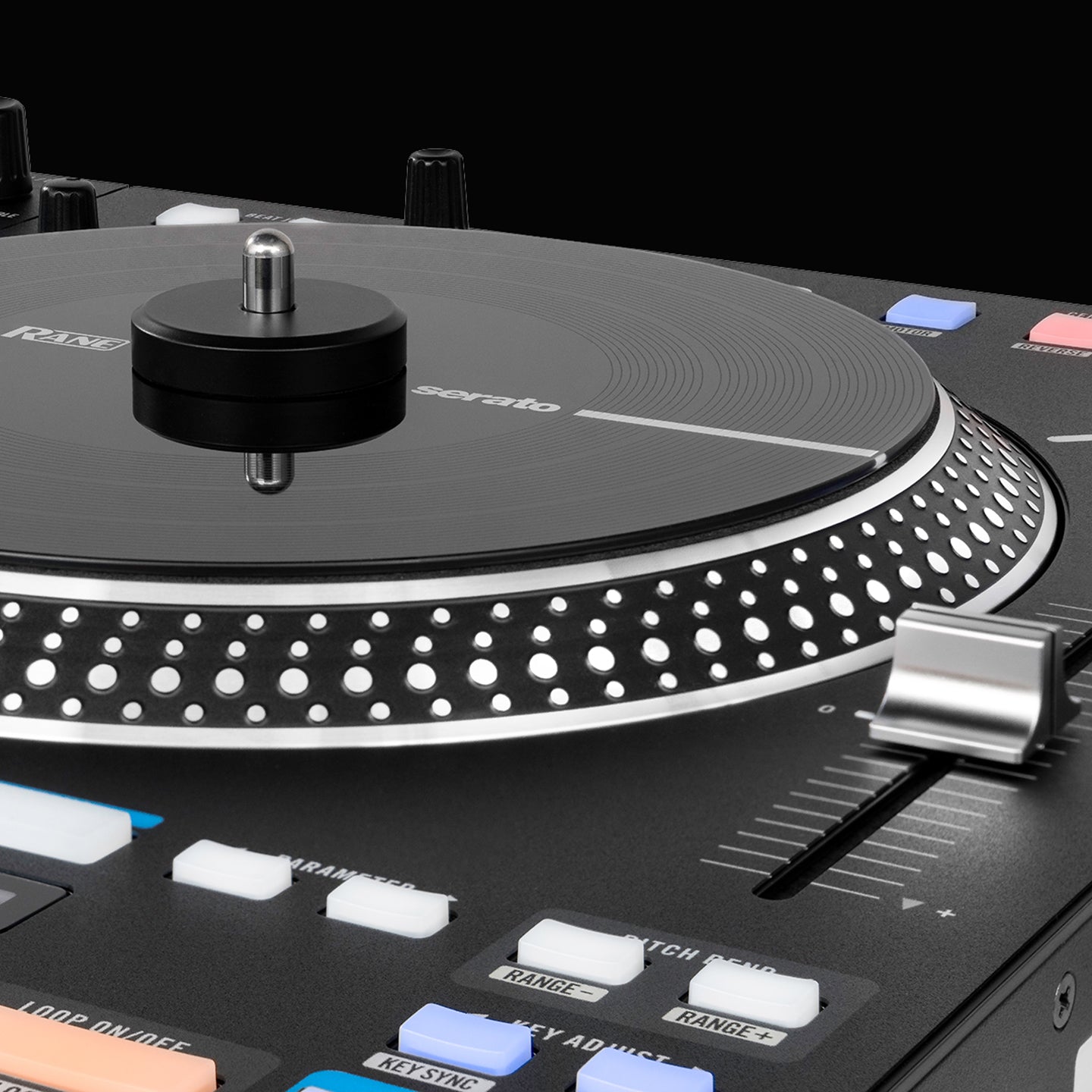

  • High-torque, high-resolution motorised platters for a true vinyl feel
  • High-resolution touch screen display
  • Advanced FX engine with Fader FX, Sweep FX, Touch FX and Main FX
  • STEMS control for Engine DJ and Serato DJ Pro*
  • 10-band EQ for both booth and main outputs

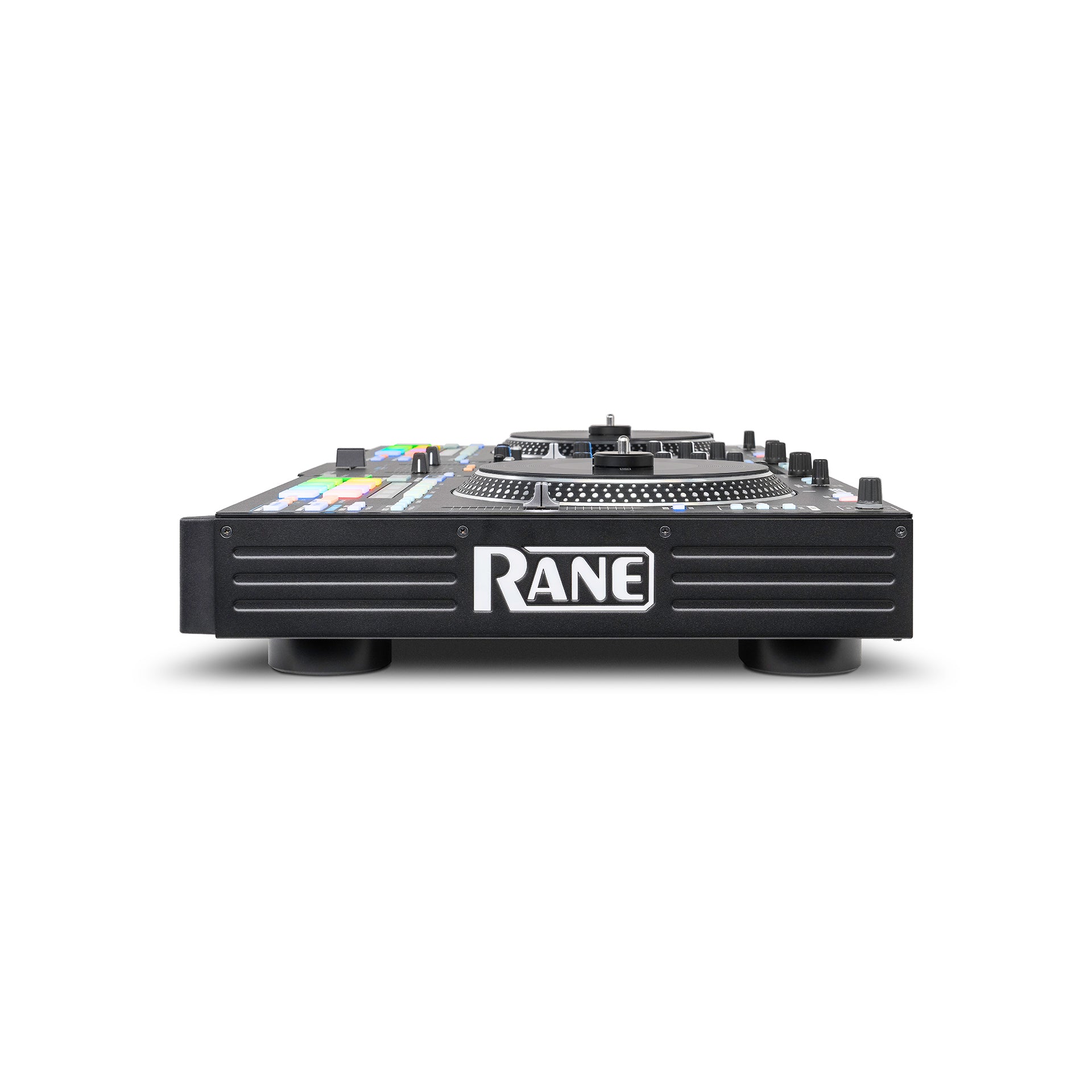

  • Road-ready, all-metal construction
  • Support for Serato DJ Pro* and Algoriddim Djay**

TECHNICAL SPECIFICATIONS

Digital Audio

  • Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
  • Digital Signal Processing: 32-bit, Floating Point, Double Precision

Audio Outputs

Main Output (XLR, RCA stereo pair)

  • DAC: 24-bit
  • Dynamic Range: 117 dB
  • Output Type: Balanced XLR
  • Max Output Level (XLR): 8 Vrms
  • Max Output Level (RCA): 4 Vrms
  • Frequency Response: 20 Hz–20 kHz: +0, -1 dB
  • THD+N: 0.002% @ 1 kHz, 4 Vrms
  • Channel Separation: > 80 dB
  • Input Gain Trim Range: Off to +12 dB
  • Output Level Range: Off to 0 dB

Booth Output (1/4” [6.35 mm] TRS)

  • DAC: 24-bit
  • Dynamic Range: 117 dB
  • Output Type: Balanced TRS
  • Max Output Level: 8 Vrms
  • Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
  • THD+N: 0.002% @ 1 kHz, 4 Vrms
  • Channel Separation: > 80 dB
  • Input Gain Trim Range: Off to +12 dB
  • Output Level Range: Off to 0 dB

Headphone Output (1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)

  • DAC: 24-bit
  • Dynamic Range: 117 dB
  • Output Type: Stereo TRS (1/8” and 1/4” jacks)
  • Cue Features: Cue / Split Cue
  • Max Output Level (No Load): 4 Vrms
  • Max Power Output @ 50 Ω: 150 mW
  • Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
  • THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
  • THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08%
  • Channel Separation: > 80 dB
  • Level Control Range: Off to 0 dB

Inputs (Combo XLR/1/4” [6.35 mm] TRS)

  • ADC: 24-bit, 115 dB DR
  • Input Type: Balanced XLR/TRS combo
  • Max Input Level: 110 mV
  • Analog Gain: 25 dB
  • Max System Gain: 60 dB
  • Frequency Response @ 20 Hz: -2.5 dB
  • Frequency Response @ 20 kHz: -5 dB
  • THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)
  • DR (A-weighted), Gain = 25 dB: 102 dB
  • DR (A-weighted), Gain = 60 dB: 72 dB
  • IRN (A-weighted), Gain = 60 dB: -132 dB
  • IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB

Auxiliary Input (RCA stereo pair)

  • ADC: 24-bit, 115 dB DR (A-weighted)
  • Input Type: Unbalanced RCA
  • Max Input Level: 4 Vrms
  • Frequency Response: 20 Hz –20 kHz: +0, -1 dB
  • THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz)
  • Gain Range: Off to +12 dB
  • DR (A-weighted), Unity Gain: 108 dB
  • Crosstalk: ≤ -90 dB

Performance Pads

  • Pads: 16 total, on/off multi-color back-lit (8 per deck)

Faders

  • Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
  • Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse

Displays

  • Main Display: 7"/178 mm (diagonal) full-color LED-backlit display with touch interface
  • Pad Displays: (8) 128 x 32 monochrome OLEDs

CPU

  • Processor: Quad-core ARM®
  • RAM: 4 GB

Wi-Fi & Bluetooth

  • Wi-Fi: 2.4GHz/5GHz | 802.11a/b/g/n/ac | Wi-Fi 5
  • Bluetooth: v5.4

Supported Media

File Systems

  • exFAT (recommended)
  • FAT32

Playable Formats

  • AAC/M4A
  • AIF/AIFF (44.1–192 kHz, 16–32-bit)
  • ALAC
  • FLAC
  • MP3 (32–320 kbps)
  • MP4
  • Ogg Vorbis
  • WAV (44.1–192 kHz, 16–32-bit)

Streaming Services

Onboard Streaming Services (subscription required)

  • Amazon Music Unlimited
  • Apple Music
  • Beatport
  • Beatsource
  • SoundCloud Go+
  • TIDAL

Lighting

Onboard Smart Lighting

  • Philips Hue
  • Nanoleaf

Supported DMX

  • SoundSwitch DMX Micro
  • SoundSwitch Control One

Power (Internal with locking IEC)

  • Input Type: Locking IEC
  • Input Voltage: 100–240 VAC
  • Frequency: 50/60 Hz
  • Power Consumption: 150 W

General

Dimensions (W x D x H):

  • Inches: 29.00 x 15.87 x 5.70
  • Centimetres: 73.66 x 40.30 x 14.47

Weight:

  • 29.4 lbs (13.33 kg)

Connections Inputs

Microphones:

  • Mic 1: XLR + 1/4” Combo Jack
  • Mic 2: XLR + 1/4” Combo Jack

Aux: Stereo Pair (RCA)

Connections Outputs

  • Main: (2) XLR, Stereo Pair (RCA)
  • Booth: (2) 1/4” TRS Jacks

Headphones:

  • 1/4” Stereo Jack
  • 3.5-mm Stereo Mini-Jack

Media Inputs

USB:

  • USB 1: Type-A, USB 2.0 High Speed
  • USB 2: Type-C, USB 3.0 SuperSpeed
  • USB 3: Type-A, USB 3.0 SuperSpeed
  • USB 4: Type-A, USB 3.0 SuperSpeed
  • USB to Computer: Type-C, USB 3.0 SuperSpeed

SD Media: SD, SDHC, SDXC

Internal HD: SATA 3.0

* Serato DJ Pro support from February 2026
** Algoriddim Djay support coming early 2026
