RCF
RCF 2 x NX 915-A + 1 x SUB 8008-AS PA System With Mono Sub

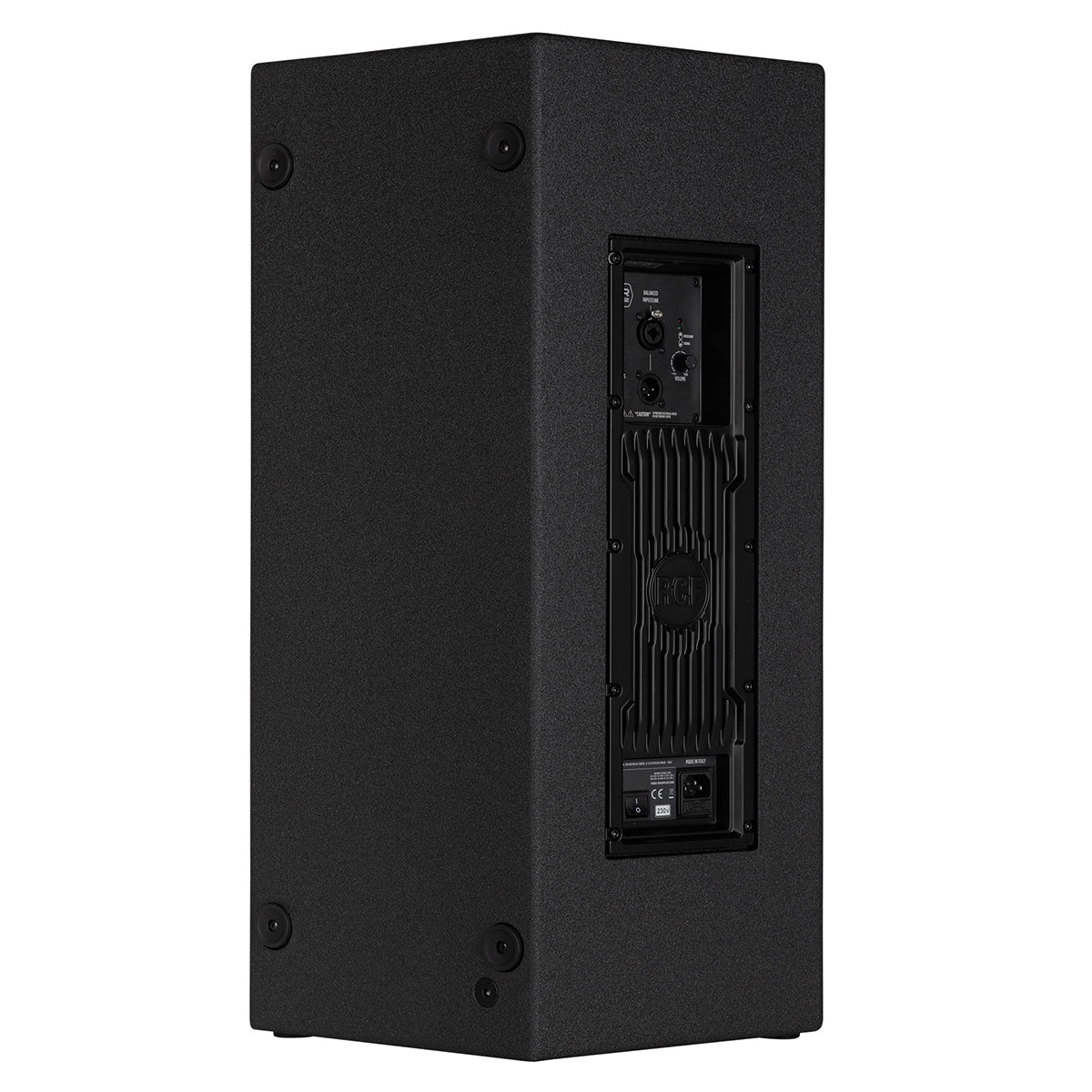

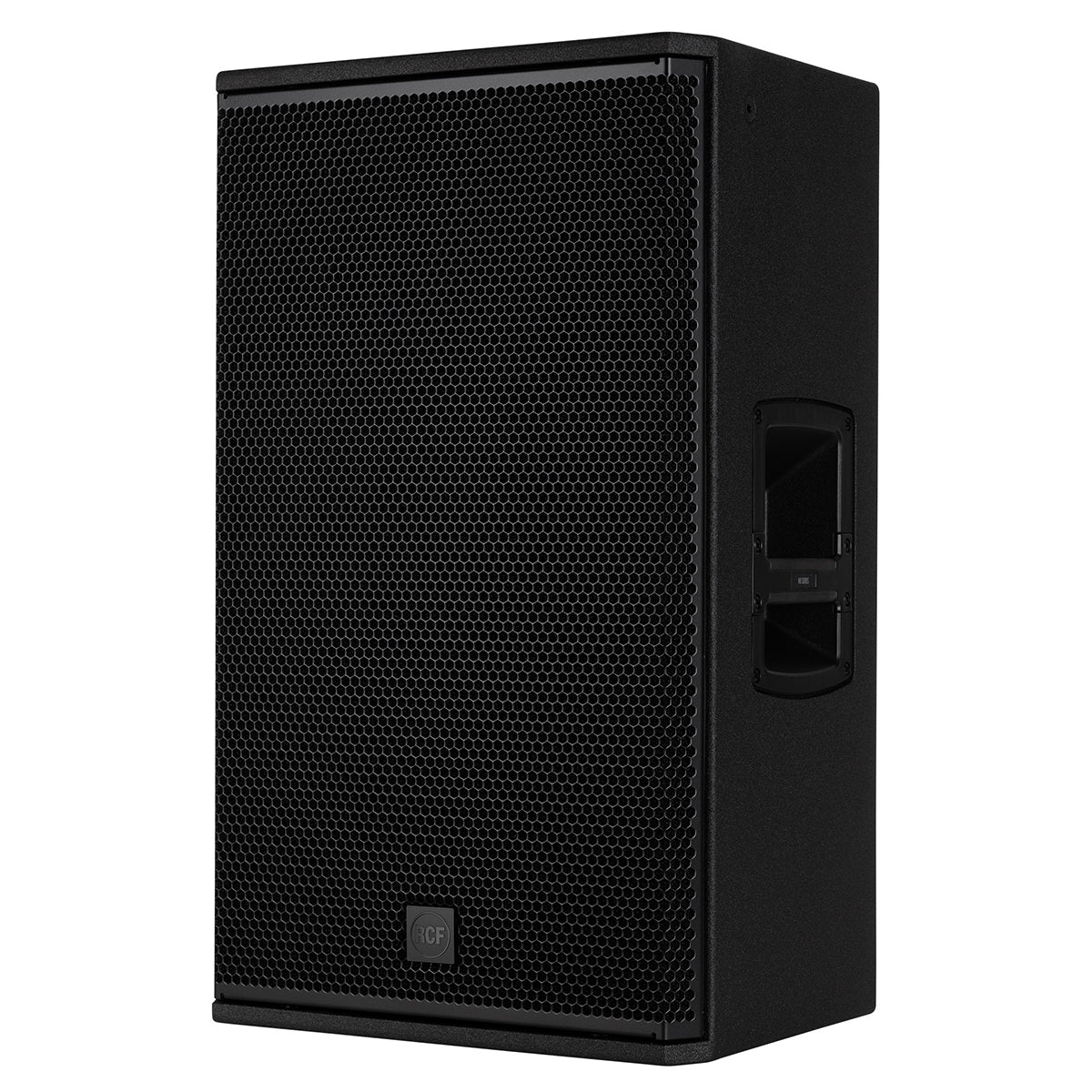

2 x RCF NX 915-A Active Speaker
NX 915-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 15" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 131 dB SPL, distortion-free sound. Used stand-alone speaker for FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 915-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

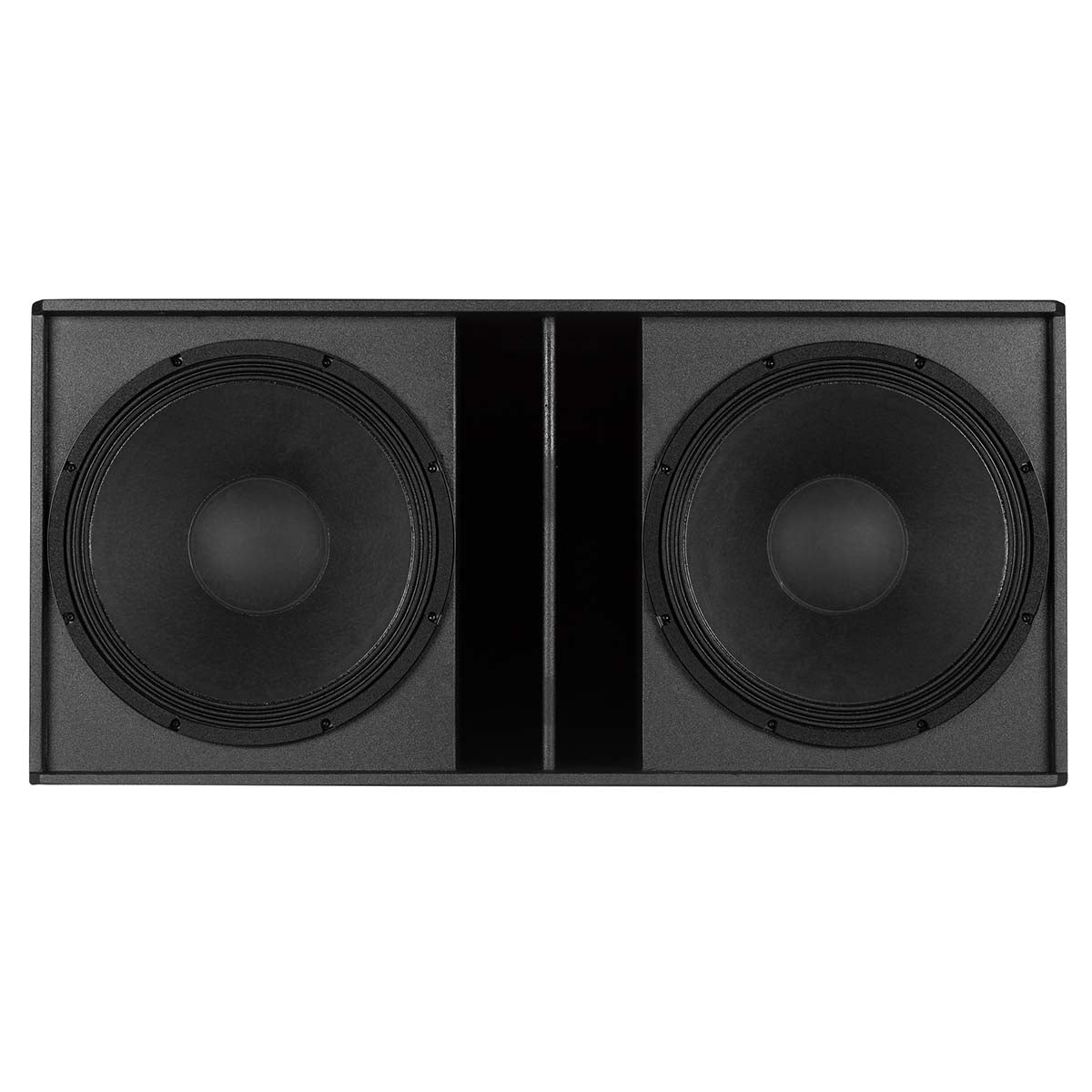

1x RCF SUB 8008-AS Double 18" Active Subwoofer
The RCF SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling.

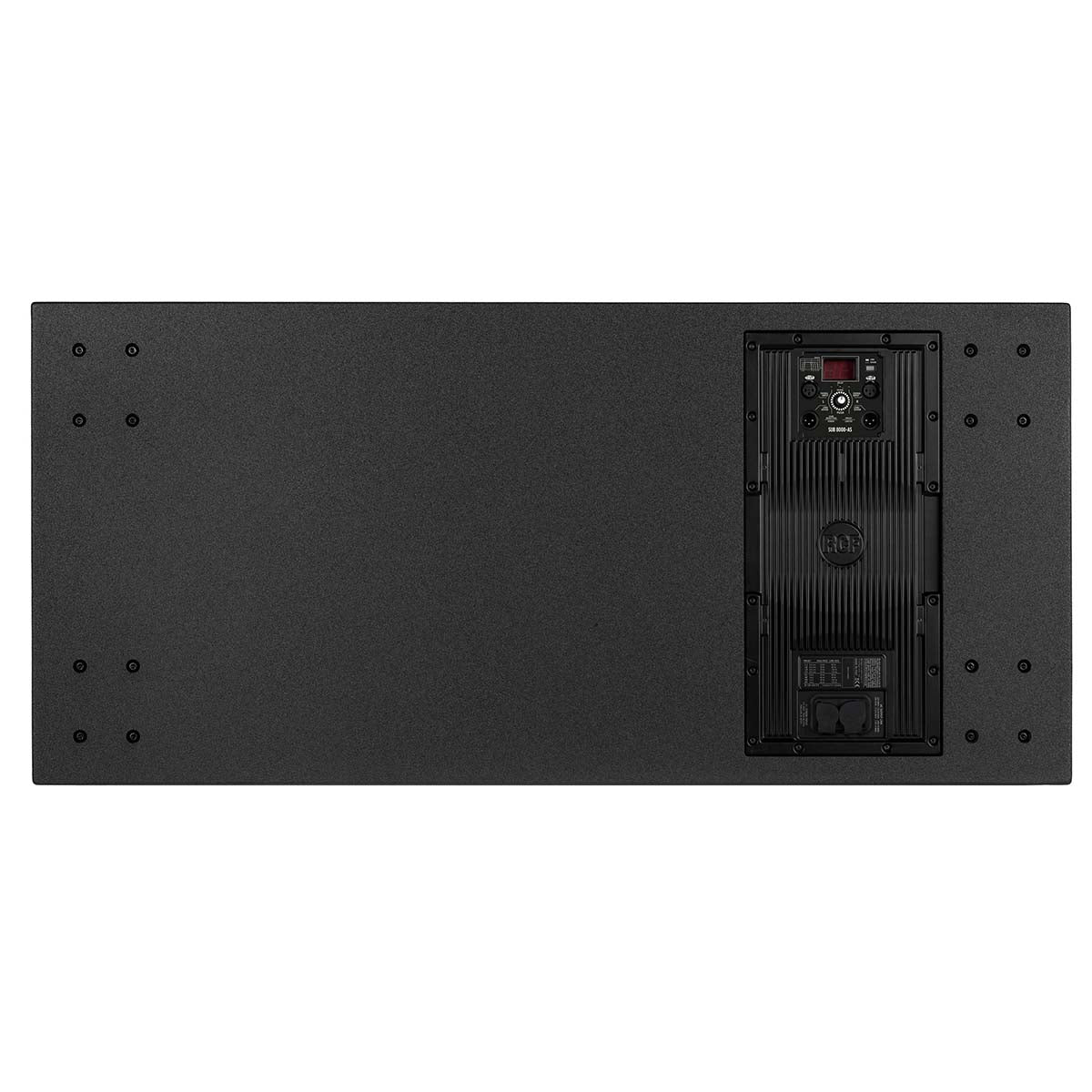

Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
2 x Gravity SP 5211 ACB Pneumatic Speaker Stand
The GSP 5211 ACB is a classic tripod speaker stand made from thick walled, yet lightweight powder coated aluminium tubing with a maximum height of 192 cm. Featuring a built-in air brake it allows you to lower loads up to 50 kg with minimum effort.
RCF NX 915-A
Acoustical Specifications- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 1 x 15'', 2.5'' v.c
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Crossover Frequencies: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Linear, Boost, Stage, Volume
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: Plywood
- Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
- Handles: 1 x Each Side
- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 705 mm / 27.76 inches
- Width: 420 mm / 16.54 inches
- Depth: 451 mm / 17.76 inches
- Weight: 24.1 kg / 53.13 lbs
- Package Height: 751 mm / 29.57 inches
- Package Width: 506 mm / 19.92 inches
- Package Depth: 474 mm / 18.66 inches
- Package Weight: 26.6 kg / 58.64 lbs
RCF SUB 708-AS MK3
Acoustical Specifications- Frequency Response: 35 Hz ÷ 120 Hz
- Max SPL @ 1m: 133 dB
- Woofer: 1 x 18'', 3.0'' v.c
- Input signal: Balanced / Unbalanced
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Hi-Pass Frequencies: 110 Hz
- Low-Pass Frequencies: 80 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ, Phase, Xover
- Total Power: 1400 W Peak, 700 W RMS
- Low frequencies: 1400 W Peak, 700 W RMS
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: Baltic birch plywood
- Handles: One each side
- Pole mount/Cap: M20 thread
- Grille: Steel with clothing
- Color: Black
- Height: 693 mm / 27.28 inches
- Width: 505 mm / 19.88 inches
- Depth: 685 mm / 26.97 inches
- Weight: 40.6 kg / 89.51 lbs
- Package Height: 735 mm / 28.94 inches
- Package Width: 565 mm / 22.24 inches
- Package Depth: 745 mm / 29.33 inches
- Package Weight: 45.6 kg / 100.53 lbs
RCF SUB 8008-AS
Acoustical Specifications- Frequency Response: 30 Hz ÷ 120 Hz
- Max SPL @ 1m: 137 dB
- Woofer: 2 x 18'', 4.0'' v.c
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Crossover Frequencies: Selectable
- Protections: Thermal, Excursion, RMS
- Limiter: Soft Limiter
- Controls: Xover, Phase switch, Deep/Punch, Output Delay Setting
- Total Power: 4400 W Peak
- Low frequencies: 4400 W Peak
- Cooling: Convection/Forced
- Connections: Powercon TRUE1 TOP IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: Plywood
- Hardware: 2 x M20
- Handles: 2 x side
- Pole mount/Cap: M20 thread
- Grille: Steel
- Color: Black
- Height: 550 mm / 21.65 inches
- Width: 1180 mm / 46.46 inches
- Depth: 700 mm / 27.56 inches
- Weight: 80 kg / 176.37 lbs
- Package Height: 600 mm / 23.62 inches
- Package Width: 1370 mm / 53.94 inches
- Package Depth: 900 mm / 35.43 inches
- Package Weight: 86 kg / 189.6 lbs
- RCF NX 915-A PA system with center mono sub
- 1 x RCF SUB 8008-AS
- 2 x RCF NX 915-A
- 2 x Gravity SP 5211 ACB Pneumatic Speaker Stand
