RCF

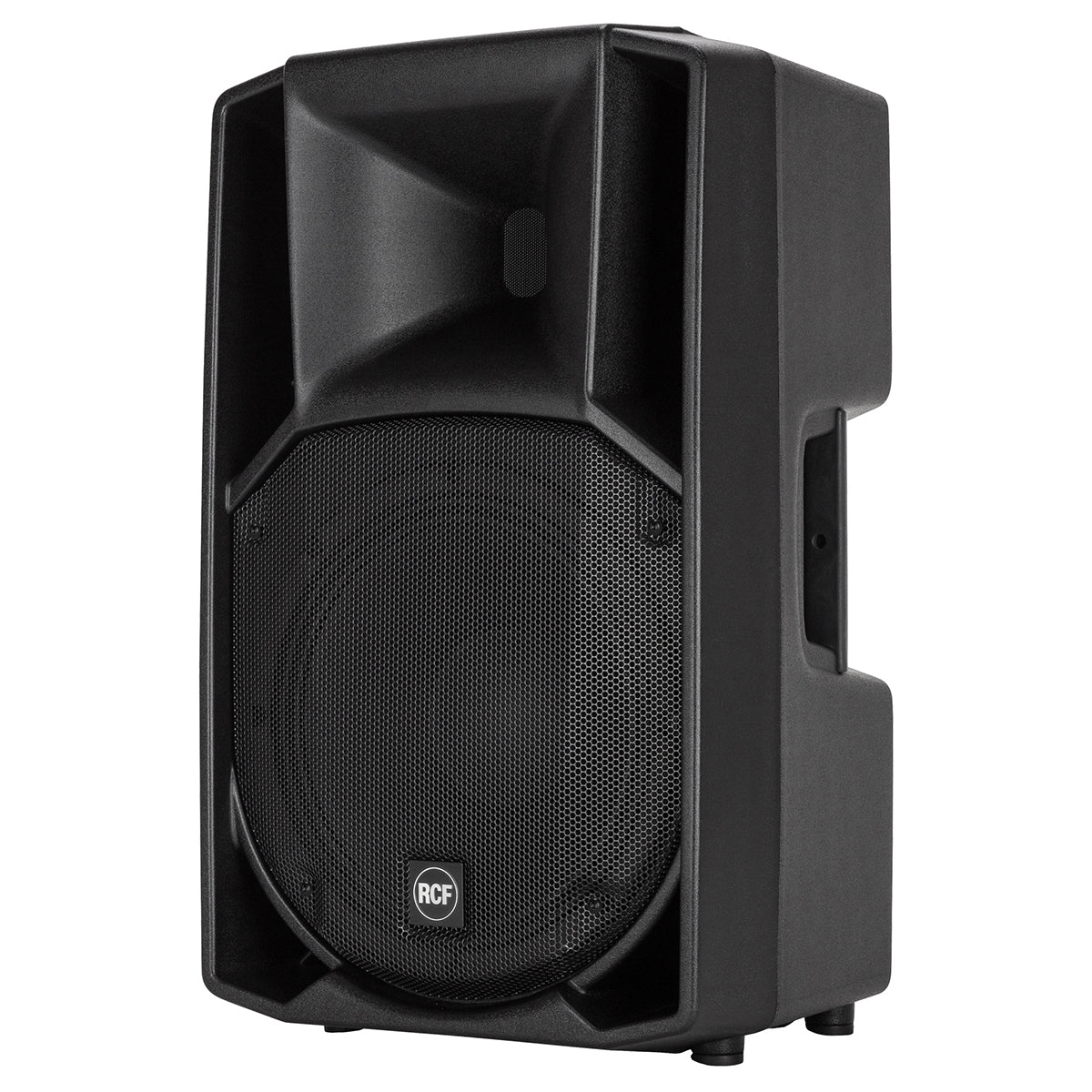

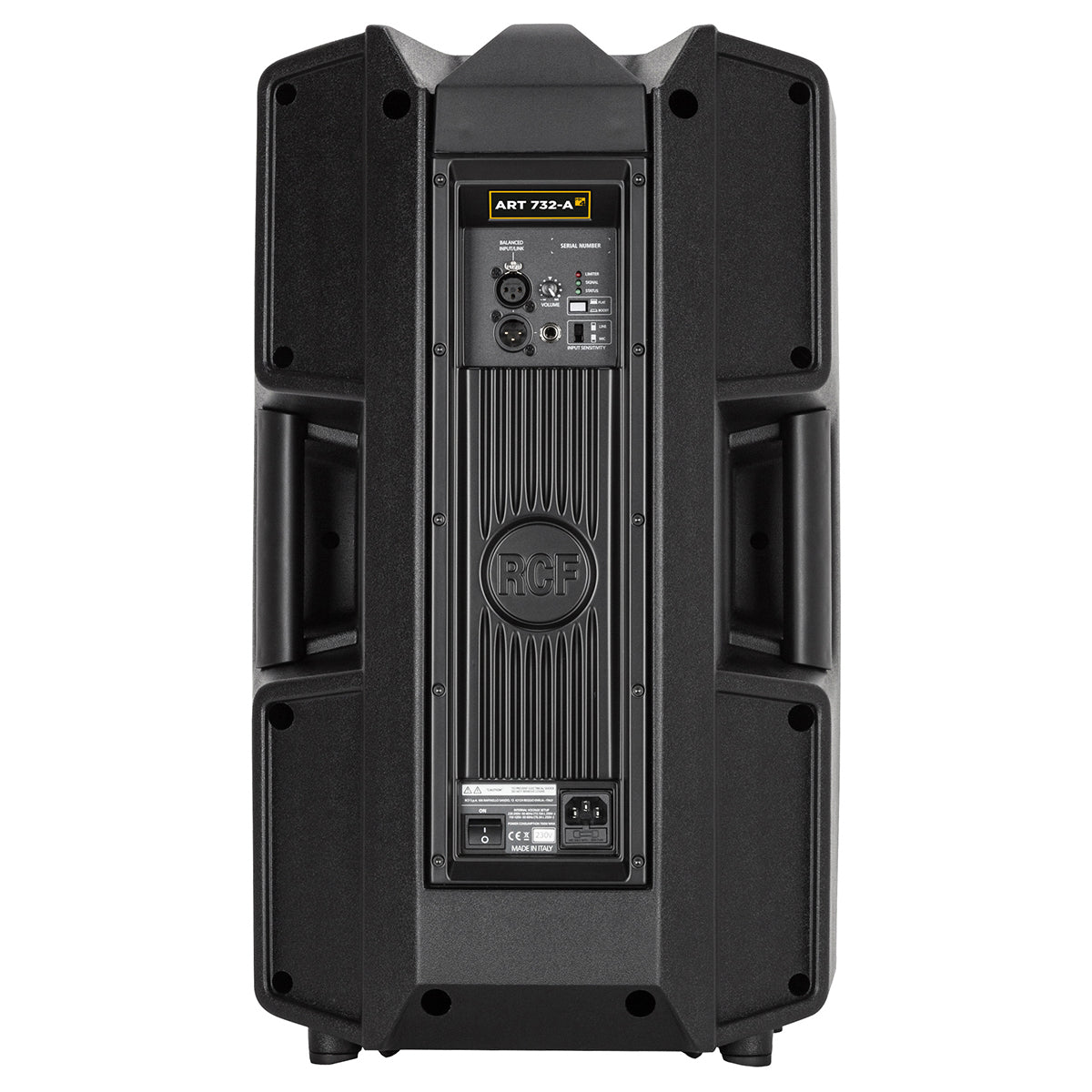

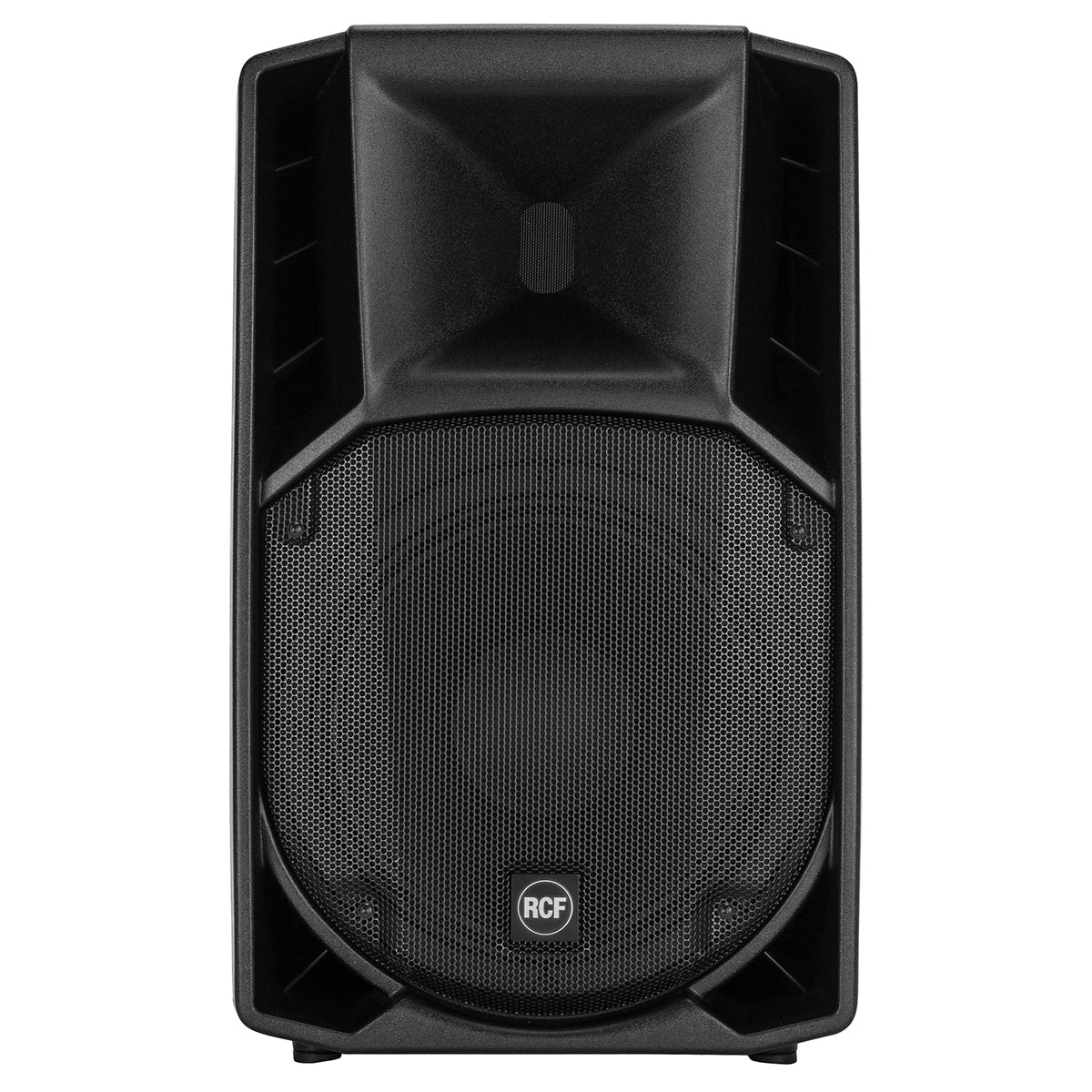

RCF ART 732-A MK4 Active PA Speaker
The RCF ART 732-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
SUPERIOR COMPRESSION DRIVERS
The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
BRING ART WITH YOU
The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
Acoustical specifications
|
Frequency Response:
50 Hz ÷ 20000 Hz
|
Max SPL @ 1m:
131 dB
|
Horizontal coverage angle:
90°
|
Vertical coverage angle:
60°
|
|
Transducers | Compression Driver:
1 x 1.4'' neo, 3.0'' v.c
|
Woofer:
12'', 2.5'' v.c
|
Input/Output section | Input signal:
bal/unbal
|
Input connectors:
XLR, Jack
|
Output connectors:
XLR
|
Input sensitivity:
-2 dBu/+4 dBu
|
|
Mic. Input Sensitivity:
-32 dBu
|
||
Processor section | Crossover frequencies:
700 Hz
|
Protections:
Thermal, RMS
|
Limiter:
Soft Limiter
|
Controls:
Volume, Boost, Mic/Line
|
|
Power section | Total Power:
1400 W Peak, 700 W RMS
|
High frequencies:
400 W Peak, 200 W RMS
|
Low frequencies:
1000 W Peak, 500 W RMS
|
Cooling:
Convection
|
|
Connections:
VDE
|
||
Standard compliance |
CE marking:
Yes
|
|
Physical specifications | Cabinet/Case Material:
PP Composite
|
Hardware:
2 x M10
|
Handles:
1 Top, 2 Side
|
Grille:
Steel
|
|
Color:
Black
|
||
Size |
Height:
637 mm / 25.08 inches
|
Width:
384 mm / 15.12 inches
|
Depth:
363 mm / 14.29 inches
|
Weight:
17.8 kg / 39.24 lbs
|
|
Shipping informations | Package Height:
680 mm / 26.77 inches
|
Package Width:
440 mm / 17.32 inches
|
Package Depth:
420 mm / 16.54 inches
|
Package Weight:
20.6 kg / 45.42 lbs
|
- 131 dB Max SPL
- Innovative DSP Processing
- 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
- 12" Woofer
- 700 Hz crossover point for perfect vocal reproduction
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
- 1400 WATT 2-way peak power
