RCF
RCF ART 915-AX Active Bluetooth PA Speaker

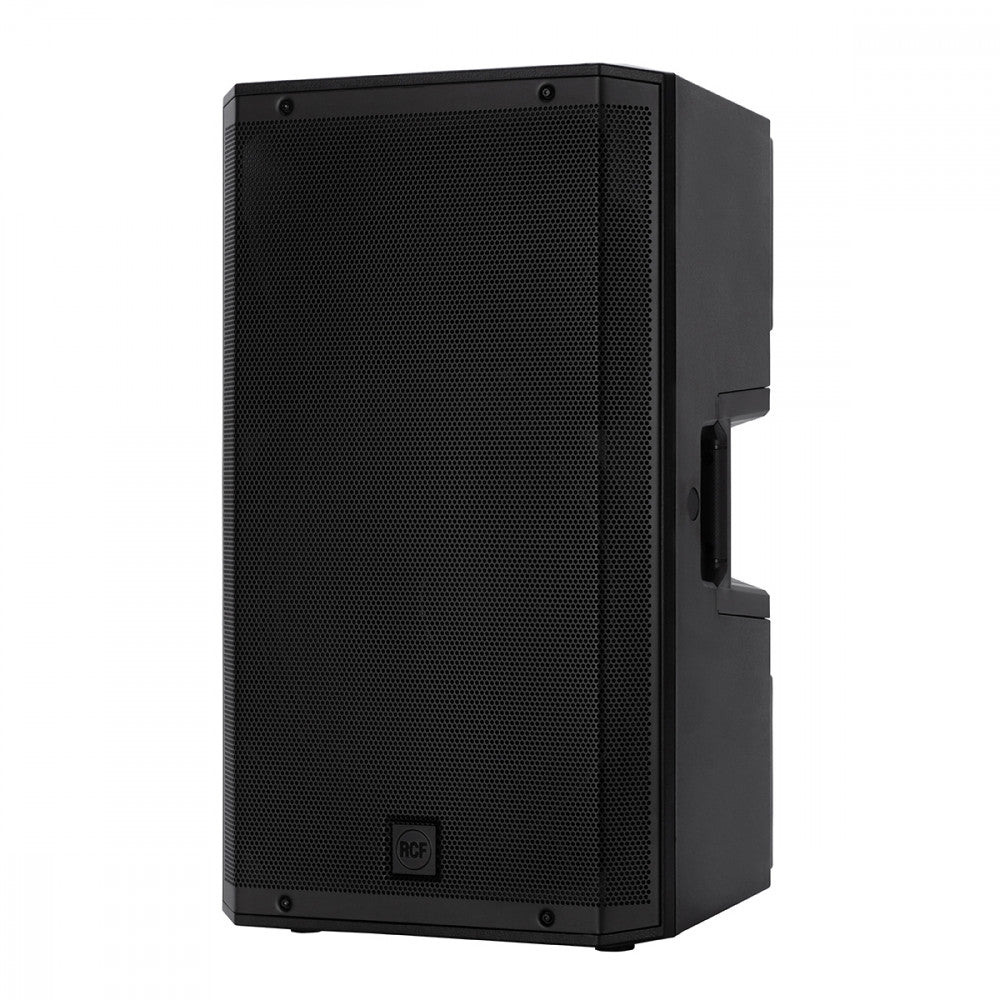

The RCF ART 915-AX is a versatile active 15" bluetooth PA speaker with several modes of operation. They can be used individually or in combination with other speaker and/or subwoofers, wired or wireless.
All functions and settings can be accessed on the back via the colour touch screen with rotary knob or via the RCF LiveRemote App for iOS and Android devices.
The speakers feature 48v mic preamps and line inputs, an internal 6-channel digital mixer with built-in DSP, Bluetooth audio input, and an app remote for single speakers and matched pairs. The RCF LiveRemote app provides control of the internal ART 9 AX engine to recall and store presets, set desired volume levels, adjust EQ, compressors and effects to perfectly tune your sound system without external hardware.
Main features of the RCF ART 915-AX Active Bluetooth PA Speaker include:
- 2100W Class-D Bi-Amplification
- Up to 50 ÷ 20000 Hz linear frequency response
- Wide 100° x 60° Constant Directivity
- Up to 1800 Hz Crossover Frequency
- True Resistive Waveguide for superb, distortion-free coverage
- Road-proof Cabinet with M-Brace Reinforcement
- Bass Motion Control and FiRPHASE processing
- Bluetooth® for Audio Streaming and Control
- Smartphone app for remote control
- 6-in, 2-out stereo digital mixer and output processing
- Internal digital mixer and crossover for RCF subwoofers
- Colour display with capacitive touch
BASS MOTION CONTROL
The advanced woofer excursion management increases linearity and improves bass punch with a radical new approach. BMC extends the lowest audible frequency without affecting the transducer’s stability, limiting over-excursions for greater reliability and superior performance at high volume levels.
FiRPHASE
The advanced FiRPHASE and BMC algorithms optimize dynamics, amplitude, and phase patterns, extending the lowest audible frequency while limiting over-excursions.
2100 W OF POWER
Improved Performance Constant Timbral Balance With 2100 Watts of power, the 2-channel ART
9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.
TRUE RESISTIVE WAVEGUIDE
The TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.
M-BRACE
The M-brace reinforcement connects four internal sides of the enclosure with the amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. The M-brace design also performs as a reinforcement structure, for greater resistance to mechanical stress.

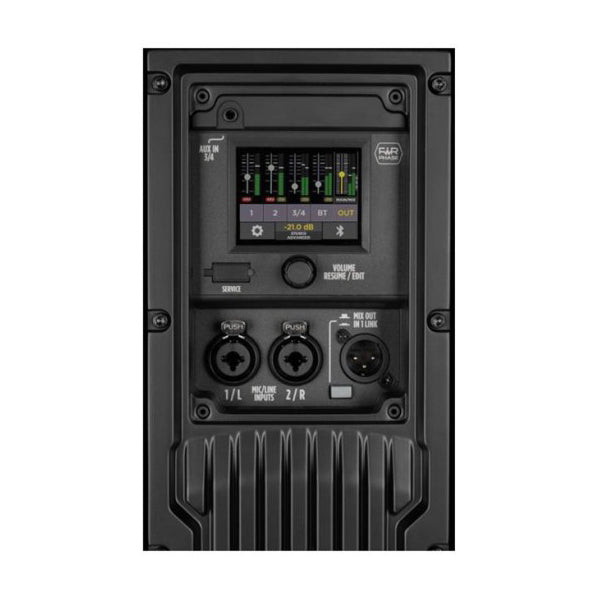

TOUCH SCREEN BACK PANEL

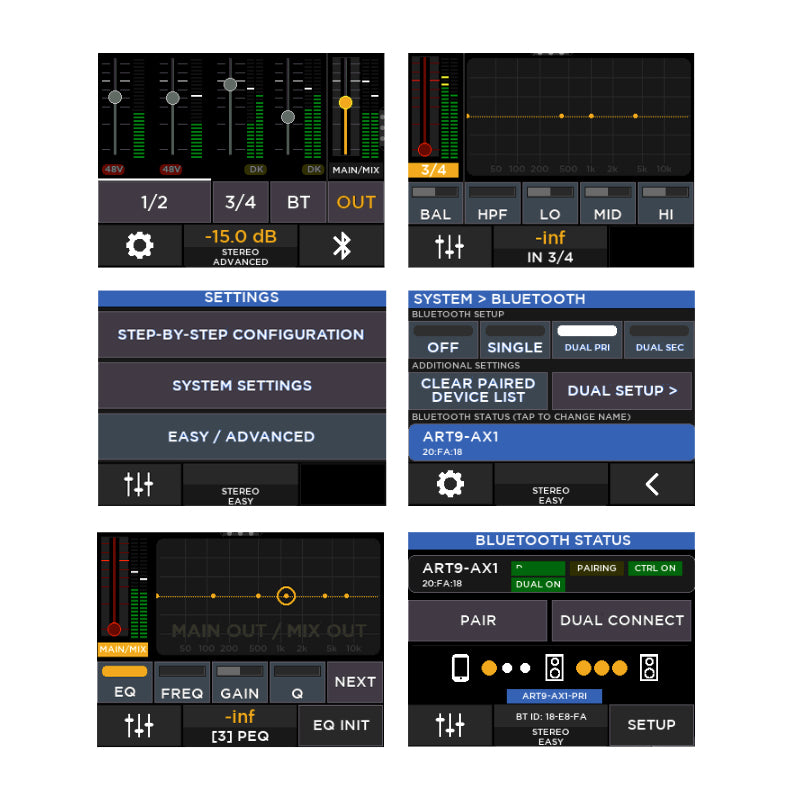

The ART915-AX back panel features a large 2.4-inch color touch screen and a push encoder to adjust all speaker settings on-the-fly. The dual-mode menu is optimized for fast navigation: Easy Mode for fast and immediate setup, Advanced Mode for professional tuning and signal routing.
LIVEREMOTE CONTROL APP
Whether you’re a musician, DJ, or pro sound engineer, RCF LiveRemote App makes it easy to adjust ART 9 AX mixer, DSP, FX, routing, and Bluetooth settings. LiveRemote also allows full control of the internal ART 9 AX engine: recall and save presets, set your desired volume levels, adjust EQ, compressors, and FX, customize and tune your sound system and much more. Available for Android and iOS phones and tablets.
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
- Compression Driver: 1 x 1.0'', 1.75'' v.c
- Woofer: 15'', 2.5'' v.c
- Input signal: Balanced / Unbalanced
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Crossover Frequencies: 1600 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android
- Total Power: 2100 W Peak
- High frequencies: 700 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: VDE
- Frequency Response: 20 Hz ÷ 20 Hz
- THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted
- Processing Channels: 6
- Signal Processing: 24 Bit
- A/D-D/A conversion: 32 Bit @ 48.0 kHz
- Dynamic range: 110 dB
- Mic: 2
- Remote Controlled Storable Gain: Yes
- Gain Range: 0 dB ÷ 42 dB
- Input Noise Level: -114 dBu A-Weighted
- Mic Inputs Impedance: 6 kohm
- Low Cut: 20 Hz ÷ 400 Hz
- Phantom Power +48V: Yes
- Mono Line: 2
- Gain Selection: 0 dB ÷ 22 dB
- Line Input Impedance: 21 kohm
- A/D Dynamic range: 114 dB
- Stereo Line: 1
- Gain Selection: 0 dB ÷ 10 dB
- Stereo Line Input Impedance: 13 kohm
- Main MIX: 1
- Main Out Impedance: 150 ohm
- Main Out Level: 22 dBu
- D/A Dynamic Range: 114 dB
- RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs
- Input Channels EQ: 2 Shelving 1
- Description: 3 Band EQ: High and Low band shelving, MID band peak on IN
- 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output
- Send Effects: 1
- Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT
- Safety agency: CE compliant
- Cabinet/Case Material: PP Composite
- Hardware: 1 x M10 top, 1 x M10 each side
- Handles: 1 top, 1 each side
- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 717 mm / 28.23 inches
- Width: 415 mm / 16.34 inches
- Depth: 410 mm / 16.14 inches
- Weight: 20.4 kg / 44.97 lbs
- Package Height: 760 mm / 29.92 inches
- Package Width: 470 mm / 18.5 inches
- Package Depth: 475 mm / 18.7 inches
- Package Weight: 24.5 kg / 54.01 lbs
- 2100W Class-D Bi-Amplification
- Up to 50 ÷ 20000 Hz linear frequency response
- Wide 100° x 60° Constant Directivity
- Up to 1800 Hz Crossover Frequency
- True Resistive Waveguide for superb, distortion-free coverage
- Road-proof Cabinet with M-Brace Reinforcement
- Bass Motion Control and FiRPHASE processing
- Bluetooth® for Audio Streaming and Control
- Smartphone app for remote control
- 6-in, 2-out stereo digital mixer and output processing
- Internal digital mixer and crossover for RCF subwoofers
- Colour display with capacitive touch
