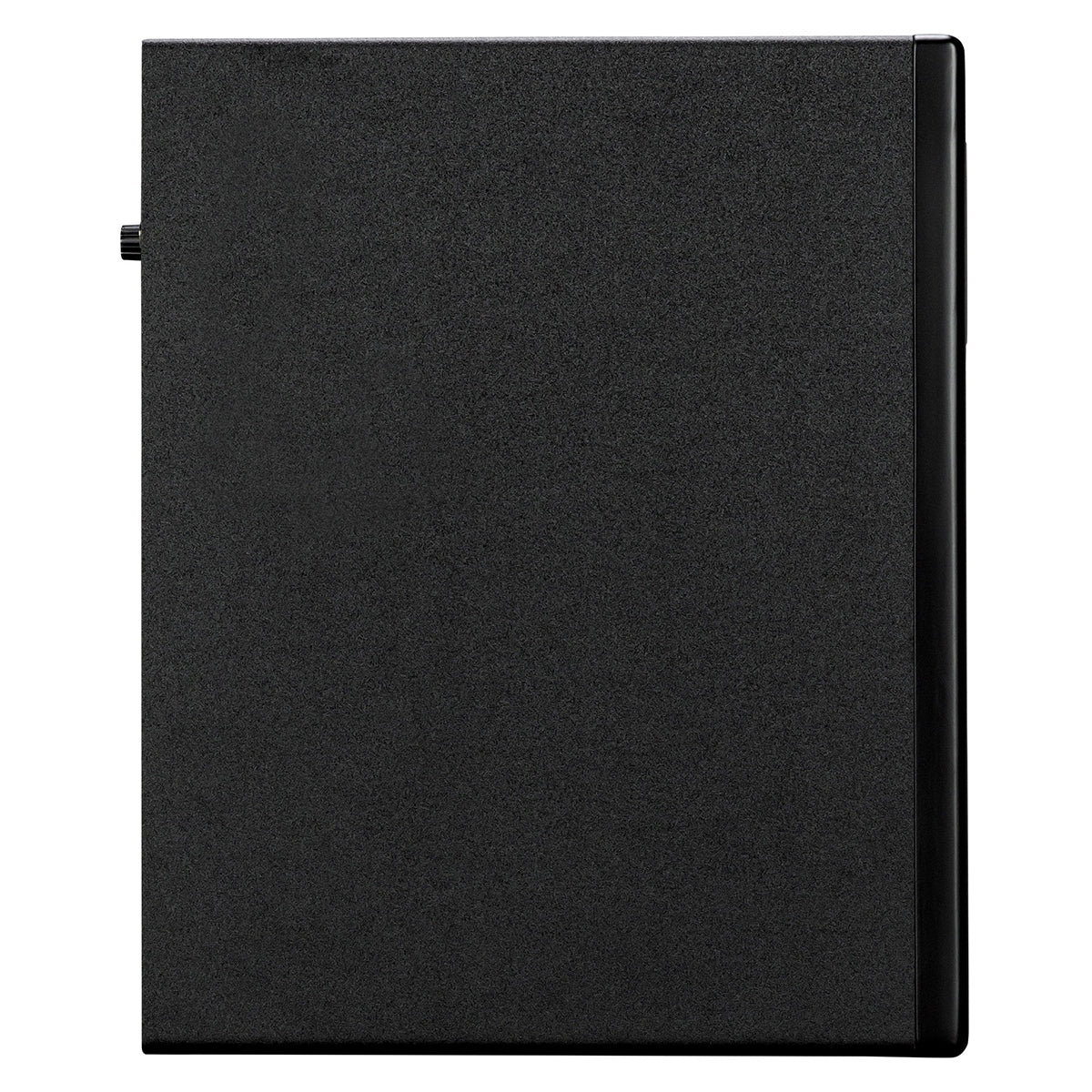

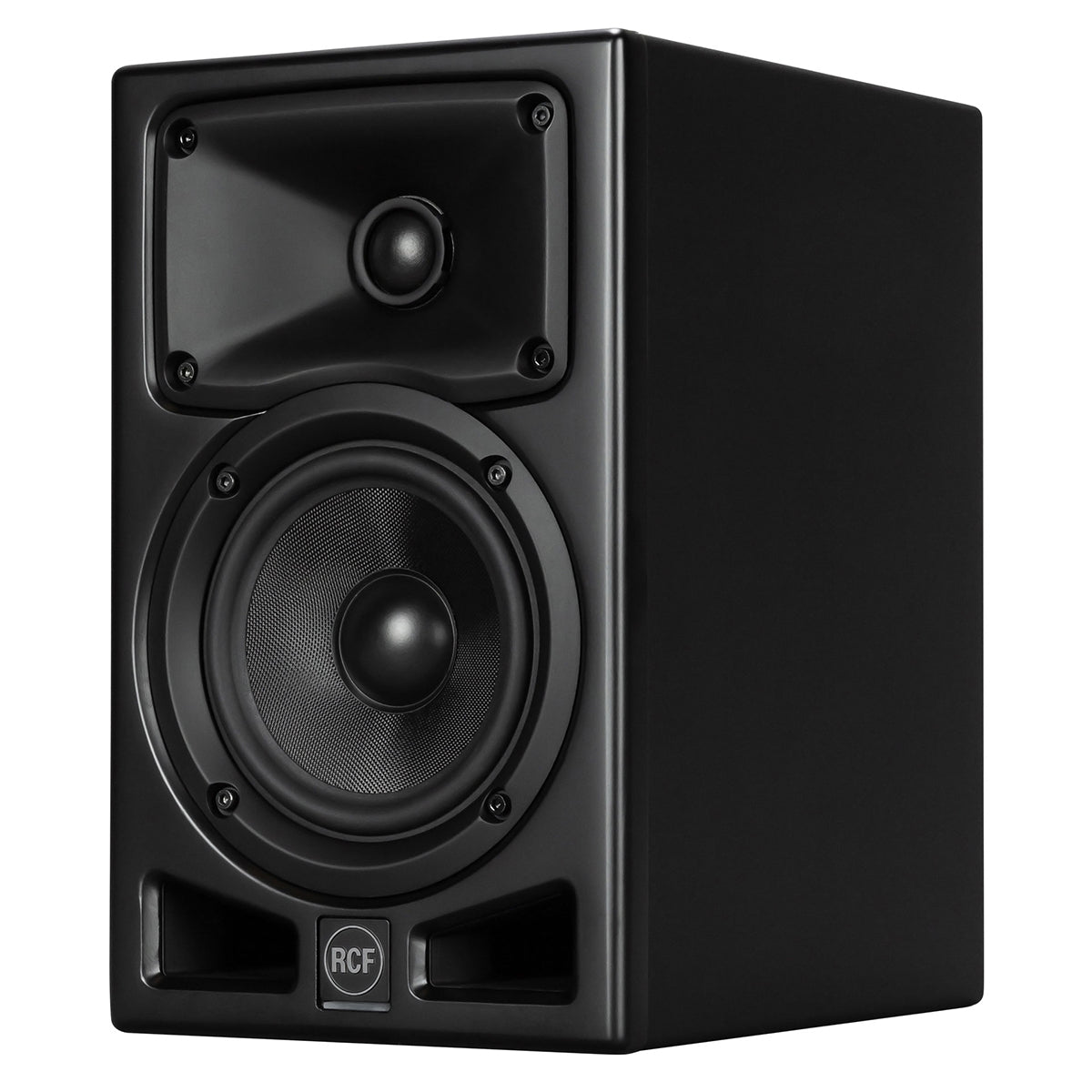

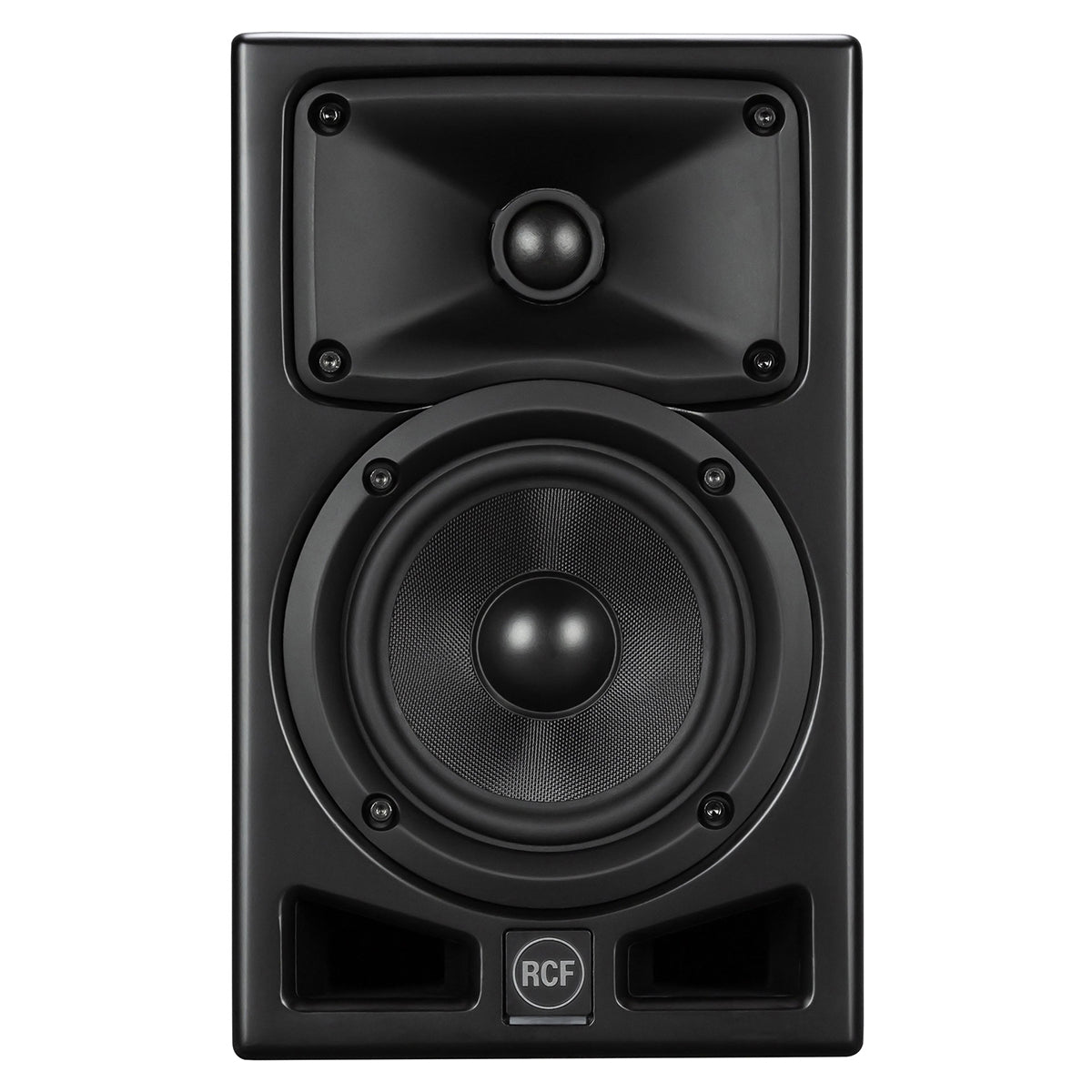

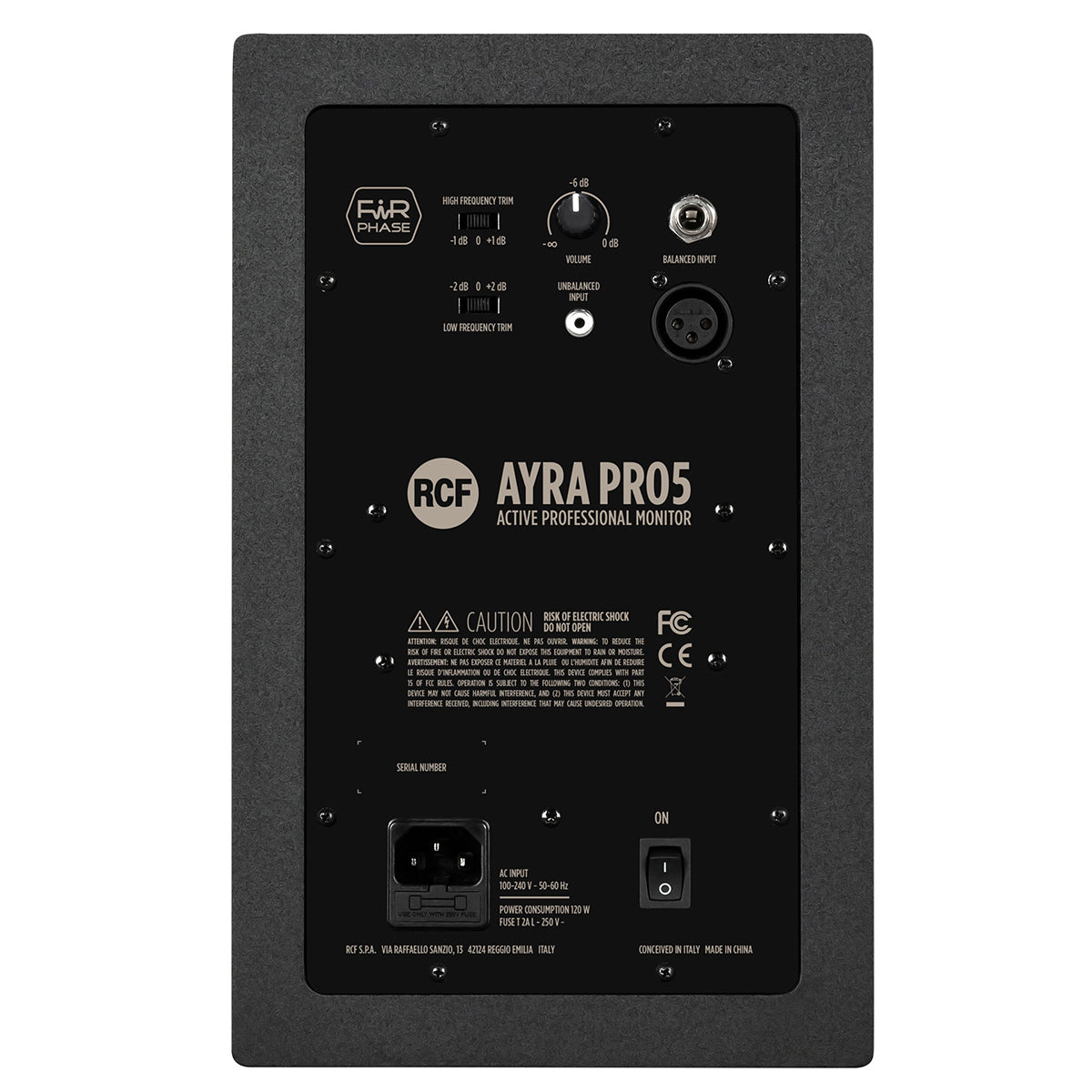

RCF AYRA PRO5 Active Studio Monitor
The RCF AYRA PRO5 Active Studio Monitor works perfectly in any listening environment, whether large or small production facilities, with absolute clarity. It delivers accurate monitoring and provides the engineer or producer with a neutral tool to analyze recordings and optimize the mix; for this reason, we call it PRO.
Featuring a dedicated powerful internal DSP that optimizes frequency response and dynamics together with the exclusive RCF FiRPHASE processing and selected components, the AYRA PRO is the first Studio Monitor in its class to boast an outstanding 0° phase response.
Main features of the RCF AYRA PRO5 Active Studio Monitor include:
SPECIFICATIONS | |
Acoustical specifications | |
FREQUENCY RESPONSE: | 50 Hz ÷ 20000 Hz |
MAX SPL @ 1M: | 107 dB |
HORIZONTAL COVERAGE ANGLE: | 110° |
VERTICAL COVERAGE ANGLE: |
70°
|
Transducers | |
DOME TWEETER: | 1.0'' neo, 1.0'' v.c |
WOOFER: | 5.0'' |
Input/Output section | |
INPUT SIGNAL: | bal/unbal |
INPUT CONNECTORS: | XLR, Jack, RCA |
INPUT SENSITIVITY: | -2 dBu |
Processor section | |
CROSSOVER FREQUENCIES: | 2000Hz |
LIMITER: | Soft Limiter |
Power section | |
TOTAL POWER: | 200 W Peak, 100 W RMS |
HIGH FREQUENCIES: | 50 W Peak, 25 W RMS |
LOW FREQUENCIES: | 150 W Peak, 75 W RMS |
CONNECTIONS: | XLR, Jack, RCA |
CABINET/CASE MATERIAL: | MDF |
COLOR: | Black |
HEIGHT:
|
300 mm / 11.81 inches |
WIDTH: | 185 mm / 7.28 inches |
DEPTH: | 243 mm / 9.57 inches |
WEIGHT:
|
4.3 kg / 9.48 lbs |
- 50Hz – 20kHz Frequency Response
- 0° Phase Response
- 75W + 25W Class-D Amplifiers
- 5” Composite Fiberglass Woofer
- 1” ferrofluid cooled Soft Dome tweeter
- RCF Precision Waveguide
- DSP Processing with FiRPHASE
- Low distortion frontal Vented Ports
