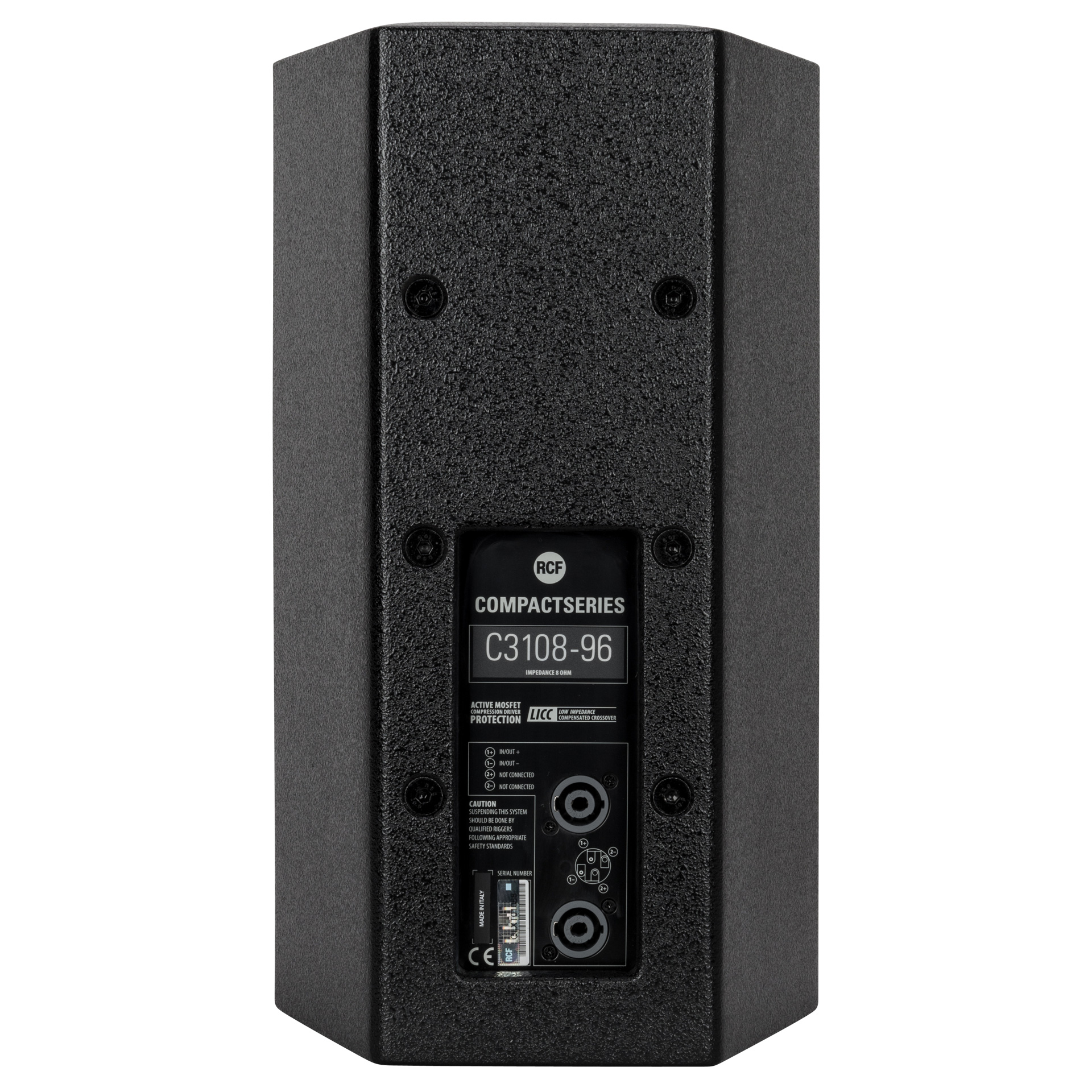

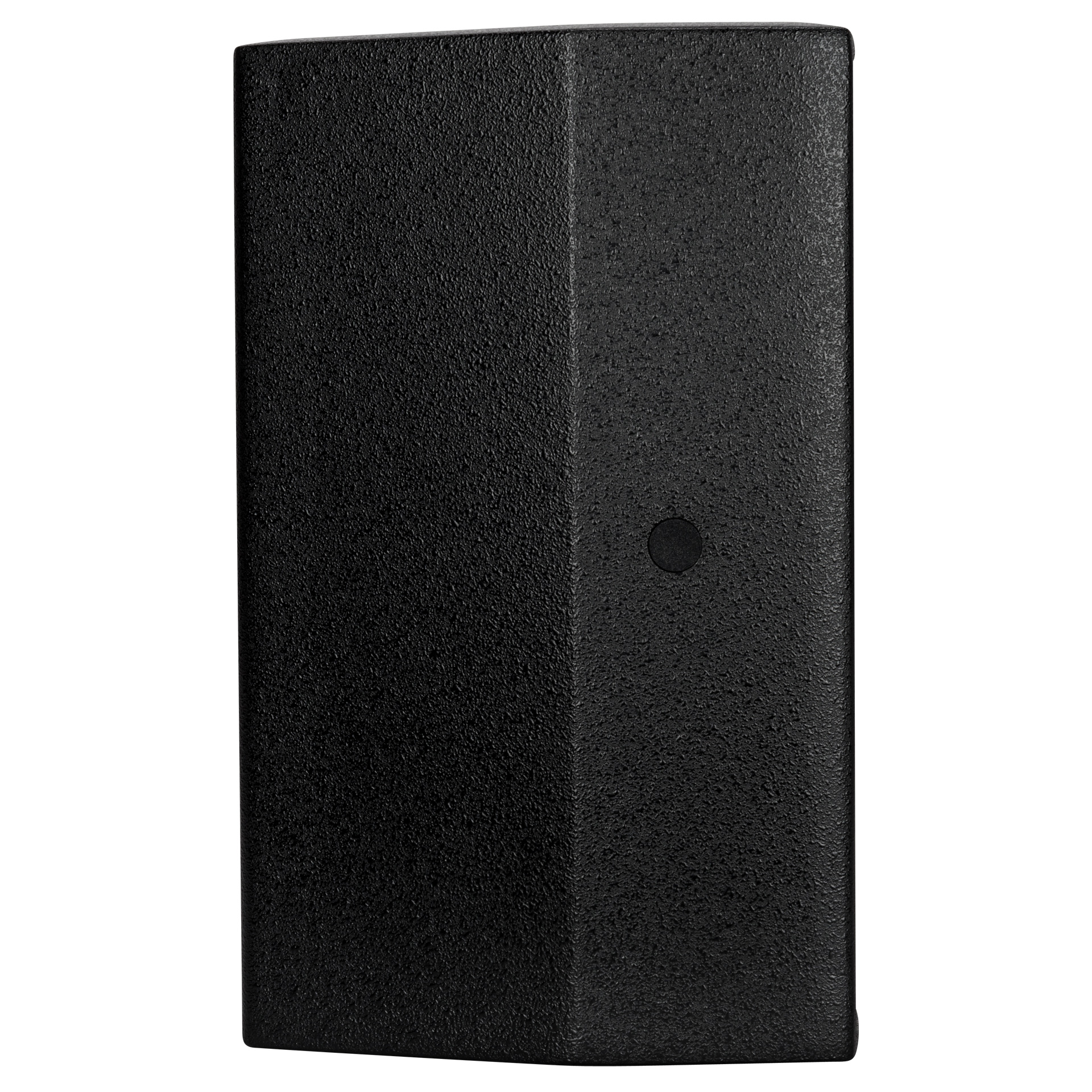

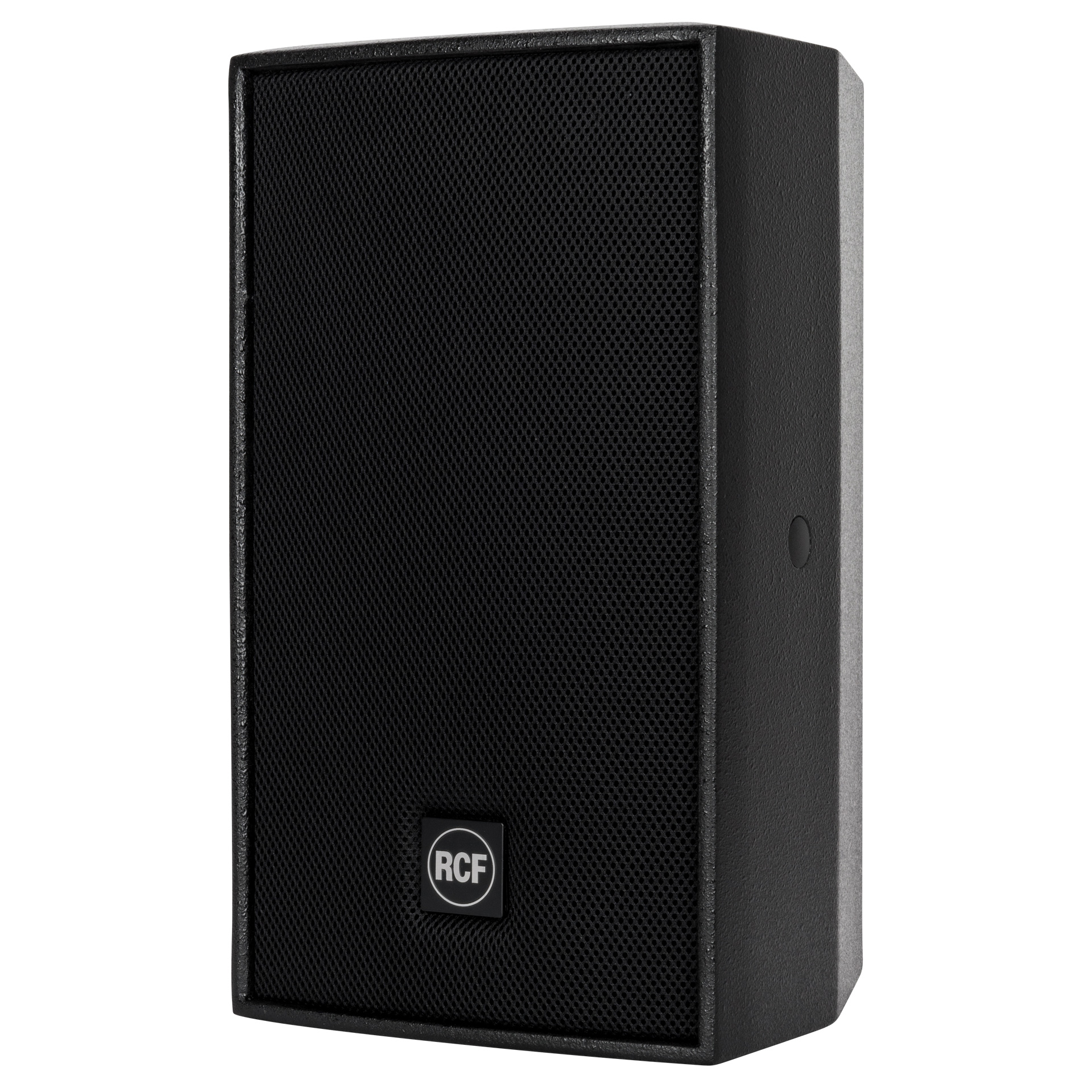

RCF C3108-96 Two-Way Passive Install Speaker
RCF C3108-96
The RCF C3108 is a full range extremely versatile wide-dispersion, low profile, two-way loudspeaker system for near field applications. Its compact size makes it ideal for low visibility side wall mounting. The high-frequency section is a constant directivity horn loaded to a 1” compression driver with a 1.5” diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is an 8” woofer with a 2” voice coil.
Key Features
- Power Handling: 300 W RMS
- Max SPL: 126 dB
- Frequency Range: 70 ÷ 20000 Hz
- Coverage Angle: 90° x 60° constant directivity
- Woofer: 1 x 8" high power woofer
- Compression Driver: 1 x 1.5" voice coil
- Cabinet: High quality Baltic birch plywood
- Front Grille: Steel with double mesh polyester clothing
- Installation Points: Available on rear, top, and bottom panels
- Connector: Speakon® NL4 (audio input and parallel link output)
Acoustical Specifications
- Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
- Max SPL @ 1m: 126 dB
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 60°
- Directivity Index Q: 10
- System Sensitivity: 95 dB
Power Section
- Amplification: Full Range
- Nominal Impedance: 8 ohm
- Power Handling: 300 W
- Peak Power Handling: 1200 W PEAK
- Protections: Dynamic active mosfet
- Crossover Frequencies: 2000 Hz
- Recommended Amplifiers: QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K
Transducers
- Compression Driver: 1.0", 1.5" v.c
- Woofer: 8", 2.0" v.c
Input/Output Section
- Input Connectors: Speakon® NL4
- Output Connectors: Speakon® NL4
Standard Compliance
- Safety Agency: CE compliant
Physical Specifications
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 6 x M8 (rear), 2 x M10 (side), multiplates (top and bottom)
- Pole Mount/Cap: M20 thread
- Grille: Steel with robust double mesh polyester clothing
- Color: Black
Size / Weight
- Height: 427 mm / 16.81 inches
- Width: 242 mm / 9.53 inches
- Depth: 263 mm / 10.35 inches
- Weight: 12.2 kg / 26.9 lbs
Shipping Information
- Package Height: 494 mm / 19.45 inches
- Package Width: 329 mm / 12.95 inches
- Package Depth: 364 mm / 14.33 inches
- Package Weight: 13.8 kg / 30.42 lbs
