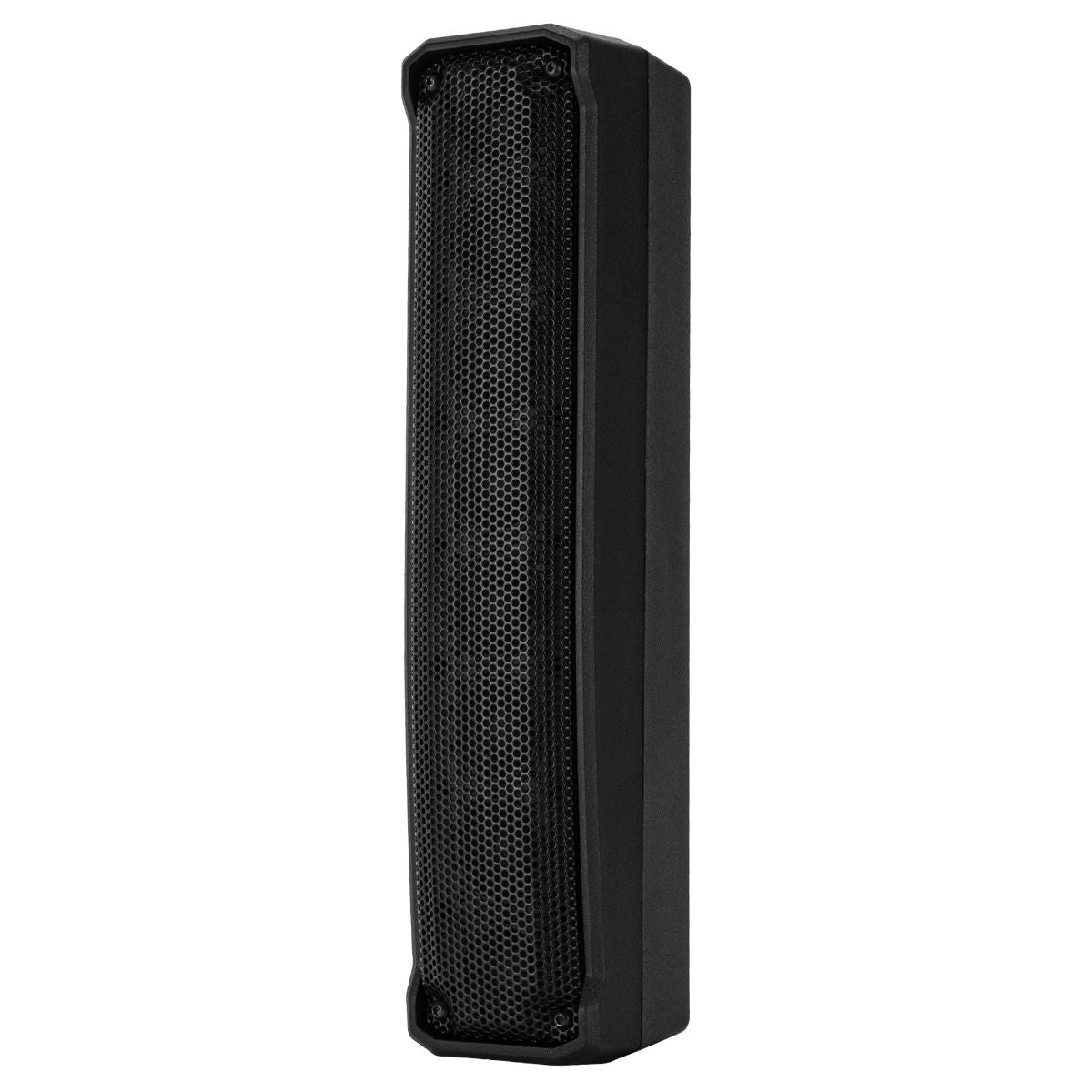

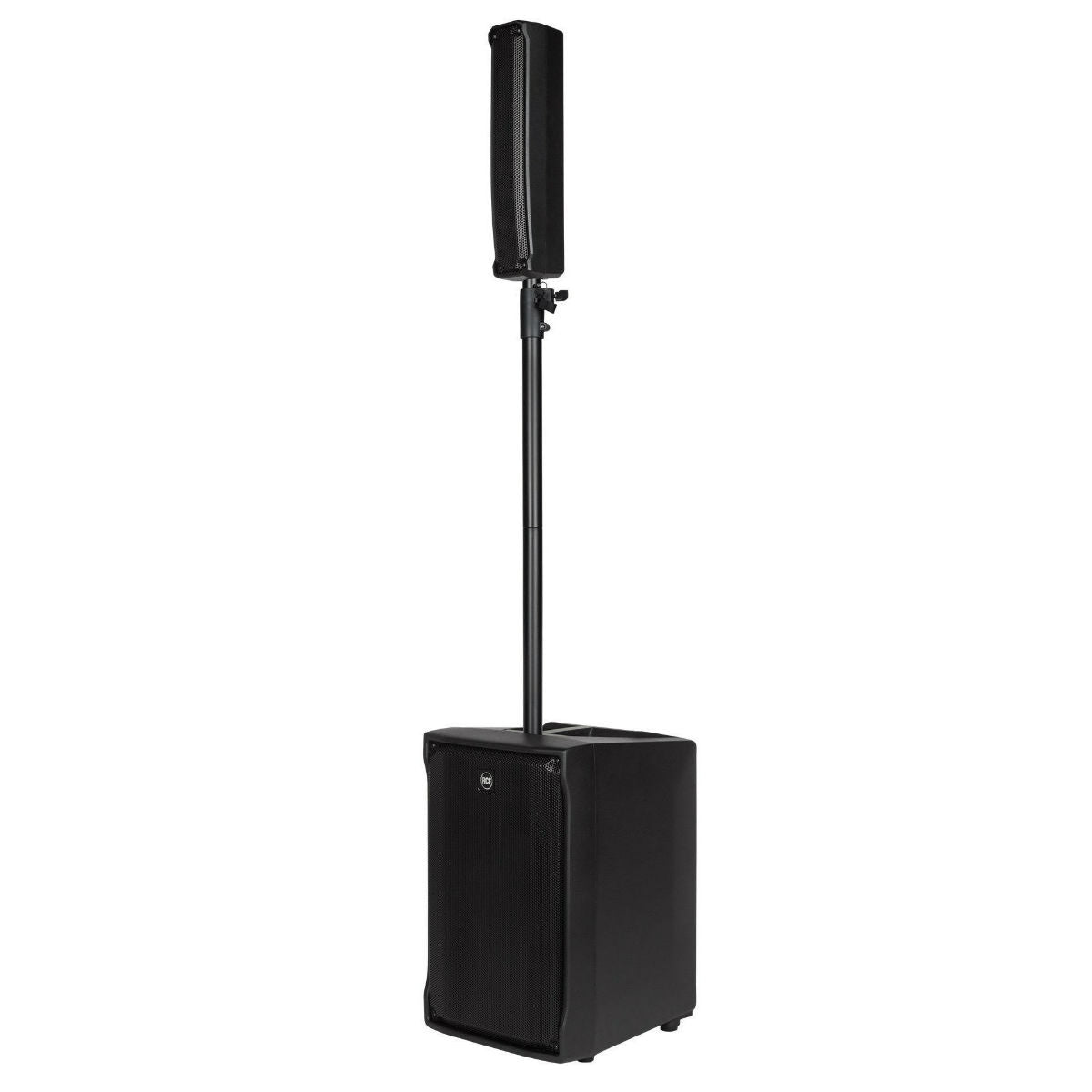

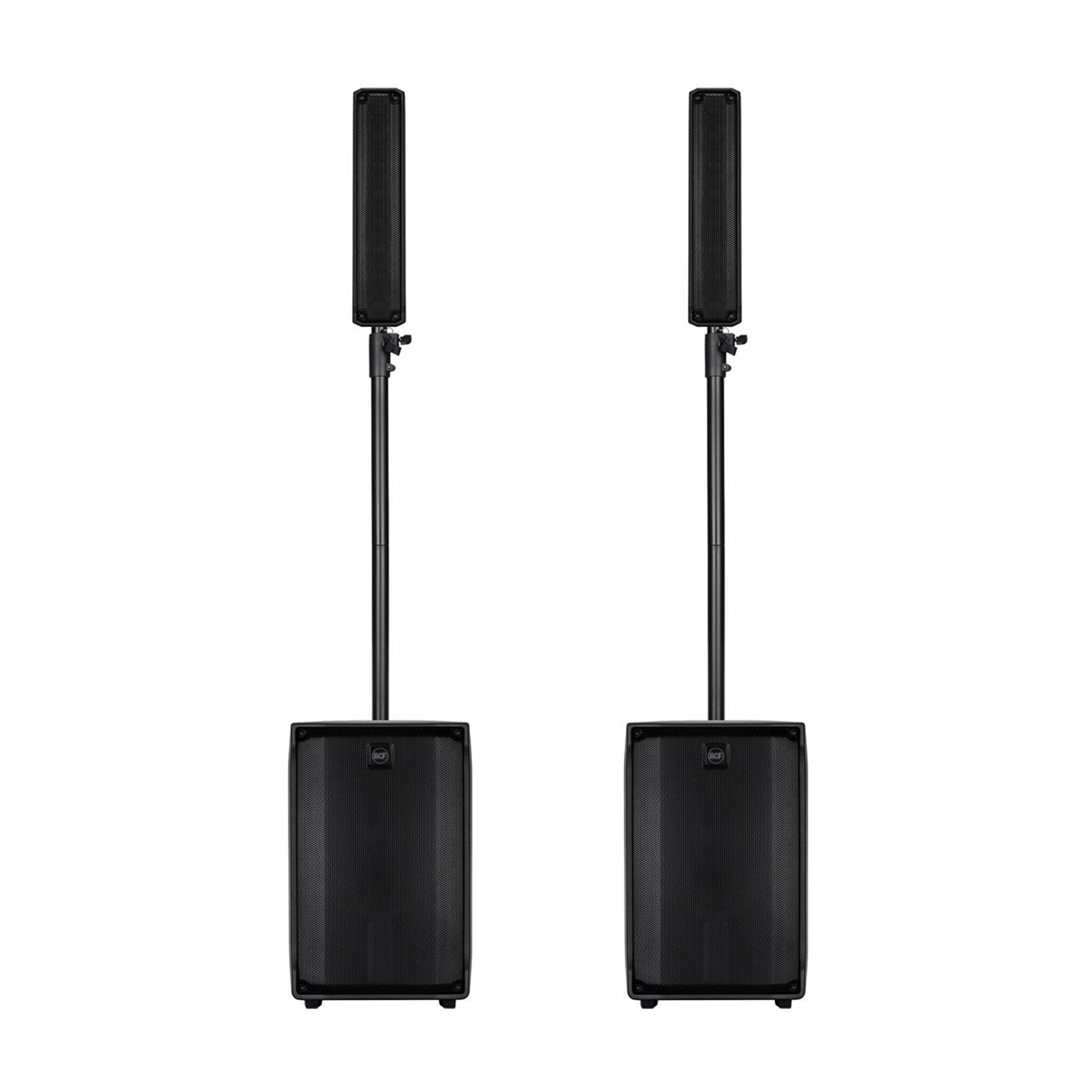

RCF EVOX J8 Active Array PA System (Pair)
Quantity:
The RCF EVOX J8 Active Array PA System offers powerful sound in a compact, portable package. Perfect for solo musicians or DJs entertaining large crowds.
Acoustical specifications
|
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
|
MAX SPL @ 1M:
128 dB
|
HORIZONTAL COVERAGE ANGLE:
120°
|
VERTICAL COVERAGE ANGLE:
30°
|
|

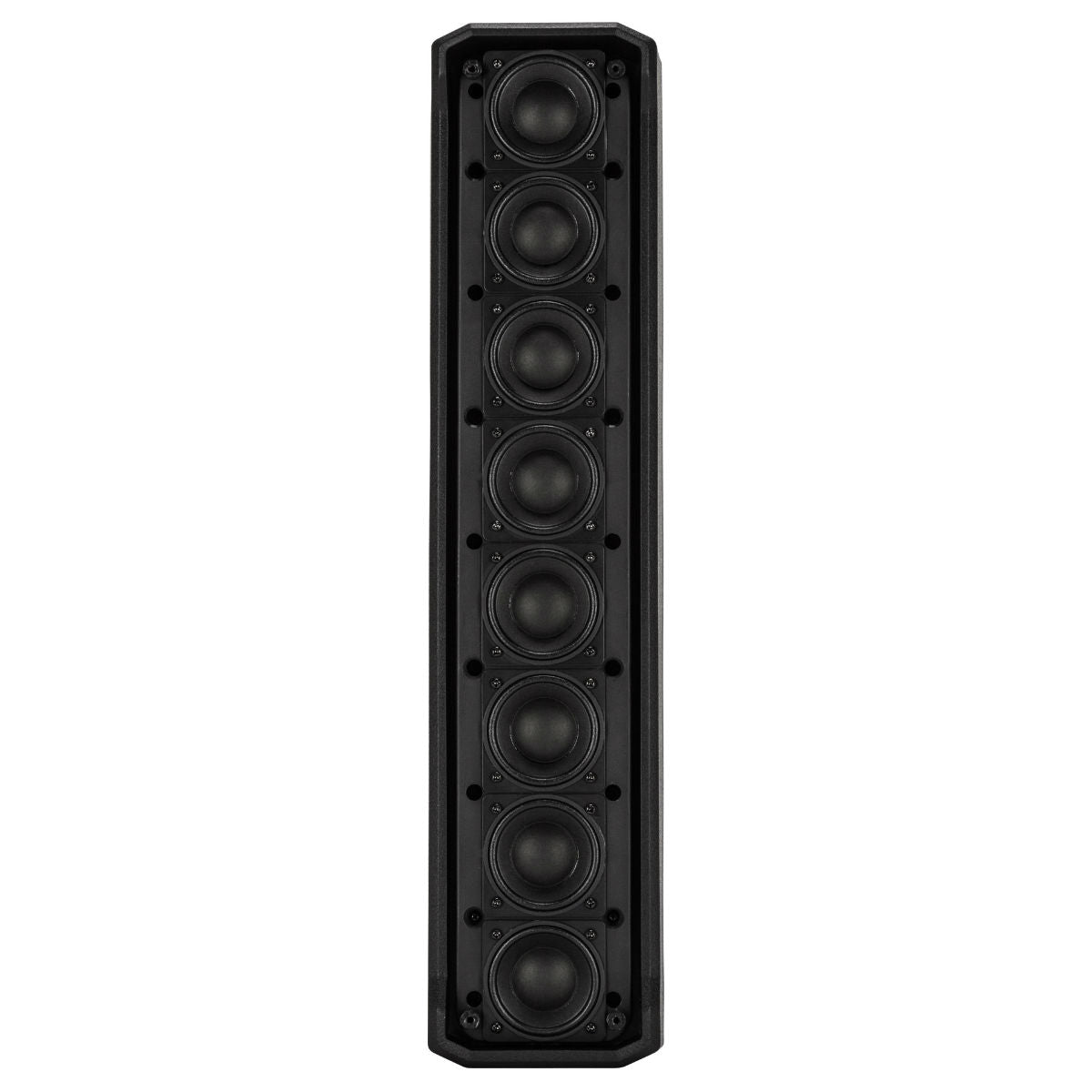

Transducers |
FULLRANGE:
8 x 2.0'', 1.0'' v.c
|
WOOFER:
12'', 2.5'' v.c
|
Input/Output section
|
INPUT SIGNAL:
bal/unbal
|
INPUT CONNECTORS:
XLR, Jack
|
OUTPUT CONNECTORS:
XLR
|
INPUT SENSITIVITY:
-2 dBu/+4 dBu
|
|
Processor section
|
CROSSOVER FREQUENCIES:
220 Hz
|
PROTECTIONS:
Thermal, RMS
|
LIMITER:
Soft Limiter
|
CONTROLS:
Volume, Boost, Mic/Line
|
|
Power section
|
TOTAL POWER:
1400 W Peak, 700 W RMS
|
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
|
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
|
COOLING:
Convection
|
|
CONNECTIONS:
VDE
|
||
Standard compliance
|
CE MARKING:
Yes
|
|
Physical specifications
|
CABINET/CASE MATERIAL:
PP Composite
|
HANDLES:
1 Top
|
GRILLE:
Steel
|
COLOR:
Black
|
|
Size
|
HEIGHT:
623 mm / 24.53 inches
|
WIDTH:
400 mm / 15.75 inches
|
DEPTH:
460 mm / 18.11 inches
|
WEIGHT:
23.8 kg / 52.47 lbs
|
|
Shipping informations
|
PACKAGE HEIGHT:
676 mm / 26.61 inches
|
PACKAGE WIDTH:
451 mm / 17.76 inches
|
PACKAGE DEPTH:
581 mm / 22.87 inches
|
PACKAGE WEIGHT:
28 kg / 61.73 lbs
|
- Active Array PA System
- Stunning sound performance
- Crystal clear vocal reproduction
- Extremely versatile system
- Ideal for solo musicians and DJs
- 128 dB Max SPL
- 1400 Watt 2-way peak power
- DSP Processing with FiRPHASE
