RCF EVOX J8 Active Array PA System White
The RCF EVOX J8 Active Array PA System maintains a similar footprint to the original EVOX system, now in a more portable enclosure. The EVOX J8 offers stunning sound performance with crystal clear vocal reproduction and unparalleled musical response. The J8 is an extremely versatile system ideal for solo musicians all the way to DJs playing to a large party.
RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification.
The EVOX J8's ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance, and the high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortion. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

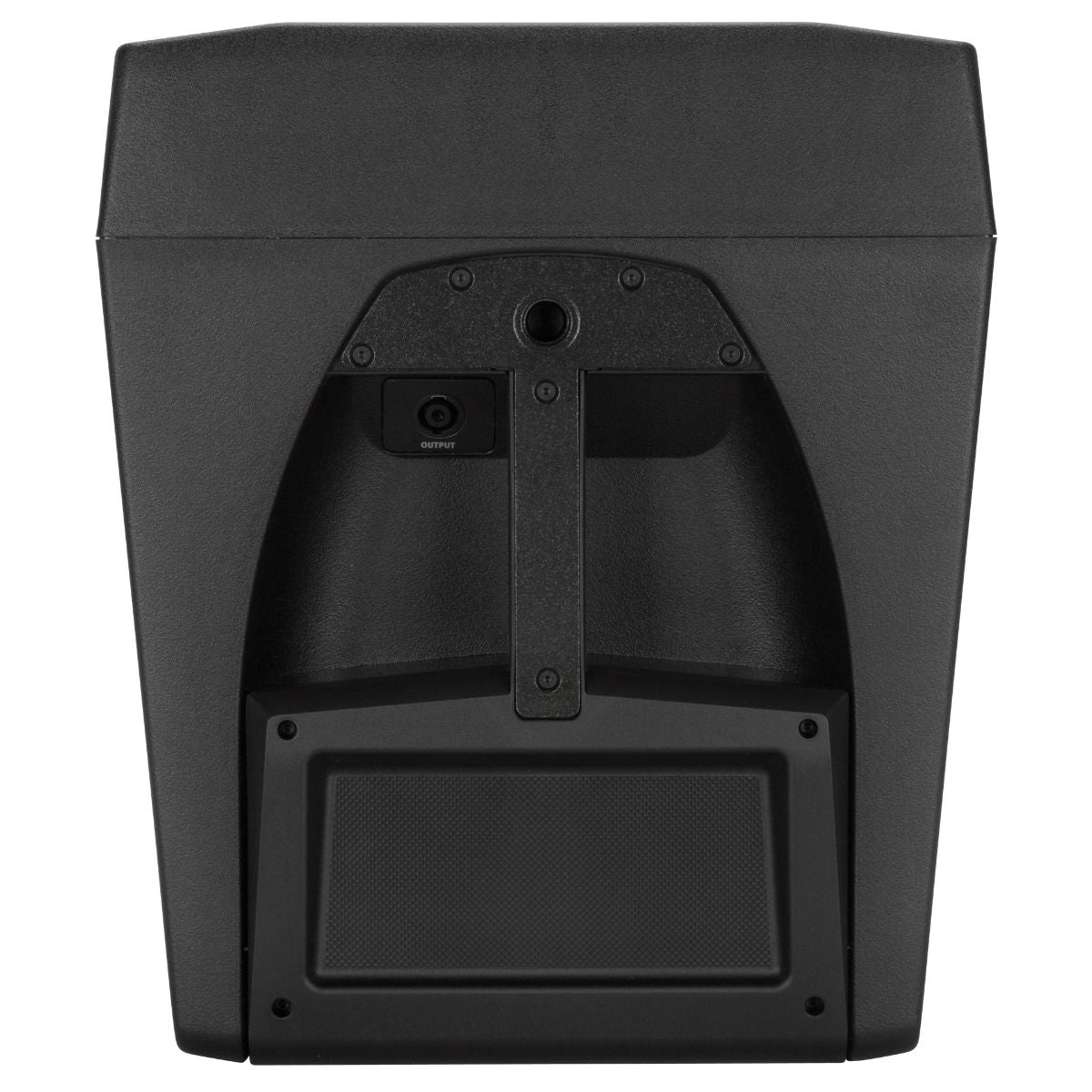

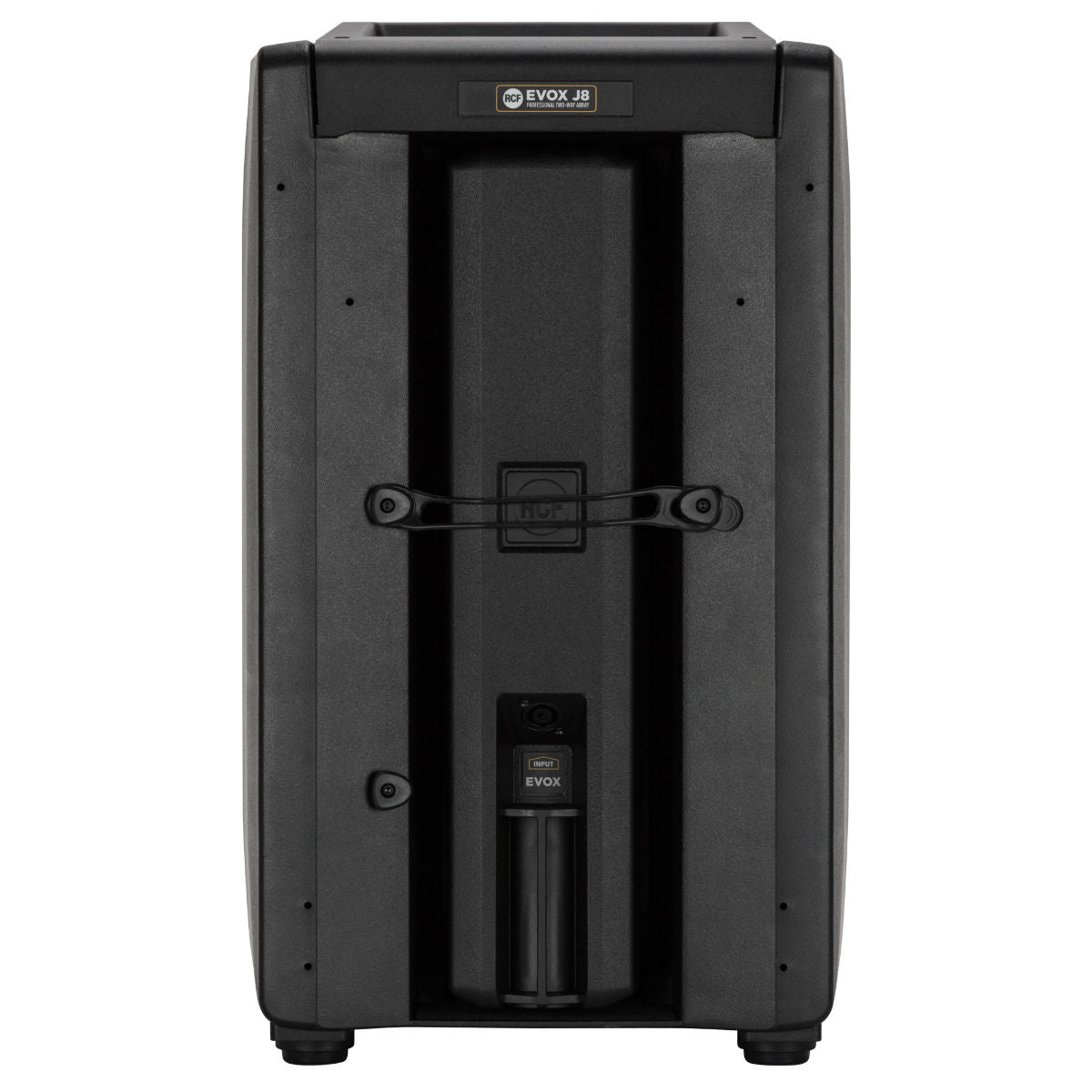

The system is extremely portable and easy to transport with the handle on top of the woofer’s cabinet. To set up just screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s ready to go. An adjustable fastener allows the pole’s length to be adapted.
Main features of the RCF EVOX J8 Active Array PA System include:
Acoustical specifications
|
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
|
MAX SPL @ 1M:
128 dB
|
HORIZONTAL COVERAGE ANGLE:
120°
|
VERTICAL COVERAGE ANGLE:
30°
|
|
Transducers |
FULLRANGE:
8 x 2.0'', 1.0'' v.c
|
WOOFER:
12'', 2.5'' v.c
|
Input/Output section
|
INPUT SIGNAL:
bal/unbal
|
INPUT CONNECTORS:
XLR, Jack
|
OUTPUT CONNECTORS:
XLR
|
INPUT SENSITIVITY:
-2 dBu/+4 dBu
|
|
Processor section
|
CROSSOVER FREQUENCIES:
220 Hz
|
PROTECTIONS:
Thermal, RMS
|
LIMITER:
Soft Limiter
|
CONTROLS:
Volume, Boost, Mic/Line
|
|
Power section
|
TOTAL POWER:
1400 W Peak, 700 W RMS
|
HIGH FREQUENCIES:
400 W Peak, 200 W RMS
|
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
|
COOLING:
Convection
|
|
CONNECTIONS:
VDE
|
||
Standard compliance
|
CE MARKING:
Yes
|
|
Physical specifications
|
CABINET/CASE MATERIAL:
PP Composite
|
HANDLES:
1 Top
|
GRILLE:
Steel
|
COLOR:
Black
|
|
Size
|
HEIGHT:
623 mm / 24.53 inches
|
WIDTH:
400 mm / 15.75 inches
|
DEPTH:
460 mm / 18.11 inches
|
WEIGHT:
23.8 kg / 52.47 lbs
|
|
Shipping informations
|
PACKAGE HEIGHT:
676 mm / 26.61 inches
|
PACKAGE WIDTH:
451 mm / 17.76 inches
|
PACKAGE DEPTH:
581 mm / 22.87 inches
|
PACKAGE WEIGHT:
28 kg / 61.73 lbs
|
- Active Array PA System
- Stunning sound performance
- Crystal clear vocal reproduction
- Extremely versatile system
- Ideal for solo musicians and DJs
- 128 dB Max SPL
- 1400 Watt 2-way peak power
- DSP Processing with FiRPHASE
