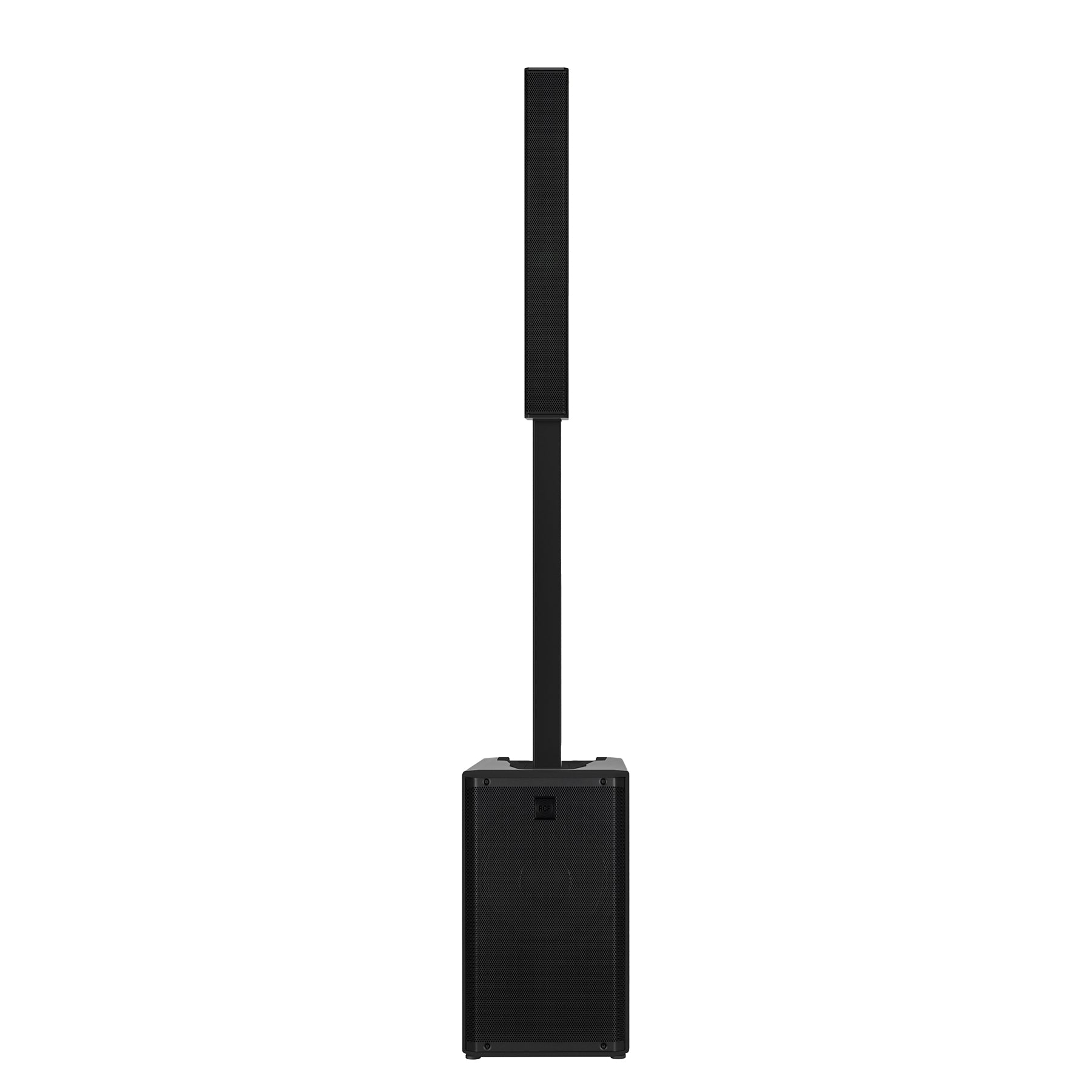

RCF EVOX J9 Active Three Way Column Array - Black
The RCF EVOX J9 active column system is a powerful three-way portable PA, engineered to deliver exceptional clarity and output from an impressively compact design.
Building on the success of the best-selling EVOX J8, this latest evolution introduces a 1.75” compression driver paired with a 120° × 40° True Resistive Waveguide, providing wide, even coverage that fills a room with ease.

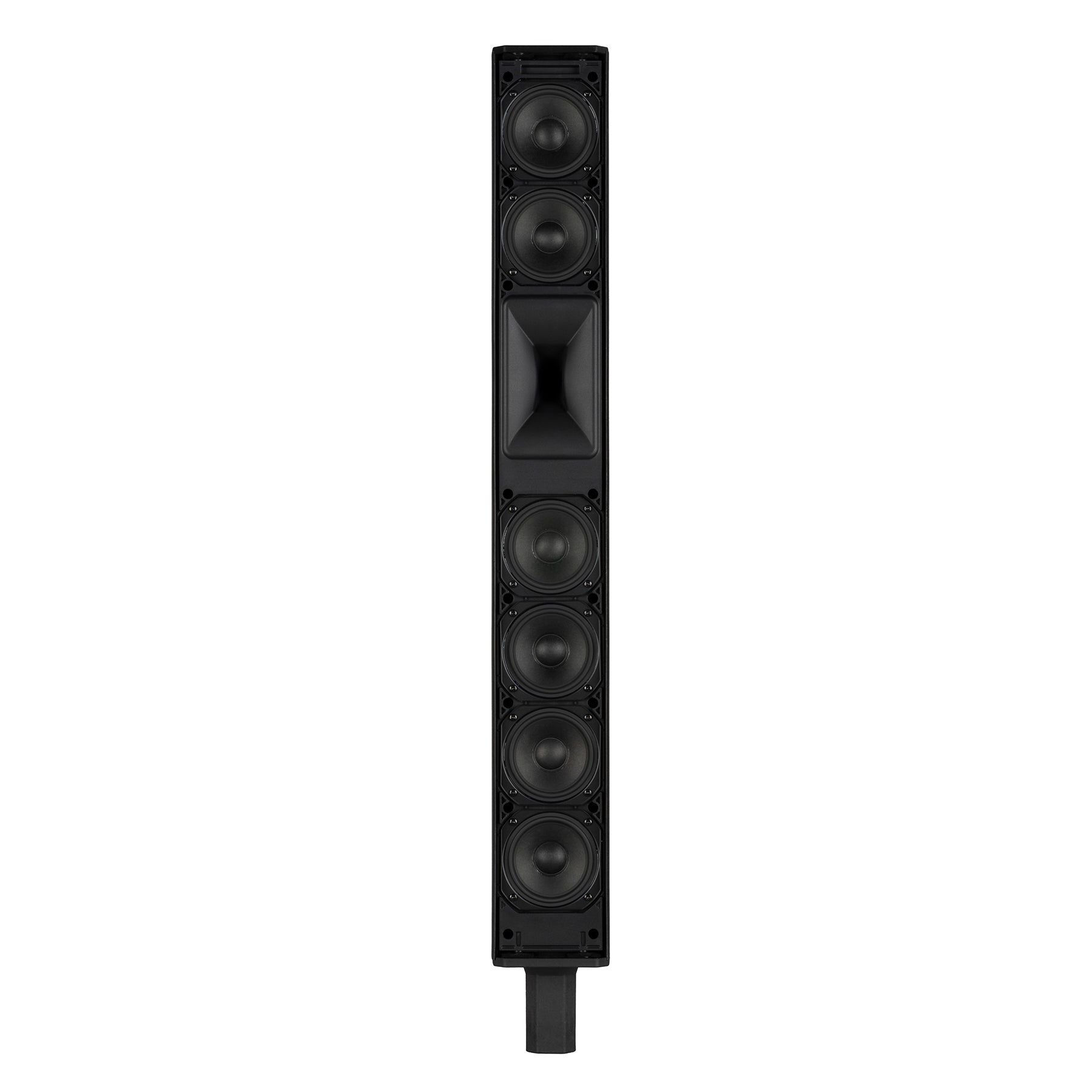

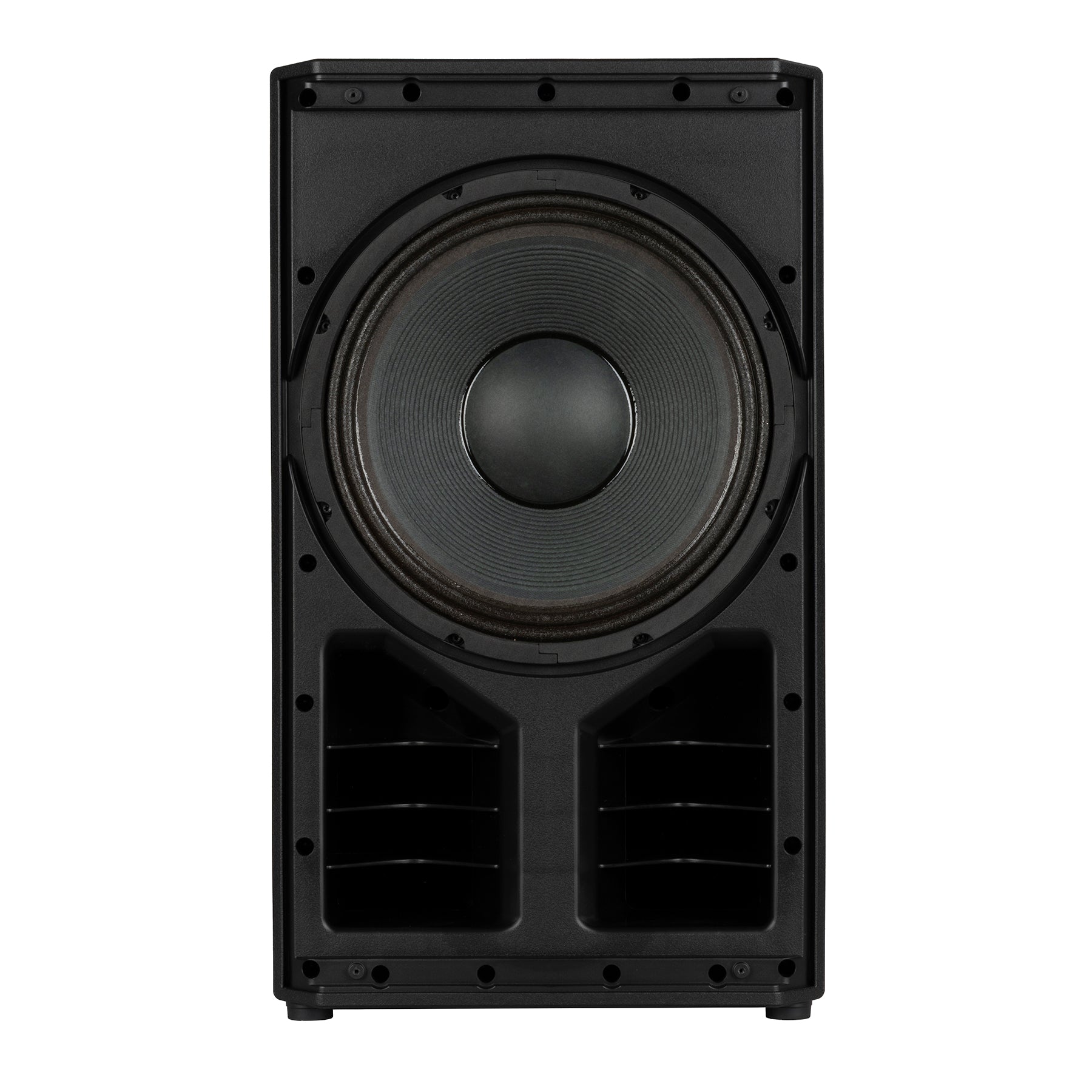

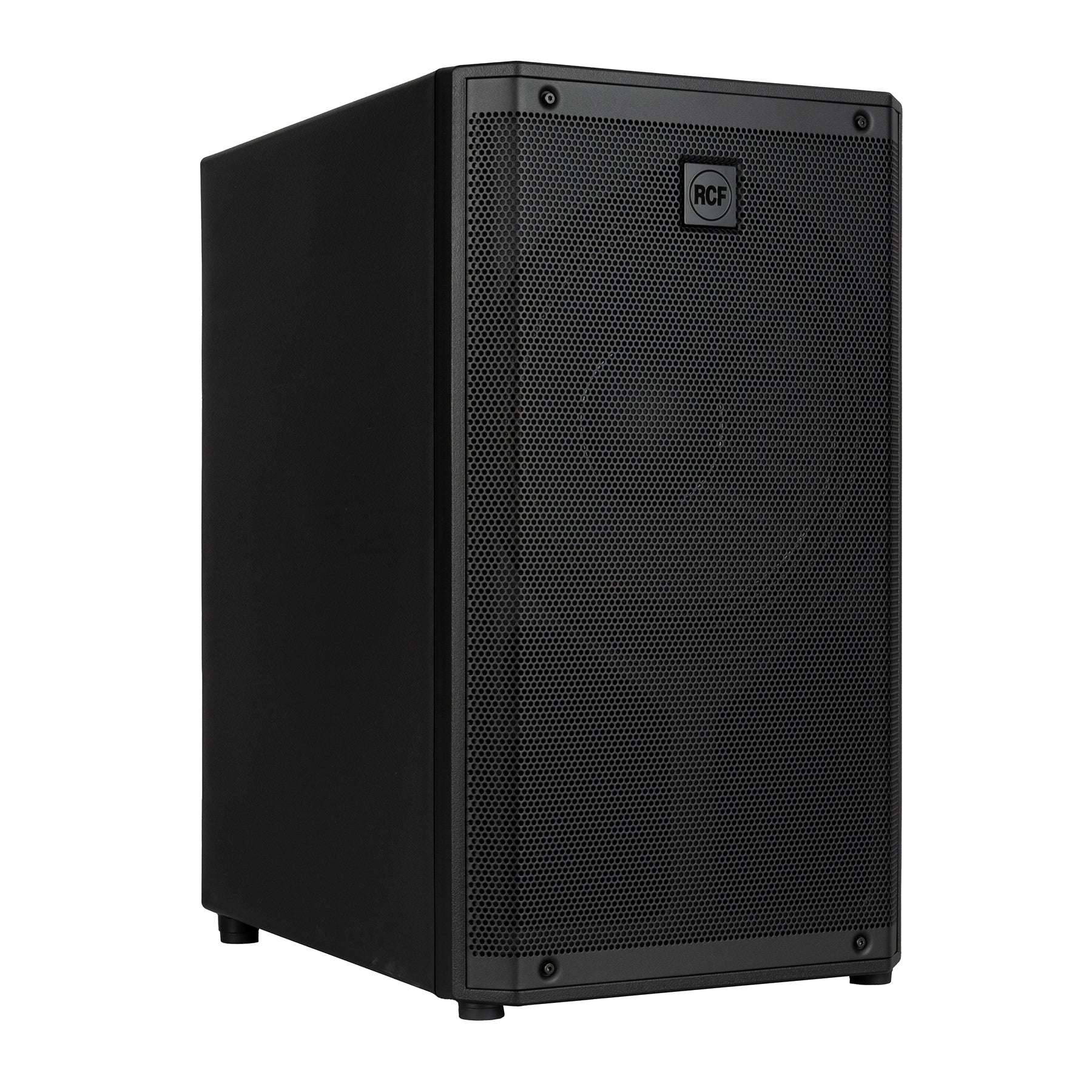

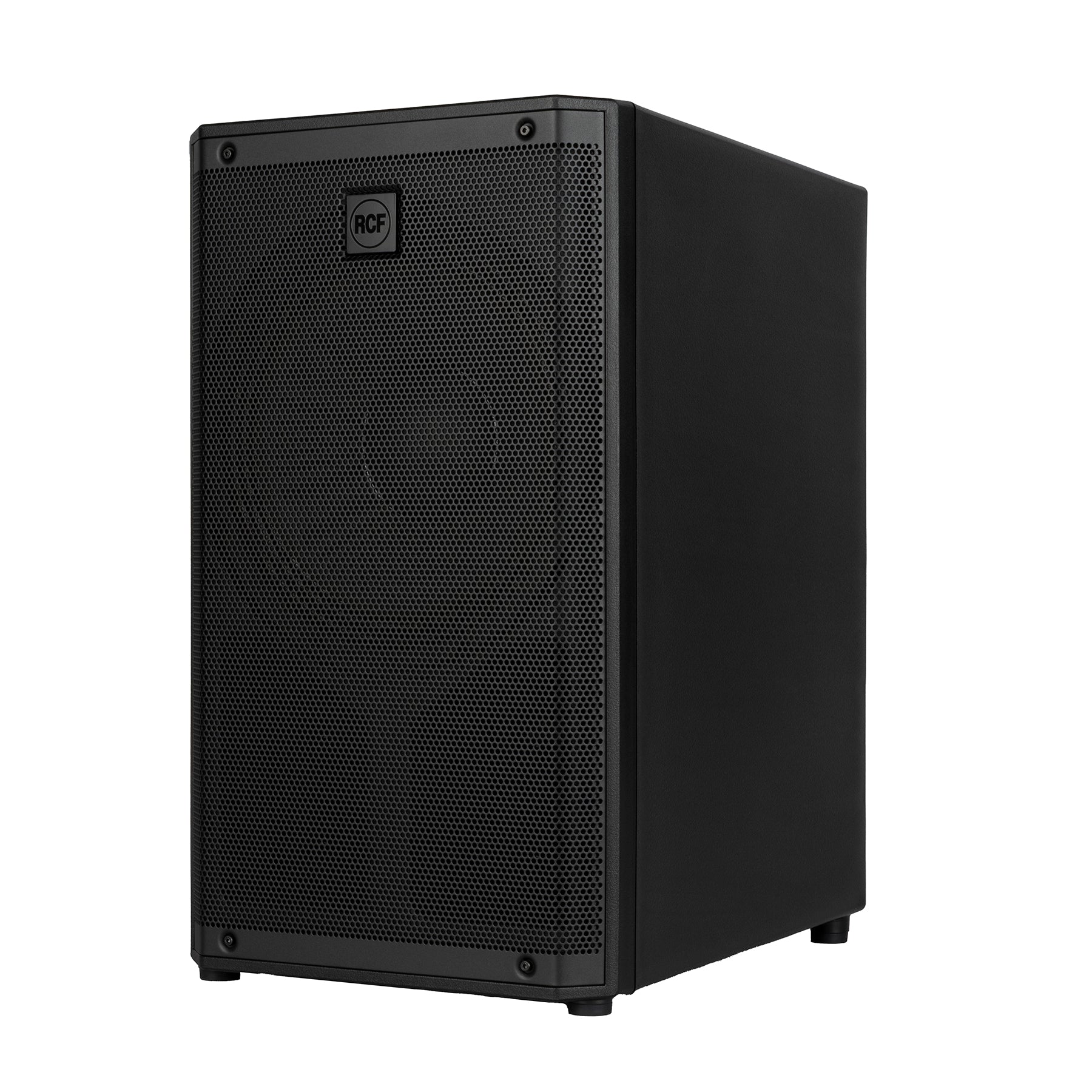

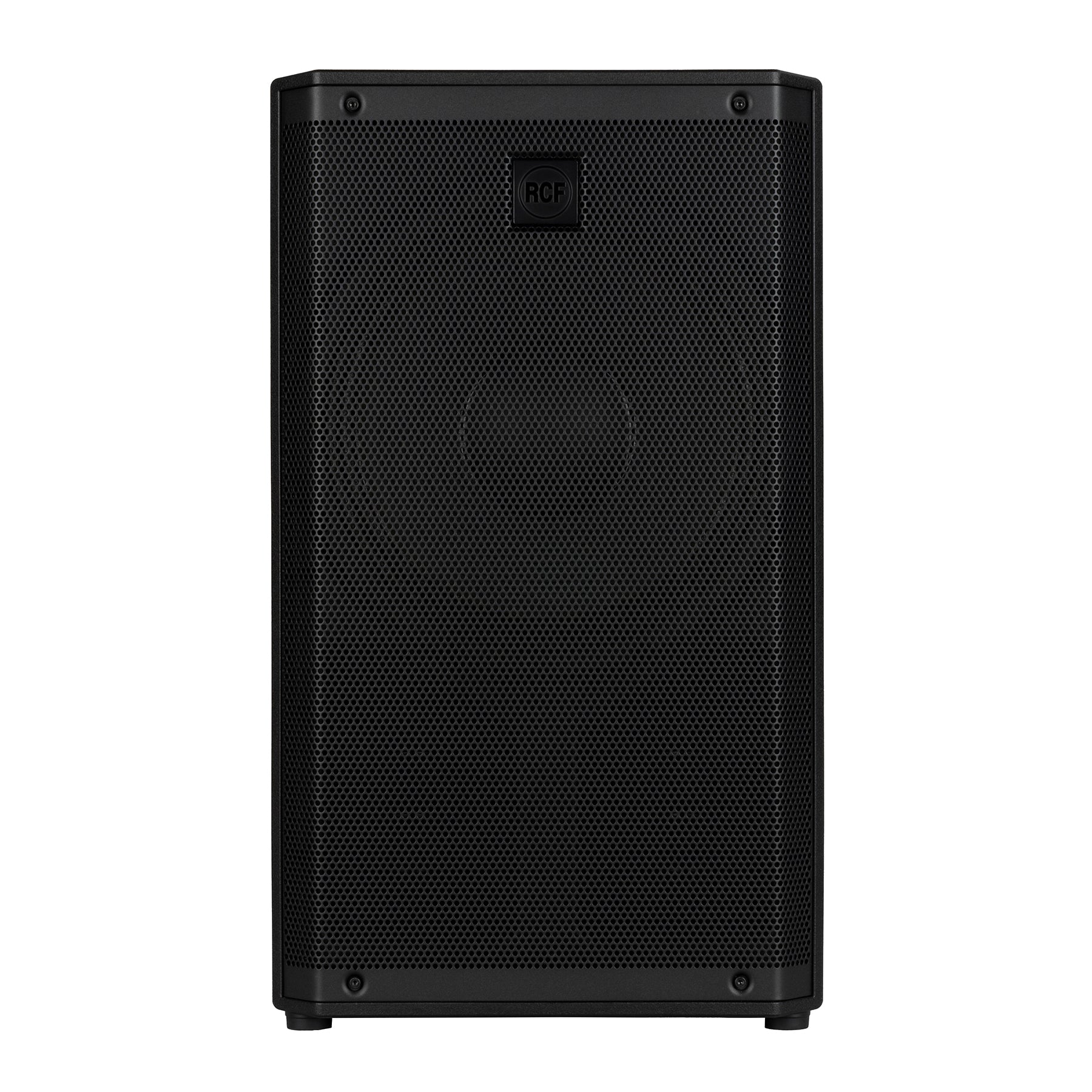

Six 3” full-range transducers handle the mids with remarkable precision, while a high-power 12” woofer in a bass-reflex enclosure delivers deep, controlled low-end that feels as good as it sounds. All of this is driven by a formidable 2100W onboard dual-channel Class-D amplifier, allowing the EVOX J9 to reach an impressive 130 dB Max SPL without losing composure.
As part of the EVOX J Series, the J9 brings RCF’s tour-grade technology into a sleek, unobtrusive system that’s quick to deploy and effortless to use. The result is crystal-clear vocals, a natural musical response, and a sound that genuinely needs to be heard to be believed - ideal for bands, DJs, and live performers who demand big performance from a refined, portable setup.
The main features of the RCF Evox J8 include:
- 130 dB Max SPL
- 2100 W Class-D Amplifier - With Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

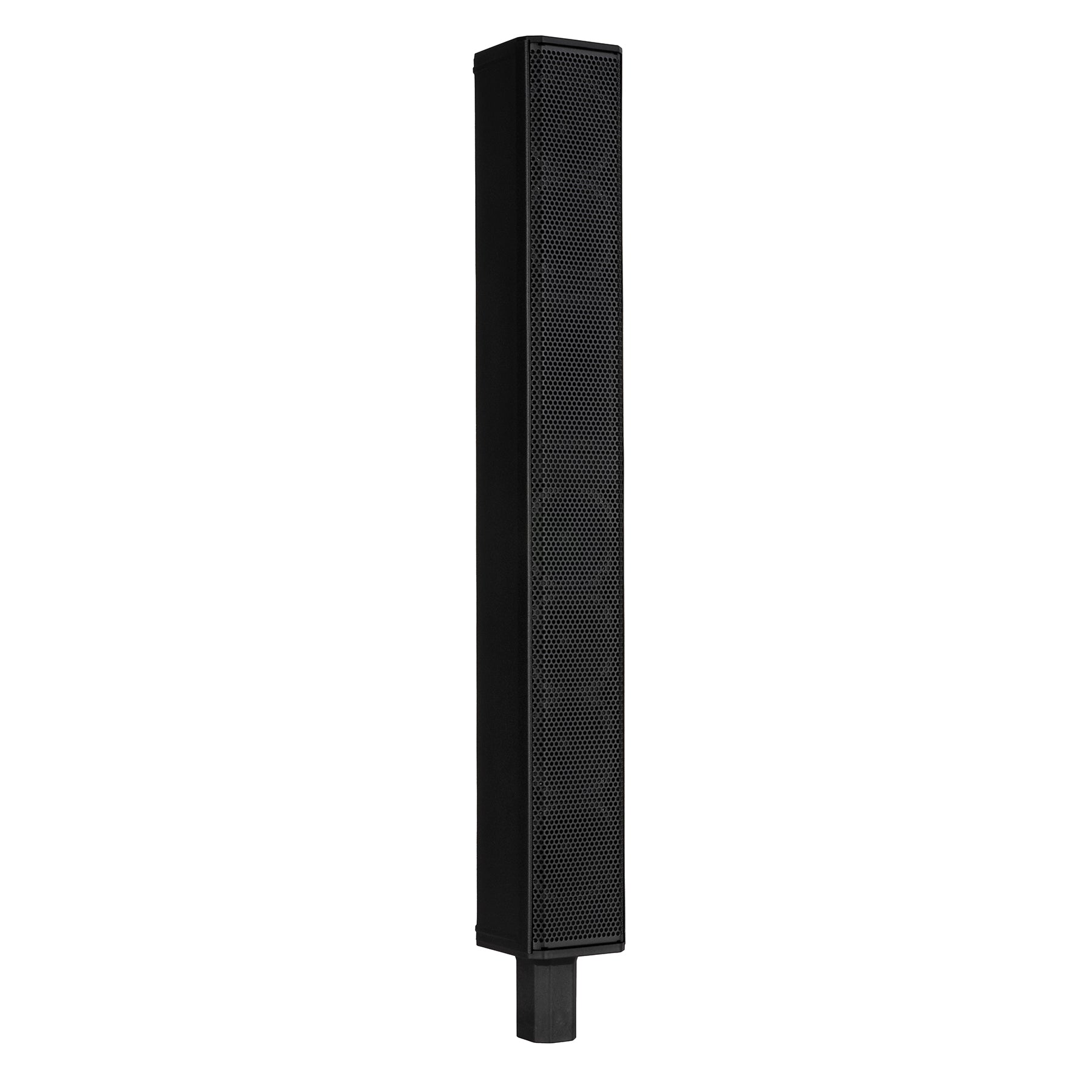

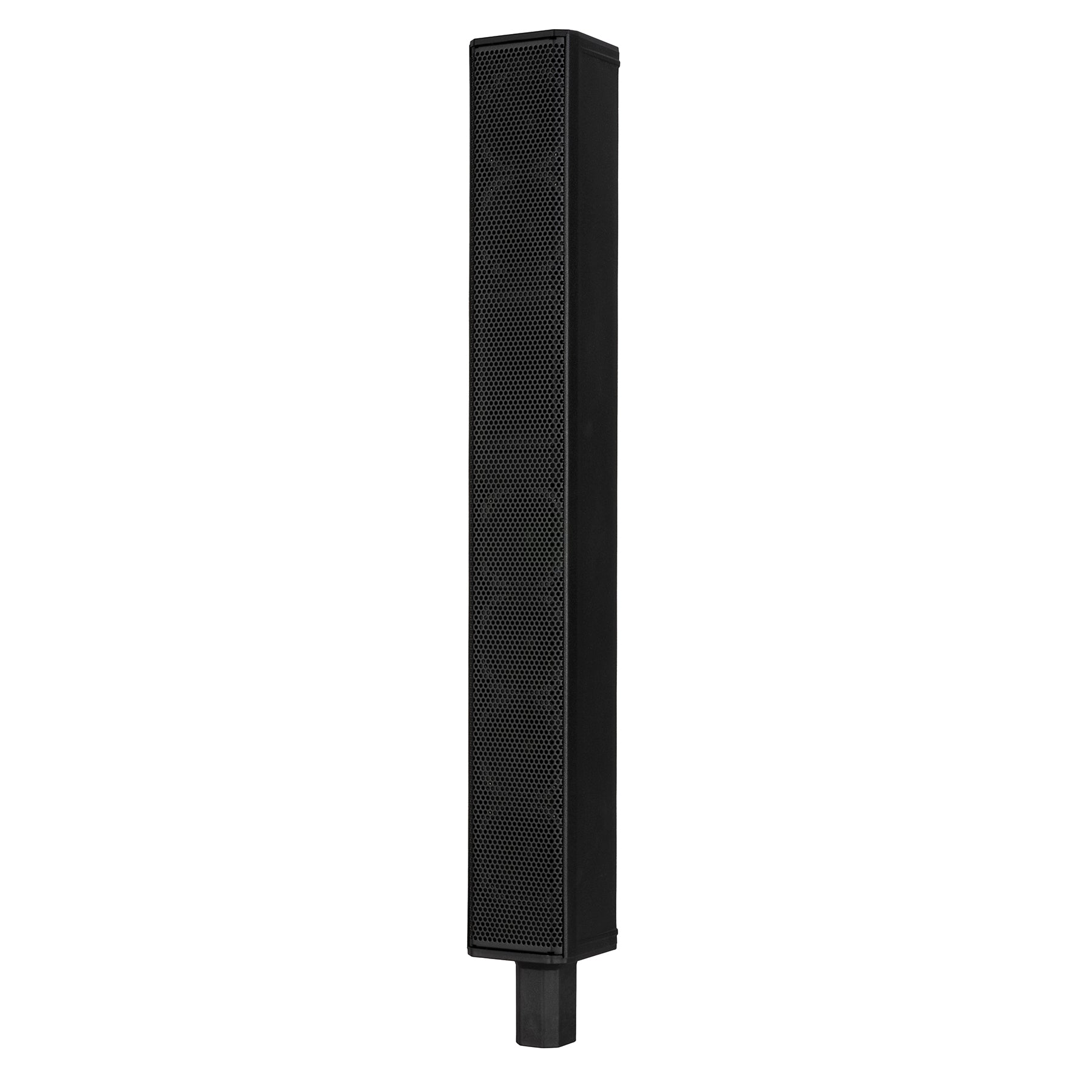

- 6 × 3” Full-Range Neo Transducers
- 12” RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design

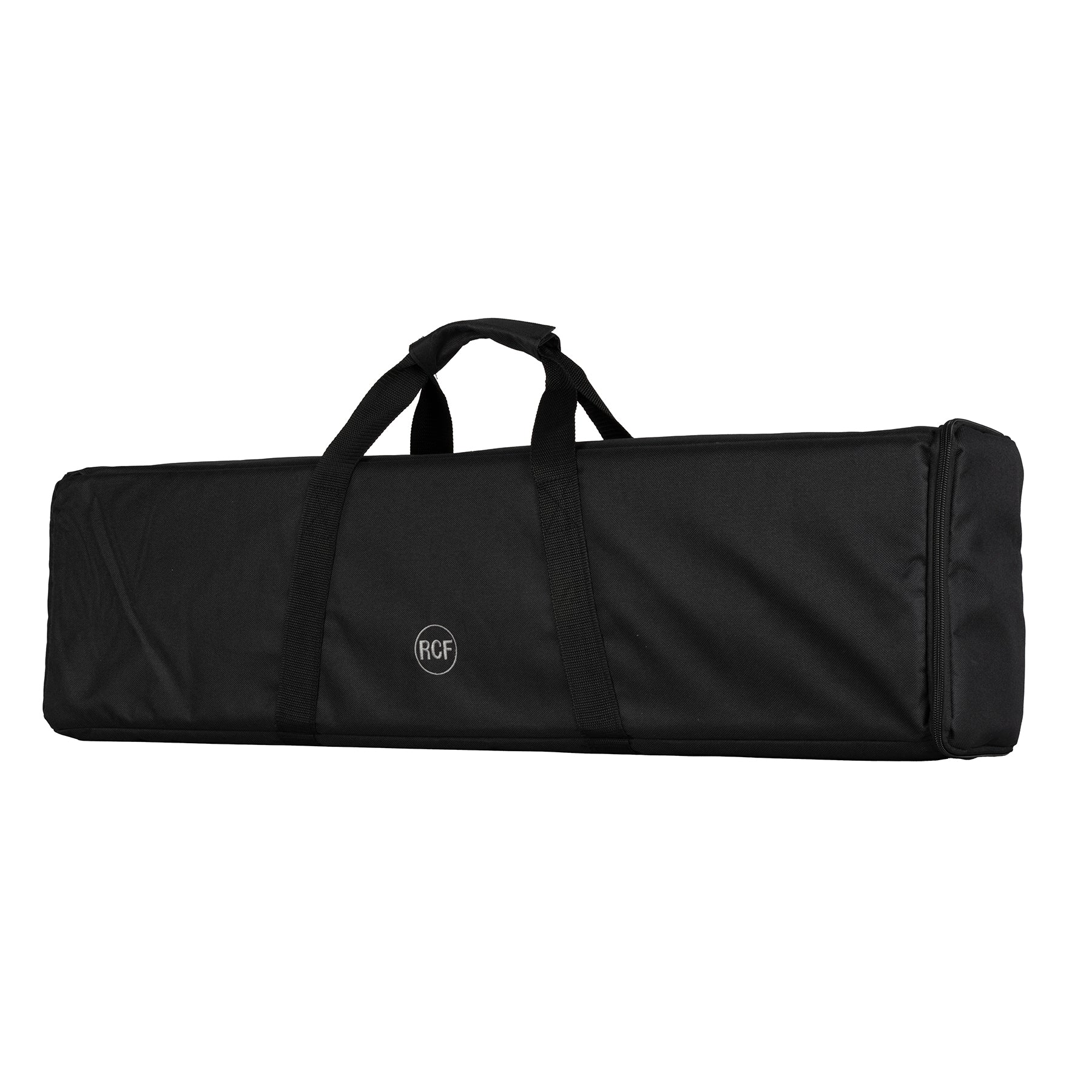

- Top Speaker Padded Carrying Bag Included
- VDE Mains Connector
| Acoustical specifications | |
|---|---|
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 40° |
| Transducers | |
| Compression Driver | 1 x 0.75'' neo, 1.75'' v.c |
| Fullrange | 6 x 3.0'' neo, 1.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 160 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| RDNet | Ready |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | VDE |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole mount/Cap | Quick-fit socket |
| Grille | Steel |
| Colour | Black |
| Size / Weight | |
| Height | 2080.1 mm / 81.89 inches |
| Width | 350 mm / 13.78 inches |
| Depth | 462.6 mm / 18.21 inches |
| Weight | 28.3 kg / 62.39 lbs |
