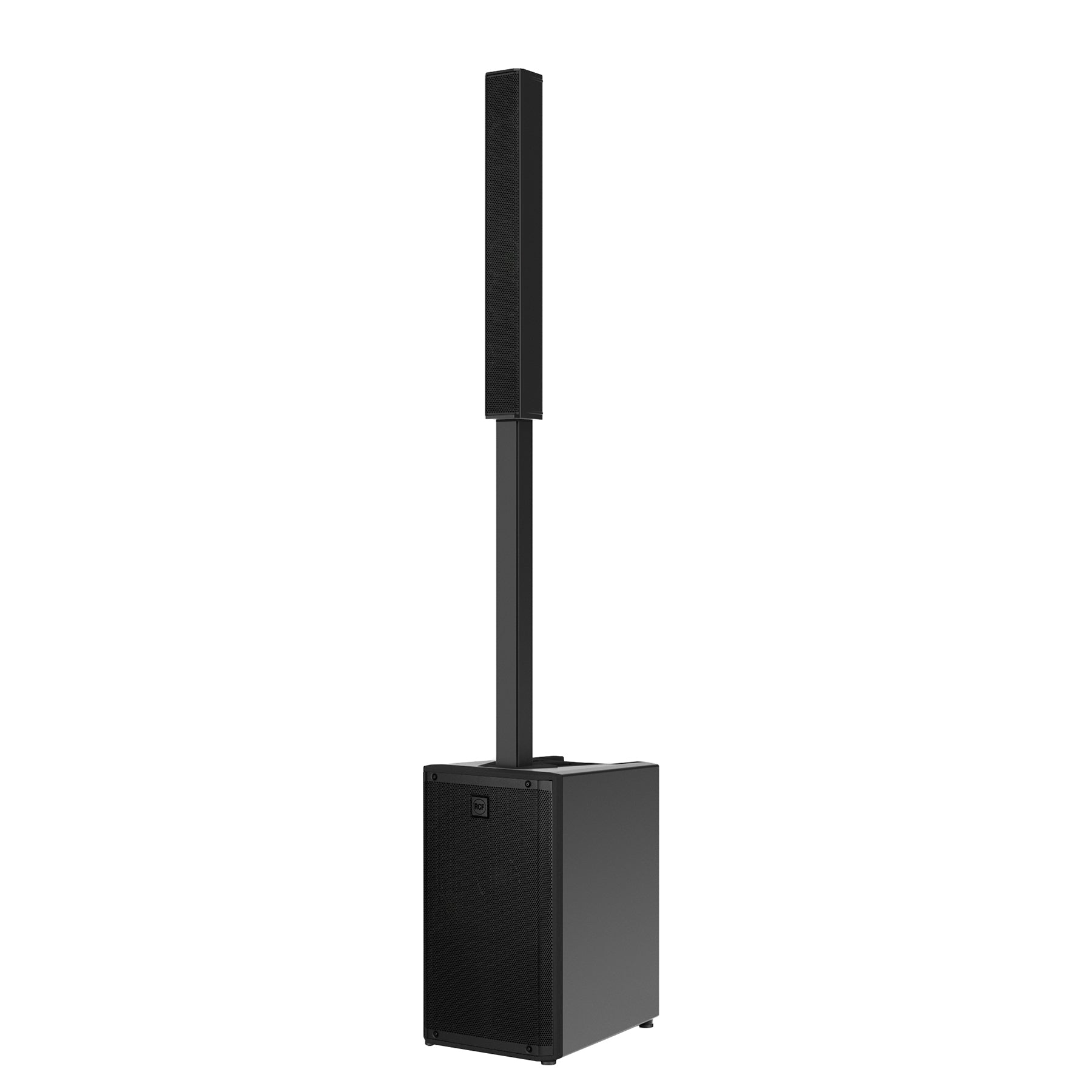

RCF EVOX JMIX9 Active Three Way Column Array With Mixer - Black

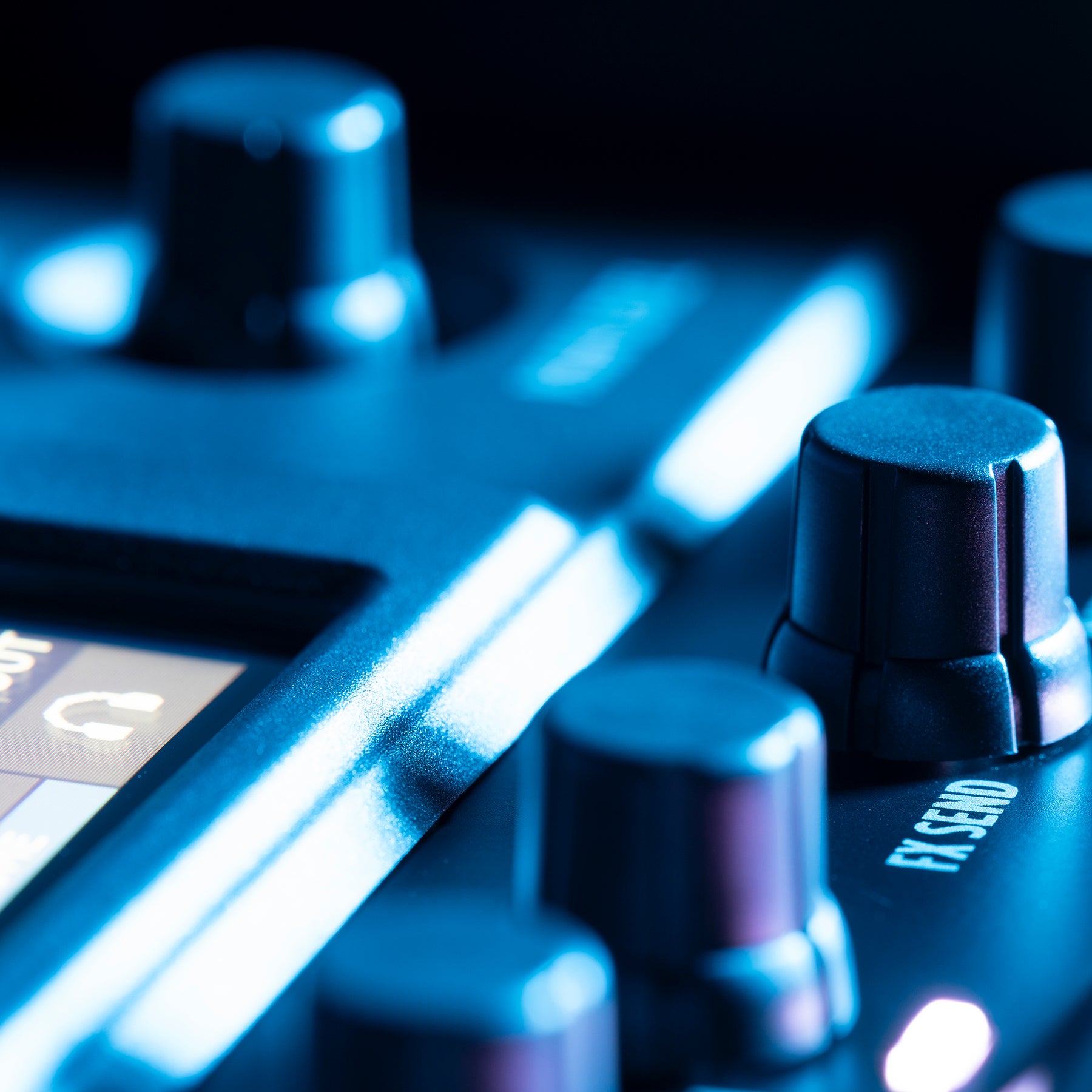

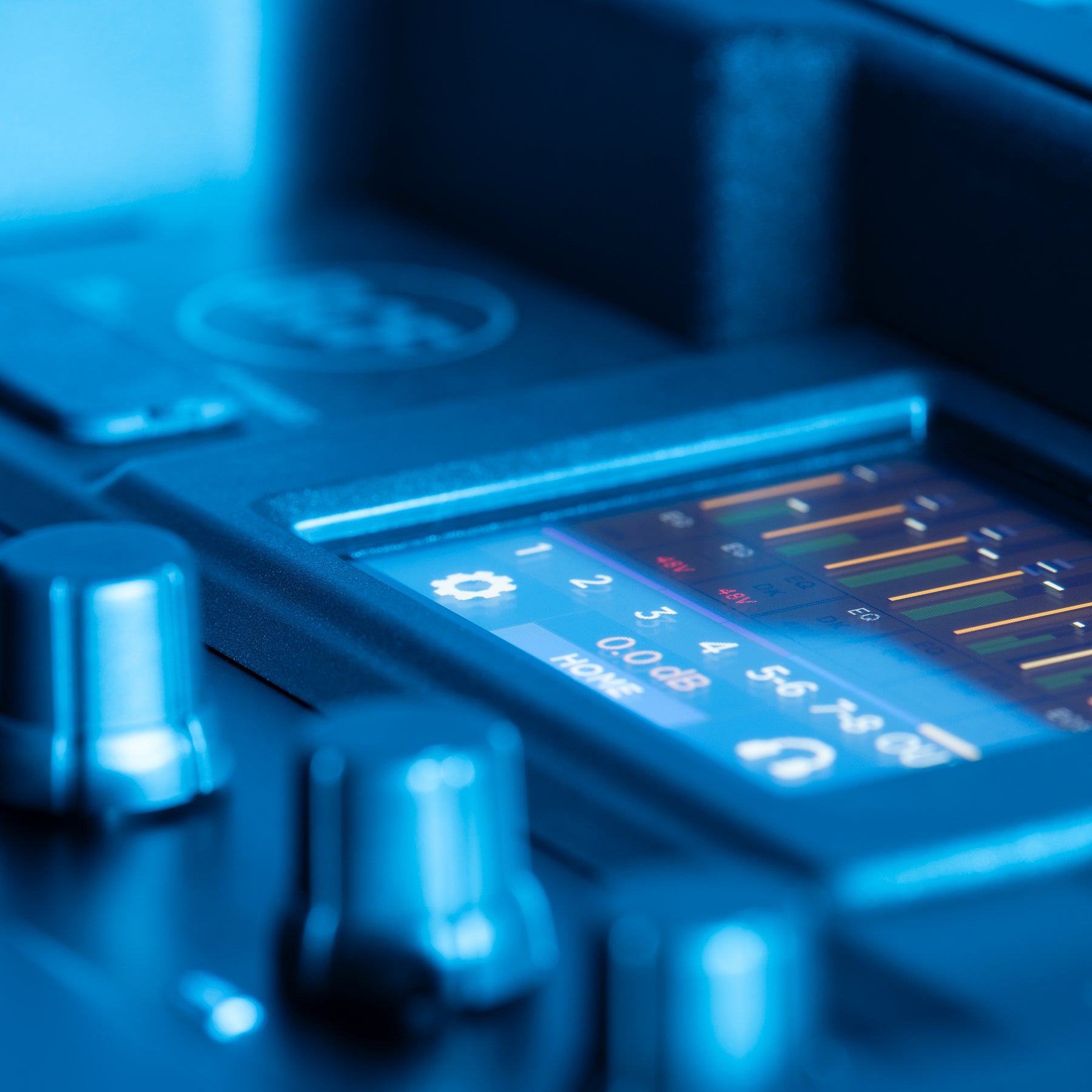

The RCF EVOX JMIX9 takes the punch and polish of the EVOX J9 and adds a seriously capable built-in 8-channel true-stereo digital mixer, turning an already impressive column PA into a complete all-in-one performance system. With a colour touch display, onboard encoders, Bluetooth® streaming, and full wireless control via the JMixRemote app, it’s built for fast setups and confident control - whether you’re DJing, running a live band mix, or handling event audio.

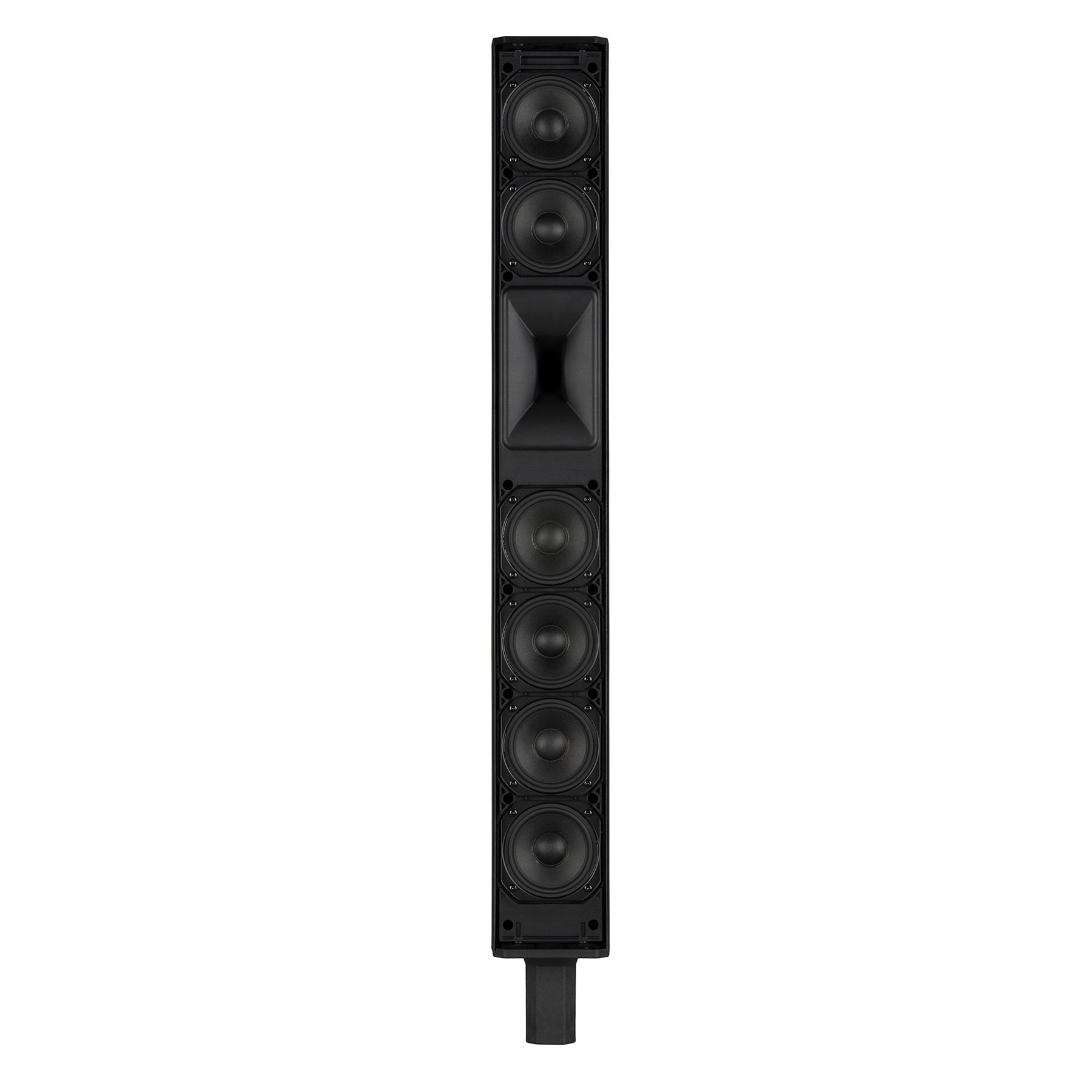

Sound-wise, it delivers the same wide, consistent coverage you’d expect from the new J Series: a 1.75” compression driver paired with a 120° × 40° True Resistive Waveguide projects clean, even highs across the room, while six 3” neo transducers keep the midrange articulate and detailed. Down low, a high-power 12” bass-reflex woofer provides deep, controlled bass that stays tight and musical. Power comes from a 2100W Class-D amplifier pushing up to 130 dB Max SPL, so it has the headroom to stay clear and composed even when you lean into it.

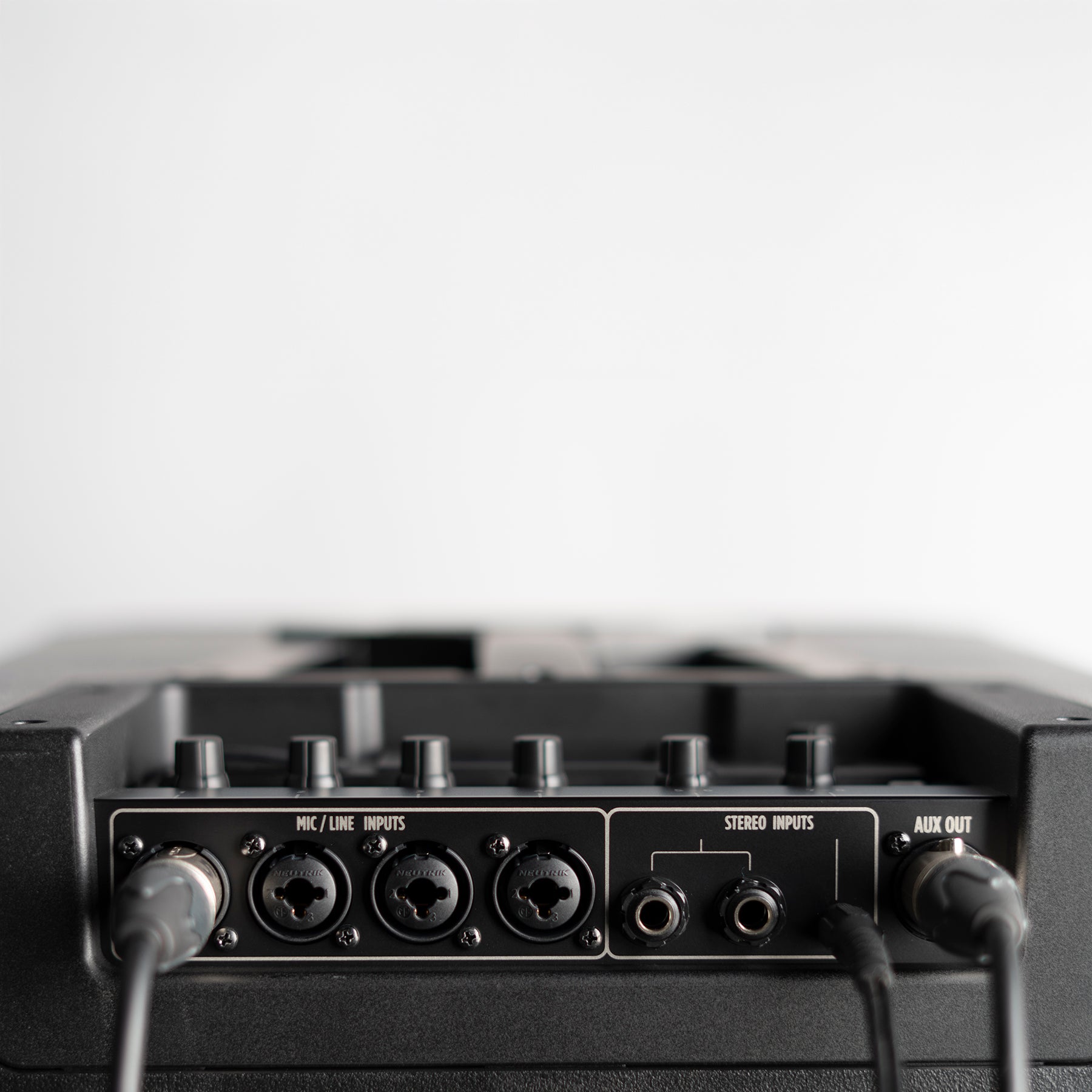

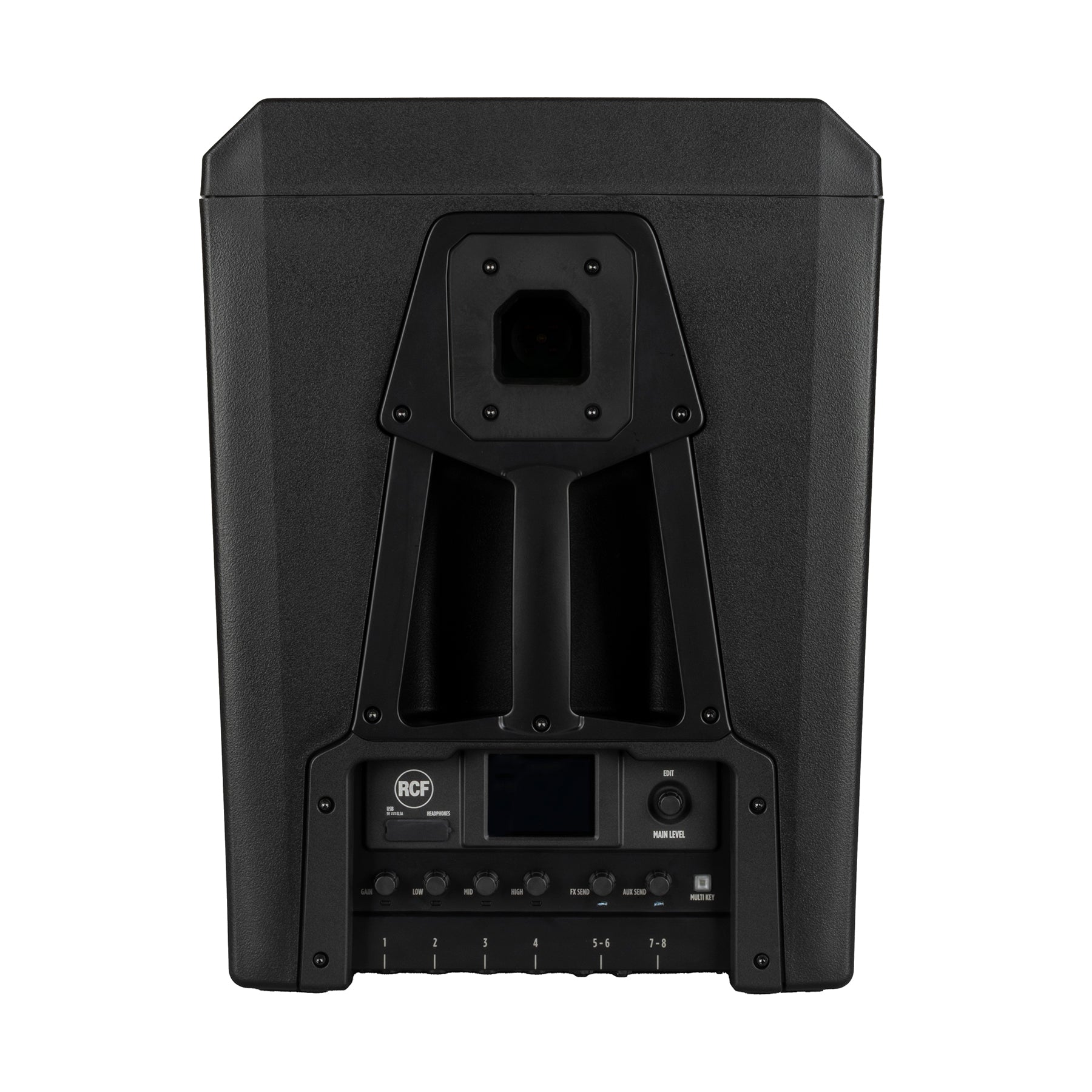

On the mixing side, you’ve got practical pro features ready to go: combo inputs, stereo/aux outputs, EQ, reverb, and +48V phantom power - all accessible directly from the touchscreen or remotely from your phone/tablet. It’s sleek, portable, and genuinely “do it all” - the kind of system that makes you wonder why you ever carried a separate mixer in the first place.
The main features of the RCF EVOX JMIX9 include:
- 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers

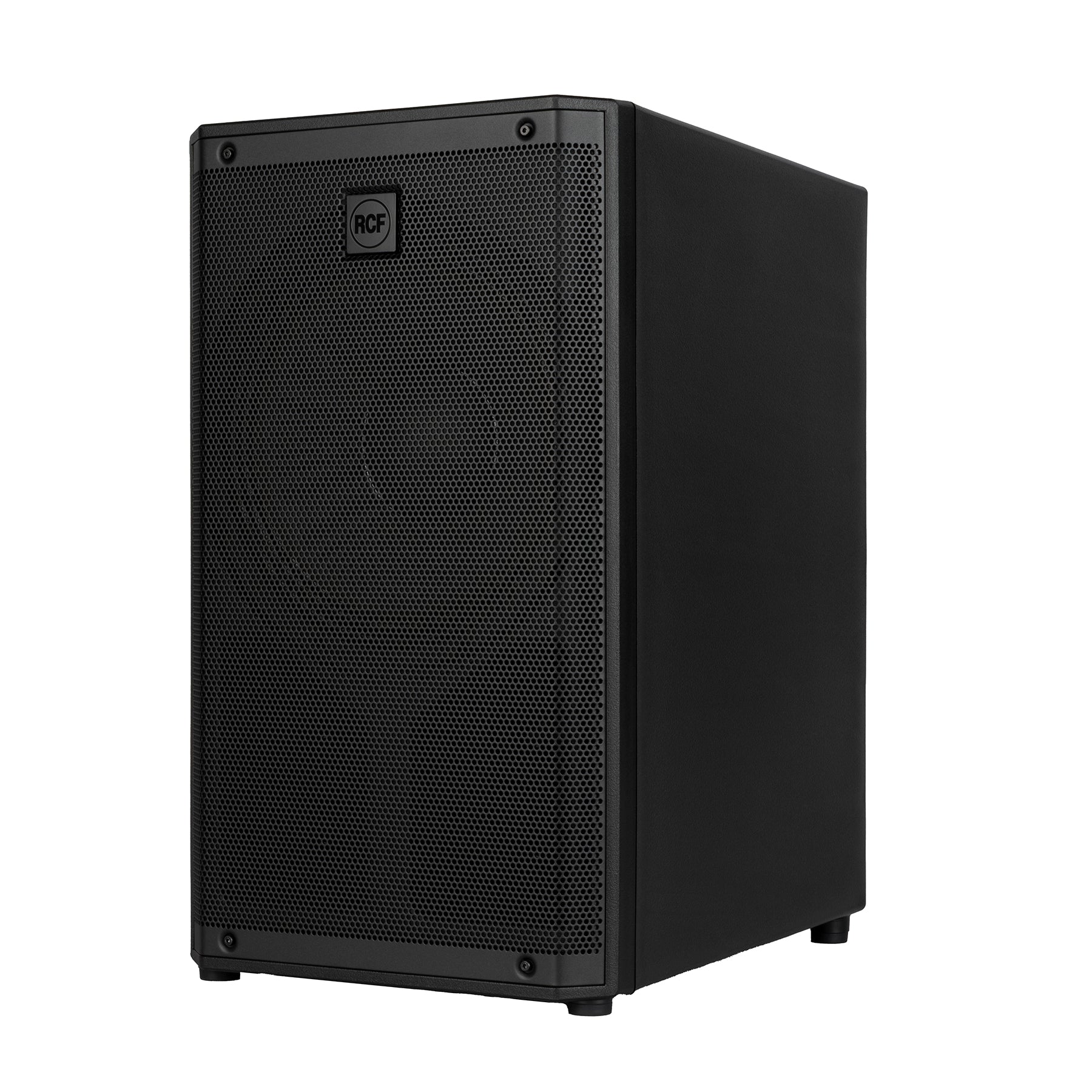

- 12” RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity
- Sleek Composite Cabinet With Aluminum Stand Mount
- Top Speaker Padded Carrying Bag Included
- VDE Mains Connector
| Acoustical specifications | |
|---|---|
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 40° |
| Transducers | |
| Compression Driver | 1 x 0.75'' neo, 1.75'' v.c |
| Fullrange | 6 x 3.0'' neo, 1.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 200 Hz/1800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Digital mixer controlled by touch screen and encoders |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | VDE |
| Electronic specifications | |
| Frequency Response | 20 Hz - 20 Hz |
| THD+N, 20dB gain, 0dBu out | 0.003% A-Weighted |
| Processing | |
| Processing Channels | 8 |
| Signal Processing | 32 Bit |
| A/D-D/A conversion | 24 Bit @ 48.0 kHz |
| Dynamic Range | 114 |
| Inputs | |
| Mic | 4 |
| Remote Controlled Storable Gain | Yes |
| Gain Range | 0 dB - 36 dB |
| Input Noise Level | -114 dBu A-Weighted |
| Mic Inputs Impedance | 3 kohm |
| Low Cut | 20 Hz - 400 Hz |
| Phantom Power +48V | Yes |
| Mono Line | |
| Mono Line | 4 |
| Gain Selection | 0 dB - 36 dB |
| Line Input Impedance | 10 kohm |
| A/D Dynamic range | 120 dB |
| Stereo Line | |
| Stereo Line | 2 |
| Gain Selection | 0 dB - 0 dB |
| Stereo Line Input Impedence | 24 kohm |
| Outputs | |
| Main MIX | 1 |
| FX Send | 1 |
| AUX Send | 1 |
| AUX Output | 1 |
| Phones | 1 |
| Outputs specifications | |
| Main Out Impedance | 150 ohm |
| Main Out Level | 20 dBu |
| Aux Out Impedance | 150 ohm |
| Aux Out Level | 20 dBu |
| Phones Out impedance (ohm) | 100 ohm |
| Phones Out Level | 20 dBm |
| D/A Dynamic Range | 118 dB |
| Compressors | |
| RCF Compressors | Compressors on MIC/LINE CH1 to CH4 Inputs |
| EQ | |
| EQ Input Channels | EQ 1 Semi Parametric / 2 Shelving |
| Description |
3 Band EQ: High and Low band shelving, MID band peak on INPUT 8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output. |
| Auxiliary sends | |
| AUX 1 | PRE/POST |
| FX POST | 1 |
| Internal Effects | |
| Send Effects | 1 |
| Mastering processors | |
| Main OUT processors | 1 |
| Main OUT type | MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT. |
| Electrical specifications | |
| Power supply | Internal |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole mount/Cap | Quick-fit socket |
| Grille | Steel |
| Color | Black |
| Size / Weight | |
| Height | 2080 mm / 81.89 inches |
| Width | 350 mm / 13.78 inches |
| Depth | 460 mm / 18.11 inches |
| Weight | 28.8 kg / 63.49 lbs |
