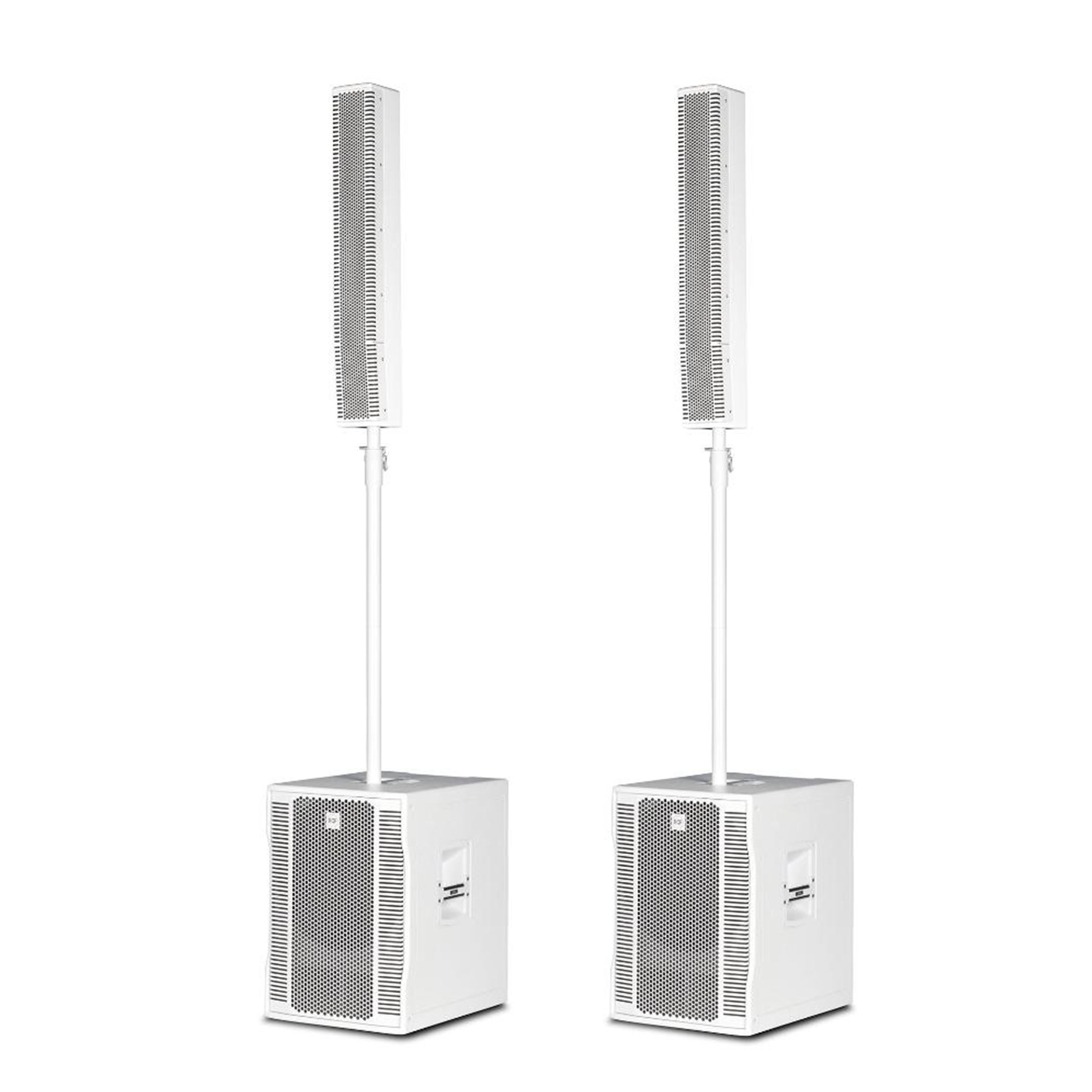

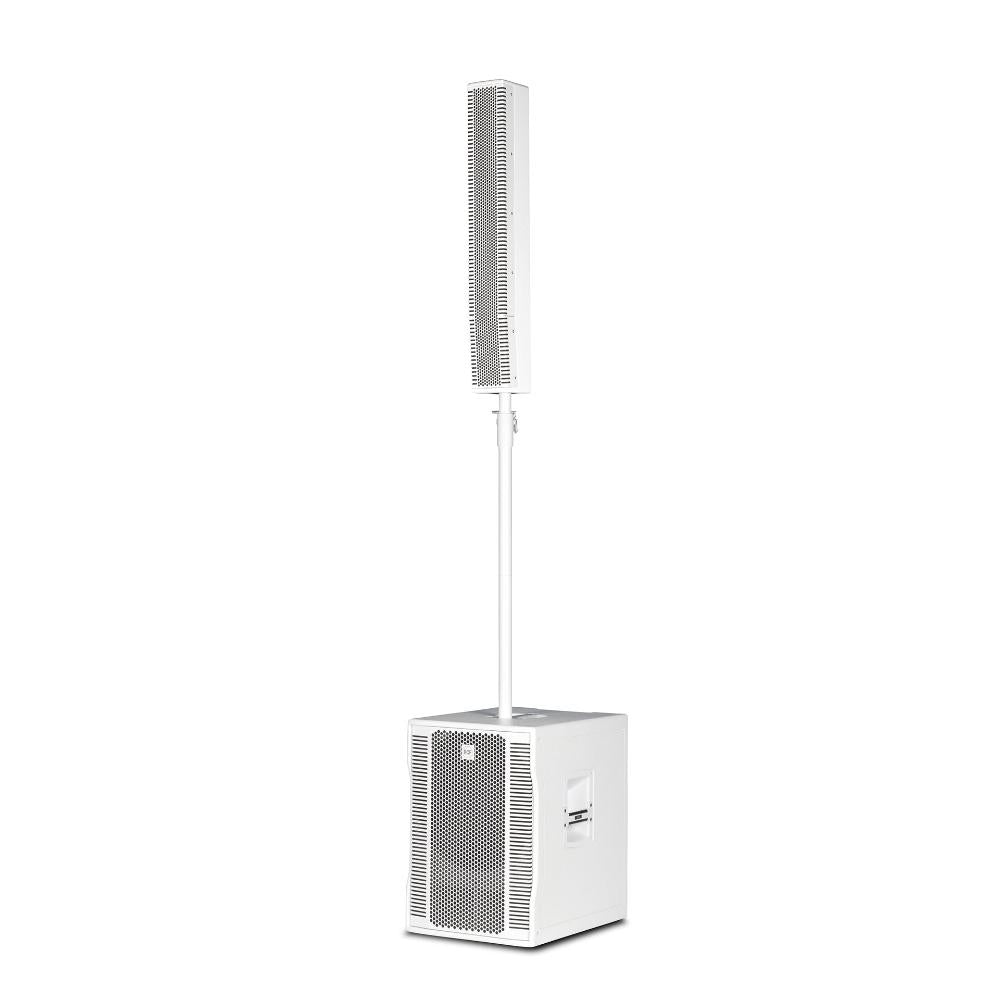

RCF EVOX 12 White (Pair)
Quantity:

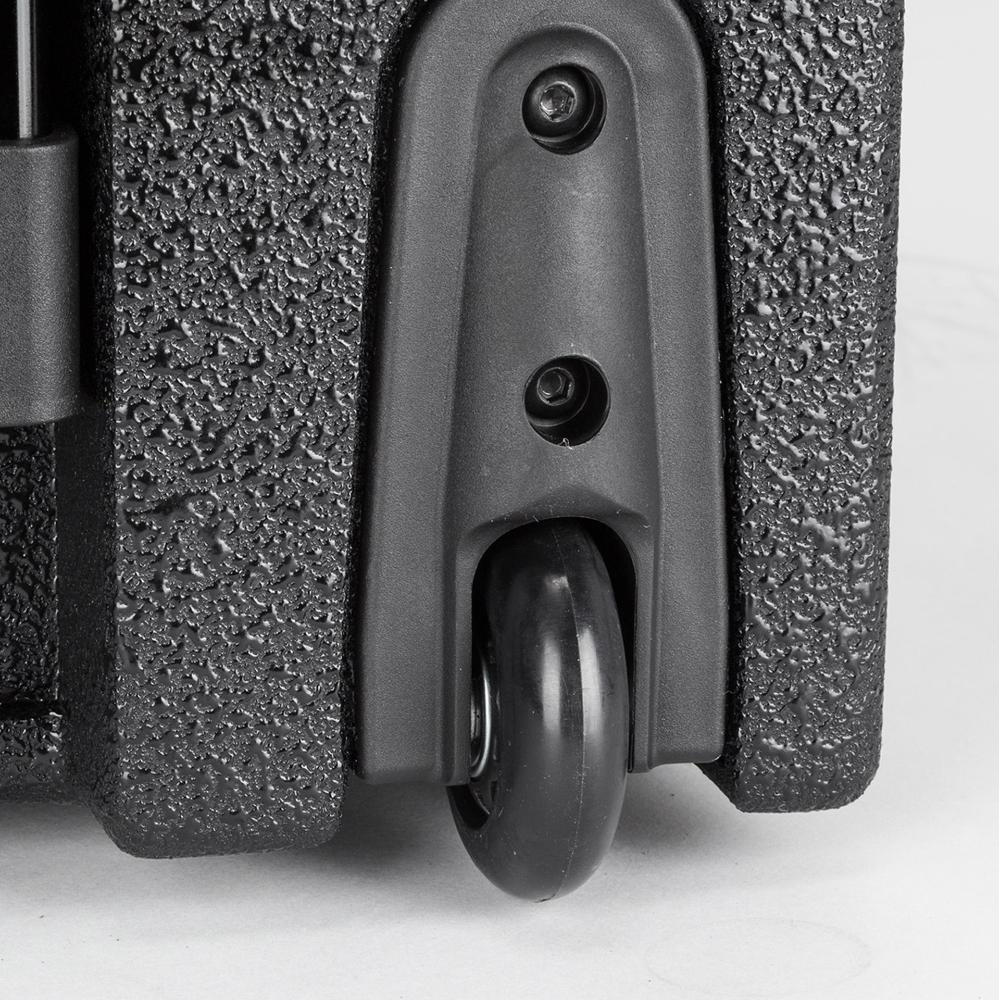

The RCF EVOX 12 Active 2-way Array Speaker System offers powerful sound with its 1400W built-in amplifier and 8 neodymium transducers. Its compact design and integrated wheels make it easy to transport for any event.
Acoustical specifications | |
FREQUENCY RESPONSE:
|
40 Hz ÷ 20000 Hz |
MAX SPL @ 1M: |
130 dB
|
HORIZONTAL COVERAGE ANGLE: | 90° |
VERTICAL COVERAGE ANGLE: | 30° |
Transducers | |
FULLRANGE: | 8 x 4.0'', 1.0'' v.c |
WOOFER: | 15'', 3.0'' v.c |
Input/Output section | |
INPUT SIGNAL | bal/unbal |
INPUT CONNECTORS: | XLR, Jack |
OUTPUT CONNECTORS: | XLR |
INPUT SENSITIVITY: | -2 dBu/+4 dBu |
Processor section | |
CROSSOVER FREQUENCIES: | 180 Hz |
PROTECTIONS: | Thermal, RMS |
LIMITER: | Soft Limiter |
CONTROLS: | Volume, EQ |
Power section | |
TOTAL POWER: | 1400 W Peak, 700 W RMS |
HIGH FREQUENCIES: | 400 W Peak, 200 W RMS |
LOW FREQUENCIES: | 1000 W Peak, 500 W RMS |
COOLING: | Convection |
CONNECTIONS: | VDE |
Standard compliance | |
CE MARKING: | Yes |
Physical specifications | |
CABINET/CASE MATERIAL: |
Baltic birch plywood
|
COLOR: | Black |
Size | |
HEIGHT:
|
2200 mm / 86.61 inches |
WIDTH: | 410 mm / 16.14 inches |
DEPTH: | 560 mm / 22.05 inches |
WEIGHT: | 36.4 kg / 80.25 lbs |
Shipping information | |
PACKAGE WEIGHT: | 43.89 kg / 96.76 lbs |
- 1400 Watt
- 130 dB max SPL
- 40 Hz 20 kHz frequency response
- 15" Woofer
- 8 x 4" neodymium full-range woofer
- 90° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
