RCF

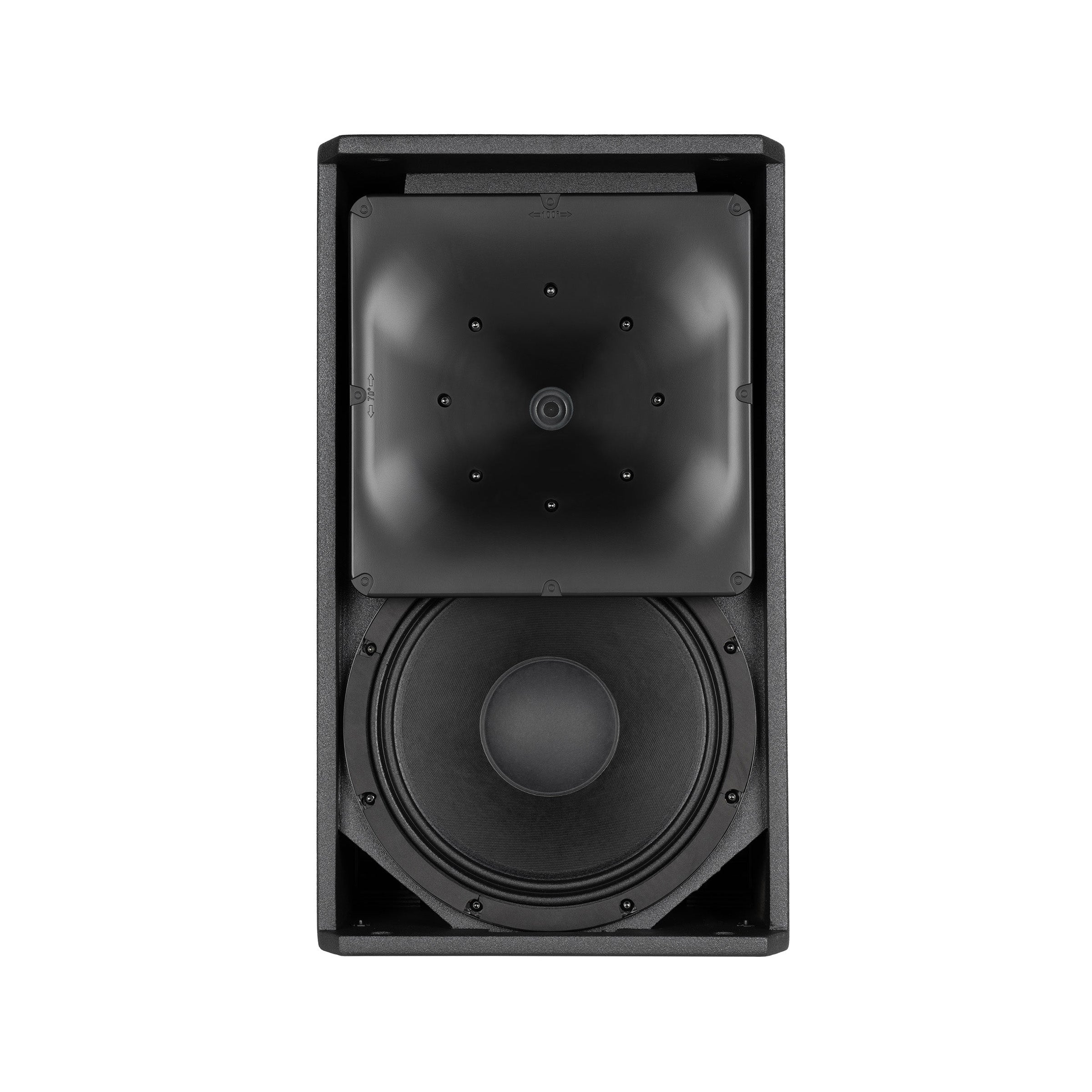

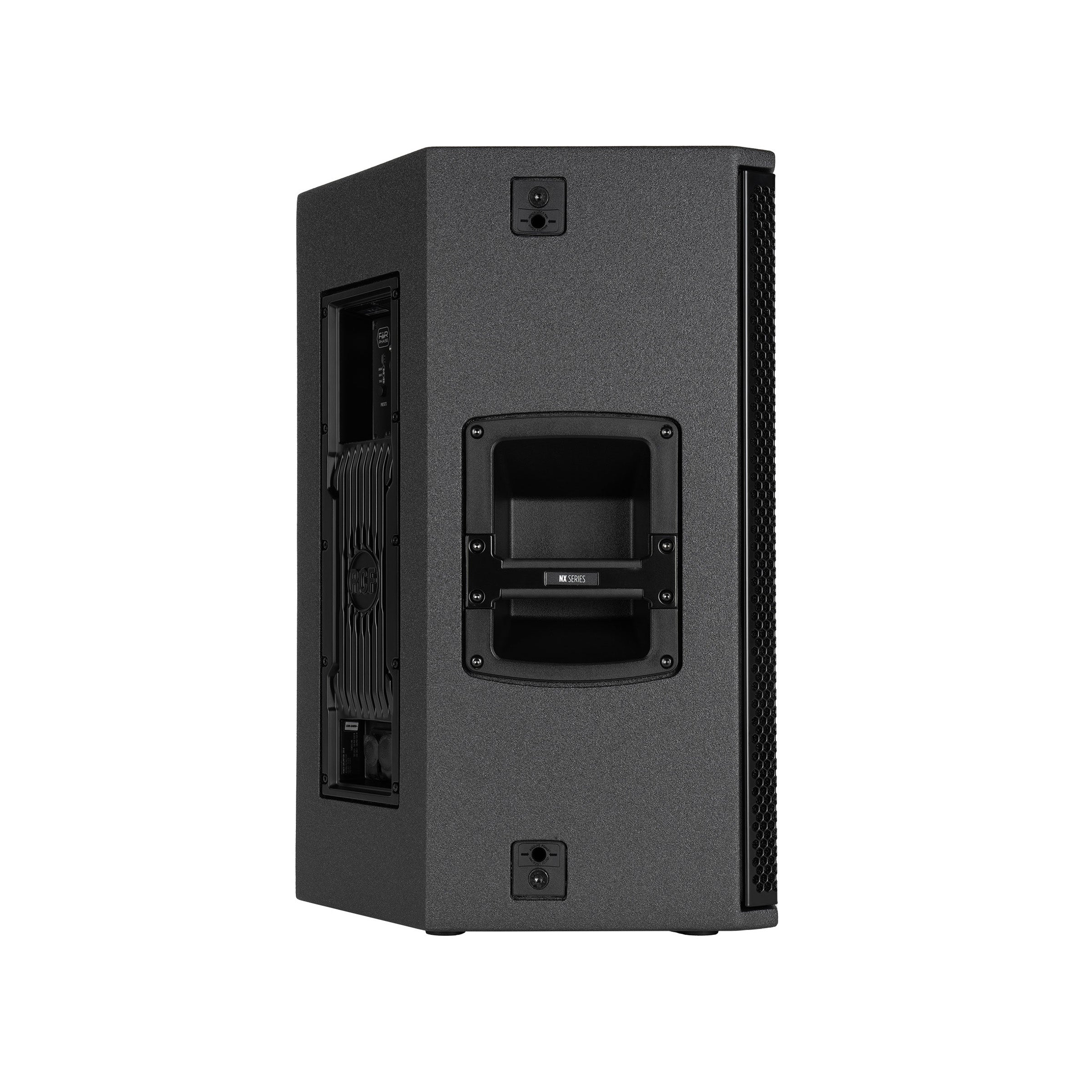

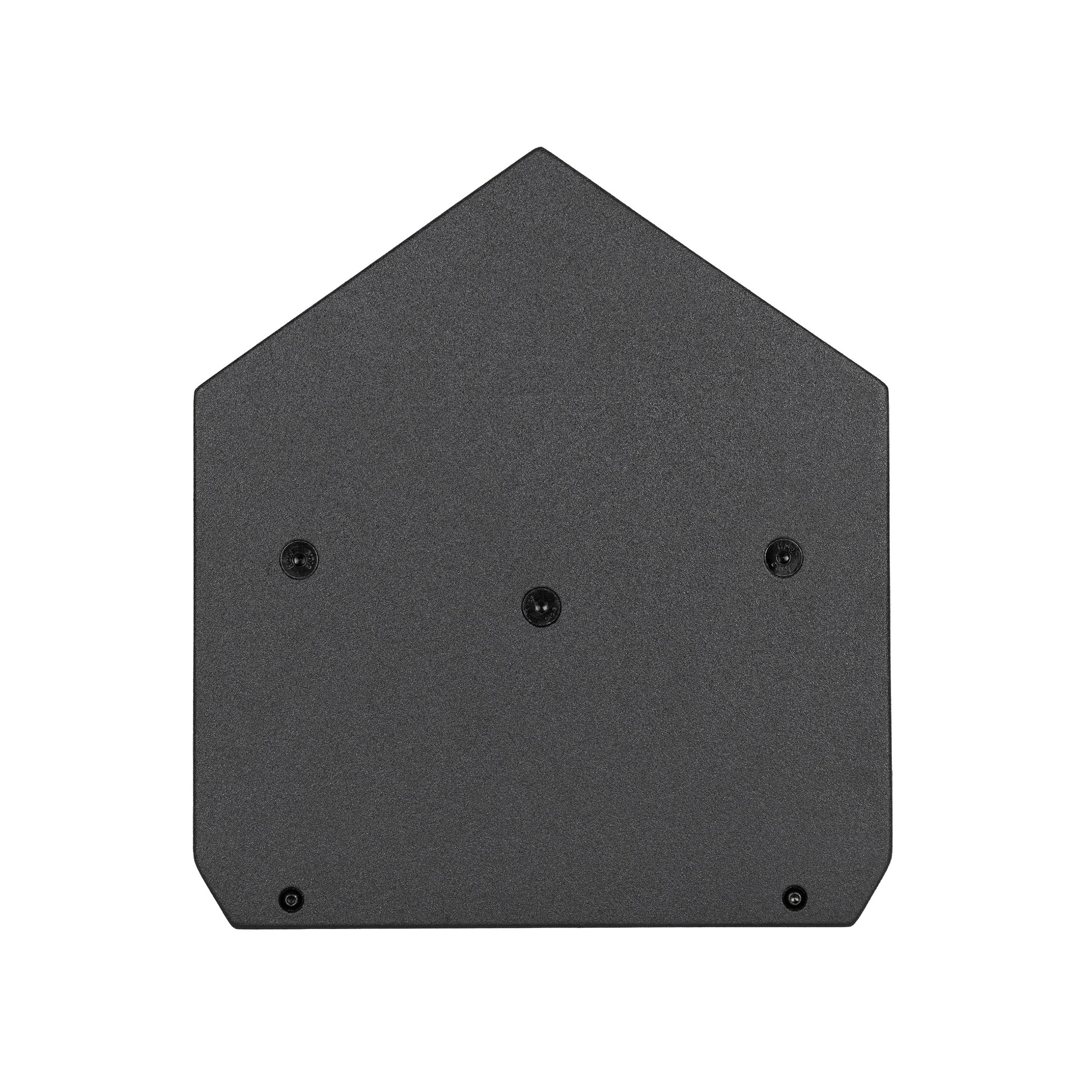

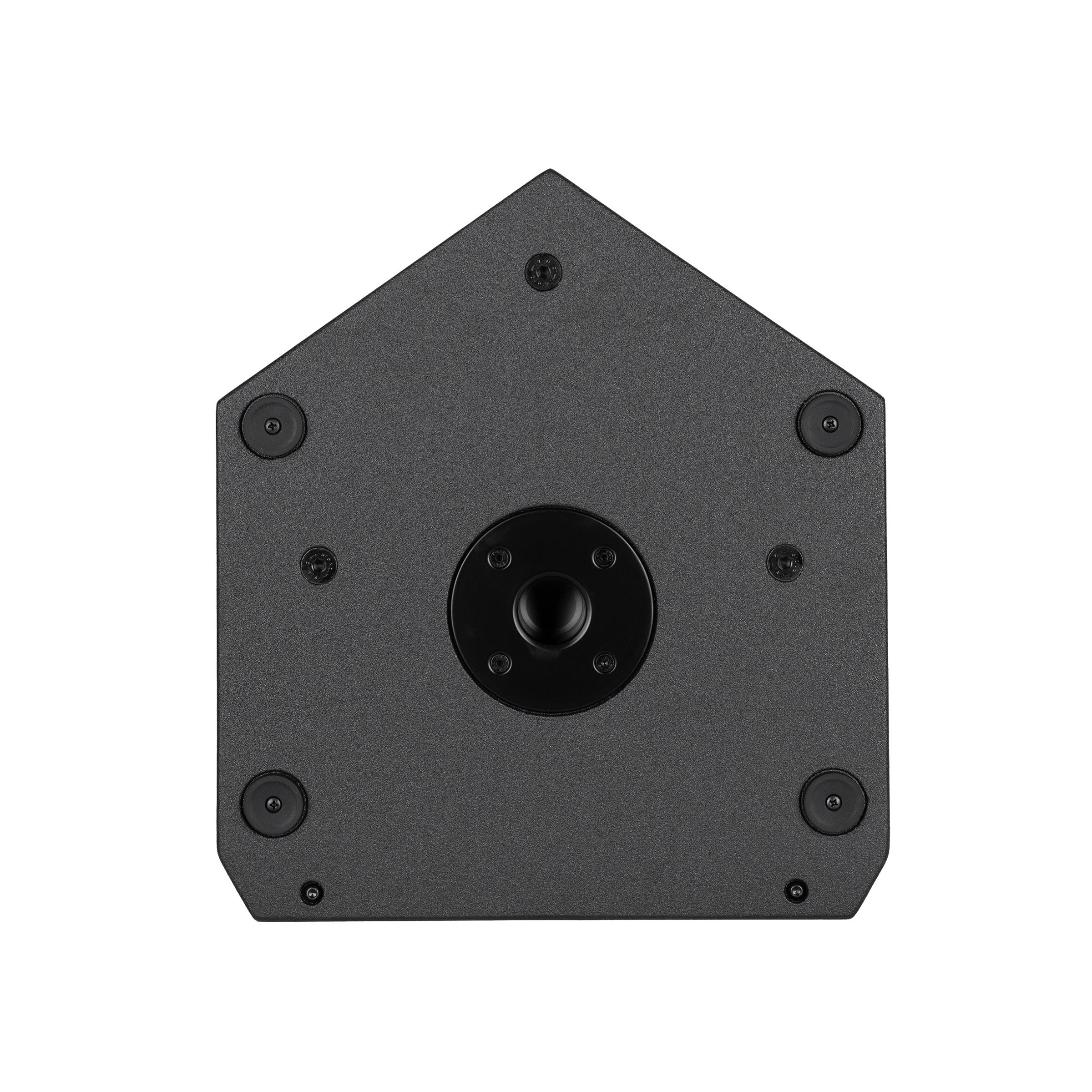

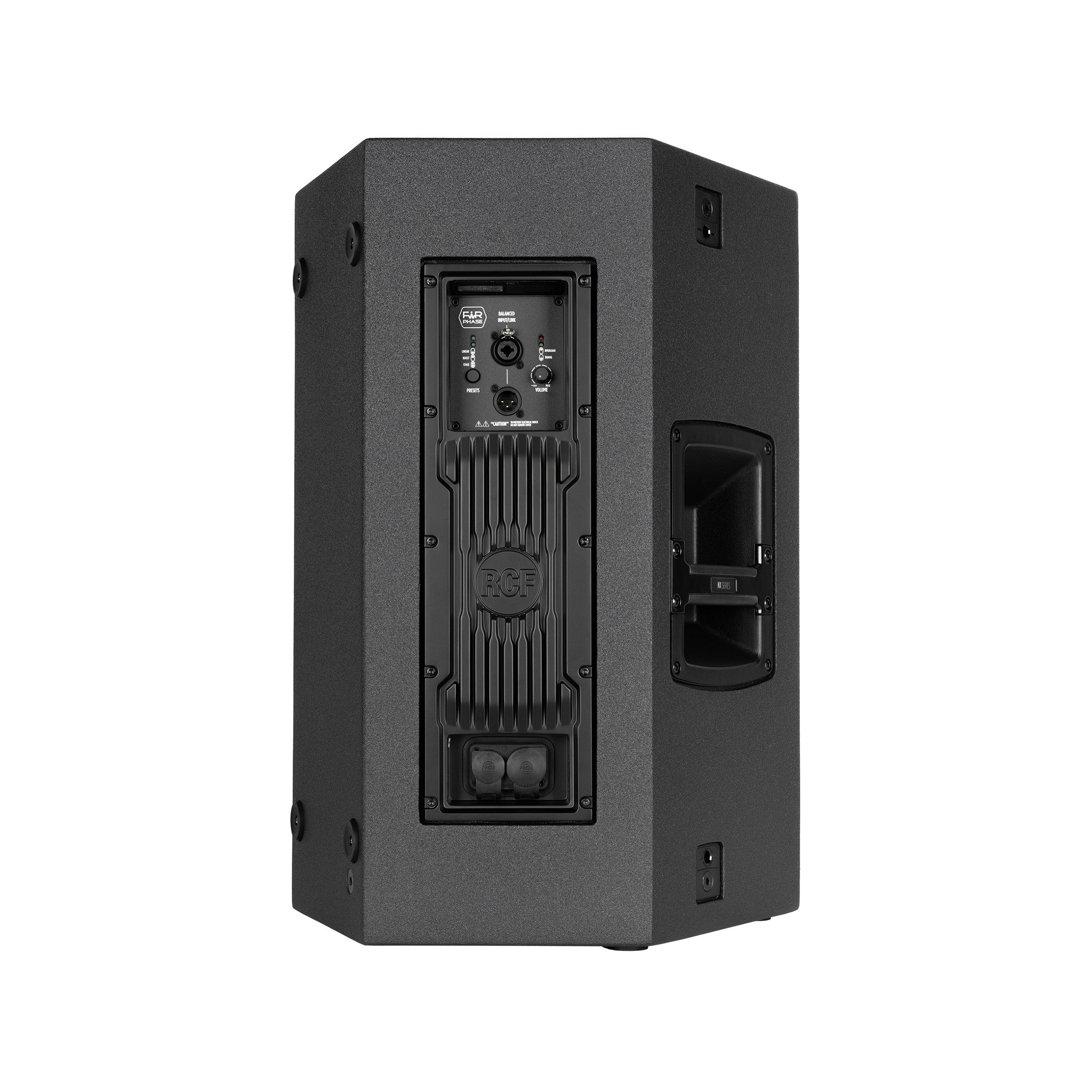

RCF NX 932-A Two-Way Active Speaker (Pair)
ACOUSTICAL SPECIFICATIONS
Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°
TRANSDUCERS
Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
Woofer: 12'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies: 700Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume
POWER SECTION
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Plywood
Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
2 each side quick lock pin seat
Handles: 1 x Side
Pole mount/Cap: Yes
Grille: Steel
Color: Black, White
SIZE
Height: 620 mm / 24.41 inches
Width: 362 mm / 14.25 inches
Depth: 405 mm / 15.94 inches
Weight: 22.9 kg / 50.49 lbs
SHIPPING INFORMATION
Package Height: 666 mm / 26.22 inches
Package Width: 461 mm / 18.15 inches
Package Depth: 416 mm / 16.38 inches
Package Weight: 26 kg / 57.32 lbs
