RCF
RCF 2 x NX 985-A + SUB 8008-AS Bundle

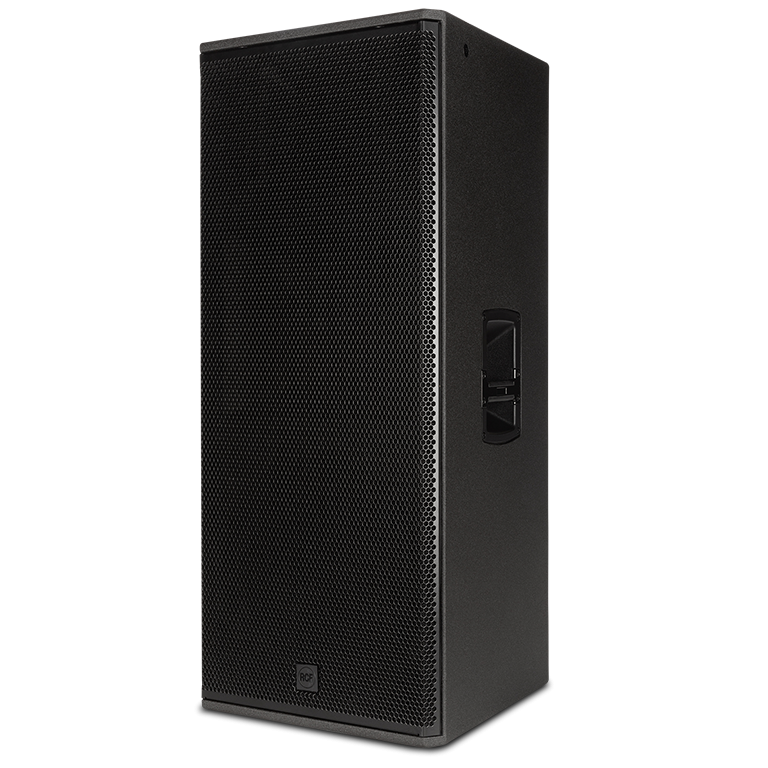

2 x RCF NX 985-A Three-Way Active Speaker
The RCF NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer.
Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

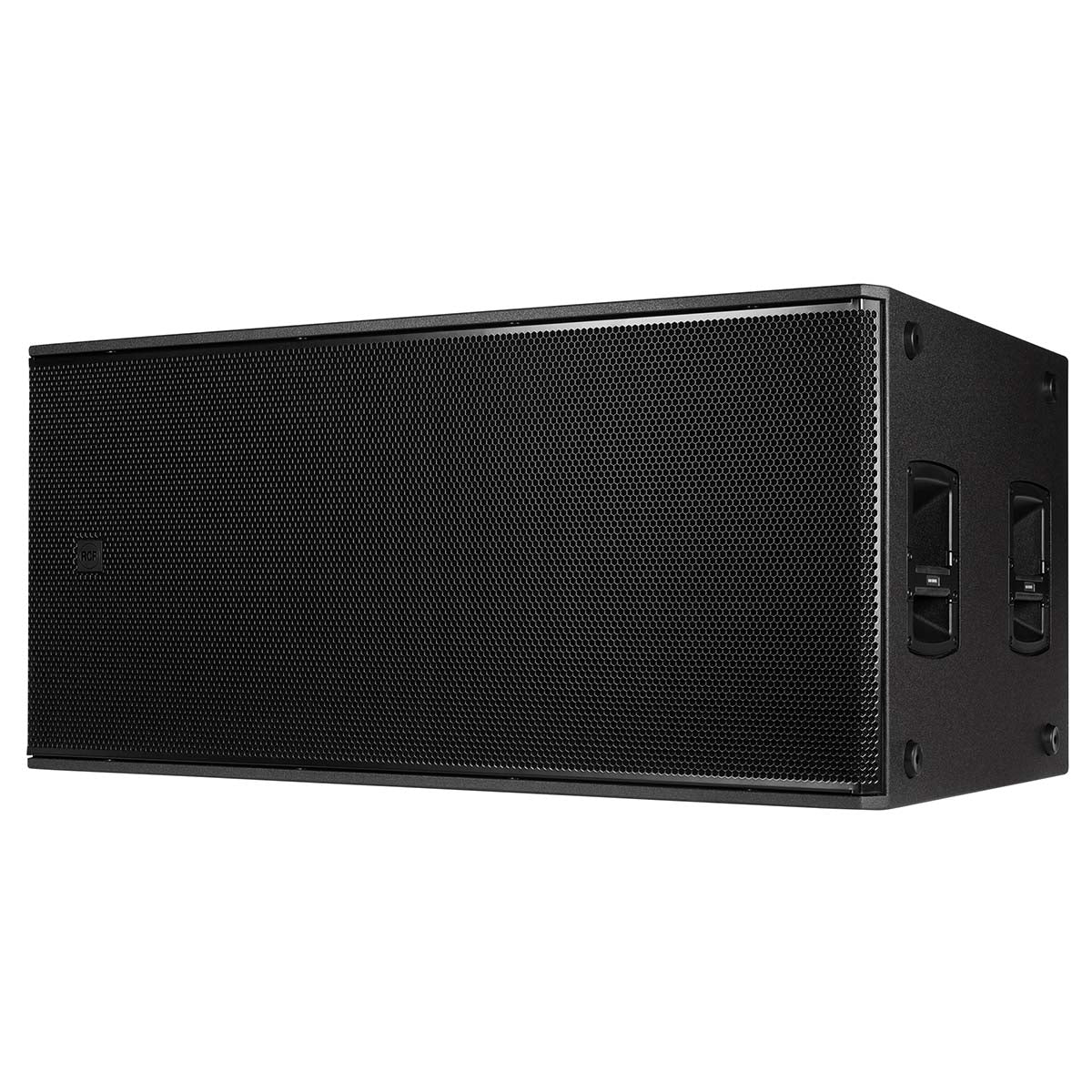

1x RCF SUB 8008-AS Double 18" Active Subwoofer
The RCF SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling.

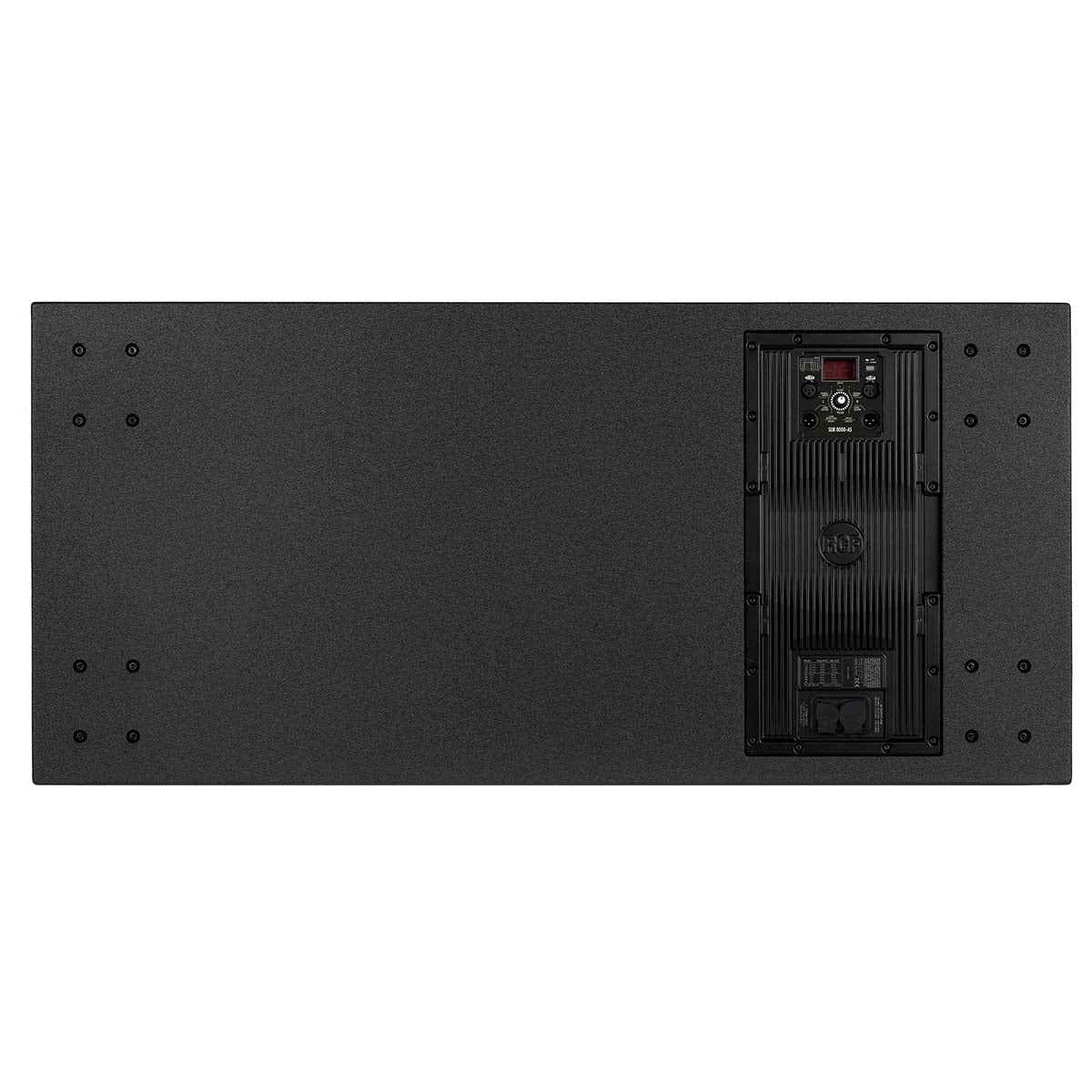

Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
RCF NX 985-A
Acoustical Specifications- Frequency Response: 40 Hz ÷ 20000 Hz
- Max SPL @ 1m: 138 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 60°
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Midrange: 1 x 8'' neo, 2.5'' v.c
- Woofer: 1 x 15'', 3.0'' v.c
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Crossover Frequencies: Bass/Mid: 320 Hz, Mid/High: 1200 Hz
- Protections: Thermal, Excurs., RMS
- Limiter: Soft Limiter
- Controls: Linear, 2 Speakers, High Pass, Volume
- Total Power: 2100 W Peak
- High frequencies: 200 W Peak
- Mid frequencies: 500 W Peak
- Low frequencies: 1400 W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: Plywood
- Hardware: 3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
- Handles: 1 x Side
- Pole mount/Cap: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 1075 mm / 42.32 inches
- Width: 461 mm / 18.15 inches
- Depth: 475 mm / 18.7 inches
- Weight: 45 kg / 99.21 lbs
- Package Height: 530 mm / 20.87 inches
- Package Width: 1110 mm / 43.7 inches
- Package Depth: 490 mm / 19.29 inches
- Package Weight: 51 kg / 112.44 lbs
RCF SUB 708-AS MK3
Acoustical Specifications- Frequency Response: 35 Hz ÷ 120 Hz
- Max SPL @ 1m: 133 dB
- Woofer: 1 x 18'', 3.0'' v.c
- Input signal: Balanced / Unbalanced
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Hi-Pass Frequencies: 110 Hz
- Low-Pass Frequencies: 80 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ, Phase, Xover
- Total Power: 1400 W Peak, 700 W RMS
- Low frequencies: 1400 W Peak, 700 W RMS
- Cooling: Convection
- Connections: VDE
- Safety agency: CE compliant
- Cabinet/Case Material: Baltic birch plywood
- Handles: One each side
- Pole mount/Cap: M20 thread
- Grille: Steel with clothing
- Color: Black
- Height: 693 mm / 27.28 inches
- Width: 505 mm / 19.88 inches
- Depth: 685 mm / 26.97 inches
- Weight: 40.6 kg / 89.51 lbs
- Package Height: 735 mm / 28.94 inches
- Package Width: 565 mm / 22.24 inches
- Package Depth: 745 mm / 29.33 inches
- Package Weight: 45.6 kg / 100.53 lbs
RCF SUB 8008-AS
Acoustical Specifications- Frequency Response: 30 Hz ÷ 120 Hz
- Max SPL @ 1m: 137 dB
- Woofer: 2 x 18'', 4.0'' v.c
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Crossover Frequencies: Selectable
- Protections: Thermal, Excursion, RMS
- Limiter: Soft Limiter
- Controls: Xover, Phase switch, Deep/Punch, Output Delay Setting
- Total Power: 4400 W Peak
- Low frequencies: 4400 W Peak
- Cooling: Convection/Forced
- Connections: Powercon TRUE1 TOP IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: Plywood
- Hardware: 2 x M20
- Handles: 2 x side
- Pole mount/Cap: M20 thread
- Grille: Steel
- Color: Black
- Height: 550 mm / 21.65 inches
- Width: 1180 mm / 46.46 inches
- Depth: 700 mm / 27.56 inches
- Weight: 80 kg / 176.37 lbs
- Package Height: 600 mm / 23.62 inches
- Package Width: 1370 mm / 53.94 inches
- Package Depth: 900 mm / 35.43 inches
- Package Weight: 86 kg / 189.6 lbs
- Horizontal setup with NX 985-A Pair
- 1 x SUB 8008-AS
- 2 x NX 985-A
