RCF SUB 8008-AS + Stacked HDL 6-A Line Array

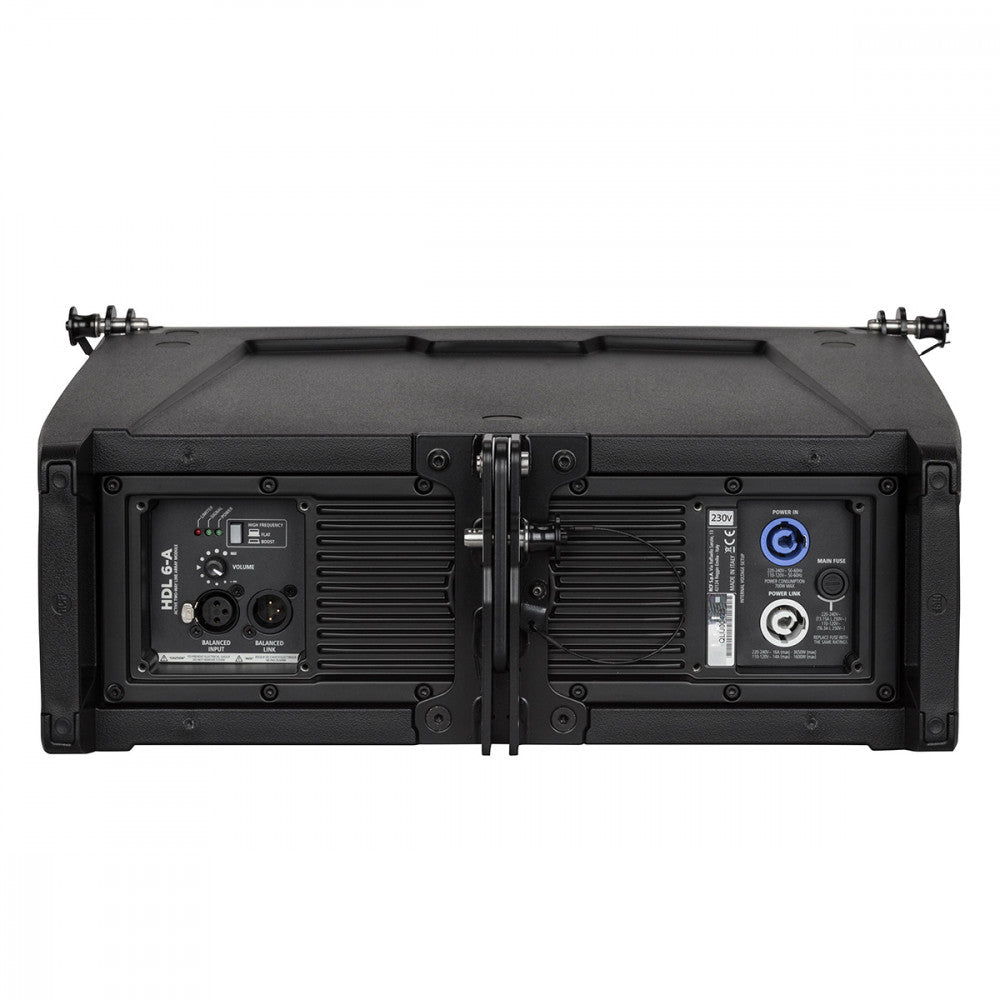

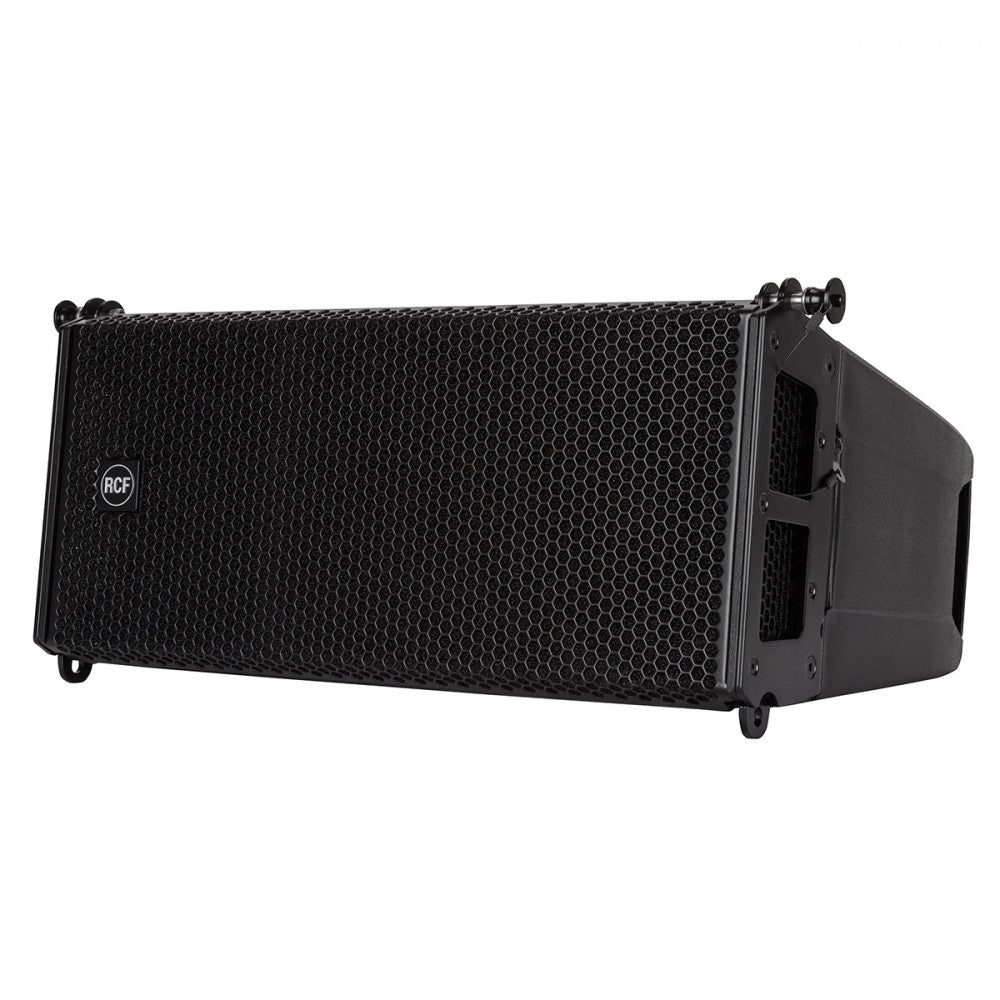

4 x RCF HDL 6-A Active Line Array Module
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
1x RCF SUB 8008-AS Double 18" Active Subwoofer
The RCF SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling.

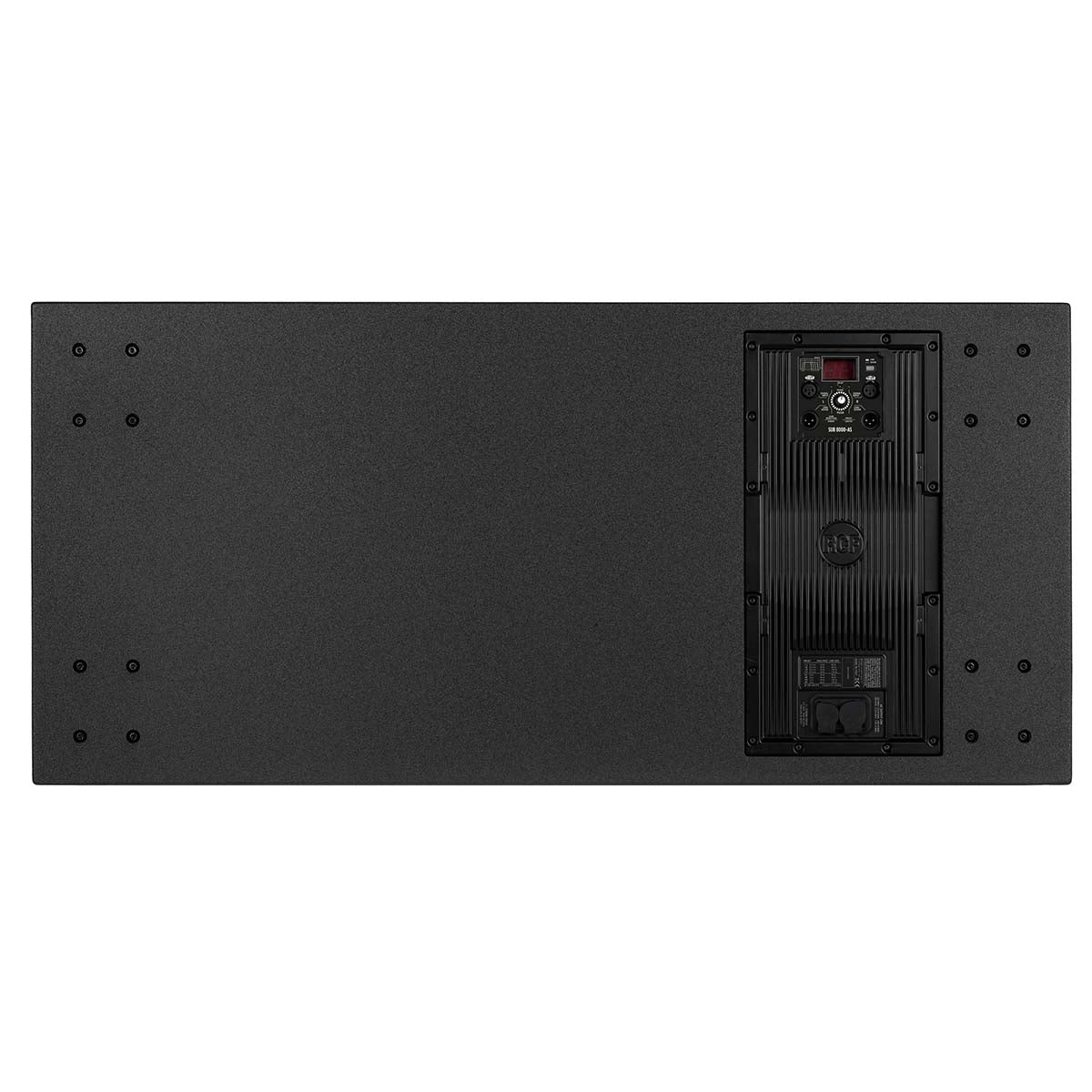

Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.

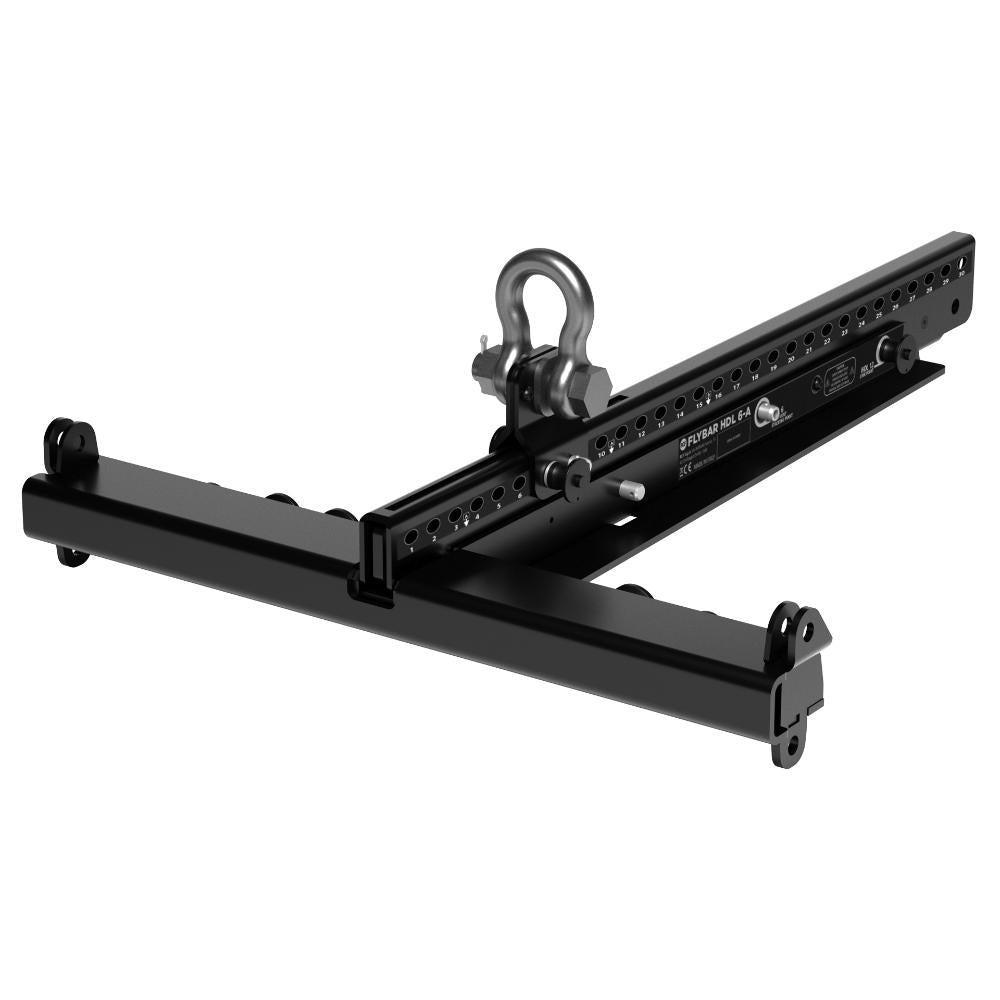

1 x RCF FLY BAR HDL 6 for HDL 6-A and HDL 12-AS
Flybar for HDL 6-A; HDL 12-AS; HDL 26-A; HDL 35-AS + 1x Pickup Tab with Shackle + Stacking Bar + Pole Mount + M20 Adapter. Pins included.
RCF HDL 6-A
Acoustical Specifications- Frequency Response: 65 Hz ÷ 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 10°
- Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
- Woofer: 2 x 6.0'' neo, 2.0'' v.c
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: +4 dBu
- Crossover Frequencies: 900 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: HF correction
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: PP Composite
- Hardware: Array fittings
- Handles: 2 Back
- Grille: Steel
- Color: Black, White
- Height: 237 mm / 9.33 inches
- Width: 470 mm / 18.5 inches
- Depth: 377 mm / 14.84 inches
- Weight: 11.6 kg / 25.57 lbs
- Package Height: 260 mm / 10.24 inches
- Package Width: 550 mm / 21.65 inches
- Package Depth: 425 mm / 16.73 inches
- Package Weight: 13 kg / 28.66 lbs
RCF SUB 8008-AS
Acoustical Specifications- Frequency Response: 30 Hz ÷ 120 Hz
- Max SPL @ 1m: 137 dB
- Woofer: 2 x 18'', 4.0'' v.c
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / +4 dBu
- Crossover Frequencies: Selectable
- Protections: Thermal, Excursion, RMS
- Limiter: Soft Limiter
- Controls: Xover, Phase switch, Deep/Punch, Output Delay Setting
- Total Power: 4400 W Peak
- Low frequencies: 4400 W Peak
- Cooling: Convection/Forced
- Connections: Powercon TRUE1 TOP IN/OUT
- Safety agency: CE compliant
- Cabinet/Case Material: Plywood
- Hardware: 2 x M20
- Handles: 2 x side
- Pole mount/Cap: M20 thread
- Grille: Steel
- Color: Black
- Height: 550 mm / 21.65 inches
- Width: 1180 mm / 46.46 inches
- Depth: 700 mm / 27.56 inches
- Weight: 80 kg / 176.37 lbs
- Package Height: 600 mm / 23.62 inches
- Package Width: 1370 mm / 53.94 inches
- Package Depth: 900 mm / 35.43 inches
- Package Weight: 86 kg / 189.6 lbs
- Vertical SUB 8008-AS with Stacked HDL 6-A Line Array
- 1 x RCF SUB 8008-AS
- 4 x RCF HDL 6-A
- 1 x RCF FLY BAR HDL 6 for HDL 6-A and HDL 12-AS
