Rode

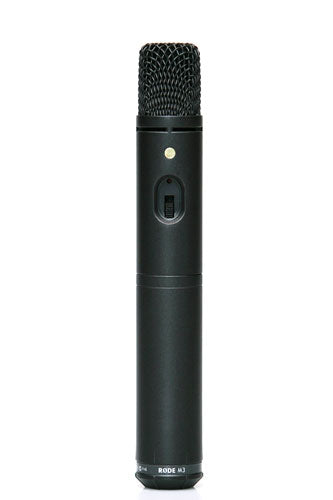

RODE M3 End-Address Condenser Microphone
The M3 is an extremely versatile microphone that is at home in the studio, on location, or wherever a low-noise wide-response cardioid condenser microphone is demanded.
Featuring a heavy duty metal body and internally shock mounted 1/2" condenser capsule mounted for end-address, the M3 can be powered either via P48 phantom power, or an internal 9V battery.

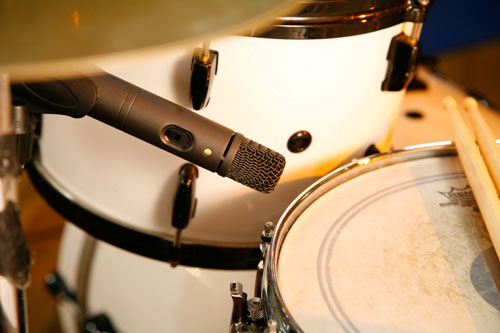

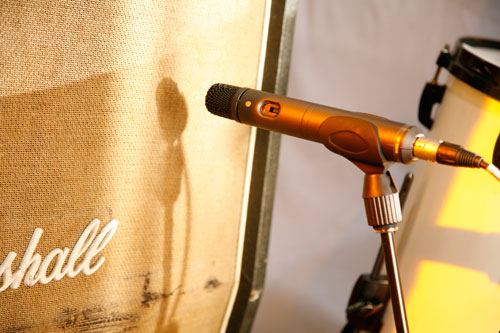

A -10dB and -20dB level attenuator (pad), selectable from inside the battery compartment, allows recording of loud sound sources, such as a guitar amplifier or snare drum. A high-pass filter selectable on the microphone power switch introduces a filter at 80Hz to reduce low frequency sounds and handling noise.
| Acoustic Principle | Pressure Gradient |
| Active Electronics | JFET impedance converter with bipolar output buffer |
| Capsule | 0.50" |
| Address Type | End |

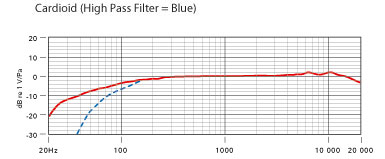

| Frequency Range | 40Hz - 20kHz(selected HPF @80Hz) |
| Output Impedance | 200Ω |
| Maximum SPL | 142dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
| Maximum Output Level | 9.2mV |
| Sensitivity | -40.0dB re 1 Volt/Pascal (6.30mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-weighted) | 21dB-A |
| Weight | 390.00gm |
| Dimensions | 225.00mmH x 33.00mmW x 33.00mmD |
| Warranty | 1 year with free extension to 10 years following registration here |
- Heavy duty metal body
- Internal capsule shock mount
- High level of RF rejection
- Battery status indicator
- 9V Battery Power and 24 - 48V phantom power

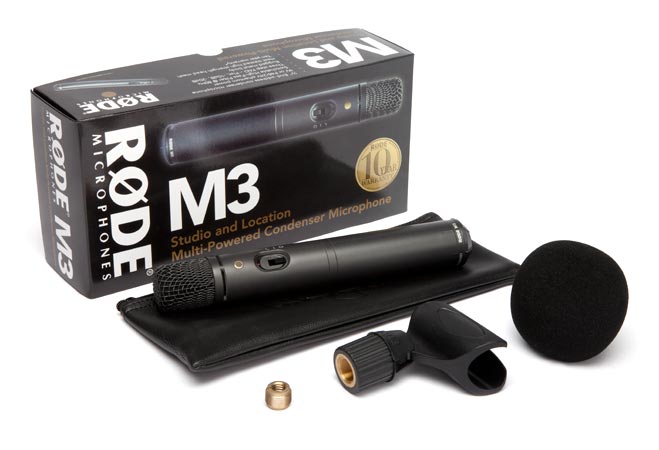

- Includes wind shield, mic clip and zip pouch
