RODE

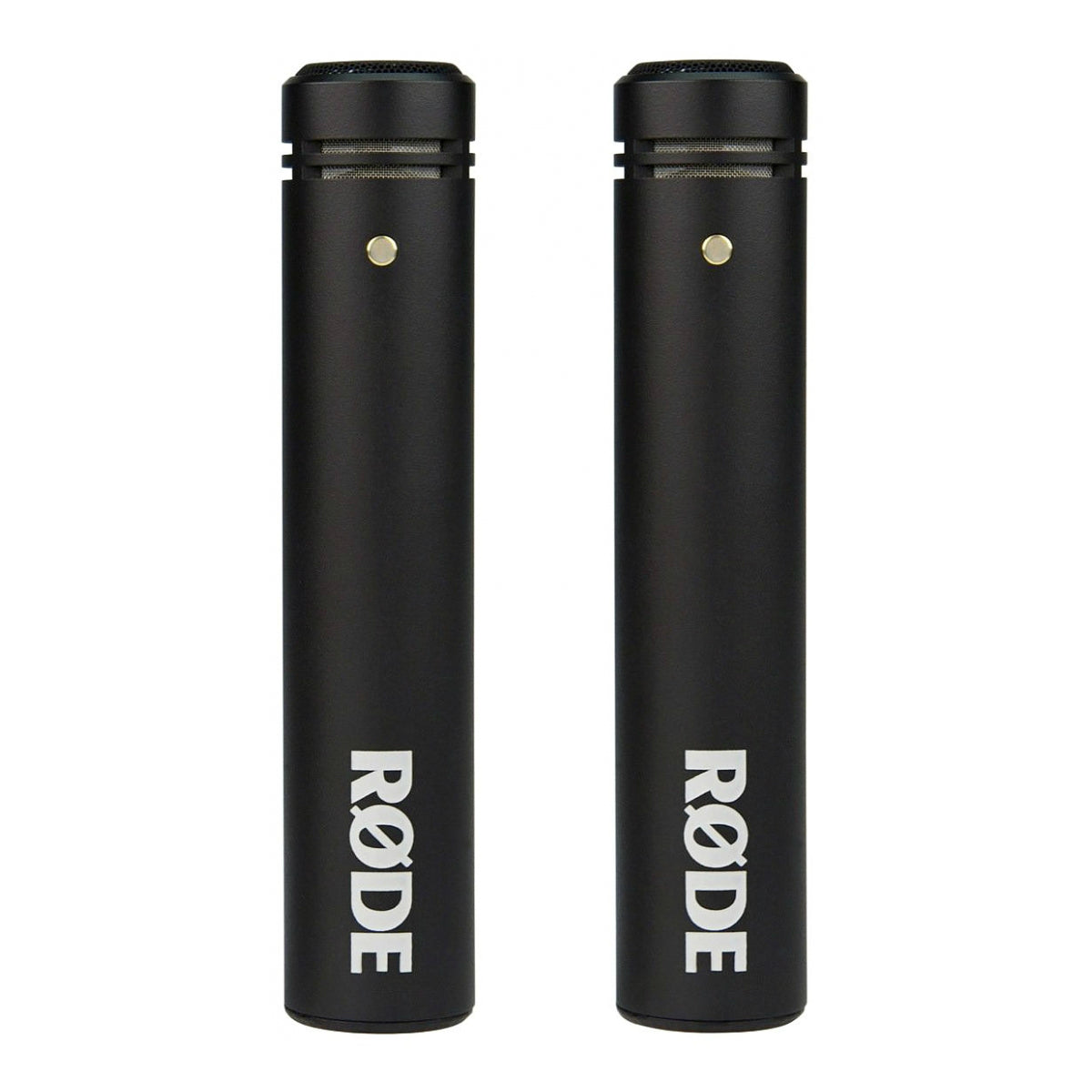

RODE M5 Small Diaphragm Condenser Mic Matched Pair
The M5 is a compact ½” cardioid condenser microphone with low noise and a full frequency response. Ideal for studio recording and live on stage, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small diaphragm condenser microphone, either individually or as a stereo array. This matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones. A premium foiled certificate is supplied to verify the authenticity of the pair. The M5 is finished with RØDE’s proprietary ceramic coating which offers a sleek matt black finish, and is supplied with WS5 windshields and RM5 stand mounts.
Acoustic Principle | Pressure Gradient |
Active Electronics | JFET impedance converter with bipolar output buffer |
Capsule | 0.50" |
Polar Pattern | |
Address Type | End |
Frequency Range | 20Hz - 20kHz |
Output Impedance | 200Ω |
Maximum SPL | 140dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level | 13.5mV |
Sensitivity | -34.0dB re 1 Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 19dB-A |
Power Options | |
Weight | 80.00gm |
Dimensions | 100.00mmH x 20.00mmW x 20.00mmD |
Output | |
Warranty | 1 year with free extension to 10 years following registration here |
- 1⁄2” capsule with gold-plated membrane
- Cardioid polar pattern
- All metal body
- Ultra-low noise
- State-of-the-art surface mount electronics
- Includes microphone clips and windshields
