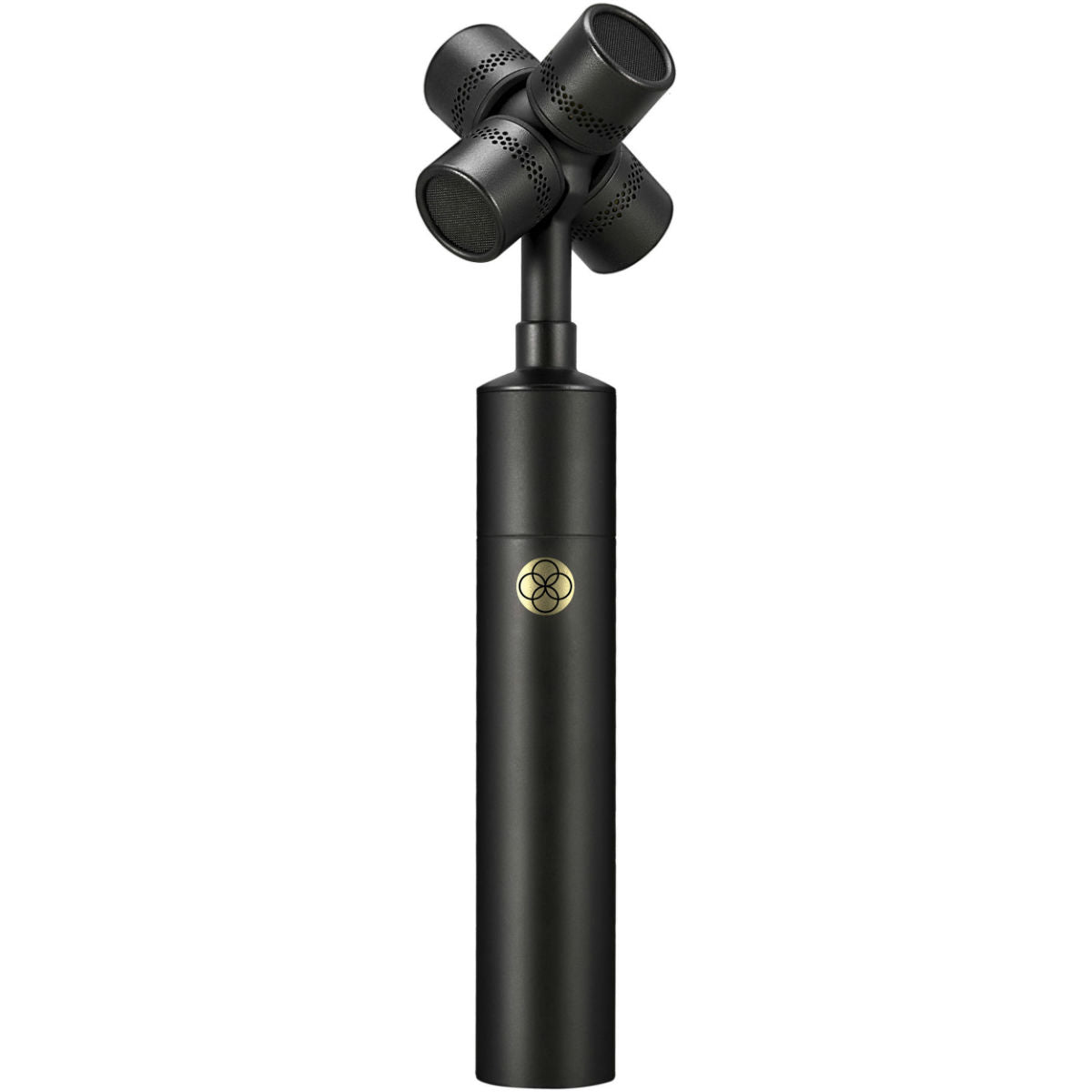

RODE NT-SF1 Ambisonic Microphone

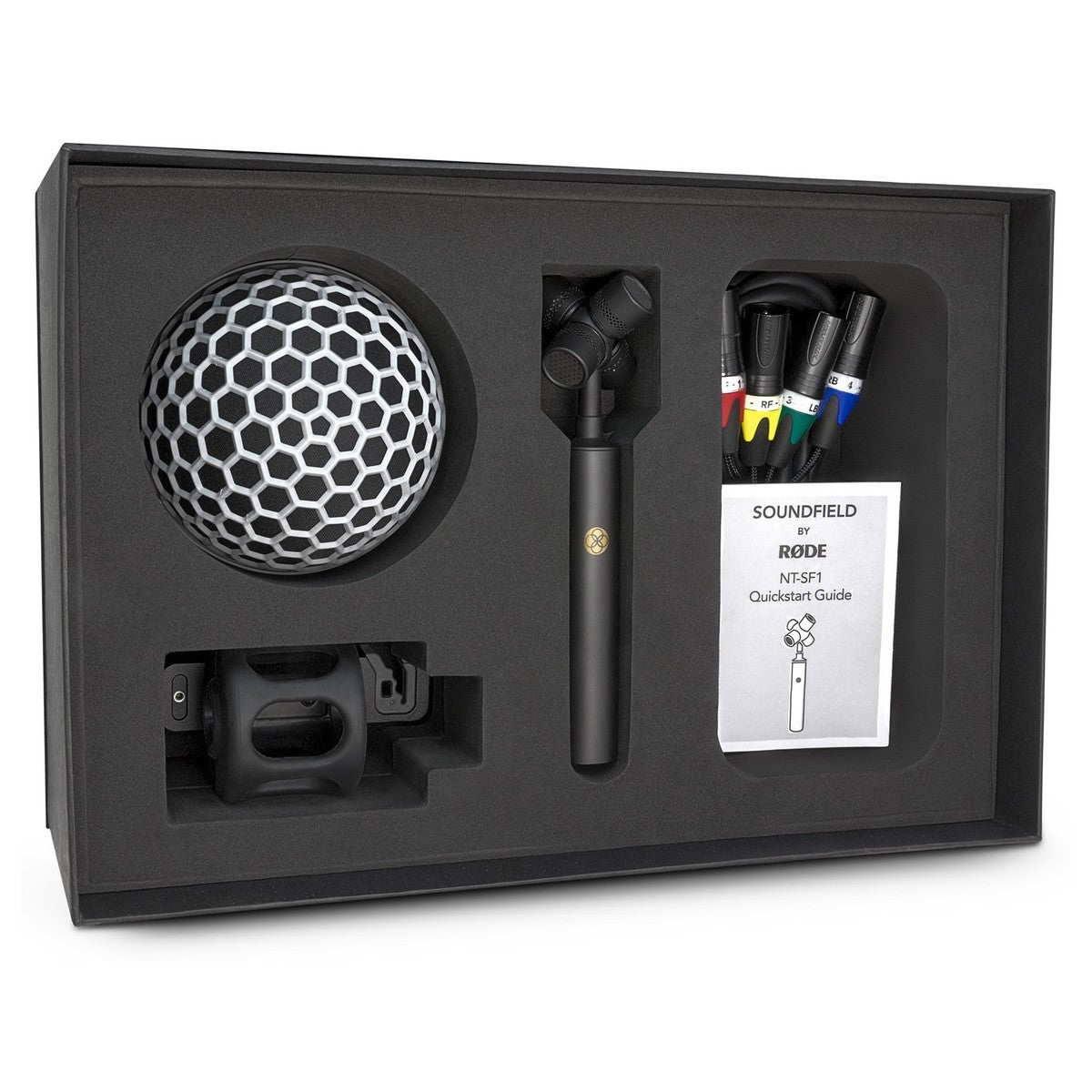

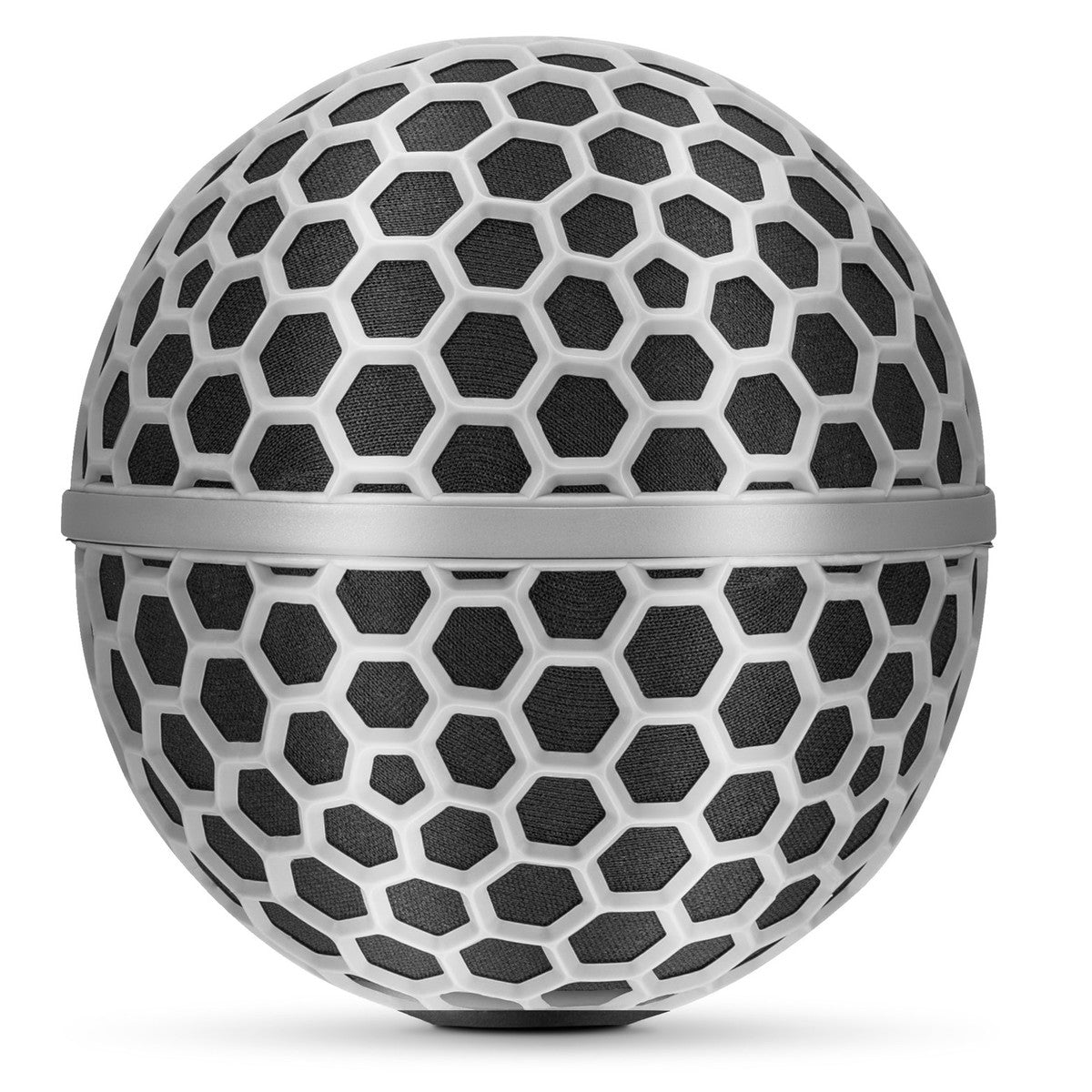

The RODE NT-SF1 Ambisonic Microphone is a 360-degree microphone designed for 3D audio production. The NT-SF1 combines the innovation SoundField's Ambisonic Microphone and a redesigned capsule, custom-made by RODE, to create an ultra low-noise microphone with breathtaking clarity and sonic purity. The Ambisonic design of the NT-SF1 delivers the best spatialisation for 3D audio processing. It is ideal for a range of applications including music ensemble recording, 3D soundscapes, foley work and much more. The microphone comes as a full kit, including custom suspension shockmount, blimp-style windshield and furry wind cover.
The NT-SF1 records the entire spherical sound field. Every sound, every direction, perfectly. This means that later, in post-production, you can manipulate the sound. Alter the mic directivity, position and rotation. Create a full 7.1.4 surround mix. Create a fully head-tracked 360-degree soundscape for immersive video. Whether recording opera, a swamp or a feature film, the NT-SF1 offers unparalleled quality and flexibility.
The TF-45C capsule
At the heart of the NT-SF1 is the brand-new TF-45C true condenser capsule. This completely new design breaks new ground in precision manufacturing. Created in-house at RØDE’s Sydney HQ, it is machined to tolerances of less than 1 micron in our state of the art fabrication facilities. The result is a capsule with breathtaking clarity, sonic purity and exceptionally low noise.

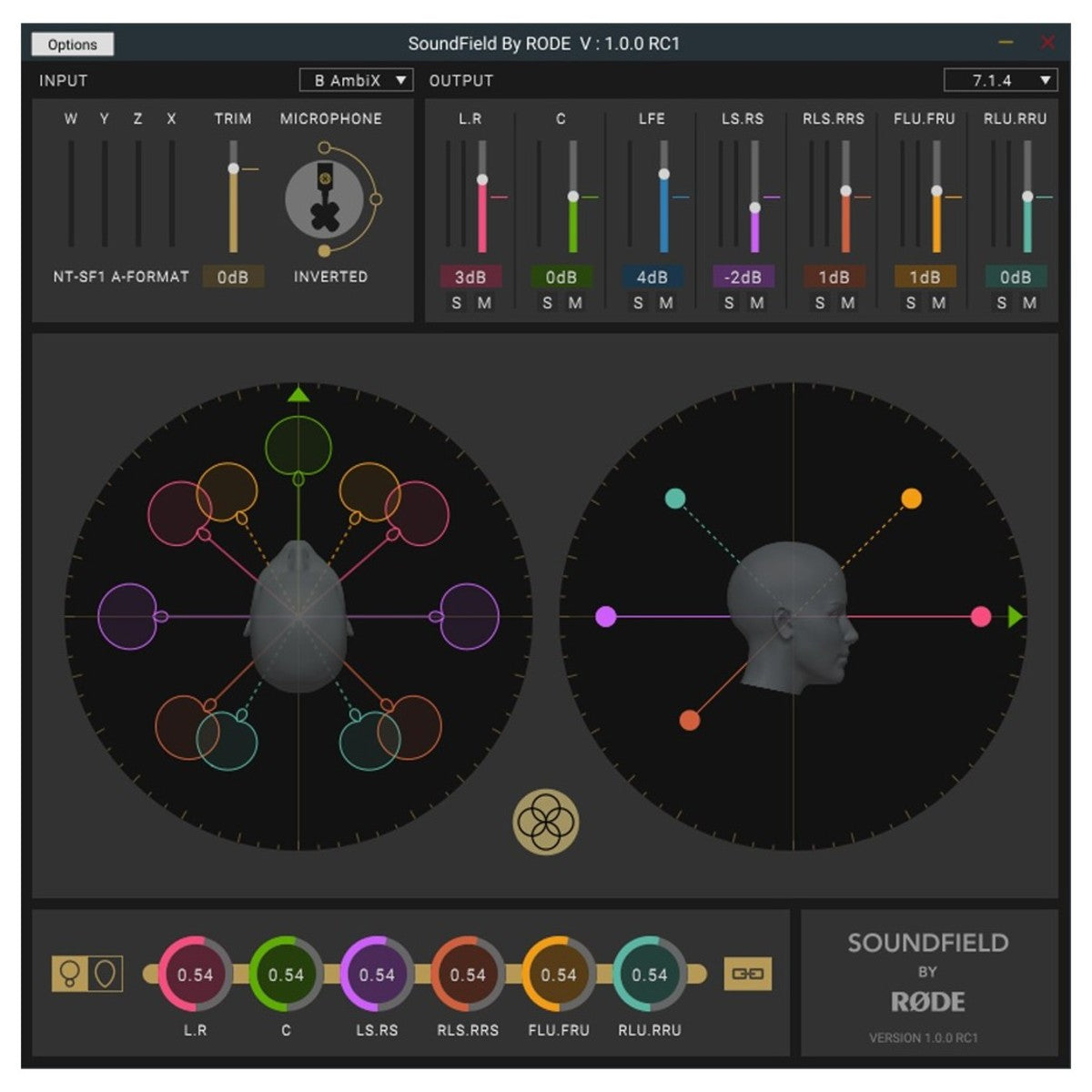

The RODE SoundField Plugin processor
The new NT-ST1 is perfectly matched to the new SoundField by RØDE plugin ambisonic processor. The new SoundField by RØDE plugin has been designed to offer the most accurate spatialisation and sound reproduction when used with the NT-SF1.
Main features of the RODE NT-SF1 Ambisonic Microphone include:
NT-SF1 Specifications | |
ACOUSTICS & ELECTRICAL SPECIFICATION | |
Acoustic Principle | Externally Biased Condenser |
Active Electronics | Active Electronics JFET impedance converter with bipolar output buffer |
Polar Pattern | |
Frequency Range
|
20Hz - 20kHz
|
Output Impedance
|
63Ω
|
Equivalent Noise (A-weighted)
|
15 dBA |
Maximum SPL
|
129 dB SPL
|
Sensitivity |
-30.4 dB re. 1 Volt/Pascal (30mV @ 94dB SPL, 1kHz)
|
Power Requirements
|
6.2mA @ 48V (Per Channel) Phantom Power
|
MECHANICAL SPECIFICATION
|
|
Material
|
Brass
|
Colour
|
Black
|
Weight (g)
|
286
|
Dimensions (L x W x H, mm)
|
45.7 w 192.3 x 45.7, diameter of body: 25.1
|
- 360-degree microphone designed for 3D audio production
- Ultra low-noise capsule with breathtaking clarity and sonic purity
- Ideal for music ensemble recording, 3D soundscapes, foley work and much more.
- Includes shockmount, blimp-style windshield and furry wind cover
- Records the entire spherical sound field
- Create a full 7.1.4 surround mix
- Create a fully head-tracked 360-degree soundscape for immersive video
