RODE NT5 Condenser Microphone
The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'.
Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.
Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.
Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available.
Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.
| Acoustic Principle | Pressure Gradient |
| Active Electronics | JFET impedance converter with bipolar output buffer |
| Capsule | 0.50" |

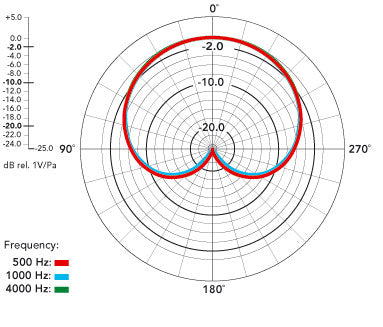

| Polar Pattern | |
| Address Type | End |

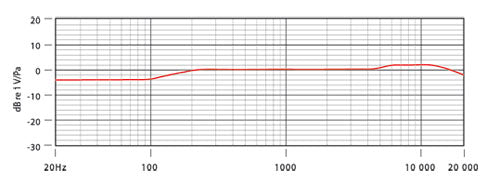

| Frequency Range | 20Hz - 20kHz |
| Output Impedance | 100Ω |
| Maximum SPL | 143dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
| Maximum Output Level | 13.9mV |
| Sensitivity | -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-weighted) | 16dB-A |
| Power Options | ![]() ![]() |
| Weight | 101.00gm |
| Dimensions | 118.00mmH x 20.00mmW x 20.00mmD |
| Output | ![]() |
| Warranty | 1 year with free extension to 10 years following registration here |
- Externally biased condenser
- Gold sputtered 1/2” capsule
- Heavy-duty satin-nickel plated body
- Dual power operation
- Low noise
- Full frequency response
