RODE

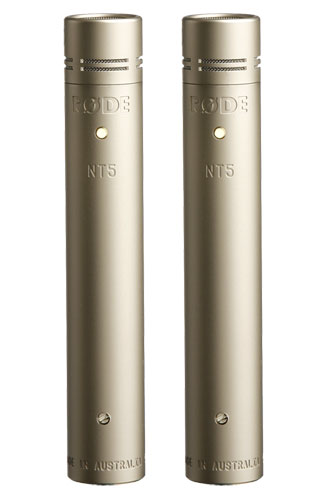

RODE NT5 Condenser Mic Matched Pair
The NT5 matched pairs are a masterpiece of small-diaphragm cardioid-condenser microphone design. Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2 capsule, an active J-FET impedance converter with bipolar output buffer.
Finished in durable satin nickel, the NT5 is intended for either single or stereo X/Y mic set-ups. The NT5 matched pair comesd supplied in a custom carry case with windshields and mounts.
Acoustic Principle | Pressure Gradient |
Active Electronics | JFET impedance converter with bipolar output buffer |
Capsule | 0.50" |

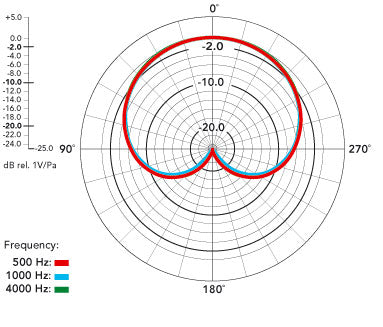

Polar Pattern | |
Address Type | End |

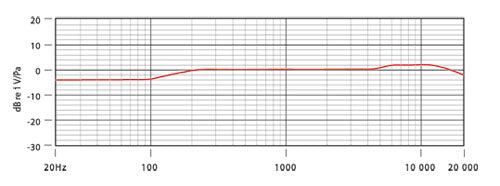

Frequency Range | 20Hz - 20kHz |
Output Impedance | 100Ω |
Maximum SPL | 143dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level | 13.9mV |
Sensitivity | -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 16dB-A |
Power Options | |
Weight | 101.00gm |
Dimensions | 118.00mmH x 20.00mmW x 20.00mmD |
Output | |
Warranty | 1 year with free extension to 10 years following registration here |
- Acoustically Matched Pair
- Externally biased condenser
- Heavy-duty satin-nickel plated body
- Dual power operation
- Low noise
- Full frequency response
- 2 x RM5 Durable Microphone Clip
- 1 x RC5 Rugged Microphone Case
- 2 x WS5 Pop Filter/Wind Shield
