RODE

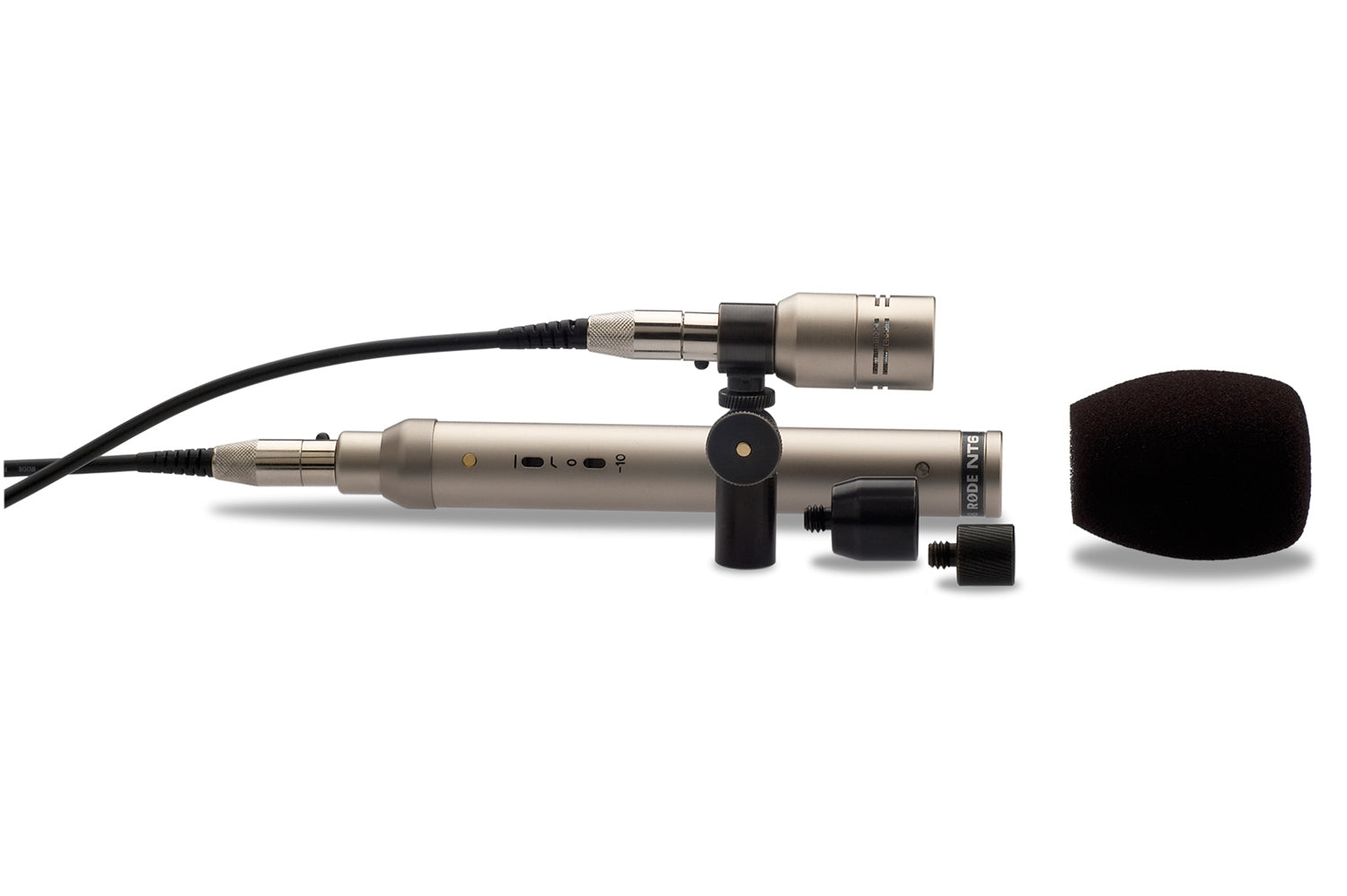

RODE NT6 Condenser Mic with Remote Capsule
The RØDE NT6 is an extremely compact 1/2" cardioid condenser microphone, specifically designed for difficult mounting applications where the highest quality audio is required.
Although clearly relevant to instrument miking, the NT6 is extremely well suited to any situation where an unobtrusive but powerful microphone is required such as location recording.
The microphone is split into two modular components, joined by via a custom 3m (10') shielded, Kevlar® reinforced cable.
Featuring a gold-sputtered, true-condenser capsule, the NT6 capsule head measures 45mm (1.8”) in length and weighs only 42gm (1.5oz). The included all-metal, multi-position mounting ring provides 180 degrees of vertical rotation.
The NT6 preamp-body incorporates both a high-pass filter and pad setting. The high-pass filter can be introduced to cut vibration, rumble and undesired sounds sources under 80Hz, while the PAD offers a -10dB level attenuation, useful when recording louder sound sources.
The NT6's small form factor make it an ideal small diaphragm cardioid microphone for use in the Mid-Side (M/S) stereo array, in combination with a figure-8 large diaphragm microphone such as the NT2-A, NT2000 or K2.
Acoustic Principle | Pressure Gradient |
Active Electronics | JFET impedance converter with bipolar output buffer |
Capsule | 0.50" |
Polar Pattern | |
Address Type | End |
Frequency Range | 40Hz - 20kHz |
Output Impedance | 200Ω |
Maximum SPL | 135dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Maximum Output Level | 6.0mV |
Sensitivity | -37.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 19dB-A |
Power Options | |
Weight | 386.00gm |
Dimensions | 189.00mmH x 64.00mmW x 20.00mmD |
Output | |
Warranty | 1 year with free extension to 10 years following registration here |
- 1/2” condenser capsule with remote preamp
- Gold sputtered externally biased condenser
- Two position PAD - 0dB and -10dB
- Two position High Pass Filter - flat and 80Hz
- Heavy duty satin-nickel plated body
- Low noise and full frequency response
