Rode NTG5 Shotgun Microphone Recording Kit

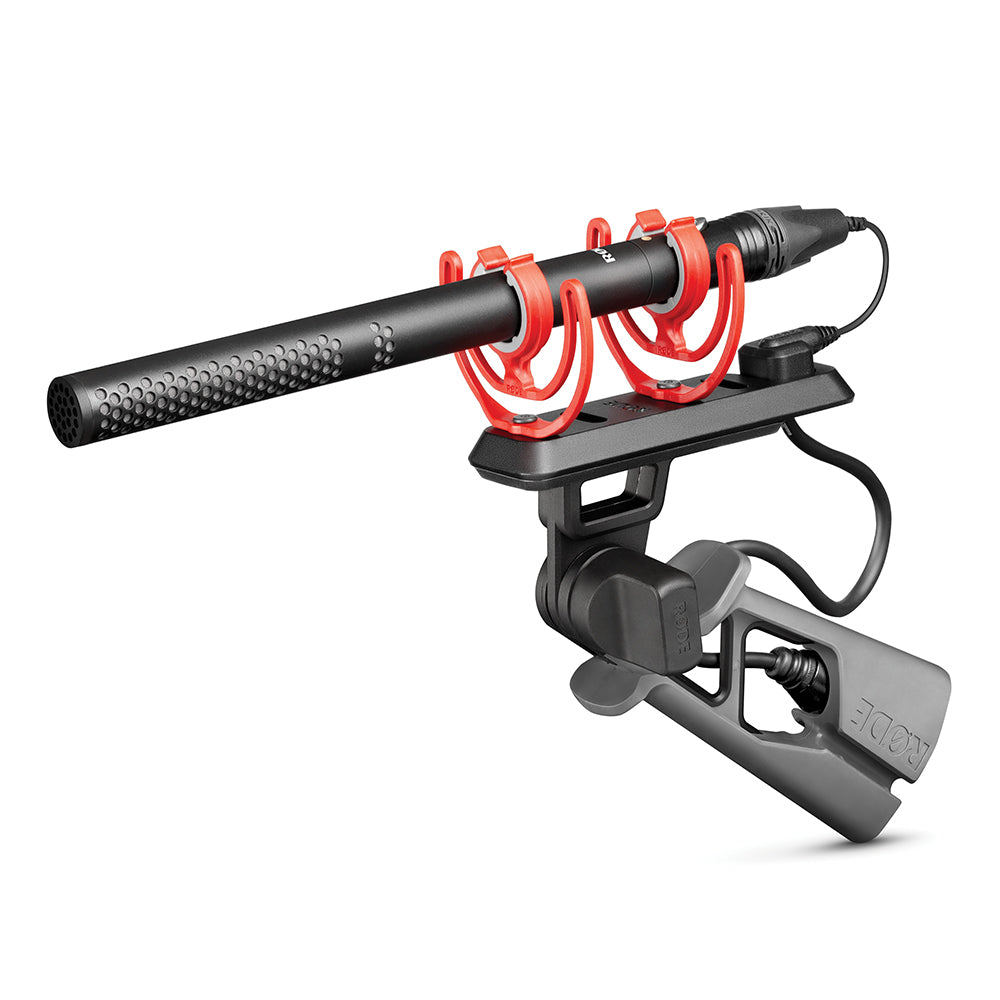

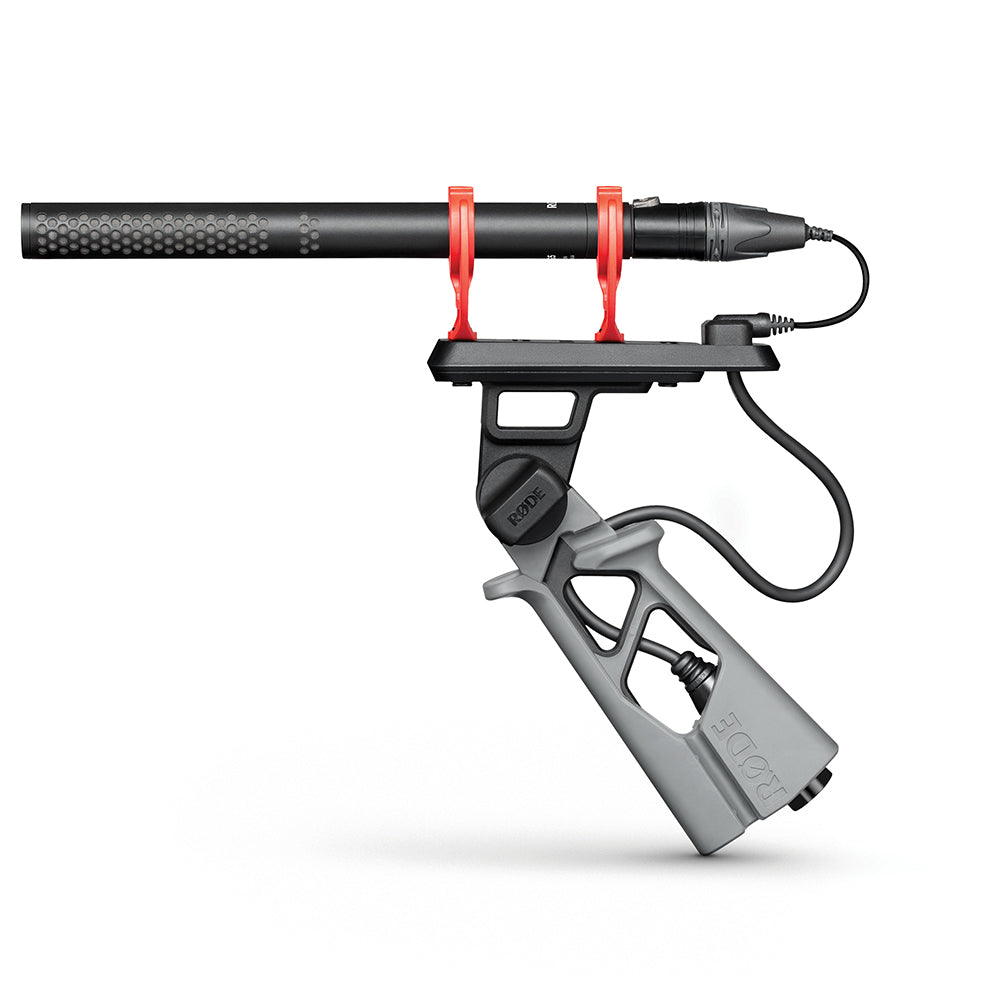

The Rode NTG5 Kit is a complete shotgun microphone location recording kit with WS10 windshield, PG2-R pistol grip and other accessories.

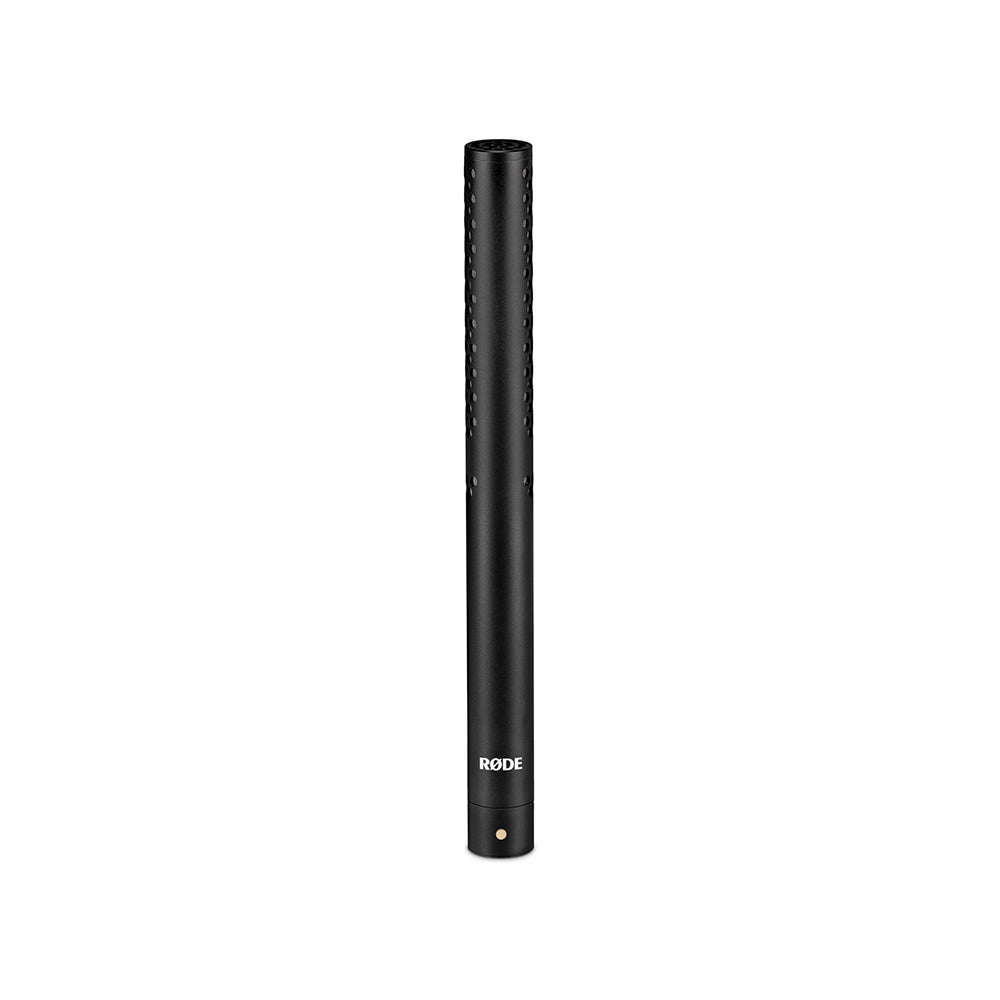

NTG5 is a short, ultra-lightweight shotgun microphone ideal for use in the most demanding recording applications. Featuring a revolutionary acoustic design with circular ports replacing the linear slots found in other shotgun mics, it offers unmatched transparency and a more natural, uncoloured sound. Combined with a tightly controlled frequency response, smooth off-axis response, and very low self-noise (just 10dBA), the NTG5 sounds spectacular in a wide variety of applications, particularly location recording and demanding filmmaking scenarios where superlative audio is the imperative. No excuses.
The NTG5 is a boom operator’s dream, weighing a mere 76g and measuring just over 20cm, making it ideal for use on long, demanding shoots. It features RF-bias circuitry to ensure reliable performance in adverse environments, with excellent resistance to high humidity, severe cold, damp, and dust. And it comes with a WS10 deluxe windshield, PG2-R pistol grip, and other accessories – the perfect location recording kit.
Main features of the Rode NTG4 Shotgun Microphone Recording Kit include:
Acoustic Principle |
RF-bias condenser |
Active Electronics |
RF-bias demodulation |
Polar Pattern |
Supercardioid shotgun |
Frequency Range |
20 Hz – 20 kHz |
Frequency Response |
80 Hz - 20 kHz ±3 dB |
Output Impedance |
25 Ω |
Signal to noise Ratio |
84 dB |
Equivalent Noise |
10 dB SPL (A-weighted, as per IEC651) |
Input SPL @ 1% THD |
130 dB SPL (1kHz @ 1% THD, 600 Ω load) |
Power Requirements |
2 mA @ 48V phantom power |
Sensitivity |
-23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL @ 1 kHz) |
Dimensions (L x W x H, mm) |
NTG5: 203 x 19 PG2-R:117 x 60 x 240 |
Weight (g) |
NTG5: 76g PG2-R: 224g |
- Complete location recording kit with WS10 windshield, PG2-R pistol grip and other accessories
- Natural, uncoloured sound
- Extremely lightweight (just 76g), and short in length (just 203mm)
- Tailored frequency response and very low self-noise of just 10dBA
- Highly directional supercardioid polar pattern and smooth off-axis response
