RODE

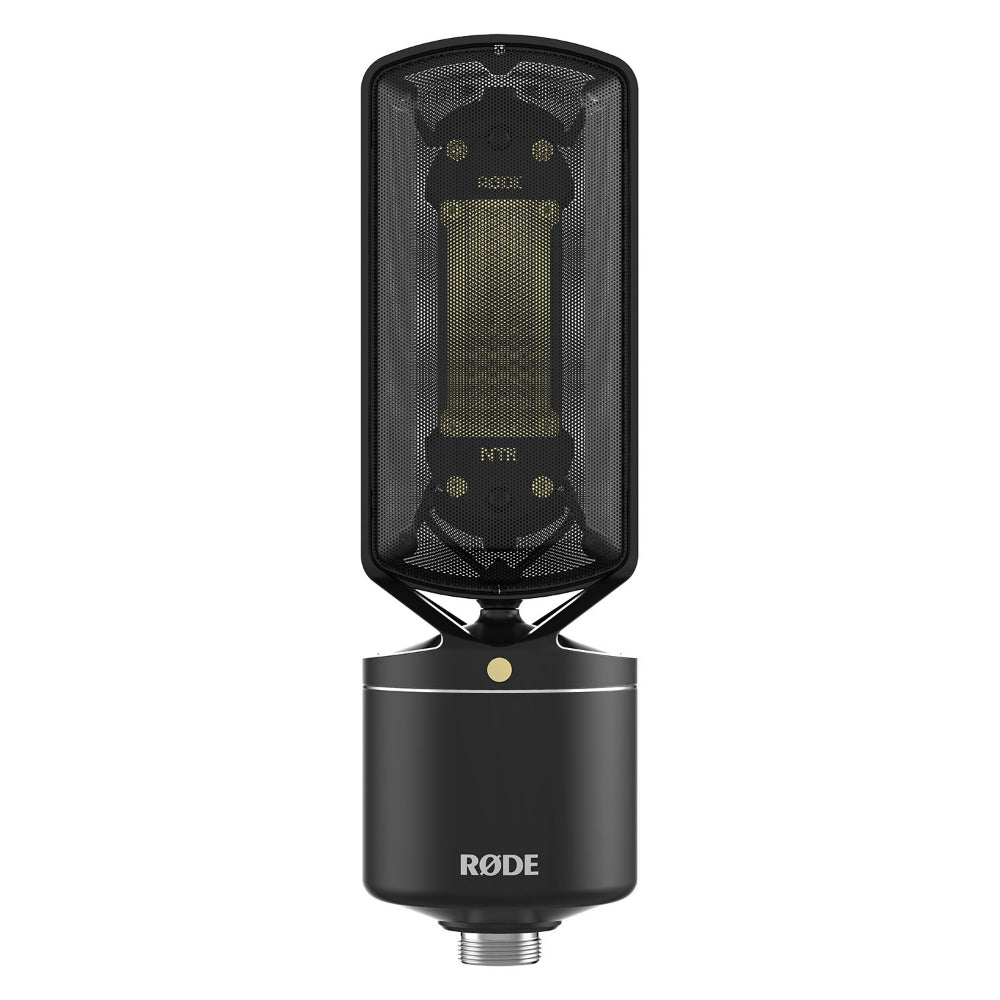

RODE NTR Active Ribbon Microphone
Sonically, the NTR is capable of reproducing unprecedented high frequency detail and accuracy, addressing common criticisms of other ribbon microphones, while opening up the possible usage scenarios considerably. This allows it to record sound sources that usually require a more sensitive microphone element.
NTR Specifications
Acoustic Principle | Velocity Transducer |
Active Electronics | Step-up Transformer and signal balanced preamp stage |
Polar Pattern | |
Address Type | Side |
Frequency Range | 20Hz - 20kHz |
Output Impedance | 200Ω |
Maximum SPL | 130dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
Sensitivity | -30.5dB re 1 Volt/Pascal (30.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
Equivalent Noise Level (A-weighted) | 15dB-A |
Power Options | |
Weight | 1047gm |
Dimensions | 216mmH x 65mmW x 65mmD |
Output | |
Warranty | 1 year with free extension to 10 years following registration here |
- Highly sensitive 1.8 micron ribbon element
- Bi-Directional Polar Pattern
- Internal Shock Mounting System
- Custom designed and manufactured transformer
- Ribbon-securing travel screw supplied
- One free ribbon replacement during warranty period
- Highly sensitive 1.8 micron ribbon element
- Bi-Directional Polar Pattern
- Internal Shock Mounting System
- Custom designed and manufactured transformer
- Heavy-duty matte black finish
- Ribbon-securing travel screw supplied
- Designed and manufactured in Australia
- One free ribbon replacement during warranty period
- Ten year extended warranty with online registration
