- Signal processing
- Sampling Frequency: 48 kHz
- Nominal input level
- MIC IN (1/4-inch phone type): -60 dBu
- Nominal output level
- MASTER OUT: 2.0 Vrms
- Input impedance
- MIC IN (Combo type): 7 k ohms or greater
- Output impedance
- MASTER OUT: 1 k ohm
PHONES: 22 ohms - Frequency response
- 48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)

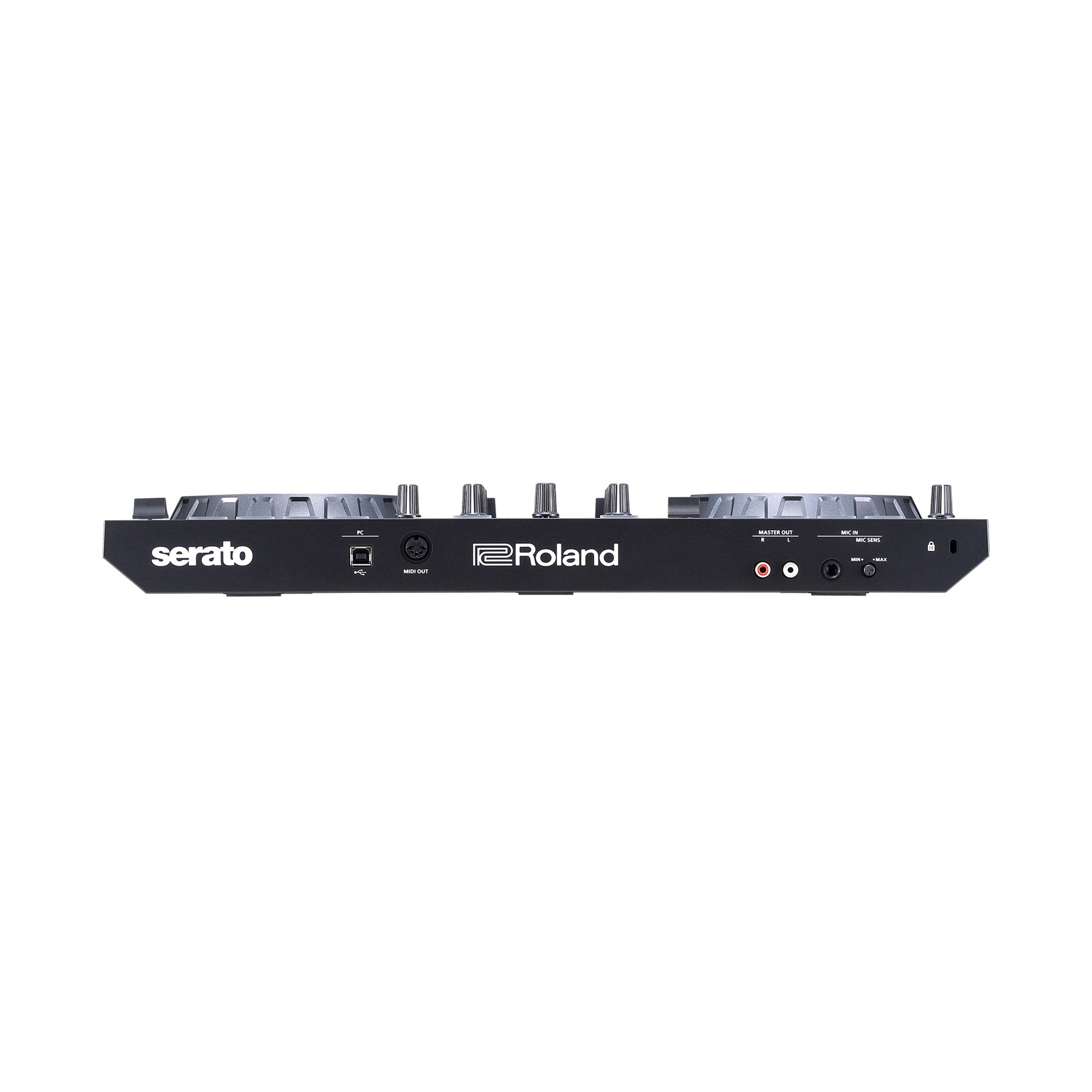

- Connectors
- MIC IN jack: 1/4-inch phone type
MASTER OUT jacks: RCA phono type

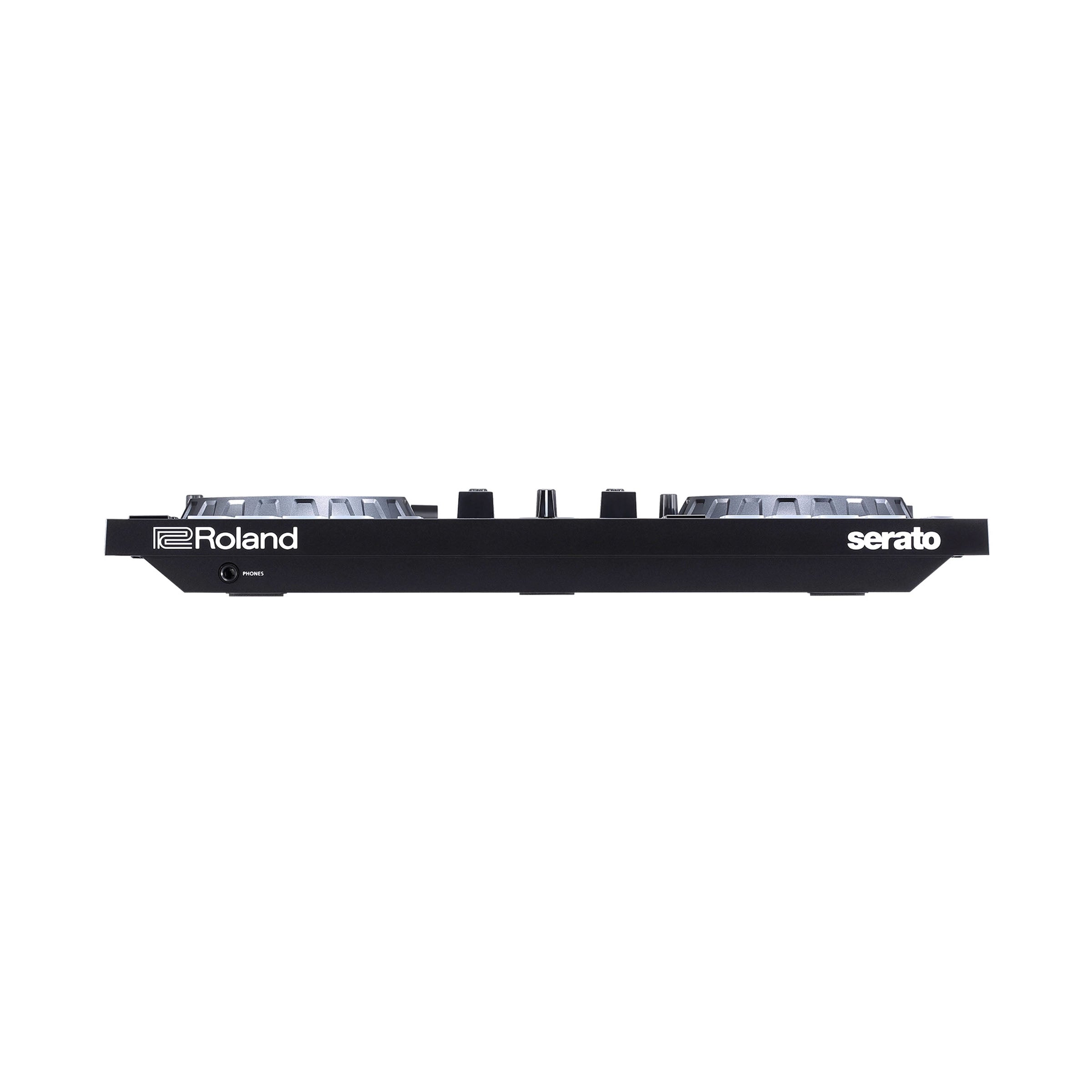

PHONES jacks: stereo 1/4 inch phone type
PC port: USB type B
MIDI OUT connector - Power supply
- USB bus power
- Current draw
- 500 mA
- Accessories
- Startup Guide
USB cable - SIZE AND WEIGHT
- Width
- 478 mm
18-7/8 inches - Depth
- 297 mm
11-3/4 inches - Height
- 62 mm
2-1/2 inches - Weight
- 2.1 kg
4 lbs 11 oz - * 0 dBu = 0.775 Vrms
ROLAND

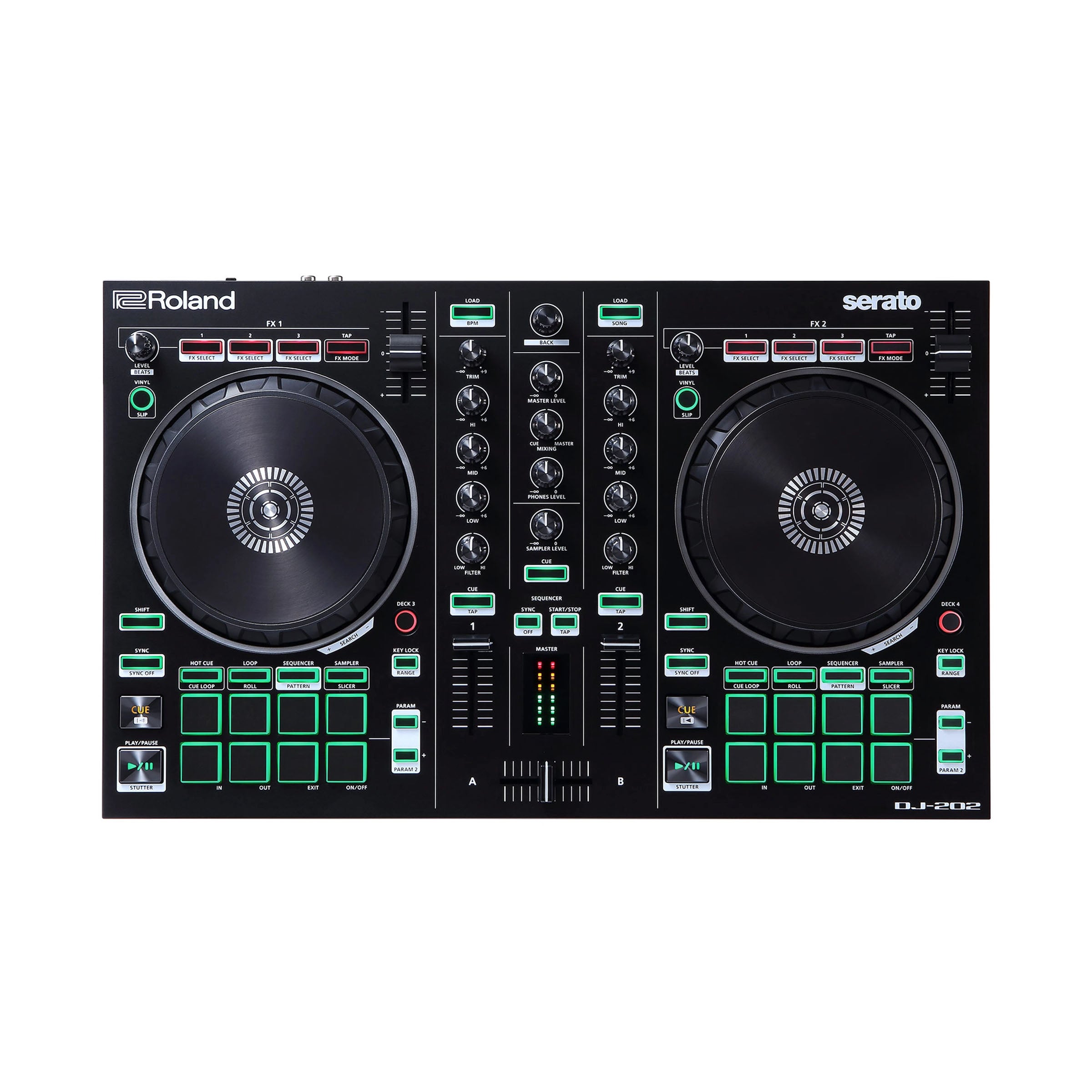

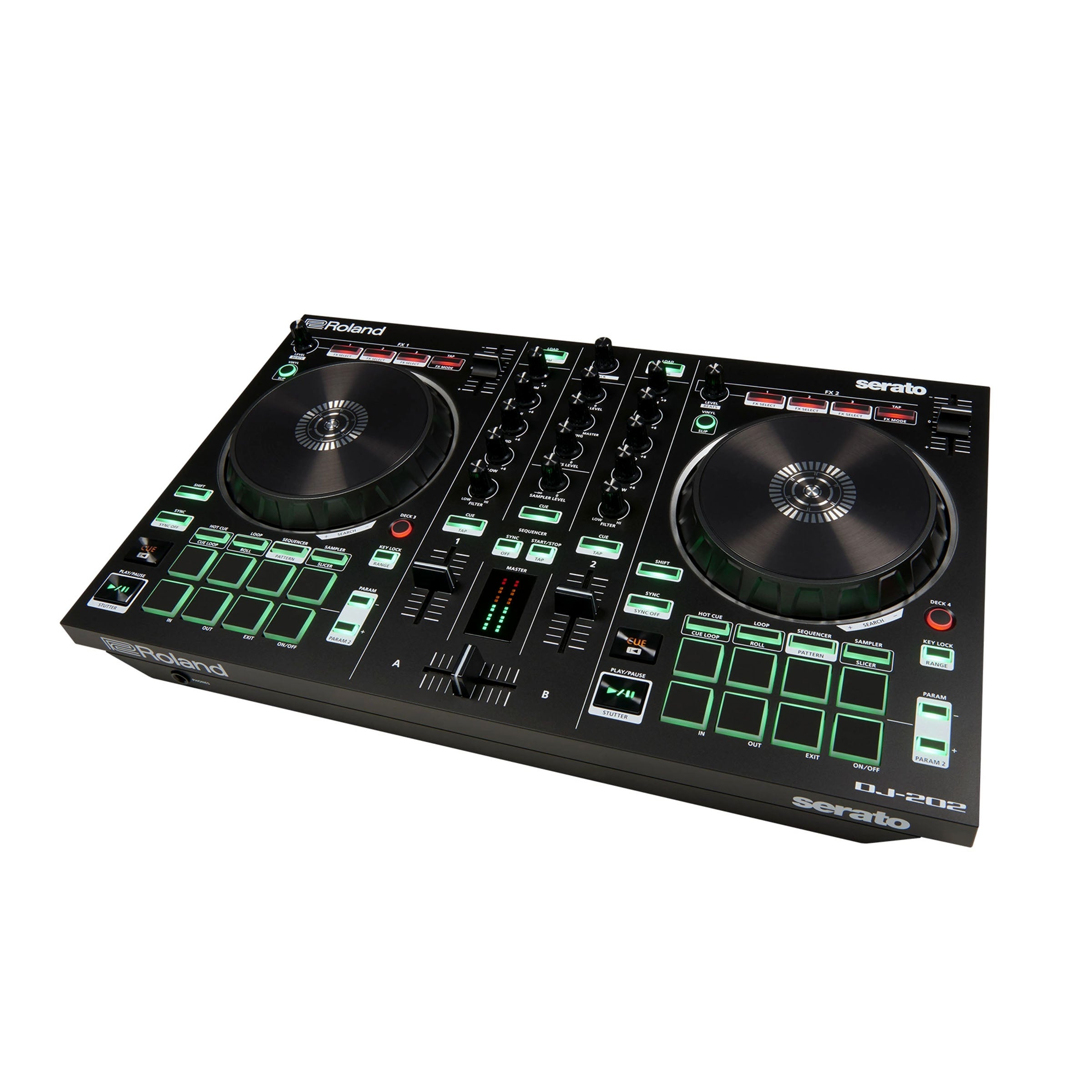

Roland DJ-202 2Ch Serato DJ Controller
The Roland DJ-202 is a two-channel, four-deck controller that’s powered via USB and capable of being transported and set up with minimal effort. Its compact, lightweight design and easy-grab handles allow DJs the portability they need for all types of events—mobile applications, house parties, club rocking, beat battles, and more. The intuitive layout of the DJ-202 and its plug-and-play connectivity will have you DJing in no time at all. And with 24-bit/48 kHz fidelity and Roland’s high-resolution audio hardware, your performances will sound amazing on any sound system.
- Main features of the Roland DJ-202 Serato DJ Controller
- Two-channel, four-deck controller for Serato DJ Lite
- Large platters with the lowest available latency, optimized for scratching
- Built-in drum kits from Roland’s legendary TR-909, TR-808, TR-707, and TR-606, realized with advanced ACB (Analog Circuit Behavior) technology
- Eight sounds in each TR kit: Bass Drum, Snare Drum, Closed Hat, Open Hat, Tom, Rim, Clap, and Ride
- Onboard sequencer that controls Serato DJ Lite’s sampler for on-the-fly beat creation
- Independent sampler volume control
- Eight dedicated pads with Hot Cue, Loop, Sequencer, and Sampler modes for controlling Serato DJ Lite or Serato DJ Pro software
- MIDI output for synchronizing external devices with tracks in Serato DJ Lite
- Mic input with gate, hi-pass, reverb, and echo FX 24-bit/48 kHz audio fidelity with high-resolution digital-to-analog converters
- Compact, rugged, and lightweight design with easy-grab handles for optimal portability
- Connect straight to your speakers or amplifier via RCA stereo outputs
- USB powered for simple connectivity
- Serato DJ Lite included; Serato DJ Pro Upgrade Ready
- Use Serato DJ Lite to organize and build music libraries or integrate songs from iTunes—just drag a track to the deck, set and trigger cues, loops, and samples, and apply basic FX
Legendary Machines
The Roland Drum Machine Legacy in a DJ Controller
From the TR-909's unmistakable hi-hats to the foundation-shaking boom of the TR-808, Roland TR drum machines have defined the sound of entire genres of modern music, from hip-hop, house, techno, and electro in the ’80s and ’90s right up to the trap music sound of today. Using Roland’s patented ACB (Analog Circuit Behavior) technology, the DJ-202 faithfully recreates the original sound of these machines, giving you the tools to create rhythm tracks using the same sound palette as the world’s foremost musical icons. The DJ-202’s expanded TR sounds include Bass Drum, Snare Drum, Closed Hat, Open Hat, Tom, Rim, Clap, and Ride, providing a wide range of options to create layered drum sounds and evolving sequences.
Mixing and Scratching
Scratch and cue with confidence using the DJ-202’s large, low-latency platters, which are the absolute best in its class. Dedicated Serato DJ Lite controls allow quick creation and triggering of hot cues, loops, and samples, plus switching between four decks with the Deck Select button. Use the channel filters or Serato FX (accessible via three FX Select buttons per deck) to finesse blends or accentuate scratches. And with dedicated Play/Pause and Cue buttons, you have the same direct control found on high-end controllers and standalone audio players.
Bring Vocals to Life
Add new life to your DJ voice, radio drops, guest vocals, or external instruments via the 1/4-inch TS mic input with onboard reverb and echo FX. Additional vocal effects include low-cut EQ to refine the sound and a noise gate to automatically clean up sound issues and unwanted background noise.
Remix, Produce, Perform
Use the TR drums or your own sounds loaded into Serato Sampler’s four sample slots (with individual sampler volume control) to create the foundation for remixes, beats, and live performances. Program them using the DJ-202’s 16-step sequencer—accessible via the performance pads—and then sync them automatically to your Serato library to create unique transitions, live remixes, or beefed-up classic tracks. Engage Inst-Rec mode for on-the-fly, real-time Serato Sampler sequencing, or use the MIDI output to fluidly sync any MIDI-supported external devices and instruments to your sequencer and Serato DJ Lite. For expanded production capability, upgrade to Serato DJ Pro to access 32 sync-able sampler slots over four banks, the full collection of iZotope FX, software recording capabilities, and more.
