ROLAND

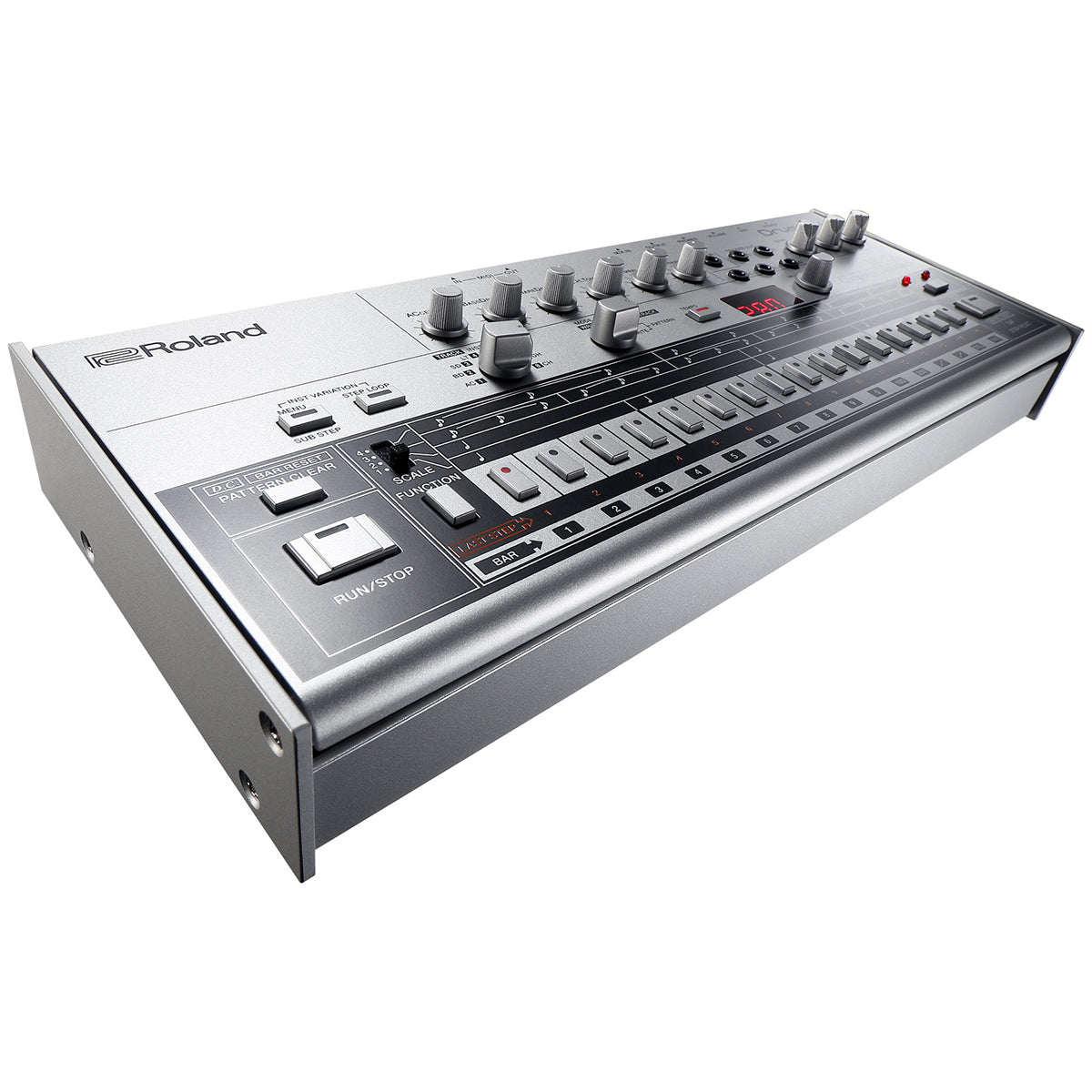

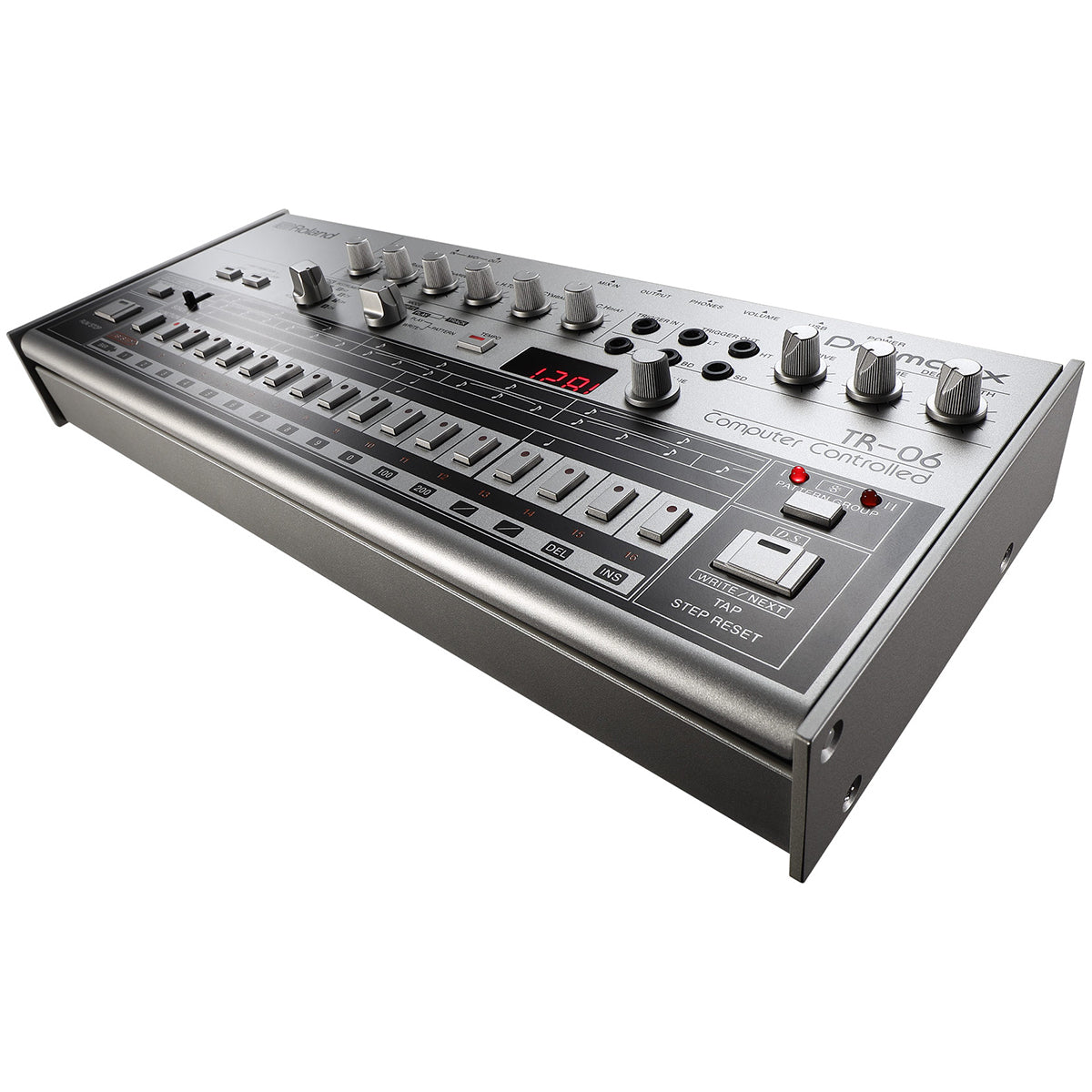

Roland TR-06 Drumatix
The Roland TR-06 is a detailed replica of the classic Roland TR-606 - with some major modern upgrades. The Roland Boutique version has the distinctive tone and iconic look of the original, with more sound-shaping options, innovative sequencing capabilities, and an array of triggers for controlling modular gear.
Main features of the Roland TR-06 Drumatix include:
Advanced sequencer
Like the original, the step sequencer in the TR-06 is familiar and straightforward, so you can bang out any type of beat quickly and easily. And now it's been updated with advanced features like adjustable sub-steps for ratcheted parts, step-loop for instant pattern slicing, and per-step probability for beats that never get boring.
Modular friendly
Many modular and tabletop rigs are missing a good drum sequencer that's convenient and easy to use. The TR-06 has five trigger outs and a trigger in, so it's easy to interface with other gear, sparking new ideas and creative possibilities. Sequencing is fast and fluid, and you can mix and layer your external modules with the TR-06's internal sounds for massive rhythmic sequences.
Built tough and ready for anything
Like other Roland Boutiques, the TR-06 is sturdy and well-constructed with a solid metal top and a color-matched case with three tilt options. It's a high-quality USB audio interface for quick and easy recording with your computer and can run on standard AA batteries for hours of uninhibited jamming. It even has a built-in speaker, because you never know what life might throw your way.
Hardware meets software
Pair the TR-06 with the TR-606 Software Rhythm Composer available on Roland Cloud and enjoy the benefits of easy hardware and software integration. The TR-606 plug-in has expanded sequencing capabilities, and the TR-06's knobs are pre-mapped for intuitive, hands-on workflow.
|
|
|
Patterns: 128 (16 patterns x 8 banks) Tracks: 8 |
|
32 steps |
|
STEP LOOP SUBSTEP FLAM INTRO / FILL IN PROBABILITY SUBSTEP PROBABILITY MASTER PROBABILITY |
|
BD: BASS DRUM* SD: SNARE DRUM* LT: LOW TOM* HT: HI TOM* CY: CYMBAL* OH: OPEN HI HAT CH: CLOSED HI HAT * Variation sounds included |
|

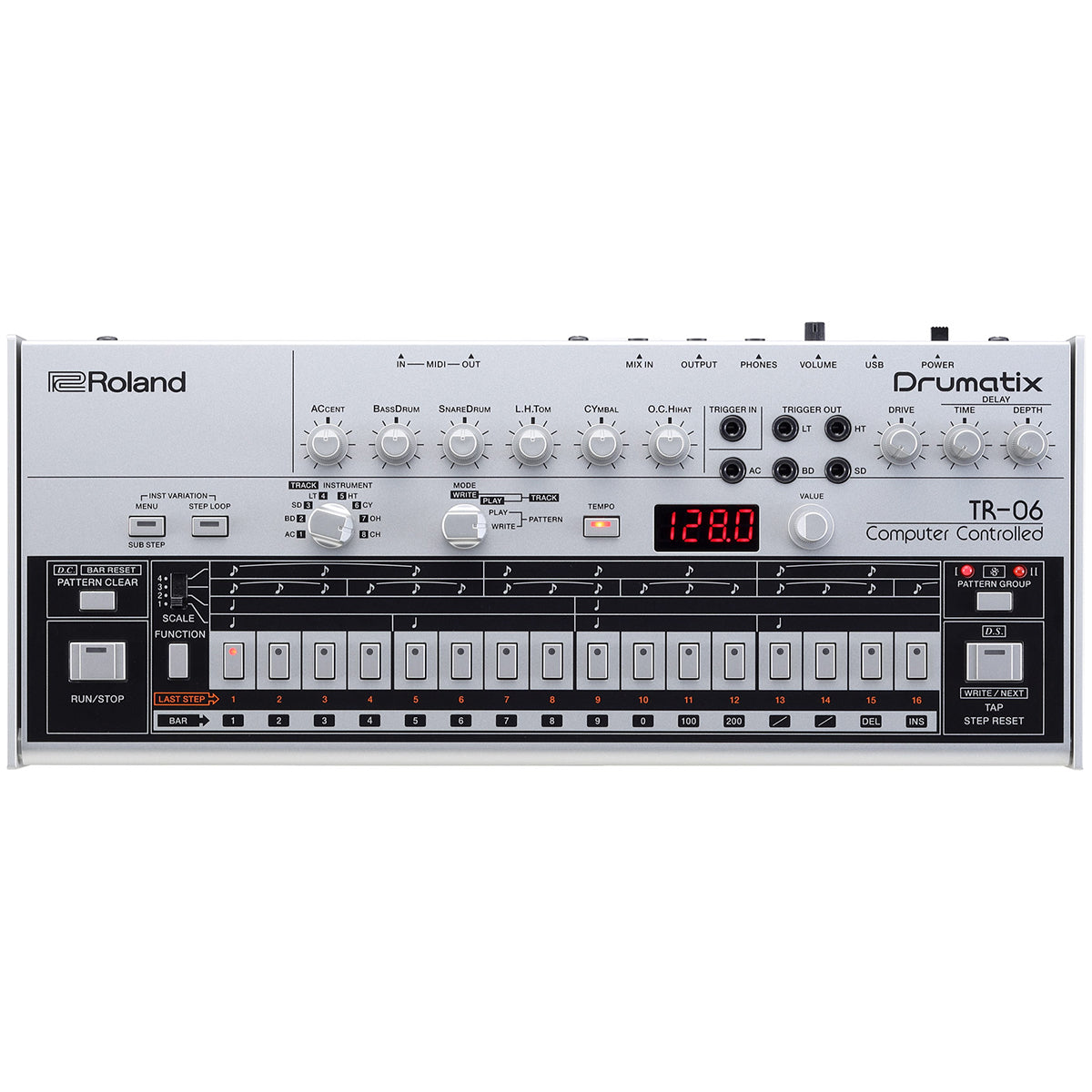

VOLUME knob RUN/STOP button PATTERN CLEAR button MENU/SUB STEP button STEP LOOP button FUNCTION button TEMPO button STEP buttons (1-16) PATTERN GROUP button and indicators TAP/STEP RESET button SCALE selector switch INSTRUMENT selector knob MODE selector knob VALUE knob Instrument Level knobs (AC, BD, SD, LT/HT, CY, OH/CH) Effect knobs (DRIVE, TIME, DEPTH) |
|
Compressor Delay Effects: DELAY, PAN DELAY, TAPE-ECHO, REVERB, FLANGER, SIDE BAND FILTER Drive Effects: SATURATOR, BIT CRUSHER, DISTORTION, LPF/HPF |
|
7 segments, 4 characters (LED) |

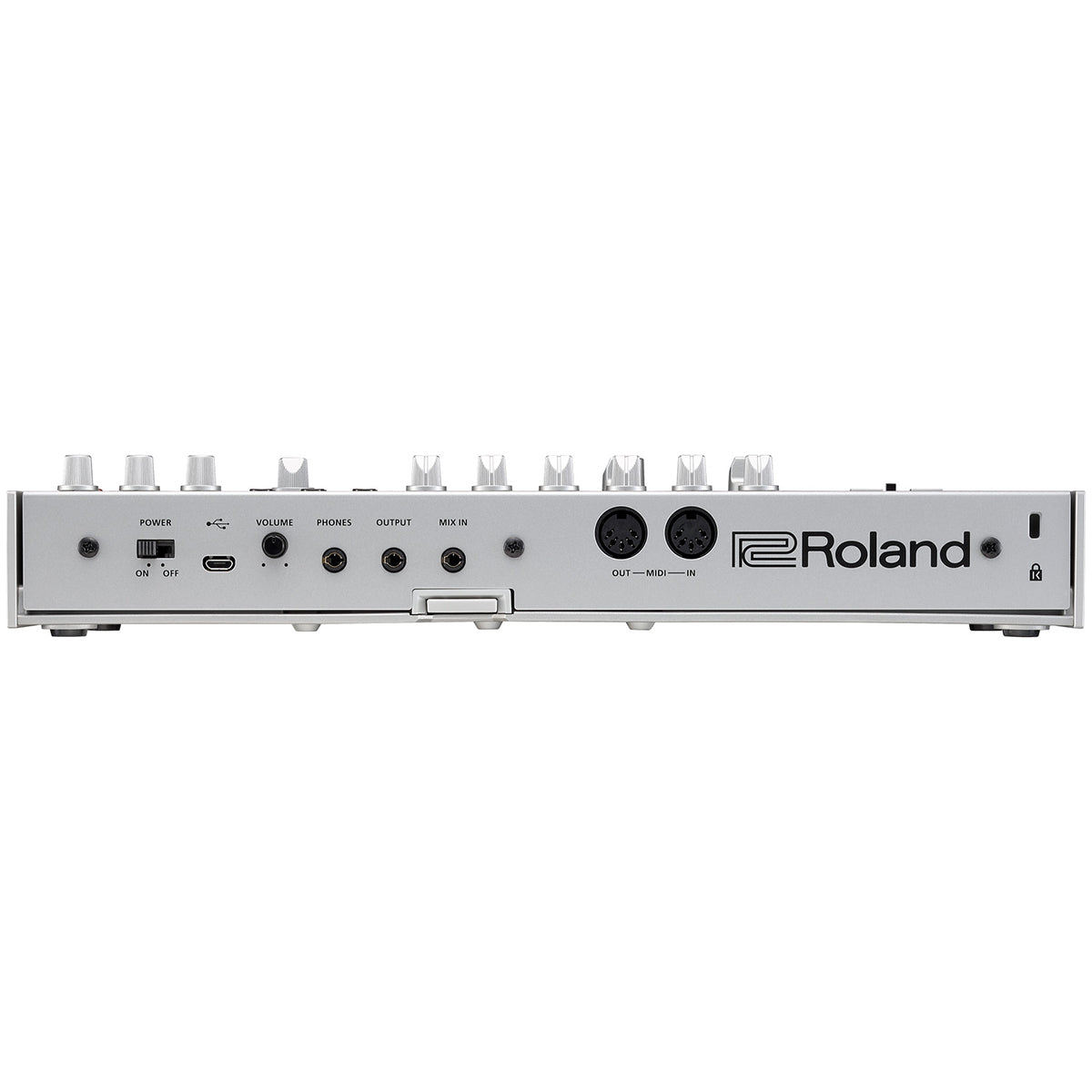

Connectors | TRIGGER IN jack: mono miniature phone type TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type PHONES jack: stereo miniature phone type OUTPUT jack: stereo miniature phone type MIX IN jack: stereo miniature phone type MIDI (IN, OUT) connectors USB port: Micro-B type (Audio, MIDI) |
|
Rechargeable Ni-MH battery (AA, HR6) x 4 Alkaline battery (AA, LR6) x 4 USB bus power |
Current Draw | 500 mA (USB bus power) |
|
Rechargeable Ni-MH battery: Approx. 5 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. |
|
Boutique Dock: DK-01 (Silver) Owner's Manual DK-01 Owner's Manual Leaflet "USING THE UNIT SAFELY" Alkaline battery (AA, LR6) x 4 |
|
308 (W) x 130 (D) x 52 (H) mm 12-1/8 (W) x 5-1/8 (D) x 2-1/16 (H) inches |
|
1.2 kg 2 lbs 11 oz |
- Detailed recreation of the vintage Roland TR-606 using Analog Circuit Behavior (ACB) modeling
- Authentic sound and iconic look of the original
- Expanded sound-shaping options with tuning, decay, pan, gain, and more
- Onboard compressor, delay, and overdrive effects
- Advanced sequencer with sub-steps, probability, and step-loop
- Five trigger outputs and one trigger input for easy integration with modular and other gear
- Color-matched DK-01 case with three tilt options
