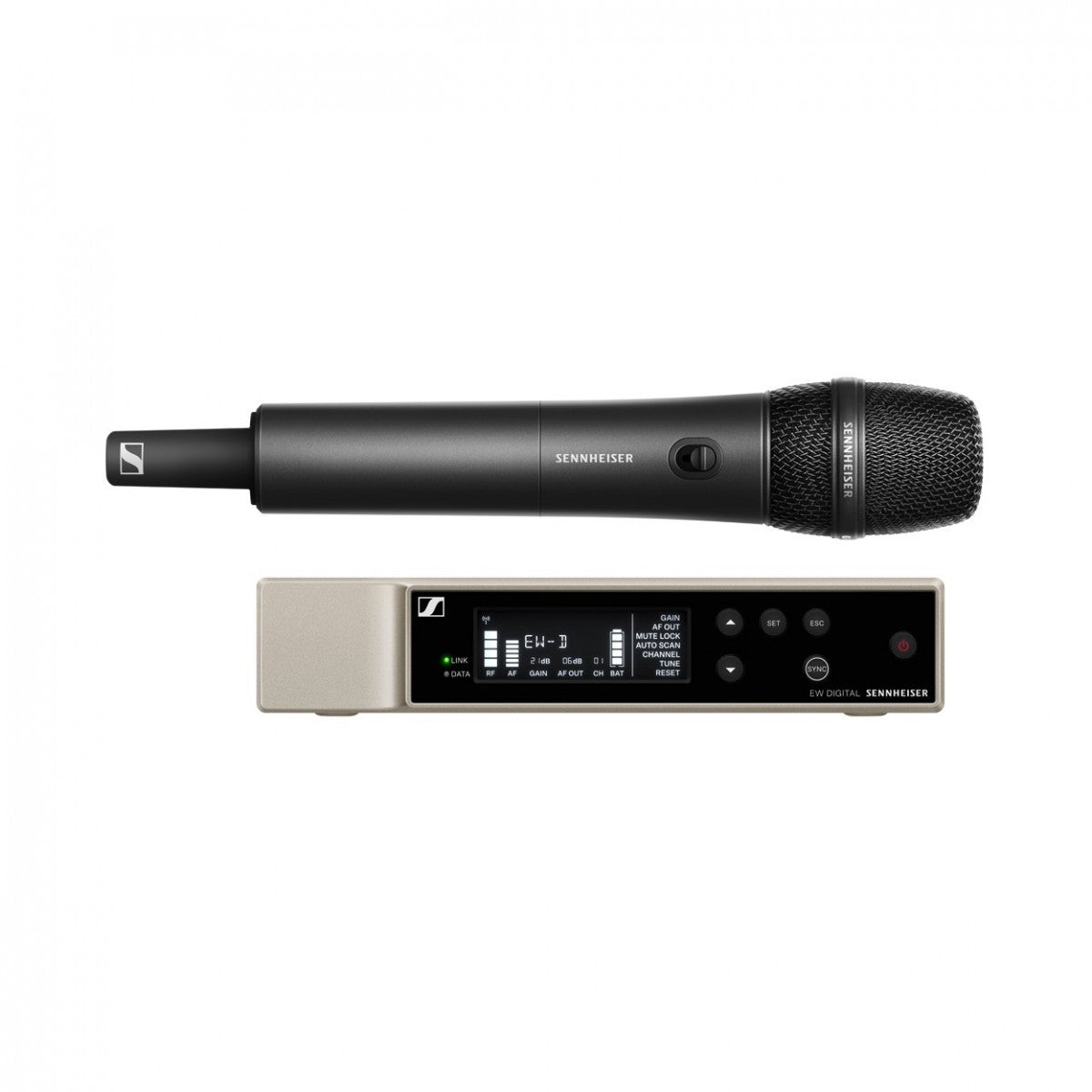

Sennheiser EW-D 835-S SET All-In-One Digital Wireless Handheld Set
The Sennheiser EW-D 835-S SET is a versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Main features of the Sennheiser EW-D 835-S SET include:
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability

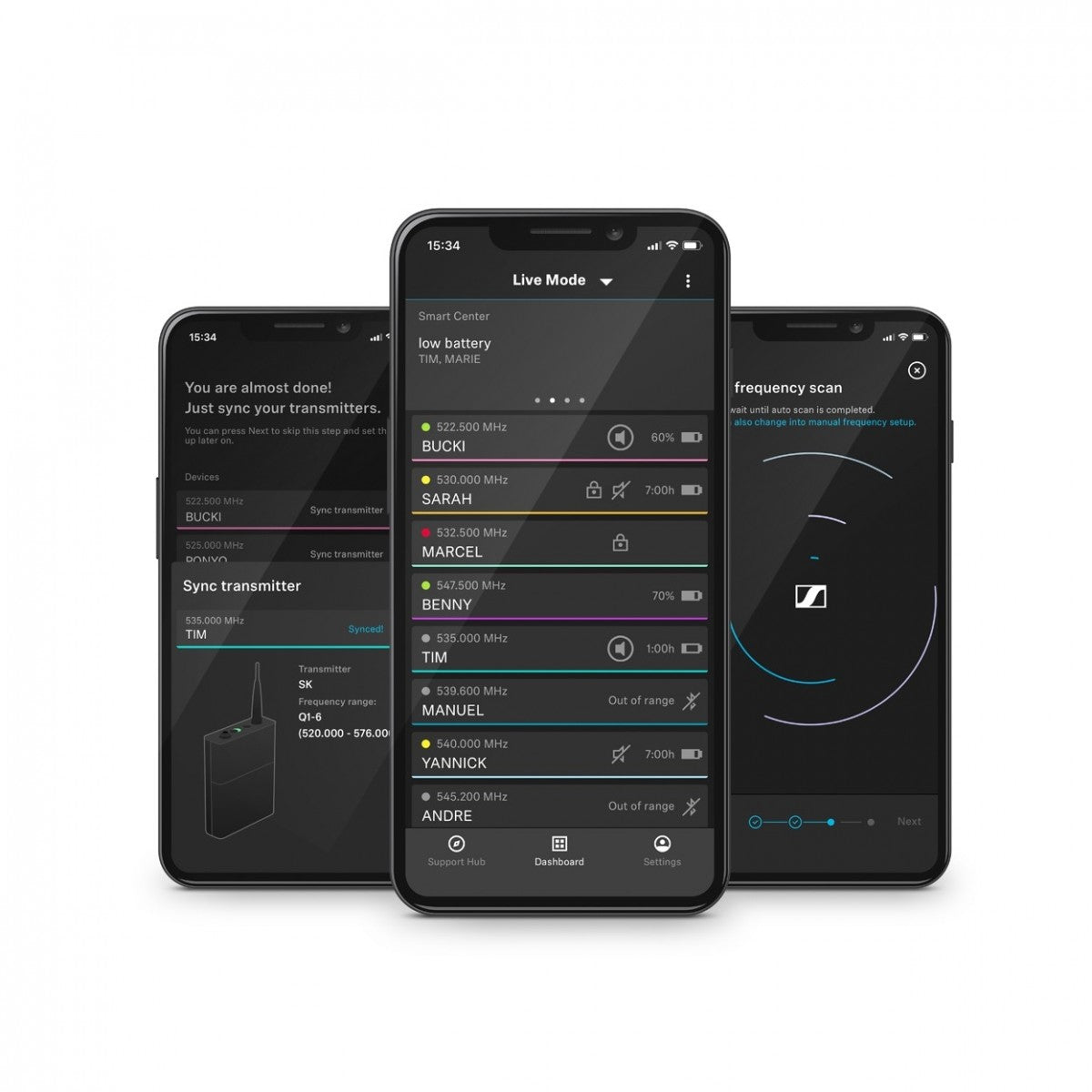

- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Frequency range |
606.2 - 662 MHz |
THD, total harmonic distortion |
≤ -60 dB for 1 kHz @ -3 dBfs input level |
Operating temperature |
-10 °C - +55 °C (14 °F - 131 °F) |
Operating relative humidity |
5 - 95 % (non-condensing) |
Audio frequency response |
20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
System Latency |
1.9 ms |
- 606.2MHz - 662MHz Wireless Operating Frequency - Band S1 - 7

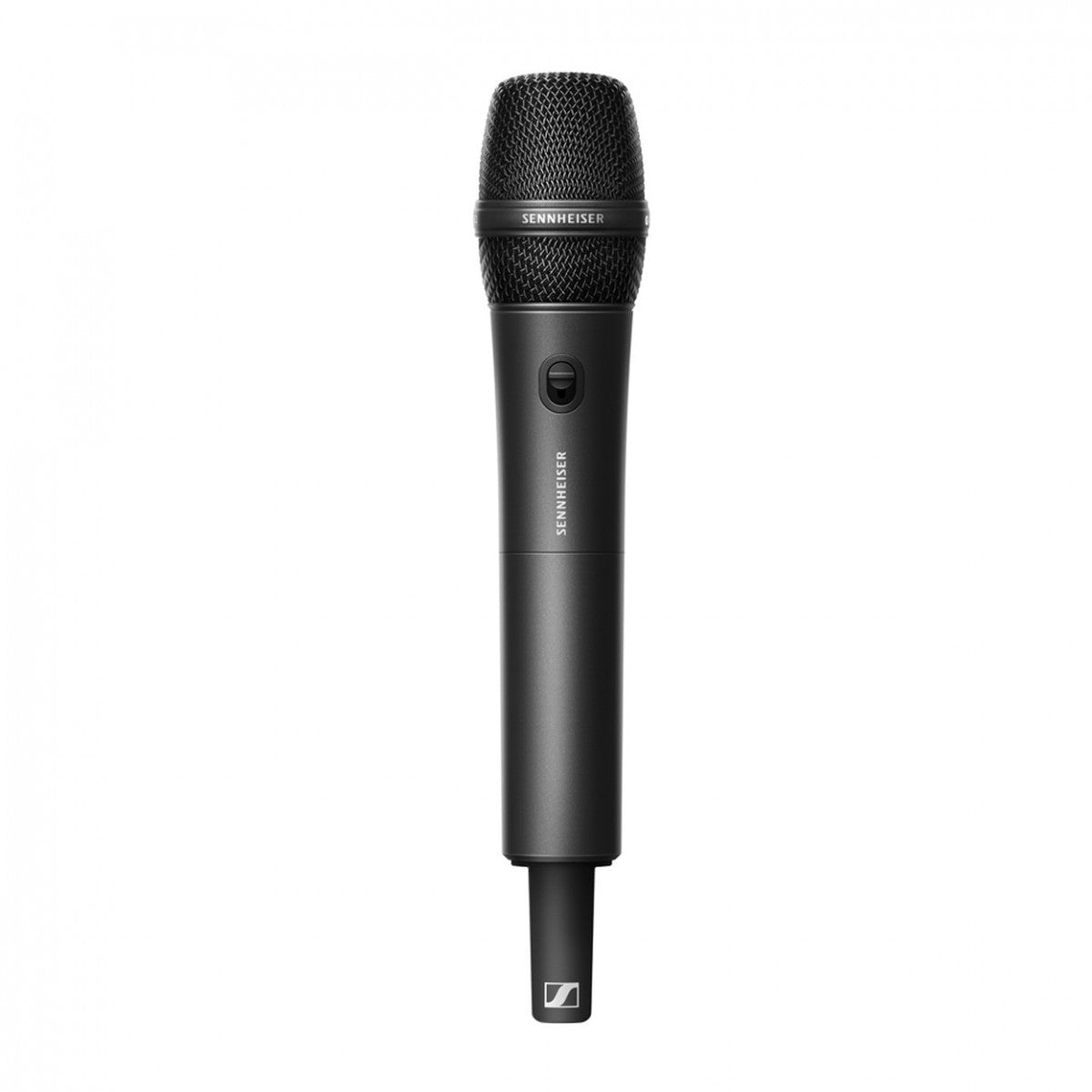

- Precise vocal capture from a dynamic capsule and digital UHF wireless transmitter

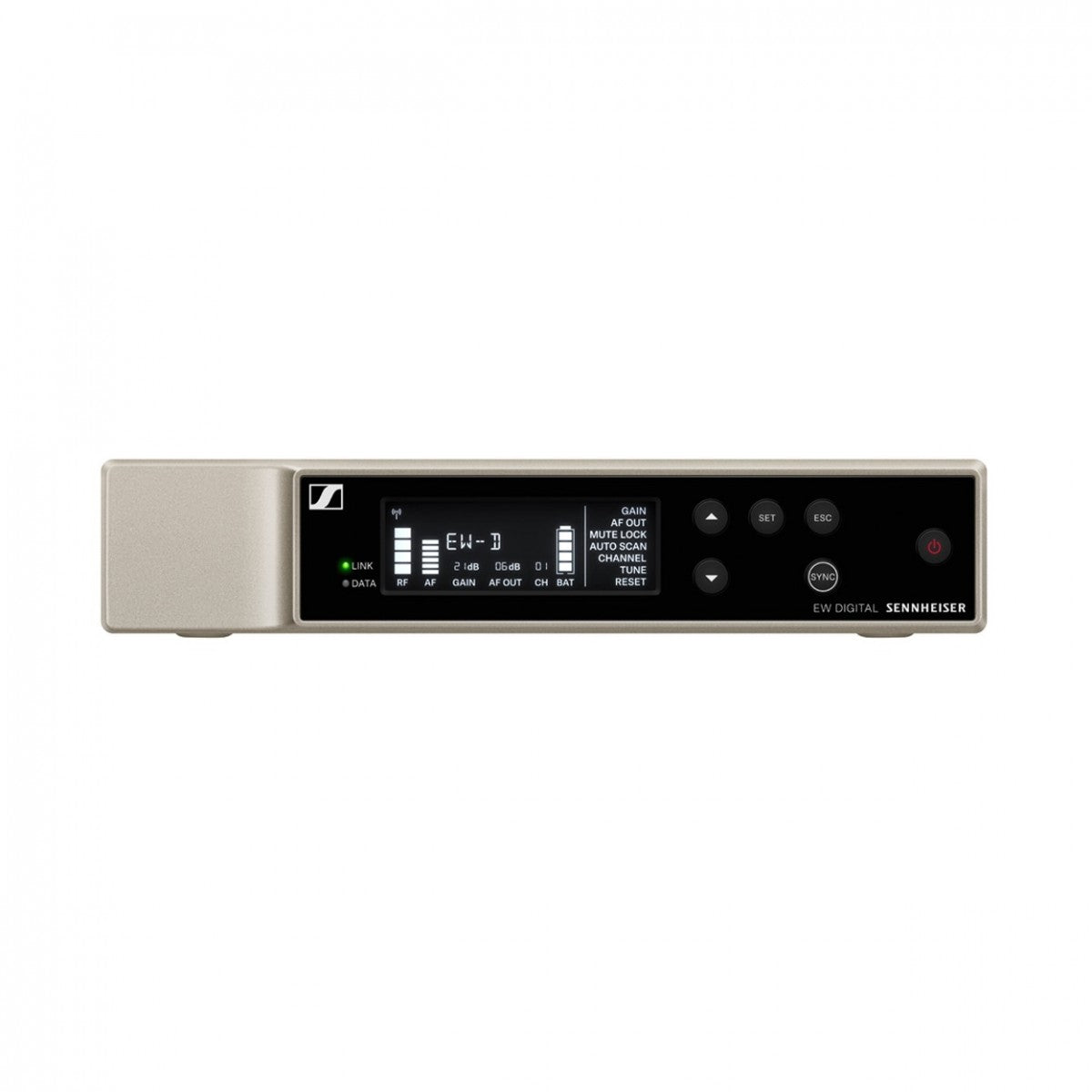

- Change your parameters on the spot directly from the receiver or your Android/iOS device
- Total freedom to perform with over 300ft wireless range from 10mW output power
- Scalable up to 90 channels with an extended 56MHz bandwidth for clear signa
