SENNHEISER

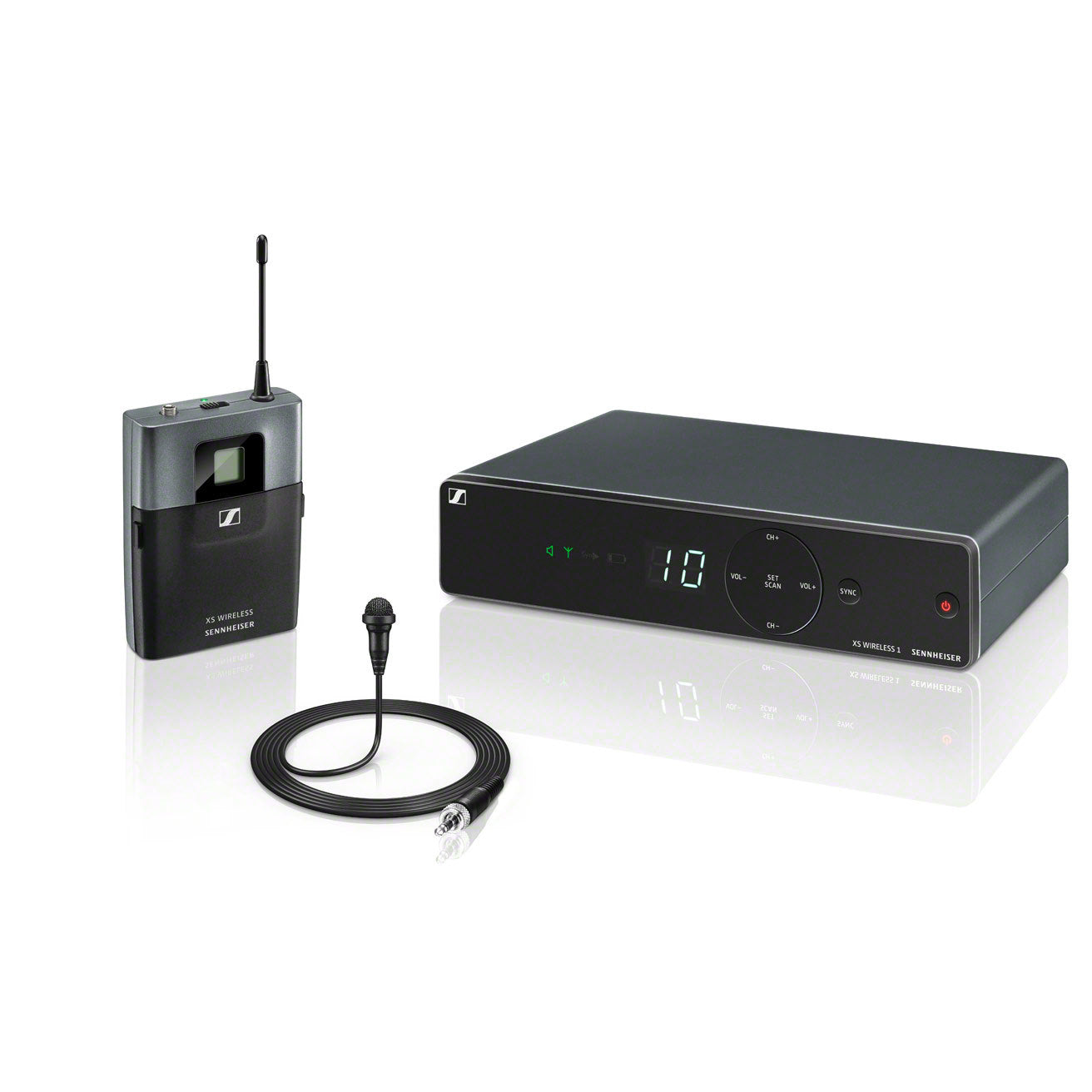

Sennheiser XSW1-ME2 Wireless Lavelier Mic System With ME2
Quantity:
XS WIRELESS 1 offers solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
Receivers
- Dimensions
- approx. 200 x 42 x 127 mm
- Weight
- approx. 340g
- Power supply
- 12 V DC nom. / 300 mA
-
- AF frequency response
- 50 to 16,000 Hz (–3 dB)
Transmitter
- Dimensions
- approx. 71 x 96 x 28 mm
- Weight
- approx. 95g
- Power supply
- 2 AA size batteries, 1.5 V
-
- Adjustment Range Transmitter
- 0 to -30 dB, adjustable in 10 dB steps
- Microphone
- condenser
- THD, total harmonic distortion
- ≤ 0.9%
- Pick-up pattern
- cardioid
-
- Signal-to-noise ratio
- ≥ 103 dBA
- RF output power
- 10 mW
- Switching bandwidth
- up to 24 MHz
- Operating time
- approx. 10 hrs
- Modulation
- wideband FM
- Output voltage
- '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing
- rugged ABS housing
- Diversity reception
- antenna switching diversity via internal antennas
- Frequency
- 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range
- A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz, C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
- Sensitivity
- < 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation
- 130 dB
- Squelch
- adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization
- 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity
- 1.5 mV / Pa
- Audio adjustment range
- 45 dB, adjustable in 5-dB steps
- Line / Mic level
- 20 dB, switchable
- Temperature Range
- operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle
- double superheterodyne
- Compact bodypack transmitter, unobstrusive clip-on microphone
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
WHAT'S IN THE BOX?
- 1 receiver EM-XSW 1
- 1 lavalier microphone ME 2-2
- 1 bodypack transmitter SK-XSW
- 1 power supply NT 12-5 CW
- 2 AA batteries
