Shure

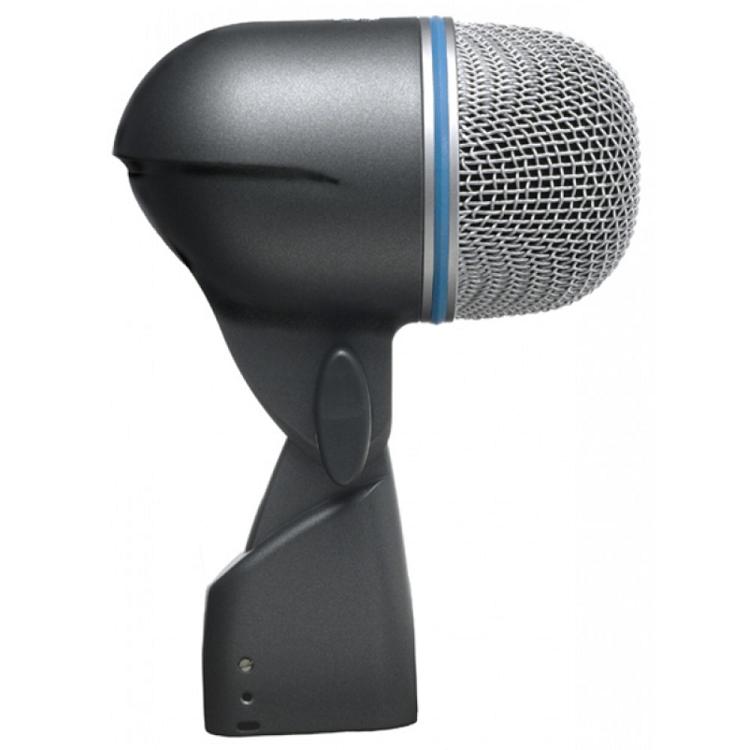

Shure Beta 52A Dynamic Microphone
Quantity:
The Shure Beta 52A is a high output dynamic microphone with a tailored frequency response designed specifically for kick drums and other bass instruments. It provides superb attack and punch, and delivers studio quality sound even at extremely high sound pressure levels. The Beta 52A features a modified supercardioid pattern throughout its frequency range to insure high gain-before-feedback and excellent rejection of unwanted sound. A built in dynamic locking stand adapter with an integral XLR connector simplifies installation, particularly if the microphone is to be placed inside a kick drum. The stand adapter keeps the microphone position fixed and resists slipping, even when subjected to sharp blows and strong vibrations. A hardened steel mesh grille protects the Beta 52A from the abuse and wear associated with touring.
Type
Dynamic (moving coil)
Frequency Response
20 to 10,000 Hz
Response Curve Image Small Beta52 View Larger
NOTE: The curve shows on-axis response at a distance of 2 feet from a uniform sound source. Your response may vary, depending on microphone position.
Polar Pattern
Supercardioid, rotationally symmetrical about microphone axis
Output Level (at 1,000 Hz)
Open Circuit Voltage: -64 dBV/Pa* (0.6 mV)
*1 Pa = 94 dB SPL
Impedance
Rated impedance is 150 ohms (45 ohms actual) for connection to microphone inputs rated low Z
Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Maximum SPL
174 dB at 1000 Hz (calculated)
Connector
Three-pin professional audio connector (male XLR type)
Case
Silver blue enamel-painted die cast metal with hardened, matte-finished steel grille
Adjustable, Locking Stand Adapter
Integral, dynamic locking, adjustable through 180 degrees, with standard 5/8"-27 thread
Net Weight
605 grams (21.6 oz)
Dynamic (moving coil)
Frequency Response
20 to 10,000 Hz
Response Curve Image Small Beta52 View Larger
NOTE: The curve shows on-axis response at a distance of 2 feet from a uniform sound source. Your response may vary, depending on microphone position.
Polar Pattern
Supercardioid, rotationally symmetrical about microphone axis
Output Level (at 1,000 Hz)
Open Circuit Voltage: -64 dBV/Pa* (0.6 mV)
*1 Pa = 94 dB SPL
Impedance
Rated impedance is 150 ohms (45 ohms actual) for connection to microphone inputs rated low Z
Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Maximum SPL
174 dB at 1000 Hz (calculated)
Connector
Three-pin professional audio connector (male XLR type)
Case
Silver blue enamel-painted die cast metal with hardened, matte-finished steel grille
Adjustable, Locking Stand Adapter
Integral, dynamic locking, adjustable through 180 degrees, with standard 5/8"-27 thread
Net Weight
605 grams (21.6 oz)
- Frequency response shaped specifically for kick drums and bass instruments
- Built–in dynamic locking stand adapter
- Can take extremely high sound pressure levels
- Supercardioid pattern for high gain before feedback
- Advanced pneumatic shock mount system
- Low sensitivity to varying load impedance
- Frequency response shaped specifically for kick drums and bass instruments
- Built–in dynamic locking stand adapter with integral XLR connector simplifies setup, especially inside a kick drum
- Studio quality performance, even at extremely high sound pressure levels
- Supercardioid pattern for high gain before feedback and superior rejection of unwanted noise
- Hardened steel mesh grille that resists wear and abuse
- Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
- Neodymium magnet for high signal–to–noise ratio output
- Low sensitivity to varying load impedance
- Legendary Shure quality and reliability
