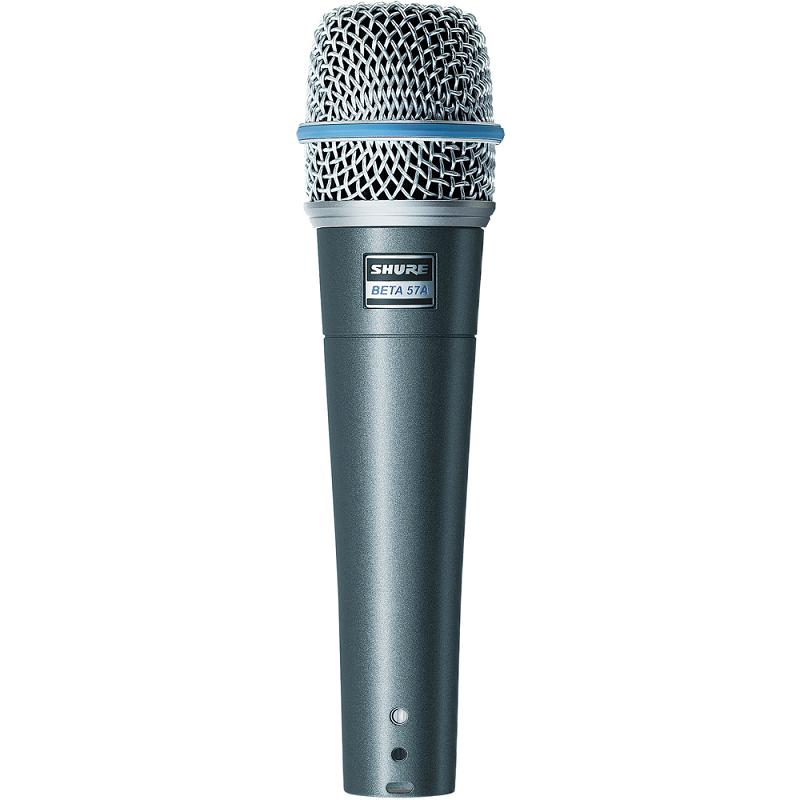

Shure Beta 57A Premium Dynamic Microphone
The Shure Beta 57A is a high output supercardioid dynamic microphone designed for professional sound reinforcement and project studio recording. It maintains a true supercardioid pattern throughout its frequency range. This insures high gain-before-feedback, maximum isolation from other sound sources, and minimum off axis tone coloration. Excellent for acoustic and electric instruments as well as for vocals, the extremely versatile Beta 57A dynamic microphone provides optimal warmth and presence. Typical applications include drums, guitar amplifiers, brass, woodwinds and vocals.
Dynamic (moving coil)
Frequency Response
50 to 16,000 Hz
Response Curve Image Small Beta57A View Larger
NOTE: The curve above shows on-axis response at a distance of 2 feet from a uniform sound source. Your response may vary, depending on microphone position.
Polar Pattern
Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency.
Output Level (at 1,000 Hz)
Open Circuit Voltage -51 dBV/Pa* (2.8 mV)
*1 Pa = 94 dB SPL
Impedance
Rated impedance is 150 ohms (290 ohms actual) for connection to microphone inputs rated low Z.
Phasing
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
Connector
Three-pin professional audio connector (male XLR type).
Case
Silver blue enamel-painted die cast metal with hardened, matte-finished steel mesh grille.
Adjustable Stand Adapter
Slip-in, adjustable through 180 degrees, with standard 5/8"-27 thread.
Net Weight
275 grams (9.6 oz)
- Tailored frequency response provides drums, guitars, vocals, and horns with studio quality sound
- Uniform supercardioid pattern for high gain-before-feedback and superior rejection of off-axis sound
- Hardened steel mesh grille that facilitates use of proximity effect and resists wear and abuse
- Neodymium magnet for high signal-to-noise ratio output
- Minimally affected by varying load impedance
- Tailored frequency response provides drums, guitars, vocals, and horns with studio quality sound
- Uniform supercardioid pattern for high gain-before-feedback and superior rejection of off-axis sound
- Hardened steel mesh grille that facilitates use of proximity effect and resists wear and abuse
- Neodymium magnet for high signal-to-noise ratio output
- Minimally affected by varying load impedance
- Advanced pneumatic shock mount system that minimizes transmission of mechanical noise and vibration
- Legendary Shure quality and reliability
